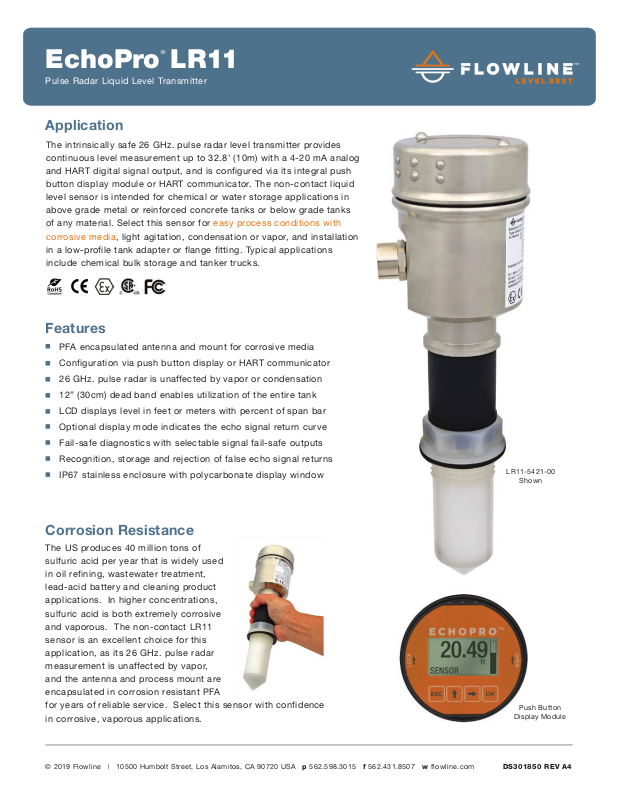

Page 1
EchoPro
Pulse Radar Liquid Level Transmitter
LR11
Application
The intrinsically safe 26 GHz. pulse radar level transmitter provides
continuous level measurement up to 32.8’ (10m) with a 4-20 mA analog
and HART digital signal output, and is configured via its integral push
button display module or HART communicator. The non-contact liquid
level sensor is intended for chemical or water storage applications in
above grade metal or reinforced concrete tanks or below grade tanks
of any material. Select this sensor for easy process conditions with
corrosive media, light agitation, condensation or vapor, and installation
in a low-profile tank adapter or flange fitting. Typical applications
include chemical bulk storage and tanker trucks.
Features
PFA encapsulated antenna and mount for corrosive media
Configuration via push button display or HART communicator
26 GHz. pulse radar is unaffected by vapor or condensation
12” (30cm) dead band enables utilization of the entire tank
LCD displays level in feet or meters with percent of span bar
Optional display mode indicates the echo signal return curve
Fail-safe diagnostics with selectable signal fail-safe outputs
Recognition, storage and rejection of false echo signal returns
IP67 stainless enclosure with polycarbonate display window

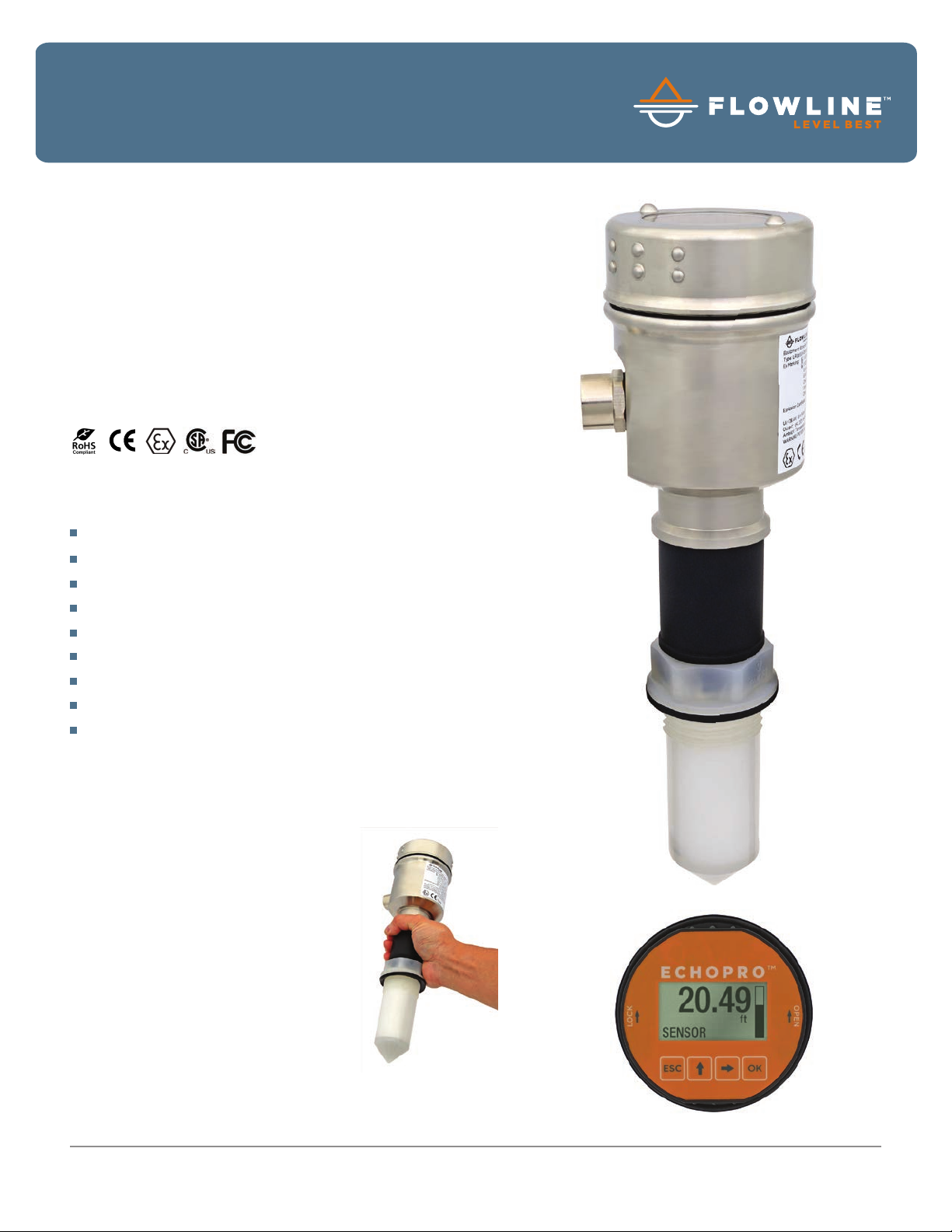

LR11-5421-00
Shown
Corrosion Resistance
The US produces 40 million tons of
sulfuric acid per year that is widely used
in oil refining, wastewater treatment,
lead-acid battery and cleaning product
applications. In higher concentrations,
sulfuric acid is both extremely corrosive
and vaporous. The non-contact LR11
sensor is an excellent choice for this
application, as its 26 GHz. pulse radar
measurement is unaffected by vapor,
and the antenna and process mount are
encapsulated in corrosion resistant PFA
for years of reliable service. Select this sensor with confidence
in corrosive, vaporous applications.
© 2019 Flowline | 10500 Humbolt Street, Los Alamitos, CA 90720 USA p 562.598.3015 f 562.431.8507 w flowline.com DS301850 REV A4
Push Button
Display Module
Page 2
EchoPro
Pulse Radar Liquid Level Transmitter
LR11
Specifications
Range:
Frequency:
Accuracy:
Dead band:
Beam angle:
Configuration:
Memory:
Display type:
Display units:
Display bar:
Display graph:
Supply voltage:
Max. consumption:
Signal output:
Signal invert:
Signal fail-safe:
Process temp.:
Temp. comp.:
Storage temp.:
Pressure:
Enclosure rating:
Encl. material:
Encl. window mat.:
Conduit entrance:
Antenna material:
Process mount:
Classification:
Approvals:
Certification:
Compliance:
12” to 32.8’ (30cm to 10m)
26 GHz.
± 5mm
12” (30cm)
22º
Push button, HART 7
Non-volatile
LCD, dot matrix
Feet and meters
Percent of span
Echo signal curve
21.6 to 26.4 VDC
22.5 mA
4-20 mA, two-wire, HART 7
4-20 mA, 20-4 mA
3.9 mA, 20.5 mA, 22 mA
F: -40º to 266º
C: -40º to 130º
Automatic
F: -40º to 176º
C: -40º to 80º
-14.5 to 43.5 psi (-1 to 3 bar)
IP67
316L stainless steel w/silicone
gasket and PBT FR neck
Polycarbonate
(1) 1/2” NPT connector
PFA
1-1/2” NPT
Intrinsically safe
ATEX IIG Ex ia II C T6...T3 Ga
IEC Ex ia IIC T6...T3 Ga
CSA Class I, Div 1, Groups A, B, C & D;
Class II, Div 1, Groups E, F & G; (T6...
T3); Class I Zone 0 AEx ia IIC (T6...
T3) Ga & Zone 20 AEx ia IIIC (T76ºC to
T146ºC) Da; Ex ia IIC (T6...T3) Ga & Ex
ia IIIC (T76ºC to T146ºC) Ga
FCC
CE, RoHS
Level Indicator
LI24-1001
DATA LOOP™
Intrinsically Safe Level Indicator
UL approved intrinsically safe, the
loop powered level indicator displays
engineering units connected in series
with one 4-20 mA level transmitter.
Select the LI24-1001 level indicator
for hazardous applications with an
intrinsically safe sensor. For field
mount installation, add a single or two
indicator NEMA box.
Fittings
REDUCER BUSHINGS
LM53-2400
2” x 1.5” NPT, PVC, schedule 40
LM53-2800
2” x 1.5” NPT, PVC, schedule 80
LM53-3800
3” x 1.5” NPT, PVC, schedule 80
LM53-3800 LM53-2800

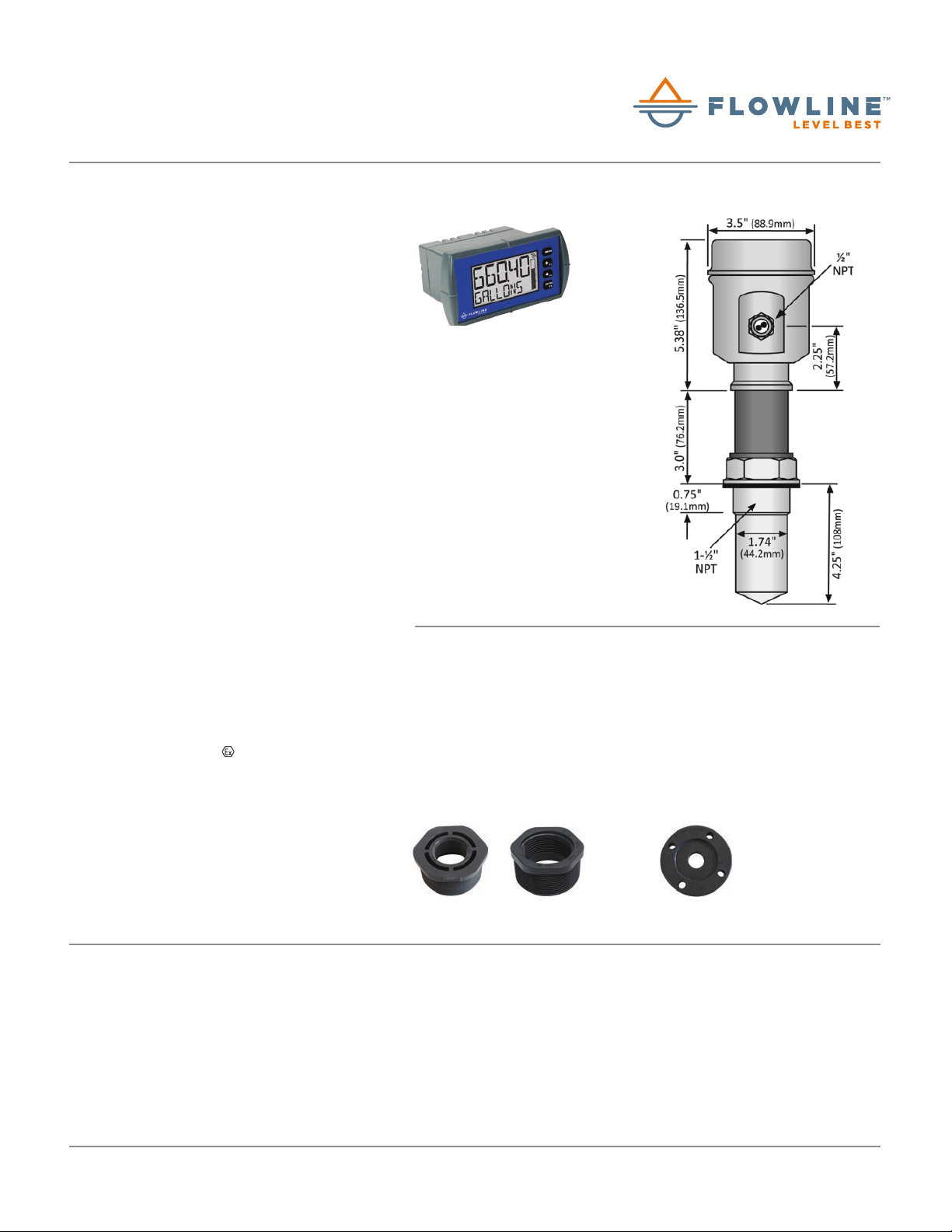

Dimensions
ANSI FLANGES
LM53-3850
3” x 1.5” NPT, CPVC, schedule 80
LM53-4850
4” x 1.5” NPT, CPVC, schedule 80
LM53-6850
6” x 1.5” NPT, CPVC, schedule 80
LM53-3850
Ordering
© 2019 Flowline | 10500 Humbolt Street, Los Alamitos, CA 90720 USA p 562.598.3015 f 562.431.8507 w flowline.com DS301850 REV A4
LR11-5421-00
(1) ( 2)
NOTES
If you want help in selecting a sensor for your application, please go to
1)
our website and submit a Level Questionnaire. An engineer will review
your requirements and suggest a product solution via email.
Install the sensor using Flowline installation fittings or equivalents.
2)
