6-9/64
PLACE OF ADAPTOR
1-9/16
[39.6]

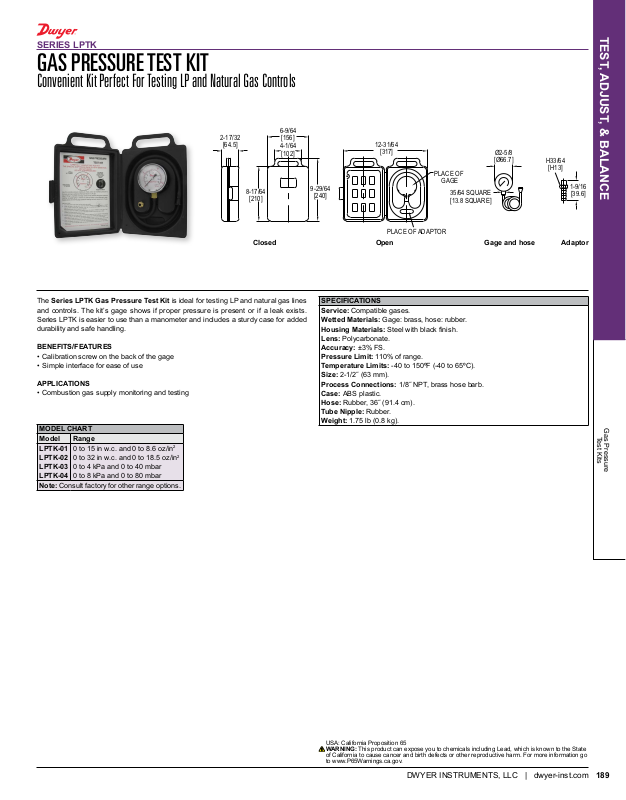

SERIES LPTK
GAS PRESSURE TEST KIT
Convenient Kit Perfect For Testing LP and Natural Gas Controls
TEST, ADJUST, & BALANCE
2-17/32
[64.5]
8-17/64
[210]
The Series LPTK Gas Pressure Test Kit is ideal for testing LP and natural gas lines
and controls. The kit’s gage shows if proper pressure is present or if a leak exists.
Series LPTK is easier to use than a manometer and includes a sturdy case for added
durability and safe handling.
BENEFITS/FEATURES
• Calibration screw on the back of the gage
• Simple interface for ease of use
APPLICATIONS
• Combustion gas supply monitoring and testing
MODEL CHART
Model Range
LPTK-01
LPTK-02
LPTK-03
LPTK-04
Note: Consult factory for other range options.
0 to 15 in w.c. and 0 to 8.6 oz/in
0 to 32 in w.c. and 0 to 18.5 oz/in
0 to 4 kPa and 0 to 40 mbar
0 to 8 kPa and 0 to 80 mbar
2
2
[156]
4-1/64
[102]
Closed AdaptorOpen
12-31/64
[317]
PLACE OF
9-29/64
[240]
SPECIFICATIONS
Service: Compatible gases.
Wetted Materials: Gage: brass, hose: rubber.
Housing Materials: Steel with black nish.
Lens: Polycarbonate.
Accuracy: ±3% FS.
Pressure Limit: 110% of range.
Temperature Limits: -40 to 150ºF (-40 to 65ºC).
Size: 2-1/2˝ (63 mm).
Process Connections: 1/8˝ NPT, brass hose barb.
Case: ABS plastic.
Hose: Rubber, 36˝ (91.4 cm).
Tube Nipple: Rubber.
Weight: 1.75 lb (0.8 kg).
GAGE
35/64 SQUARE
[13.8 SQUARE]
Ø2-5/8
[Ø66.7]
Gage and hose
H33/64
[H13]
Gas Pressure
Test Kits
USA: California Proposition 65
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer and birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.
DWYER INSTRUMENTS, LLC | dwyer-inst.com
189
