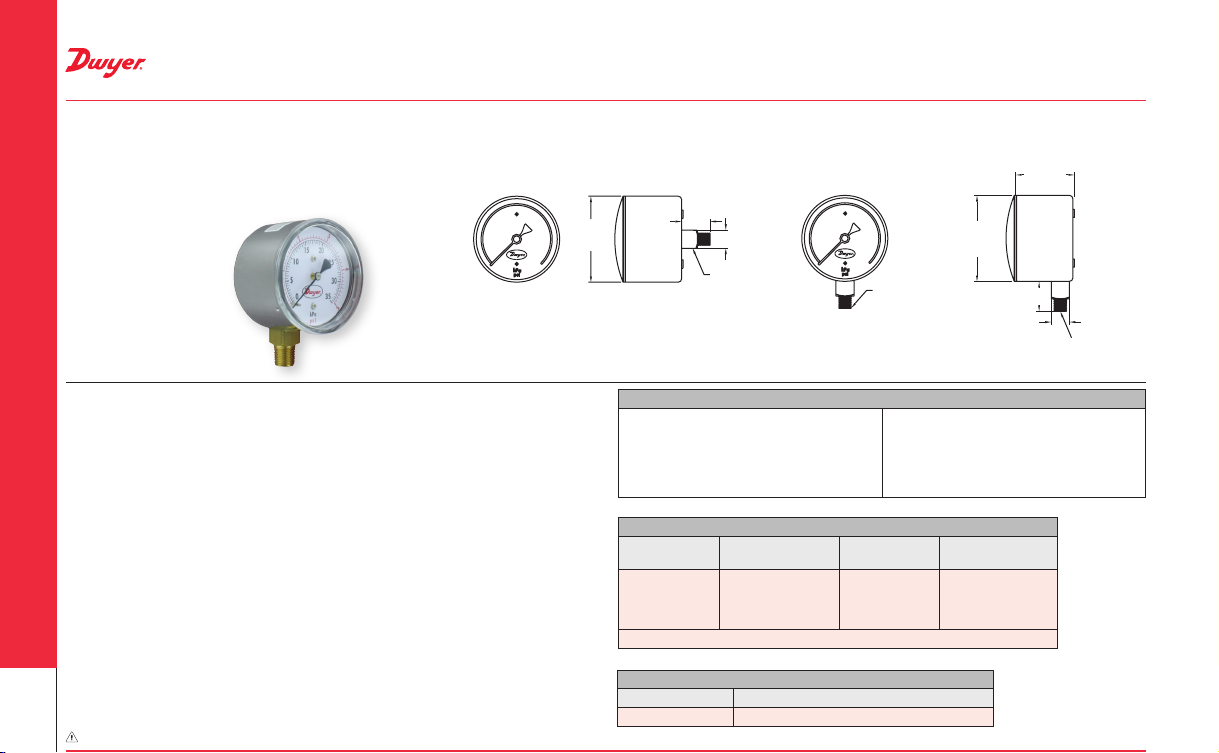

CONNECTION [BRASS]

1-49/64

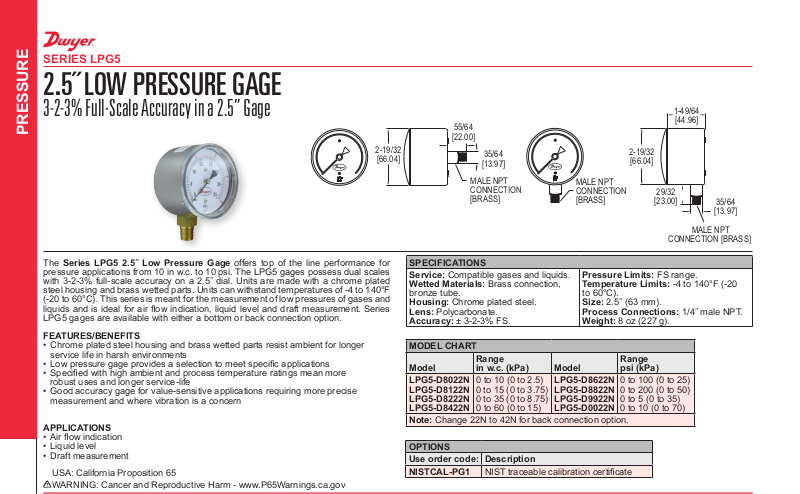

SERIES LPG5

2.5˝ LOW PRESSURE GAGE

3-2-3% Full-Scale Accuracy in a 2.5” Gage

PRESSURE

2-19/32

[66.04]

55/64

[22.00]

MALE NPT
CONNECTION
[BRASS]

35/64

[13.97]

MALE NPT
CONNECTION
[BRASS]

2-19/32

[66.04]

29/32

[23.00]

[44.96]

35/64

[13.97]

MALE NPT

The Series LPG5 2.5˝ Low Pressure Gage offers top of the line performance for
pressure applications from 10 in w.c. to 10 psi. The LPG5 gages possess dual scales
with 3-2-3% full-scale accuracy on a 2.5˝ dial. Units are made with a chrome plated

steel housing and brass wetted parts. Units can withstand temperatures of -4 to 140°F

(-20 to 60°C). This series is meant for the measurement of low pressures of gases and
liquids and is ideal for air ow indication, liquid level and draft measurement. Series
LPG5 gages are available with either a bottom or back connection option.

FEATURES/BENEFITS

• Chrome plated steel housing and brass wetted parts resist ambient for longer
service life in harsh environments

• Low pressure gage provides a selection to meet specic applications

• Specied with high ambient and process temperature ratings mean more

robust uses and longer service-life

• Good accuracy gage for value-sensitive applications requiring more precise
measurement and where vibration is a concern

APPLICATIONS

• Air ow indication

• Liquid level

• Draft measurement

USA: California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SPECIFICATIONS
Service: Compatible gases and liquids.

Wetted Materials: Brass connection,

bronze tube.

Housing: Chrome plated steel.
Lens: Polycarbonate.
Accuracy: ± 3-2-3% FS.

MODEL CHART

Model
LPG5-D8022N

LPG5-D8122N
LPG5-D8222N
LPG5-D8422N

Note: Change 22N to 42N for back connection option.

OPTIONS
Use order code: Description
NISTCAL-PG1 NIST traceable calibration certicate

Range
in w.c. (kPa) Model

0 to 10 (0 to 2.5)
0 to 15 (0 to 3.75)
0 to 35 (0 to 8.75)
0 to 60 (0 to 15)

Pressure Limits: FS range.
Temperature Limits: -4 to 140°F (-20

to 60°C).

Size: 2.5˝ (63 mm).
Process Connections: 1/4˝ male NPT.
Weight: 8 oz (227 g).

Range

LPG5-D8622N
LPG5-D8822N
LPG5-D9922N
LPG5-D0022N

psi (kPa)

0 to 100 (0 to 25)
0 to 200 (0 to 50)
0 to 5 (0 to 35)
0 to 10 (0 to 70)
