z LARGE LED DISPLAY READABLE TO 70 FEET
z VARIOUS DIGITAL INPUT MODULES;

COUNT AND RATE INPUT
SERIAL SLAVE

z ALARMS, ANALOG OUTPUT, AND COMMUNICA TION
z PROGRAMMABLE USER INPUTS
z PROGRAMMABLE FUNCTION KEYS
z UNIVERSAL AC/DC POWERED MODELS
z PC SOFTWARE FOR METER CONFIGURATION
z NEMA 4/IP65

GENERAL DESCRIPTION

The LDPF63000 Display is a versatile display that can increase productivity
by offering the plant floor or production area a large visual display of their
current status. Whether your measurement is rate or count, the LDPF63000 can
satisfy your requirement. These LDPF63000 displays accept various digital
inputs through the use of input modules that allow the unit to adapt to most any
application. Additional plug-in option cards can add alarms, analog output, and
communication/bus capabilities, making the LDPF63000 a truly Intelligent
Panel Meter.

SAFETY SUMMARY

All safety regulations, local codes and instructions that appear in this and
corresponding literature, or on equipment, must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment connected
to it. If equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.

The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.

SPECIFICATIONS

Input specifications, wiring, and programming information is contained in
the corresponding DPF93 literature shipped with your order.

1. DISPLAY: 1.5" (38 mm) Red LED

6-Digit: (-99999 to 999999)

2. POWER REQUIREMENTS:

AC Modules: 85 to 250 VAC, 50/60 Hz, 18 VA
DC Modules: 11 to 36 VDC or 24 VAC ±10%, 50/60 Hz, 14 W

3. ANNUNCIATORS: A, B, C, SP1, SP2, SP3, and SP4

4. KEYPAD: Five tactile membrane switches integrated into the front panel

5. CERTIFICA TIONS AND COMPLIANCES:

SAFETY

ULRecognized Component, File #E313607, UL61010A-1, CSA22.2 No. 1010-1

Recognized to US and Canadian requirements under the Component
Recognition Program of Underwriters Laboratories, Inc.

UL Listed, File # E313547, UL508, CSA C22.2 No. 14-M95

LISTED by Und. Lab. Inc. to U.S and Canadian safety standards

Type 4 Enclosure rating (Face Only), UL50

IEC 61010-1, EN 61010-1: Safety requirements for electrical

equipment for measurement, control, and laboratory use, Part 1.

IP65 Enclosure rating (Face only), IEC 529

ELECTROMAGNETIC COMPATIBILITY

EMC specifications are found in the DPF93 literature.

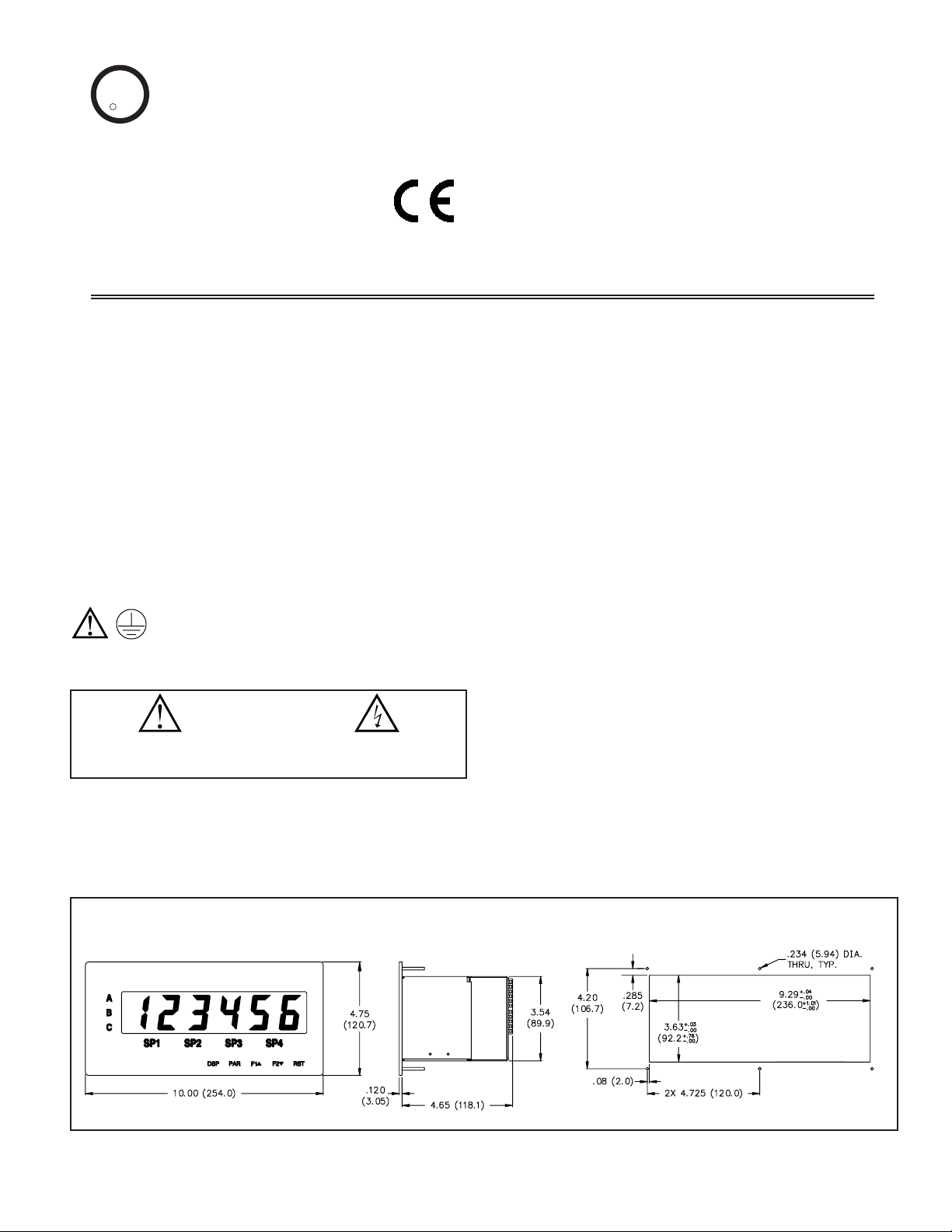

DIMENSIONS In inches (mm)

CAUTION: Risk of Danger.

Read complete instructions prior to

installation and operation of the unit.

CAUTION: Risk of electric shock.

PANELCUT-OUT

C

US LISTED

U

L

R

IND. CONT. EQ.

51EB

4

6. ENVIRONMENTALCONDITIONS:

Operating Temperature Range: Shown in DPF93 literature
Storage Temperature Range: -40 to 60°C
Operating and Storage Humidity: 0 to 85% max. RH (non-condensing)
Altitude: Up to 2000 meters

7. MOUNTING REQUIREMENTS:

Max. panel thickness is 0.375" (9.5 mm)
Min. panel thickness for NEMA 4/IP65 sealing is 0.060" (1.57 mm)

8. MODULE INSTALLATION:

24-pin shrouded connector on LDPF63000 engages connector on input
module upon installation. Shroud ensures proper alignment by providing a
lead-in for the module connector.

9. CONNECTIONS: All wiring connections are made to the module via high

compression cage-clamp terminal blocks. Wiring instructions are provided.

CAUTION: DISCONNECT ALL POWER BEFORE
INSTALLING OR REMOVING MODULE

10. CONSTRUCTION: Steel front panel, enclosure, and rear cover with

textured black polyurethane paint for scratch and corrosion resistance
protection. Sealed front panel meets NEMA 4/IP65 specifications for indoor
use when properly installed. Installation Category II, Pollution Degree 2.
Panel gasket and keps nuts included.

11. WEIGHT: 2.7 lbs (1.2 kg) (less module)

OPTIONAL PLUG-IN CARDS AND ACCESSORIES

WARNING: Disconnect all power to the unit before

installing Plug-in cards.

Adding Option Cards

The LDPF63000 meter can be fitted with up to three optional plug-in cards.
However, only one card from each function type can be installed at a time. The
function types include Setpoint Alarms (LDP6-CDS), Communications (LDP6­CDC), and Analog Output (LDP6-CDL). The cards can be installed initially or
at a later date. Each optional plug-in card is shipped with installation and
programming instructions.

COMMUNICATION CARDS (LDP6-CDC)

A variety of communication protocols are available for the LDPF63000
series. Only one of these cards can be installed at a time. When programming
the unit via Crimson, the RS232 or RS485 Cards must be used.

SETPOINT CARDS (LDP6-CDS)

This series has four setpoint alarm output plug-in cards. Only one of these
cards can be installed at a time. (Logic state of the outputs can be reversed in
the programming.) These plug-in cards include:

LDP6-CDS10 - Dual Relay, FORM-C, Normally open & closed
LDP6-CDS20 - Quad Relay, FORM-A, Normally open only
LDP6-CDS30 - Isolated quad sinking NPN open collector
LDP6-CDS40 - Isolated quad sourcing PNP open collector

LINEAR DC OUTPUT (LDP6-CDL)

Either a 0(4)-20 mA or 0-10 V retransmitted linear DC output is available
from the analog output plug-in card. The programmable output low and high
scaling can be based on the input, max, min, or total display value. Reverse
slope output is possible by reversing the scaling point positions.

LDP6-CDL10 - Retransmitted Analog Output Card

PROGRAMMING SOFTWARE (DP6-SOFT)

DP6-SOFT is a Windows®based program that allows configuration of the
LDPF63000 meter from a PC. This software offers standard drop-down menu
commands, that make it easy to program the meter. The unit program can then
be saved in a PC file for future use. Aserial plug-in card is required to program
the meter using the software.

LDP6-CDC4C - Modbus (Connector)LDP6-CDC40 - Modbus (Terminal)

LDP6-CDC2C - RS232 (Connector)LDP6-CDC20 - RS232 (Terminal)

LDP6-CDC1C - RS485 (Connector)LDP6-CDC10 - RS485 (Terminal)

5

CAUTION: The input module main circuit board and the option

cards contain static sensitive components. Before handling the
module or the cards, discharge static charges from your body by
touching a grounded bare metal object. Handle the module by
the rear plastic cover only, and the option cards by the board
edges. Dirt, oil or other contaminants that contact the circuit
boards or components can adversely affect circuit operation.

WARNING: Exposed line voltage exists on the input module main

circuit board and the option cards. DO NOT apply power to the
module OR load circuits until the module is properly installed
in the LDPF63000 case.

NOTE: All module and option card labels must be installed as

shown for safety purposes.

Installing the Option Cards

Prior to installing the LDPF63000 Display, it is recommended that the option
cards be assembled first. This will allow you the opportunity to insure all the
boards are fitted properly into their connectors. Refer to the literature
enclosed with the option cards for installation instruction.

Removing The Input Module

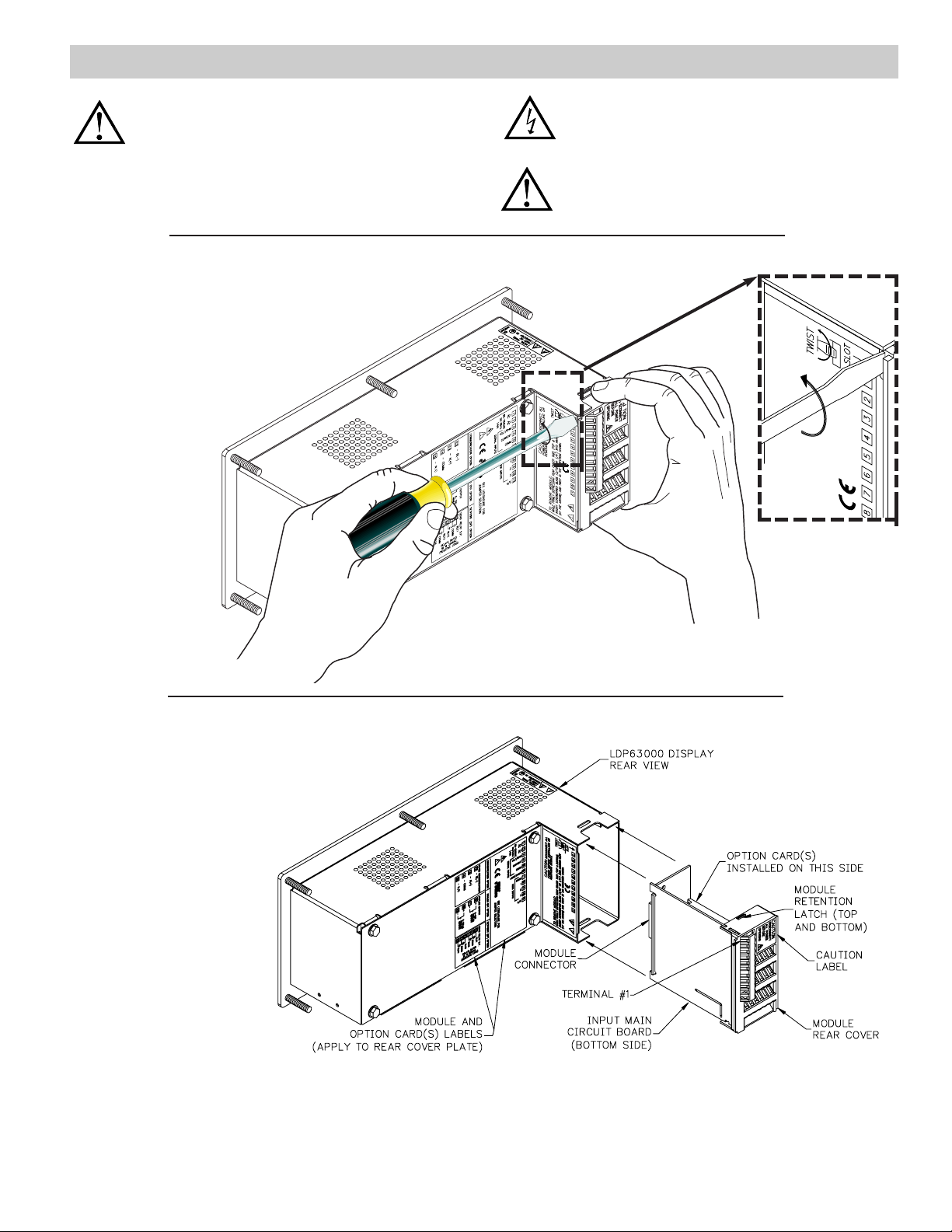

To remove the input module from the
LDPF63000 Display, first remove all
power and load circuits. Then
insert a flat screwdriver
blade (

3

/16" or 1/4") into the
narrow slot between the
LDPF63000 rear cover
plate and the module’s
plastic cover as illustrated
in Figure 1. Twist the
screwdriver in the direction
shown to disengage the
internal connectors while
firmly squeezing and
pulling back on the rear
finger tabs (top and
bottom). Carefully slide
the module out of the
case, keeping it properly
aligned with the case
opening.

1.0 ASSEMBLING THE DISPLAY

Reinstalling the Input Module

To reinstall the Input Module, align the module with the opening in the
LDPF63000 case, as illustrated. The module must be oriented as
shown, with terminal #1 toward the top of the case. Carefully
slide the module into the LDPF63000 case. The
LDPF63000 and input module connectors will
begin to engage about

¼" from the bottom. At

this point, apply a small amount of
pressure to the rear of the input
module to fully engage the
connection. Be sure the module fully
snaps into the slots at the rear of the
LDPF63000 case. The display is
ready for installation.

Installing the Labels

Each option card and the input module are shipped with a connection label.
These labels must be applied to the rear of the LDPF63000 in the positions
shown in the drawing.

Figure 2, Reinstalling an Input Module and Option Cards

Figure 1, Removing an Input Module

6

Once assembled, the LDPF63000 has all the same functions and capabilities
of our DPF9x00 Series Intelligent Panel Meters. Therefore, you will find the
appropriate wiring and programming information in a separate manual packed
with your LDPF63000 Display. Simply follow the instructions to wire and
program the display for your application.

2.0 INSTALLING THE DISPLAY

3.0 WIRING AND PROGRAMMING THE DISPLAY

LDPF63000 DISPLAY INSTALLATION

The LDPF63000 display is intended to be mounted into a panel or enclosure.
The display is provided with a gasket to provide a water-tight seal. The
recommended minimum panel thickness for NEMA
4/IP65 sealing is 0.060" (1.57 mm).

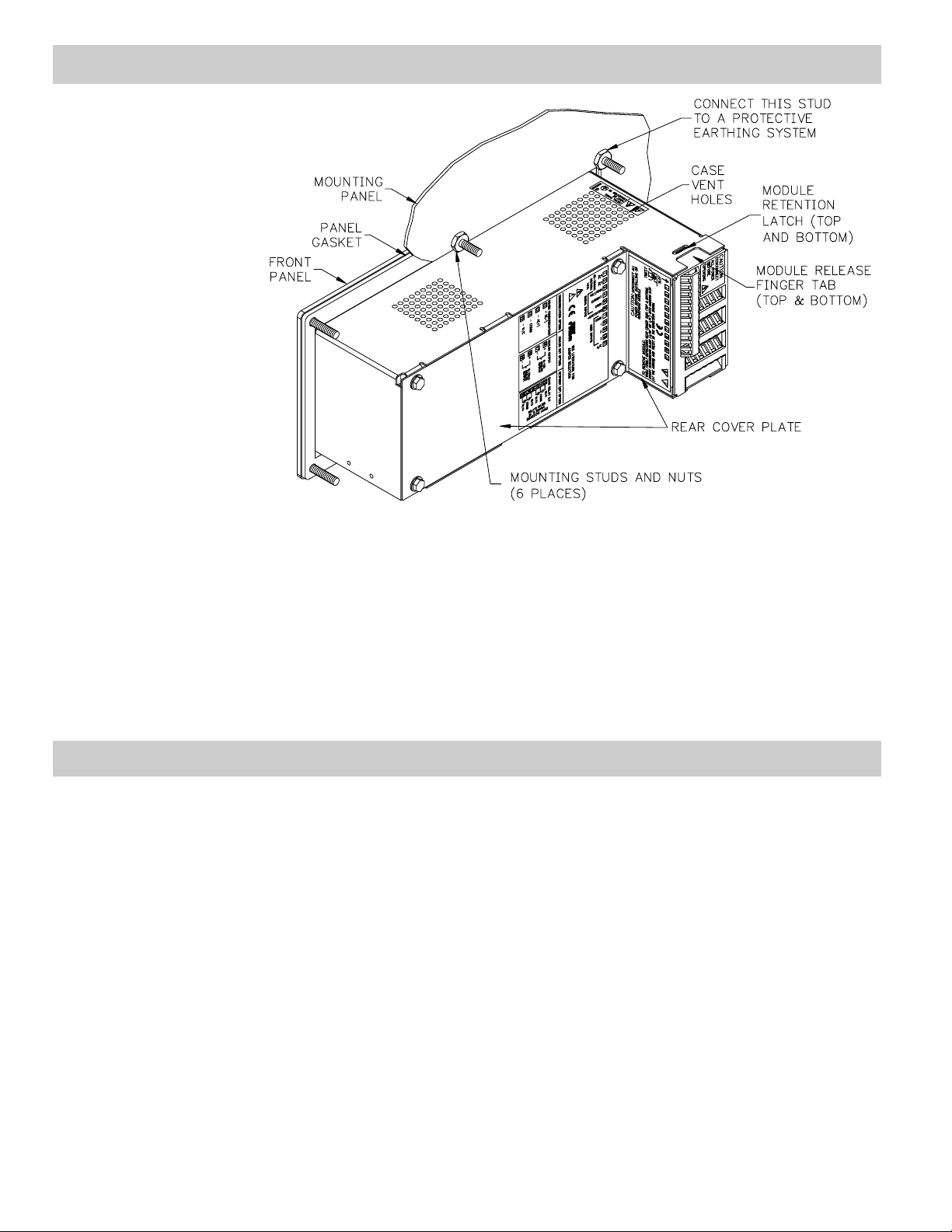

For panel mounting, prepare the panel cut-out
to the dimensions shown. The supplied template
may be used to mark the cut-out and hole
locations on the panel. After the panel cut-out
has been deburred, slide the panel gasket
over the rear of the display and onto the
mounting studs. Insert the display into
the panel cut-out as illustrated in Figure

3. Install six # 10-32 keps nuts (supplied)
and tighten evenly for uniform gasket
compression. Do not over-tighten the nuts.

By using additional mounting accessories,
the LDPF63000 can be surface-wall
mounted, suspended, or bottom mounted.
Separate installation instructions are
provided with the mounting accessories.

Environment And Cleaning

The display should be installed in a location that does not exceed the
maximum operating temperature and provides good air circulation. Placing the
system near devices that generate excessive heat should be avoided.

The bezel should be cleaned only with a soft cloth and neutral soap product.
Do NOT use solvents. Continuous exposure to direct sunlight may accelerate
the aging process of the bezel.

Figure 3, Installing The LDPF63000 Into A Panel

WARRANTY/DISCLAIMER

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 25 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace
period to the normal two (2) year product warranty to cover handling and shipping time. This ensures
that OMEGA’s customers receive maximum coverage on each product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon
examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge.
OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but
not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or
unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered
with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat,
moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside
of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact
points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA
neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for consequential,
incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity,
medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth
in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and
hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in
such a manner.

RETURN REQUESTS/INQUIRIES

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR)
NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the outside of the return package and on any
correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our
customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2006 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.

FOR WARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the product
was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

FOR NON-

WARRANTY REPAIRS, consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the

repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems

relative to the product.

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

TEMPERATURE

] Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
] Wire: Thermocouple, RTD & Thermistor
] Calibrators & Ice Point References
] Recorders, Controllers & Process Monitors
] Infrared Pyrometers

PRESSURE, STRAIN AND FORCE

] Transducers & Strain Gages
] Load Cells & Pressure Gages
] Displacement Transducers
] Instrumentation & Accessories

FLOW/LEVEL

] Rotameters, Gas Mass Flowmeters & Flow Computers
] Air Velocity Indicators
] Turbine/Paddlewheel Systems
] Totalizers & Batch Controllers

pH/CONDUCTIVITY

] pH Electrodes, Testers & Accessories
] Benchtop/Laboratory Meters
] Controllers, Calibrators, Simulators & Pumps
] Industrial pH & Conductivity Equipment

DATA ACQUISITION

] Data Acquisition & Engineering Software
] Communications-Based Acquisition Systems
] Plug-in Cards for Apple, IBM & Compatibles
] Datalogging Systems
] Recorders, Printers & Plotters

HEATERS

] Heating Cable
] Cartridge & Strip Heaters
] Immersion & Band Heaters
] Flexible Heaters
] Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

] Metering & Control Instrumentation
] Refractometers
] Pumps & Tubing
] Air, Soil & Water Monitors
] Industrial Water & Wastewater Treatment
] pH, Conductivity & Dissolved Oxygen Instruments

M4529/0607
