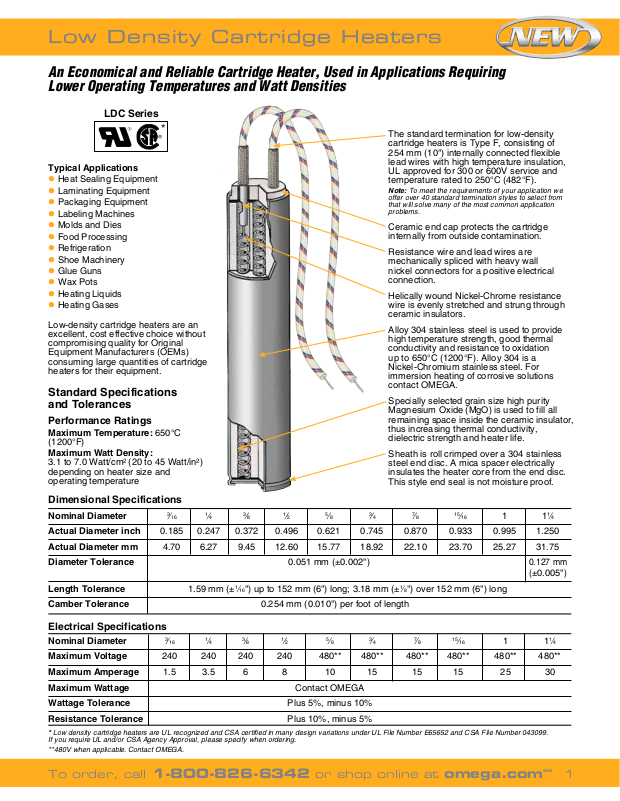

Low Density Cartridge Heaters
Low Density Cartridge Heaters
An Economical and Reliable Cartridge Heater, Used in Applications Requiring
Lower Operating Temperatures and Watt Densities
LDC Series
*
Typical Applications
l Heat Sealing Equipment
l Laminating Equipment
l Packaging Equipment
l Labeling Machines
l Molds and Dies
l Food Processing
l Refrigeration
l Shoe Machinery
l Glue Guns
l Wax Pots
l Heating Liquids
l Heating Gases
Low-density cartridge heaters are an
excellent, cost effective choice without
compromising quality for Original
Equipment Manufacturers (OEMs)
consuming large quantities of cartridge
heaters for their equipment.
Standard Specifications
and Tolerances
Performance Ratings
Maximum Temperature: 650°C
(1200°F)
Maximum Watt Density:
3.1 to 7.0 Watt/cm
depending on heater size and
operating temperature
2
(20 to 45 Watt/in2)
The standard termination for low-density
cartridge heaters is Type F, consisting of
254 mm (10") internally connected flexible
lead wires with high temperature insulation,
UL approved for 300 or 600V service and
temperature rated to 250°C (482°F).
Note: To meet the requirements of your application we
offer over 40 standard termination styles to select from
that will solve many of the most common application
problems.

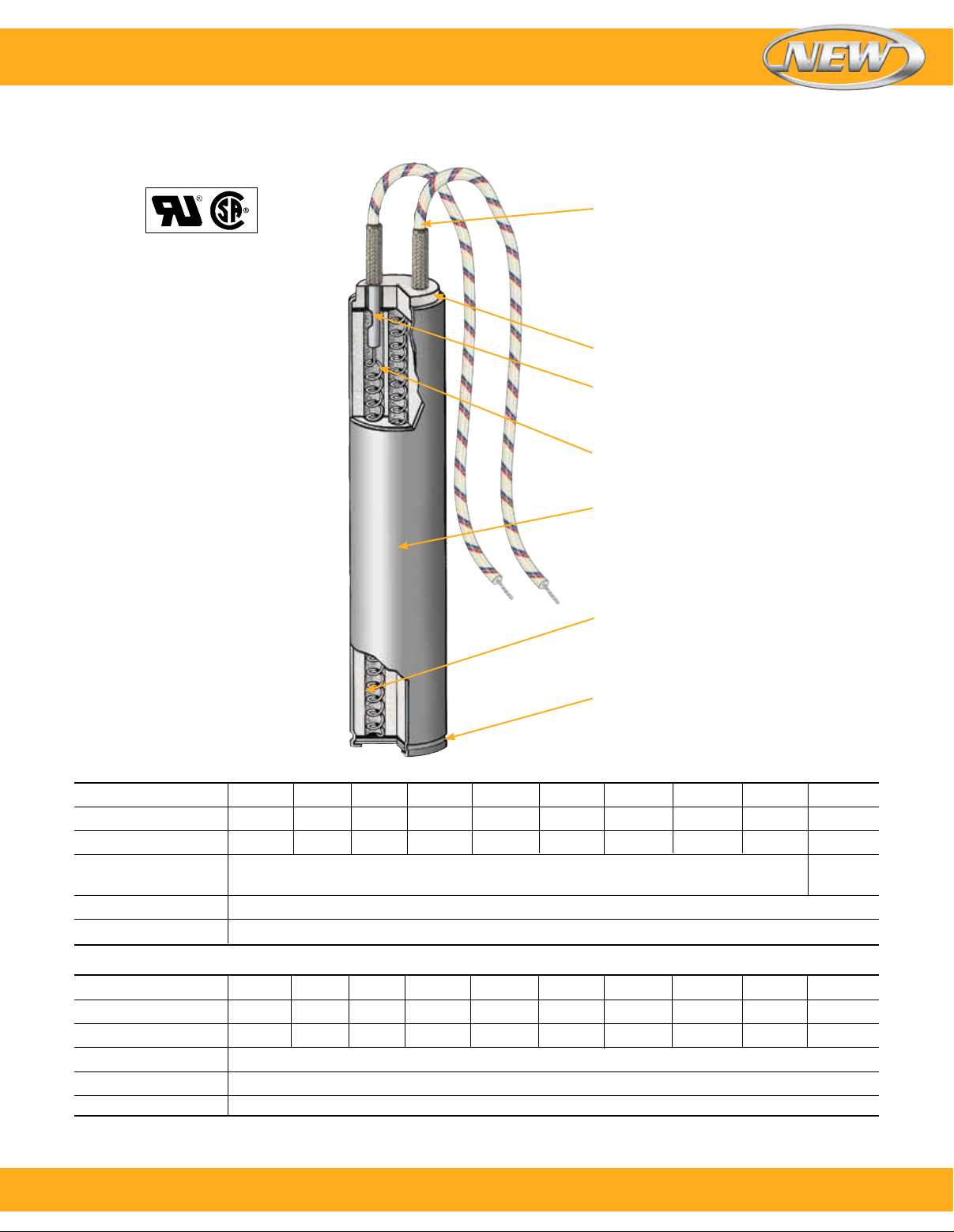

Ceramic end cap protects the cartridge
internally from outside contamination.
Resistance wire and lead wires are
mechanically spliced with heavy wall
nickel connectors for a positive electrical
connection.
Helically wound Nickel-Chrome resistance
wire is evenly stretched and strung through
ceramic insulators.
Alloy 304 stainless steel is used to provide
high temperature strength, good thermal
conductivity and resistance to oxidation
up to 650°C (1200°F). Alloy 304 is a
Nickel-Chromium stainless steel. For
immersion heating of corrosive solutions
contact OMEGA.
Specially selected grain size high purity
Magnesium Oxide (MgO) is used to fill all
remaining space inside the ceramic insulator,
thus increasing thermal conductivity,
dielectric strength and heater life.
Sheath is roll crimped over a 304 stainless
steel end disc. A mica spacer electrically
insulates the heater core from the end disc.
This style end seal is not moisture proof.
Dimensional Specifications
Nominal Diameter
3
⁄16
Actual Diameter inch 0.185 0.247 0.372 0.496 0.621 0.745 0.870 0.933 0.995 1.250
Actual Diameter mm 4.70 6.27 9.45 12.60 15.77 18.92 22.10 23.70 25.27 31.75
Diameter Tolerance 0.051 mm (±0.002")
Length Tolerance 1.59 mm ( ±1⁄16") up to 152 mm (6") long; 3.18 mm (±1⁄8") over 152 mm (6") long
Camber Tolerance 0.254 mm (0 .010") per foot of length
1
⁄4
3
⁄8
1
⁄2
5
⁄8
3
⁄4
7
⁄8
15
⁄16 1 11⁄4
0.127 mm
(
±0.005"
Electrical Specifications
Nominal Diameter
3
⁄16
Maximum Voltage 240 240 240 240 480** 480** 480** 480** 480** 480**
Maximum Amperage 1.5 3.5 6 8 10 15 15 15 25 30
Maximum Wattage Contact OMEGA
Wattage Tolerance Plus 5%, minus 10%
Resistance Tolerance Plus 10%, minus 5%
* Low density cartridge heaters are UL recognized and CSA certified in many design variations under UL File Number E65652 and CSA File Number 043099.
If you require UL and/or CSA Agency Approval, please specify when ordering.
**480V when applicable. Contact OMEGA.
To order, call 1-800-826-6342 or shop online at omega.com
1
⁄4
3
⁄8
1
⁄2
5
⁄8
3
⁄4
7
⁄8
15
⁄16 1 11⁄4
SM
)
1
Page 2
Low Density Cartridge Heaters
5
⁄8" Diameter, Actual 15.77 mm (0.621")
To Order Visit omega.com/ldc5 for Pricing and Details
Model No. Sheath Length
120V 240V mm inch Watt/cm
LDC00163 LDC00164
LDC00165 LDC00166
LDC00167 LDC00168
LDC00169 LDC00170
LDC00171 LDC00172
LDC00173 LDC00174
LDC00175 LDC00176
LDC00177 LDC00178
LDC00179 LDC00180
LDC00181 LDC00182
LDC00183 LDC00184
LDC00185 LDC00186
LDC00187 LDC00188
LDC00189 LDC00190
LDC00191 —
LDC00192 LDC00193
LDC00194 LDC00195
LDC00196 LDC00197
LDC00198 LDC00199
LDC00200 LDC00201
LDC00202 LDC00203
LDC00204 LDC00205
LDC00206 LDC00207
LDC00208 LDC00209
LDC00210 LDC00211
LDC00212 LDC00213
LDC00214 LDC00215
LDC00216 LDC00217
LDC00218 LDC00219
LDC00220 LDC00221
LDC00222 LDC00223
LDC00224 LDC00225
LDC00226 LDC00227
LDC00228 LDC00229
LDC00230 LDC00231
LDC00232 LDC00233
LDC00234 LDC00235
LDC00236 LDC00237
LDC00238 LDC00239
— LDC00240
— LDC00241
— LDC00242
LDC00243 —
— LDC00244
LDC00245 LDC00246
LDC00247 —
— LDC00248
— LDC00249
38.1 11⁄2 100 7.9 51
50.8 2 100 5.3 34
1
63.5 2
63.5 2
⁄2 80 3.2 20
1
⁄2 150 5.9 38
76.2 3 175 5.5 36
1
88.9 3
⁄2 190 5.0 32
101.6 4 200 4.5 29
1
114.3 4
114.3 4
⁄2 240 4.7 31
1
⁄2 275 5.4 35
127.0 5 200 3.5 23
127.0 5 250 4.4 28
127.0 5 375 6.6 42
1
139.7 5
139.7 5
139.7 5
149.2 5
⁄2 200 3.2 20
1
⁄2 285 4.5 29
1
⁄2 510 8.1 52
7
⁄8 350 5.1 33
152.4 6 200 2.9 19
152.4 6 300 4.3 28
152.4 6 350 5.0 32
1
165.1 6
⁄2 350 4.6 30
177.8 7 375 4.6 29
203.2 8 400 4.2 27
1
215.9 8
⁄2 425 4.2 27
228.6 9 450 4.2 27
1
241.3 9
⁄2 475 4.2 27
254.0 10 500 4.2 27
279.4 11 550 4.1 27
304.8 12 250 1.7 11
304.8 12 500 3.4 22
304.8 12 600 4.1 27
304.8 12 700 4.8 31
3
314.3 12
⁄8 450 3.0 19
355.6 14 700 4.1 26
381.0 15 750 4.1 26
406.4 16 800 4.1 26
431.8 17 1000 4.8 31
457.2 18 725 3.3 21
457.2 18 800 3.6 23
508.0 20 900 3.6 24
533.4 21 1000 3.9 25
558.8 22 2000 7.3 47
609.6 24 2000 6.7 43
635.0 25 768 2.5 16
635.0 25 1100 3.5 23
635.0 25 1500 4.8 31
685.8 27 1200 3.6 23
711.2 28 2000 5.7 37
762.0 30 2000 5.4 35
Watts
Watt Density
2
Watt/in
2
2
To order, call 1-800-826-6342 or shop online at omega.com
SM
Page 3
Low Density Cartridge Heaters
5
⁄8" Diameter, Actual 15.77 mm (0.621"), continued
Model No. Sheath Length
120V 240V mm inch Watt/cm
— LDC00250
— LDC00251
— LDC00252
— LDC00253
LDC00254 —
Note: Model numbers above are for low density cartridge heaters terminated with Type F flexible leads, 254 mm (10") long.
Ordering Example: LDC00241, 2000 W, 240 Vac, cartridge heater.
787.4 31 2000 5.2 33
863.6 34 2000 4.7 30
914.4 36 2000 4.4 29
965.2 38 2000 4.2 27
9
979.5 38
⁄16 1200 2.5 16
Watts
Watt Density
2
Watt/in
2
Order by model number from
the standard sizes and ratings
list on the preceding pages.
Note that model numbers
shown are for heaters with
Type F Termination [254 mm
(10") leads].
Custom Engineered/Manufactured Heaters
Because an electric heater can be very application specific, for sizes and ratings not listed,
OMEGA will design and manufacture a low-density cartridge heater to meet your requirements.
Please Specify the Following:
l Diameter l Termination Types l Application Type
l Length l Lead Length l Operating Temperature
l Wattage l Cable/Braid Length
l Voltage l Special Features
To order, call 1-800-826-6342 or shop online at omega.com
SM
3
