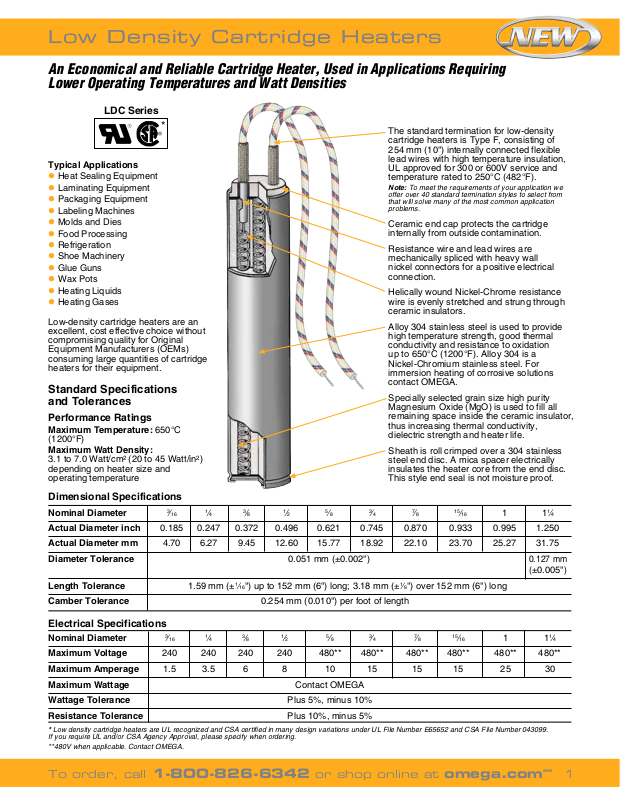

Low Density Cartridge Heaters
Low Density Cartridge Heaters
An Economical and Reliable Cartridge Heater, Used in Applications Requiring
Lower Operating Temperatures and Watt Densities
LDC Series
*
Typical Applications
l Heat Sealing Equipment
l Laminating Equipment
l Packaging Equipment
l Labeling Machines
l Molds and Dies
l Food Processing
l Refrigeration
l Shoe Machinery
l Glue Guns
l Wax Pots
l Heating Liquids
l Heating Gases
Low-density cartridge heaters are an
excellent, cost effective choice without
compromising quality for Original
Equipment Manufacturers (OEMs)
consuming large quantities of cartridge
heaters for their equipment.
Standard Specifications
and Tolerances
Performance Ratings
Maximum Temperature: 650°C
(1200°F)
Maximum Watt Density:
3.1 to 7.0 Watt/cm
depending on heater size and
operating temperature
2
(20 to 45 Watt/in2)
The standard termination for low-density
cartridge heaters is Type F, consisting of
254 mm (10") internally connected flexible
lead wires with high temperature insulation,
UL approved for 300 or 600V service and
temperature rated to 250°C (482°F).
Note: To meet the requirements of your application we
offer over 40 standard termination styles to select from
that will solve many of the most common application
problems.
Ceramic end cap protects the cartridge
internally from outside contamination.
Resistance wire and lead wires are
mechanically spliced with heavy wall
nickel connectors for a positive electrical
connection.
Helically wound Nickel-Chrome resistance
wire is evenly stretched and strung through
ceramic insulators.
Alloy 304 stainless steel is used to provide
high temperature strength, good thermal
conductivity and resistance to oxidation
up to 650°C (1200°F). Alloy 304 is a
Nickel-Chromium stainless steel. For
immersion heating of corrosive solutions
contact OMEGA.
Specially selected grain size high purity
Magnesium Oxide (MgO) is used to fill all
remaining space inside the ceramic insulator,
thus increasing thermal conductivity,
dielectric strength and heater life.
Sheath is roll crimped over a 304 stainless
steel end disc. A mica spacer electrically
insulates the heater core from the end disc.
This style end seal is not moisture proof.
Dimensional Specifications
Nominal Diameter
3
⁄16
Actual Diameter inch 0.185 0.247 0.372 0.496 0.621 0.745 0.870 0.933 0.995 1.250
Actual Diameter mm 4.70 6.27 9.45 12.60 15.77 18.92 22.10 23.70 25.27 31.75
Diameter Tolerance 0.051 mm (±0.002")
Length Tolerance 1.59 mm ( ±1⁄16") up to 152 mm (6") long; 3.18 mm (±1⁄8") over 152 mm (6") long
Camber Tolerance 0.254 mm (0 .010") per foot of length
1
⁄4
3
⁄8
1
⁄2
5
⁄8
3
⁄4
7
⁄8
15
⁄16 1 11⁄4
0.127 mm
(
±0.005"
Electrical Specifications
Nominal Diameter
3
⁄16
Maximum Voltage 240 240 240 240 480** 480** 480** 480** 480** 480**
Maximum Amperage 1.5 3.5 6 8 10 15 15 15 25 30
Maximum Wattage Contact OMEGA
Wattage Tolerance Plus 5%, minus 10%
Resistance Tolerance Plus 10%, minus 5%
* Low density cartridge heaters are UL recognized and CSA certified in many design variations under UL File Number E65652 and CSA File Number 043099.
If you require UL and/or CSA Agency Approval, please specify when ordering.
**480V when applicable. Contact OMEGA.
To order, call 1-800-826-6342 or shop online at omega.com
1
⁄4
3
⁄8
1
⁄2
5
⁄8
3
⁄4
7
⁄8
15
⁄16 1 11⁄4
SM
)
1
Page 2
Low Density Cartridge Heaters
1
⁄2" Diameter, Actual 12.60 mm (0.496")
To Order Visit omega.com/ldc4 for Pricing and Details
Model No. Sheath Length
120V 240V mm inch Watt/cm
LDC00093 —
LDC00094 —
LDC00095 —
LDC00096 —
LDC00097 LDC00098
LDC00099 LDC00100
LDC00101 LDC00102
LDC00103 LDC00104
LDC00105 —
LDC00106 LDC00107
LDC00108 LDC00109
LDC00110 LDC00111
LDC00112 LDC00113
LDC00114 LDC00115
LDC00116 LDC00117
LDC00118 LDC00119
LDC00120 LDC00121
LDC00122 LDC00123
LDC00124 LDC00125
LDC00126 LDC00127
LDC00128 LDC00129
LDC00130 LDC00131
LDC00132 LDC00133
LDC00134 LDC00135
LDC00136 LDC00137
LDC00138 LDC00139
LDC00140 LDC00141
LDC00142 LDC00143
LDC00144 LDC00145
LDC00146 LDC00147
LDC00148 LDC00149
LDC00150 LDC00151
LDC00152 LDC00153
— LDC00154
LDC00155 LDC00156
LDC00157 LDC00158
LDC00159 LDC00160
— LDC00161
— LDC00162
Note: Model numbers above are for low density cartridge heaters terminated with Type F flexible leads, 254 mm (10") long.
Ordering Example: LDC00146, 750 W, 120 Vac, cartridge heater.
38.1 11⁄2 60 5.9 38
50.8 2 75 4.9 32
1
63.5 2
63.5 2
⁄2 40 2.0 13
1
⁄2 125 6.2 40
76.2 3 150 5.9 38
1
88.9 3
98.4 3
⁄2 150 4.9 32
7
⁄8 90 2.6 17
101.6 4 180 5.1 33
1
114.3 4
⁄2 200 4.9 32
127.0 5 200 4.4 28
1
139.7 5
⁄2 300 5.9 38
152.4 6 150 2.7 17
152.4 6 250 4.5 29
152.4 6 300 5.4 35
1
165.1 6
⁄2 300 4.9 32
177.8 7 275 4.2 27
177.8 7 350 5.3 34
1
190.5 7
⁄2 350 4.9 32
203.2 8 400 5.3 34
203.2 8 425 5.6 36
1
215.9 8
⁄2 400 4.9 32
228.6 9 450 5.2 34
254.0 10 500 5.2 34
1
266.7 10
⁄2 500 4.9 32
279.4 11 550 5.2 33
304.8 12 500 4.3 28
304.8 12 600 5.1 33
355.6 14 600 4.4 28
381.0 15 650 4.4 29
381.0 15 750 5.1 33
406.4 16 500 3.2 21
406.4 16 675 4.3 28
457.2 18 725 4.1 26
457.2 18 800 4.5 29
508.0 20 750 3.8 24
533.4 21 750 3.6 23
609.6 24 500 2.1 14
609.6 24 1000 4.2 27
635.0 25 1100 4.4 29
Watts
Watt Density
2
Watt/in
2
Order by model number from
the standard sizes and ratings
list on the preceding pages.
Note that model numbers
shown are for heaters with
Type F Termination [254 mm
(10") leads].
2
To order, call 1-800-826-6342 or shop online at omega.com
Custom Engineered/Manufactured Heaters
Because an electric heater can be very application specific, for sizes and ratings not listed,
OMEGA will design and manufacture a low-density cartridge heater to meet your requirements.
Please Specify the Following:
l Diameter l Termination Types l Application Type
l Length l Lead Length l Operating Temperature
l Wattage l Cable/Braid Length
l Voltage l Special Features
