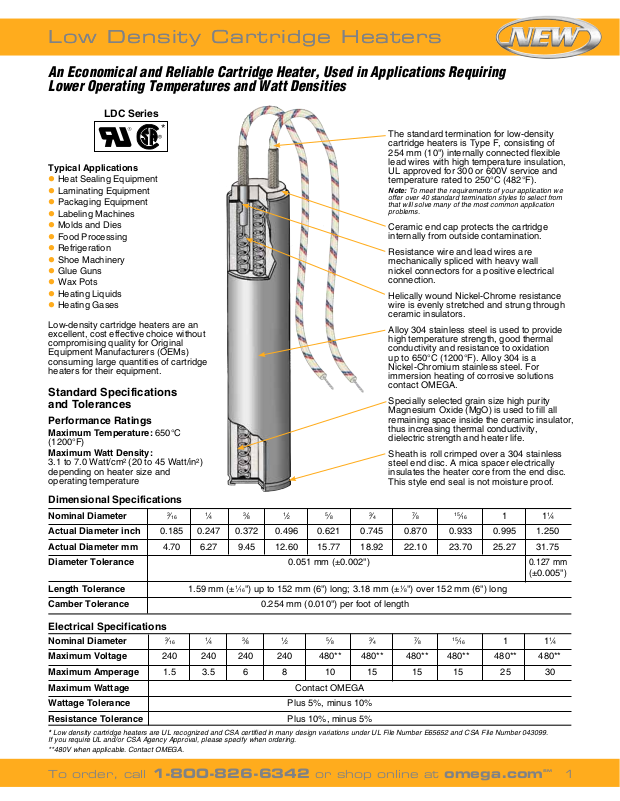

Low Density Cartridge Heaters
Low Density Cartridge Heaters
An Economical and Reliable Cartridge Heater, Used in Applications Requiring
Lower Operating Temperatures and Watt Densities
LDC Series
*
Typical Applications
l Heat Sealing Equipment
l Laminating Equipment
l Packaging Equipment
l Labeling Machines
l Molds and Dies
l Food Processing
l Refrigeration
l Shoe Machinery
l Glue Guns
l Wax Pots
l Heating Liquids
l Heating Gases
Low-density cartridge heaters are an
excellent, cost effective choice without
compromising quality for Original
Equipment Manufacturers (OEMs)
consuming large quantities of cartridge
heaters for their equipment.
Standard Specifications
and Tolerances
Performance Ratings
Maximum Temperature: 650°C
(1200°F)
Maximum Watt Density:
3.1 to 7.0 Watt/cm
depending on heater size and
operating temperature
2
(20 to 45 Watt/in2)
The standard termination for low-density
cartridge heaters is Type F, consisting of
254 mm (10") internally connected flexible
lead wires with high temperature insulation,
UL approved for 300 or 600V service and
temperature rated to 250°C (482°F).
Note: To meet the requirements of your application we
offer over 40 standard termination styles to select from
that will solve many of the most common application
problems.

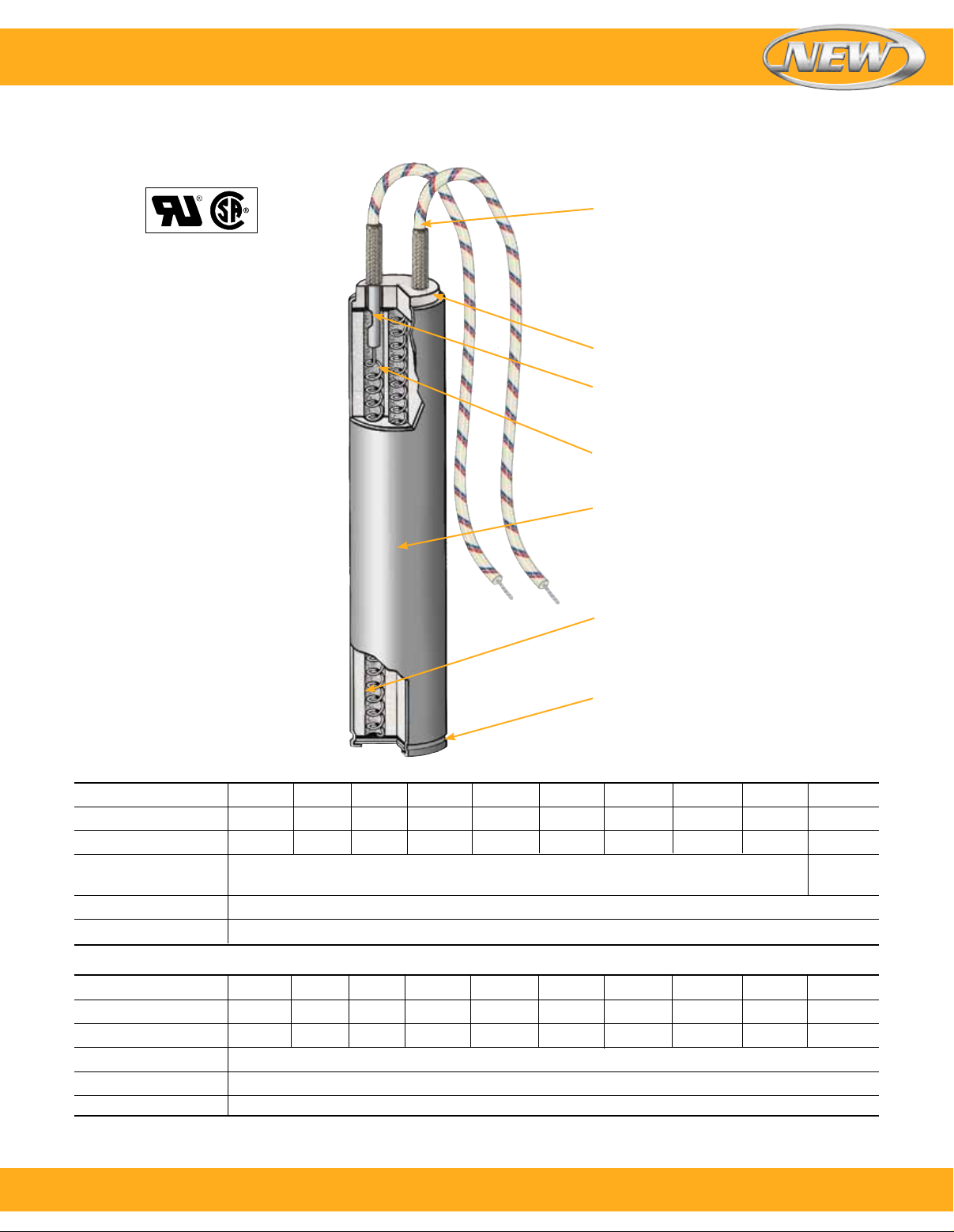

Ceramic end cap protects the cartridge
internally from outside contamination.
Resistance wire and lead wires are
mechanically spliced with heavy wall
nickel connectors for a positive electrical
connection.
Helically wound Nickel-Chrome resistance
wire is evenly stretched and strung through
ceramic insulators.
Alloy 304 stainless steel is used to provide
high temperature strength, good thermal
conductivity and resistance to oxidation
up to 650°C (1200°F). Alloy 304 is a
Nickel-Chromium stainless steel. For
immersion heating of corrosive solutions
contact OMEGA.
Specially selected grain size high purity
Magnesium Oxide (MgO) is used to fill all
remaining space inside the ceramic insulator,
thus increasing thermal conductivity,
dielectric strength and heater life.
Sheath is roll crimped over a 304 stainless
steel end disc. A mica spacer electrically
insulates the heater core from the end disc.
This style end seal is not moisture proof.
Dimensional Specifications
Nominal Diameter
3
⁄16
Actual Diameter inch 0.185 0.247 0.372 0.496 0.621 0.745 0.870 0.933 0.995 1.250
Actual Diameter mm 4.70 6.27 9.45 12.60 15.77 18.92 22.10 23.70 25.27 31.75
Diameter Tolerance 0.051 mm (±0.002")
Length Tolerance 1.59 mm ( ±1⁄16") up to 152 mm (6") long; 3.18 mm (±1⁄8") over 152 mm (6") long
Camber Tolerance 0.254 mm (0 .010") per foot of length
1
⁄4
3
⁄8
1
⁄2
5
⁄8
3
⁄4
7
⁄8
15
⁄16 1 11⁄4
0.127 mm
(
±0.005"
Electrical Specifications
Nominal Diameter
3
⁄16
Maximum Voltage 240 240 240 240 480** 480** 480** 480** 480** 480**
Maximum Amperage 1.5 3.5 6 8 10 15 15 15 25 30
Maximum Wattage Contact OMEGA
Wattage Tolerance Plus 5%, minus 10%
Resistance Tolerance Plus 10%, minus 5%
* Low density cartridge heaters are UL recognized and CSA certified in many design variations under UL File Number E65652 and CSA File Number 043099.
If you require UL and/or CSA Agency Approval, please specify when ordering.
**480V when applicable. Contact OMEGA.
To order, call 1-800-826-6342 or shop online at omega.com
1
⁄4
3
⁄8
1
⁄2
5
⁄8
3
⁄4
7
⁄8
15
⁄16 1 11⁄4
SM
)
1
Page 2
Low Density Cartridge Heaters
3
⁄8" Diameter, Actual 9.45 mm (0.372")
To Order Visit omega.com/ldc3 for Pricing and Details
Model No. Sheath Length
120V 240V mm inch Watt/cm
LDC00033 —
LDC00034 —
LDC00035 —
LDC00036 —
LDC00037 —
LDC00038 —
LDC00039 LDC00040
LDC00041 LDC00042
LDC00043 LDC00044
LDC00045 LDC00046
LDC00047 LDC00048
LDC00049 LDC00050
LDC00051 LDC00052
LDC00053 LDC00054
LDC00055 LDC00056
LDC00057 LDC00058
LDC00059 LDC00060
LDC00061 LDC00062
LDC00063 LDC00064
LDC00065 LDC00066
LDC00067 LDC00068
LDC00069 LDC00070
LDC00071 LDC00072
LDC00073 LDC00074
LDC00075 LDC00076
LDC00077 LDC00078
LDC00079 LDC00080
LDC00081 LDC00082
LDC00083 LDC00084
LDC00085 LDC00086
LDC00087 LDC00088
LDC00089 LDC00090
— LDC00091
— LDC00092
Note: Model numbers above are for low density cartridge heaters terminated with Type F flexible leads, 254 mm (10") long.
Ordering Example: LDC00069, 350 W, 120 Vac, cartridge heater.
38.1 11⁄2 15 2.0 13
1
38.1 1
⁄2 40 5.3 34
50.8 2 50 4.4 28
1
63.5 2
63.5 2
⁄2 75 4.9 32
1
⁄2 100 6.6 42
76.2 3 100 5.3 34
1
88.9 3
⁄2 120 5.3 34
101.6 4 75 2.8 18
101.6 4 130 4.9 32
101.6 4 150 5.6 36
101.6 4 180 6.8 44
1
114.3 4
114.3 4
⁄2 75 2.5 16
1
⁄2 150 4.9 32
127.0 5 150 4.4 28
127.0 5 200 5.8 38
1
139.7 5
⁄2 200 5.3 34
152.4 6 225 5.4 35
152.4 6 250 6.0 39
177.8 7 200 4.0 26
177.8 7 265 5.4 35
203.2 8 300 5.3 34
228.6 9 350 5.4 35
1
241.3 9
⁄2 300 4.4 28
254.0 10 375 5.2 34
304.8 12 425 4.9 31
304.8 12 450 5.1 33
304.8 12 475 5.4 35
304.8 12 500 5.7 37
355.6 14 500 4.9 31
406.4 16 550 4.7 30
508.0 20 200 1.3 9
508.0 20 650 4.4 28
558.8 22 800 4.9 32
609.6 24 750 4.2 27
Watts
Watt Density
2
Watt/in
2
Order by model number from
the standard sizes and ratings
list on the preceding pages.
Note that model numbers
shown are for heaters with
Type F Termination [254 mm
(10") leads].
2
To order, call 1-800-826-6342 or shop online at omega.com
Custom Engineered/Manufactured Heaters
Because an electric heater can be very application specific, for sizes and ratings not listed,
OMEGA will design and manufacture a low-density cartridge heater to meet your requirements.
Please Specify the Following:
l Diameter l Termination Types l Application Type
l Length l Lead Length l Operating Temperature
l Wattage l Cable/Braid Length
l Voltage l Special Features
