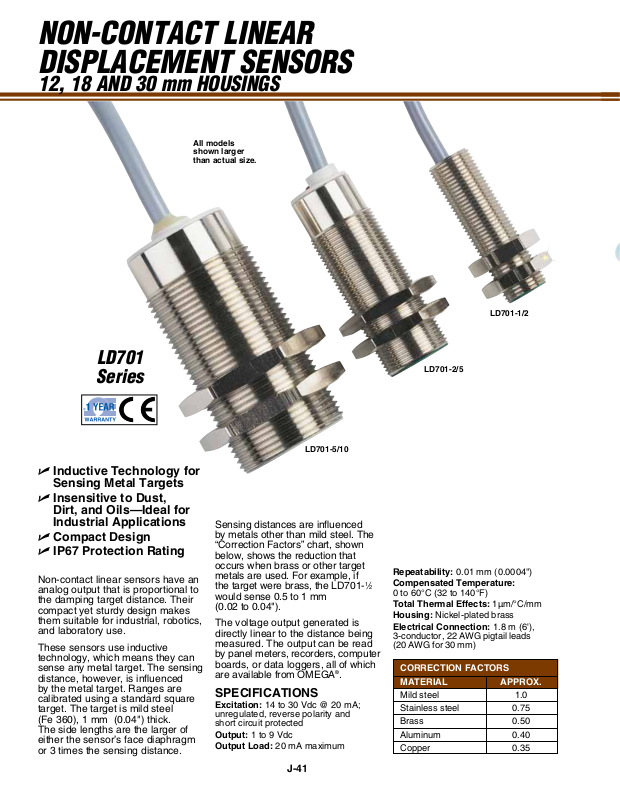

Page 1
NON-CONTACT LINEAR
DISPLACEMENT SENSORS
12, 18 AND 30 mm HOUSINGS

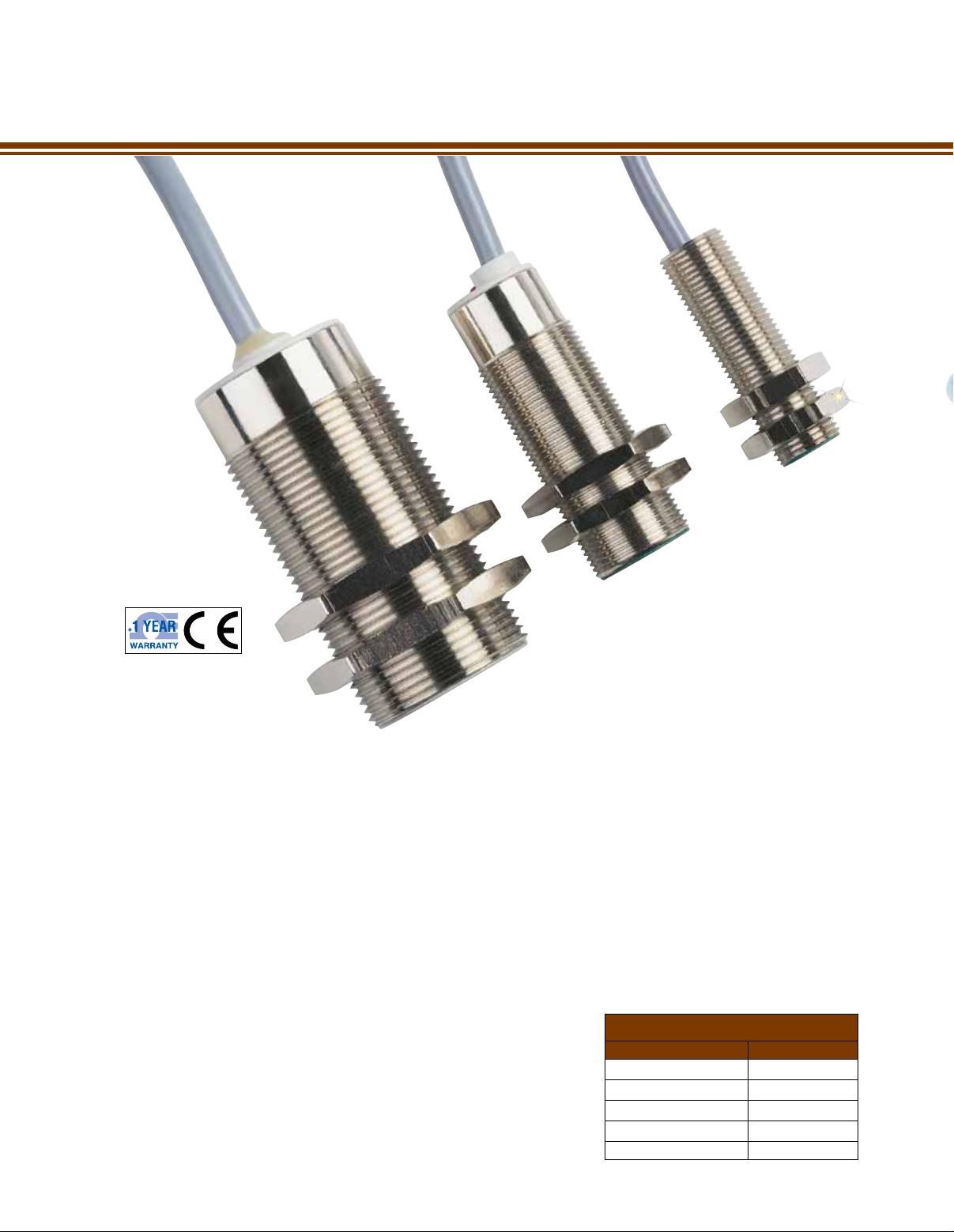

All models
shown larger
than actual size.
LD701-1/2
LD701
Series
U Inductive Technology for
Sensing Metal Targets
U Insensitive to Dust,
Dirt, and Oils—Ideal for
Industrial Applications
U Compact Design
U IP67 Protection Rating
Non-contact linear sensors have an
analog output that is proportional to
the damping target distance. Their
compact yet sturdy design makes
them suitable for industrial, robotics,
and laboratory use.
These sensors use inductive
technology, which means they can
sense any metal target. The sensing
distance, however, is influenced
by the metal target. Ranges are
calibrated using a standard square
target. The target is mild steel
(Fe 360), 1 mm (0.04") thick.
The side lengths are the larger of
either the sensor’s face diaphragm
or 3 times the sensing distance.
LD701-5/10
Sensing distances are influenced
by metals other than mild steel. The
“Correction Factors” chart, shown
below, shows the reduction that
occurs when brass or other target
metals are used. For example, if
the target were brass, the LD701-1⁄2
would sense 0.5 to 1 mm
(0.02 to 0.04").
The voltage output generated is
directly linear to the distance being
measured. The output can be read
by panel meters, recorders, computer
boards, or data loggers, all of which
are available from OMEGA®.
SPECIFICATIONS
Excitation: 14 to 30 Vdc @ 20 mA;
unregulated, reverse polarity and
short circuit protected
Output: 1 to 9 Vdc
Output Load: 20 mA maximum
LD701-2/5
Repeatability: 0.01 mm (0.0004")
Compensated Temperature:
0 to 60°C (32 to 140°F)
Total Thermal Effects: 1µm/°C/mm
Housing: Nickel-plated brass
Electrical Connection: 1.8 m (6'),
3-conductor, 22 AWG pigtail leads
(20 AWG for 30 mm)
CORRECTION FACTORS
MATERIAL APPROX.
Mild steel 1.0
Stainless steel 0.75
Brass 0.50
Aluminum 0.40
Copper 0.35
J-41
Page 2
NON-CONTACT LINEAR DISPLACEMENT SENSORS

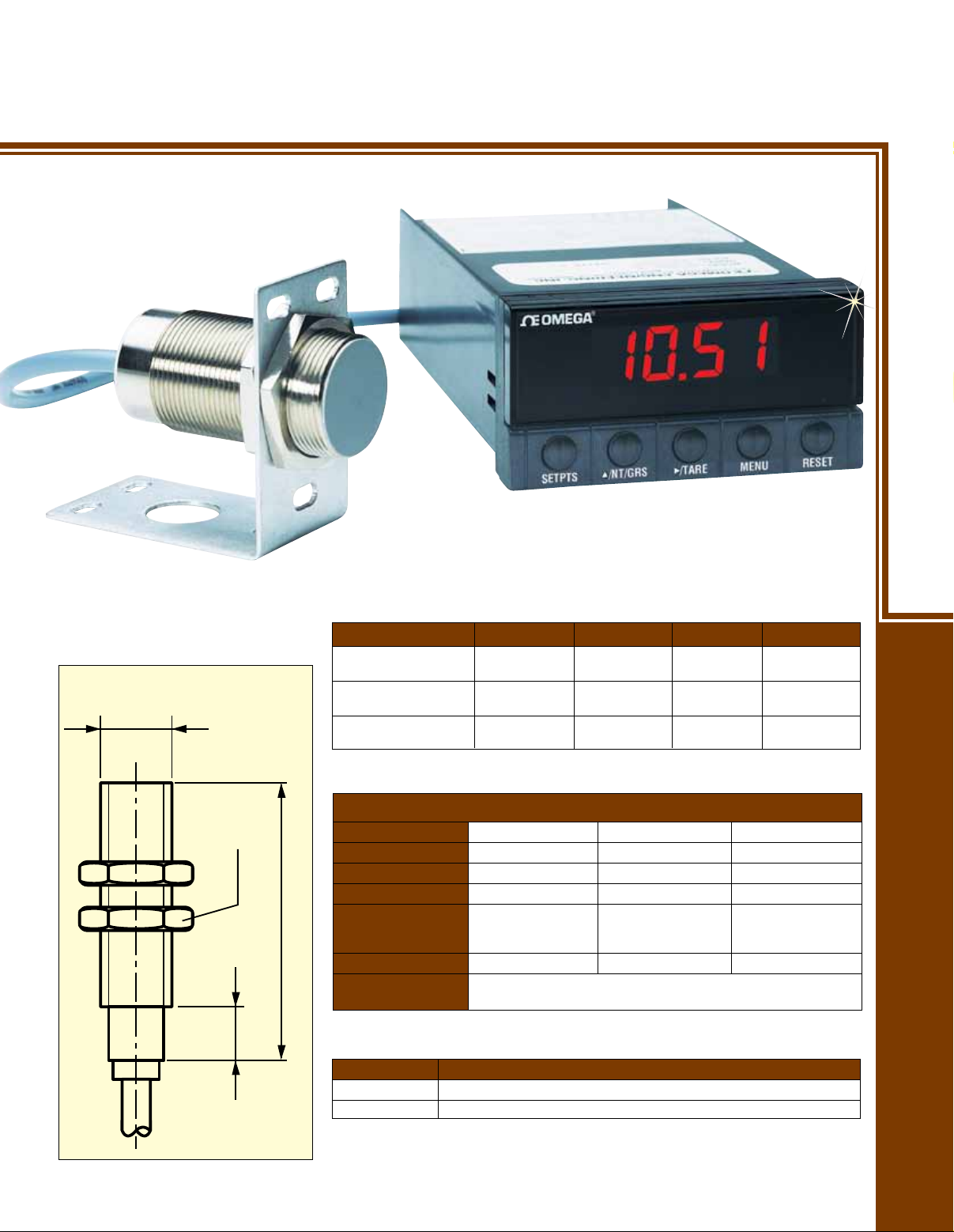

LD701-5/10, shown smaller than actual size, with MBL-18/30,
mounting bracket, and DP25B-E, meter.
Dimensions: mm (inch)
MODEL NO. THREAD A NUT B C D
LD701-1/2 M12x1 SW17 51 10
(2.01) (0.39)
LD701-2/5 M18x1 SW24 65 10
A
(2.55) (0.39)
LD701-5/10 M30x1.5 SW36 60 10
(2.36) (0.39)
Wiring: brown +exc; black +out; blue common.
DISPLACEMENT
J
D
B
To Order
MODEL LD701-1/2 LD701-2/5 LD701-5/10
RANGE mm (inch) 1 to 2 (0.04 to 0.08) 2 to 5 (0.08 to 0.19)
REPEATABILITY ±10 µm (0.4 µin) ±10 µm (0.4 µin) ±10 µm (0.4 µin)
LINEARITY ±4% ±2% ±4%
C
SWITCHING 1000 Hz 1000 Hz 500 Hz
FREQUENCY
(-3 dB)
HOUSING SIZE 12 mm (0.47") 18 mm (0.71") 30 mm (1.2")
COMPATIBLE
METERS
ACCESSORIES
MODEL NO. DESCRIPTION
MBL-8/12 Mounting bracket for LD701-1/2
MBL-18/30 Mounting bracket for LD701-2/5 or LD701-5/10
Comes complete with operator’s manual.
Ordering Example: LD701-1/2, non-contact displacement sensor with 1 to 2 mm
(0.04 to 0.08") range.
DP25B-E, DP41-E, DP3002-E, DP24-E
J-42
5 to 10 (0.19 to 0.39)
