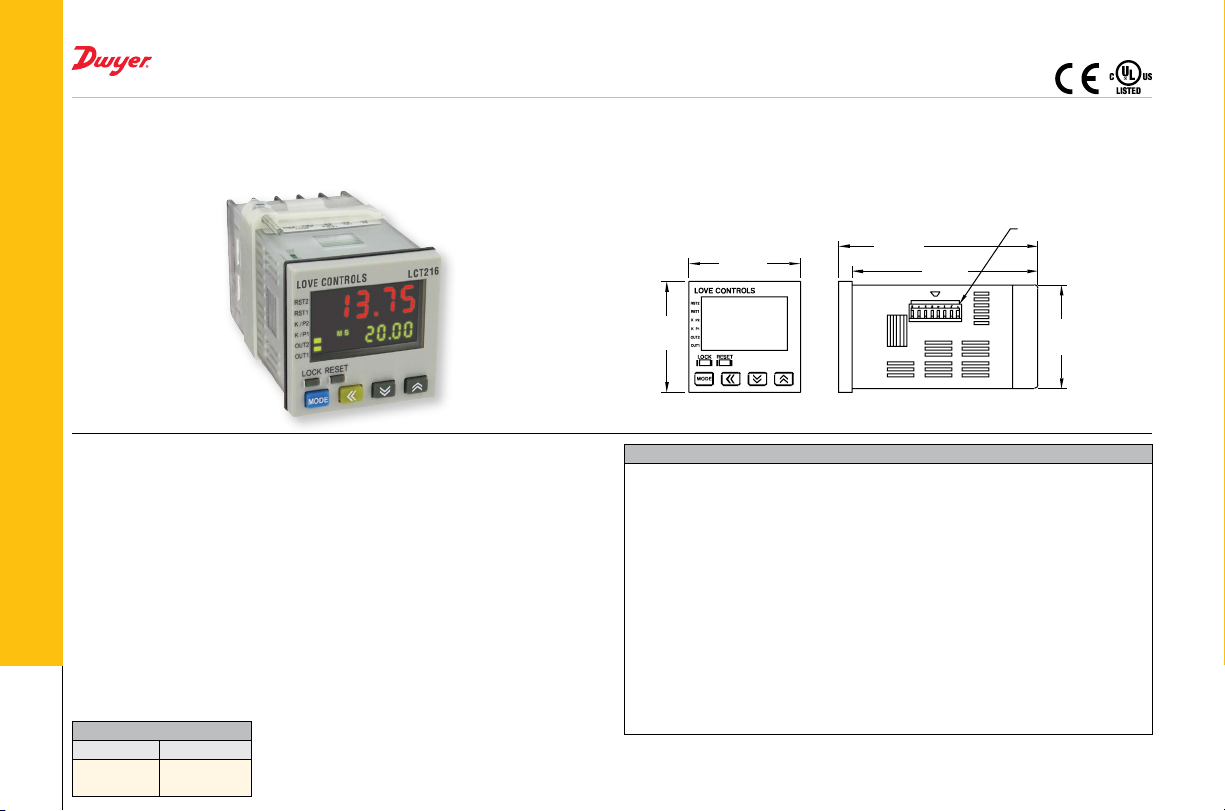

[47.63]
DIP SWITCH

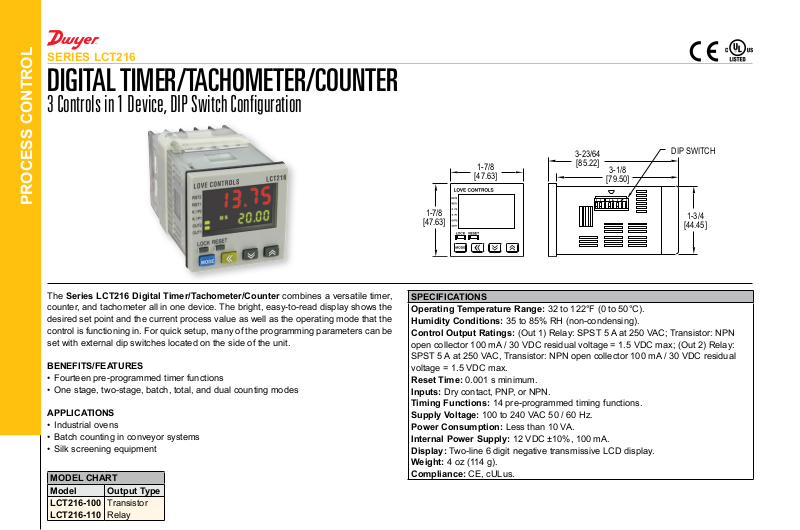

SERIES LCT216
DIGITAL TIMER/TACHOMETER/COUNTER
3 Controls in 1 Device, DIP Switch Conguration
1-7/8
[47.63]
3-23/64
[85.22]
3-1/8
[79.50]
PROCESS CONTROL
The Series LCT216 Digital Timer/Tachometer/Counter combines a versatile timer,
counter, and tachometer all in one device. The bright, easy-to-read display shows the
desired set point and the current process value as well as the operating mode that the
control is functioning in. For quick setup, many of the programming parameters can be
set with external dip switches located on the side of the unit.
BENEFITS/FEATURES
• Fourteen pre-programmed timer functions
• One stage, two-stage, batch, total, and dual counting modes
APPLICATIONS
• Industrial ovens
• Batch counting in conveyor systems
• Silk screening equipment
MODEL CHART
Model Output Type
LCT216-100
LCT216-110
Transistor
Relay
1-7/8
SPECIFICATIONS
Operating Temperature Range: 32 to 122°F (0 to 50°C).
Humidity Conditions: 35 to 85% RH (non-condensing).
Control Output Ratings: (Out 1) Relay: SPST 5 A at 250 VAC; Transistor: NPN
open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max; (Out 2) Relay:
SPST 5 A at 250 VAC, Transistor: NPN open collector 100 mA / 30 VDC residual
voltage = 1.5 VDC max.
Reset Time: 0.001 s minimum.
Inputs: Dry contact, PNP, or NPN.
Timing Functions: 14 pre-programmed timing functions.
Supply Voltage: 100 to 240 VAC 50 / 60 Hz.
Power Consumption: Less than 10 VA.
Internal Power Supply: 12 VDC ±10%, 100 mA.
Display: Two-line 6 digit negative transmissive LCD display.
Weight: 4 oz (114 g).
Compliance: CE, cULus.
1-3/4
[44.45]
