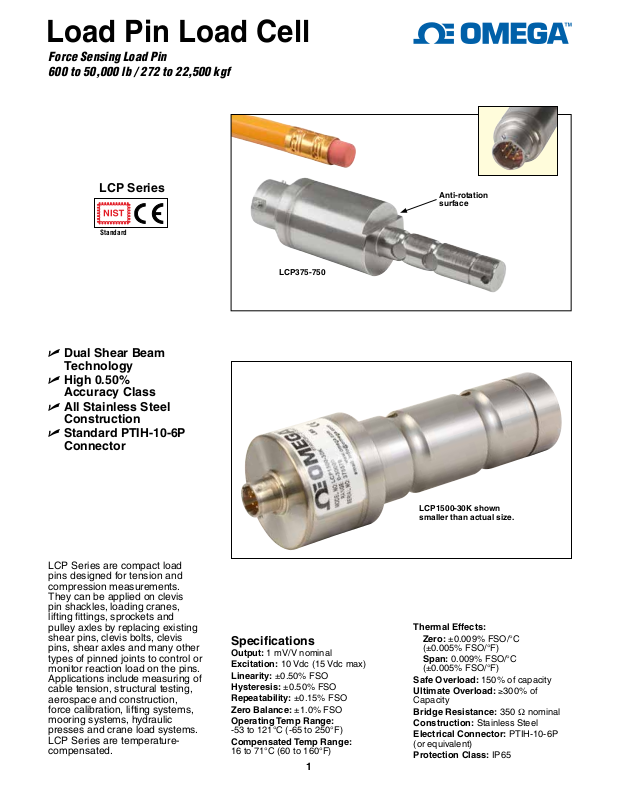

Omega LCP Specification

Load Pin Load Cell

Force Sensing Load Pin 600 to 50,000 lb / 272 to 22,500 kgf

LCP Series

Standard

U Dual Shear Beam

Technology

U High 0.50%

Accuracy Class

U All Stainless Steel

Construction

U Standard PTIH-10-6P

Connector

Anti-rotation surface

LCP375-750

LCP Series are compact load pins designed for tension and compression measurements. They can be applied on clevis pin shackles, loading cranes, lifting ﬁttings, sprockets and pulley axles by replacing existing shear pins, clevis bolts, clevis pins, shear axles and many other types of pinned joints to control or monitor reaction load on the pins. Applications include measuring of cable tension, structural testing, aerospace and construction, force calibration, lifting systems, mooring systems, hydraulic presses and crane load systems. LCP Series are temperaturecompensated.

Speciﬁcations

Output: 1 mV/V nominal Excitation: 10 Vdc (15 Vdc max) Linearity: ±0.50% FSO Hysteresis: ±0.50% FSO Repeatability: ±0.15% FSO Zero Balance: ±1.0% FSO Operating Temp Range:

-53 to 121°C (-65 to 250°F) Compensated Temp Range:

16 to 71°C (60 to 160°F)

1

LCP1500-30K shown smaller than actual size.

Thermal Effects: Zero: ±0.009% FSO/°C

(±0.005% FSO/°F) Span: 0.009% FSO/°C

(±0.005% FSO/°F)

Safe Overload: 150% of capacity Ultimate Overload: ≥300% of

Capacity

Bridge Resistance: 350 Ω nominal Construction: Stainless Steel Electrical Connector: PTIH-10-6P

(or equivalent) Protection Class: IP65

LCP375, LCP500 Dimensions: mm (inch) ø = diameter

C

PINS A and B + Input PINS C and D - Input PIN E - Output PIN F + Output

Model No. LCP375-600

LCP375-750

LCP375-1.5K

LCP500-2K

LCP500-3K

øA

Connector PTIH-10-6P or equal

Connector Pin Code:

Capacity

kgf (lb)

272

(600)

340

(750)

680

(1500)

907

(2000)

1360

(3000)

øA

22.2

(0.88)

22.2

(0.88)

22.2

(0.88)

38.1

(1.50)

38.1

(1.50)

B

12.4

(0.49)

12.4

(0.49)

12.4

(0.49)

12.4

(0.49)

12.4

(0.49)

C

69.9

(2.75)

69.9

(2.75)

69.9

(2.75)

88.9

(3.50)

88.9

(3.50)

D

1.9

(0.08)

1.9

(0.08)

1.9

(0.08)

5.1

(0.20)

5.1

(0.20)

E

7.5

(0.30)

7.5

(0.30)

7.5

(0.30)

12.7

(0.50)

12.7

(0.50)

E

F

H

D

I

G

øJ

øL

M

N

COVER* with RTV seal (No cover used on 1.5k lbs version)

Red arrows indicate direction of positive loading.

Calibration in positive direction standard.

F

10.6

(0.42)

10.6

(0.42)

10.6

(0.42)

19.1

(0.75)

19.1

(0.75)

G

6.4

(0.25)

6.4

(0.25)

6.4

(0.25)

6.4

(0.25)

6.4

(0.25)

H

6.6

(0.26)

6.6

(0.26)

6.6

(0.26)

6.6

(0.26)

6.6

(0.26)

2.3

(0.09)

2.3

(0.09)

2.3

(0.09)

2.3

(0.09)

2.3

(0.09)

øJ

I

2.3

(0.09)

2.3

(0.09)

2.3

(0.09)

2.3

(0.09)

2.3

(0.09)

øK

9.47 (0.373)

9.53 (0.375)

9.47 (0.373)

9.53 (0.375)

9.47 (0.373)

9.53 (0.375)

12.6 (0.498)

12.7 (0.500)

12.6 (0.498)

12.7 (0.500)

øK

øL

8.7

(0.34)

8.7

(0.34)

8.7

(0.34)

11.7

(0.46)

11.7

(0.46)

M

0.9

(0.03)

0.9

(0.03)

0.9

(0.03)

1.0

(0.04)

1.0

(0.04)

N

30.7

(1.21)

30.7

(1.21)

30.7

(1.21)

44.5

(1.75)

44.5

(1.75)

Models with Integral Connector (PTIH-10-6P or Equal)

To Order

Capacity

lb kgf Model No. Compatible Meters

600 272 LCP375-600 DPiS, DP41-S, DP25B-S

750 340 LCP375-750 DPiS, DP41-S, DP25B-S

1500 680 LCP375-1.5K DPiS, DP41-S, DP25B-S

2000 907 LCP500-2K DPiS, DP41-S, DP25B-S

3000 1360 LCP500-3K DPiS, DP41-S, DP25B-S

Comes complete with NIST traceable calibration certiﬁcate. Ordering Example: LCP375-600, 272 kgf (600 lb) capacity load pin with integral twist-lock connector. Custom capacities and sizes not shown on this page are available, please contact OMEGA for details.

Accessory

Mating Connector PT06F10-6S-R

Model No. Description

PT06F10-6S-R

Mating connector for LCP series load pins, sold separately

2

LCP750, LCP1000, LCP1250, LCP1500 Dimensions: mm (inch) ø = diameter

C

øA

Connector PTIH-10-6P or equal

Connector Pin Code: PINS A and B + Input PINS C and D - Input PIN E - Output PIN F + Output

Model No. LCP750-5K

LCP750-6K

LCP1000-10K

LCP1000-12.5K

LCP1250-18K

LCP1250-20K

LCP1500-30K

Capacity

kgf (lb)

2268

(5000)

2722

(6000)

4536

(10,000)

5670

(12,500)

8165

(18,000)

9072

(20,000)

13,608

(30,000)

B

øA

38.1

(1.50)

38.1

(1.50)

38.1

(1.50)

38.1

(1.50)

50.1

(2.00)

50.1

(2.00)

50.1

(2.00)

B

12.4

(0.49)

12.4

(0.49)

12.4

(0.49)

12.4

(0.49)

12.4

(0.49)

12.4

(0.49)

12.4

(0.49)

D

C

101.3 (3.99)

108.2 (4.26)

133.4 (5.25)

157.5 (6.20)

E

F

H

øP(KEY)

G

øK

Metal cover

øL

M

with RTV seal

N

Red arrows indicate direction of positive loading.

Calibration in positive direction standard.

D

5.1

(0.20)

5.1

(0.20)

5.1

(0.20)

5.1

(0.20)

6.9

(0.27)

6.9

(0.27)

6.9

(0.27)

E

15.0

(0.59)

15.0

(0.59)

16.0

(0.63)

16.0

(0.63)

20.6

(0.81)

20.6

(0.81)

23.9

(0.94)

F

25.4

(1.00)

25.4

(1.00)

25.4

(1.00)

25.4

(1.00)

35.1

(1.38)

35.1

(1.38)

41.1

(1.62)

G

6.4

(0.25)

6.4

(0.25)

6.4

(0.25)

6.4

(0.25)

6.4

(0.25)

6.4

(0.25)

6.4

(0.25)

H

7.9

(0.31)

7.9

(0.31)

12.7

(0.50)

12.7

(0.50)

16.0

(0.63)

16.0

(0.63)

14.5

(0.57)

øK

19.0 (0.748)

19.1 (0.75)

19.0 (0.748)

19.1 (0.75)

25.3 (0.998)

25.4 (1.00)

25.3 (0.998)

25.4 (1.00)

31.7 (1.248)

31.8 (1.25)

31.7 (1.248)

31.8 (1.25)

38.0 (1.498)

38.1 (1.50)

øL

17.9

(0.70)

17.9

(0.70)

23.9

(0.94)

23.9

(0.94)

30.0

(1.20)

30.0

(1.20)

35.7

(1.41)

M

N

1.2

1.4

55.4

(2.18)

55.4

(2.18)

57.4

(2.26)

57.4

(2.26)

76.2

(3.00)

76.2

(3.00)

88.9

(3.50)

(0.05)

(0.06)

øP

4.0

(0.16)

4.0

(0.16)

5.6

(0.22)

5.6

(0.22)

5.6

(0.22)

5.6

(0.22)

7.1

(0.28)

Models with Integral Connector (PTIH-10-6P or Equal)

To Order

Capacity

lb kgf Model No. Compatible Meters

5000 2268 LCP750-5K DPiS, DP41-S, DP25B-S

6000 2722 LCP750-6K DPiS, DP41-S, DP25B-S

10,000 4536 LCP1000-10K DPiS, DP41-S, DP25B-S

12,500 5670 LCP1000-12.5K DPiS, DP41-S, DP25B-S

18,000 8165 LCP1250-18K DPiS, DP41-S, DP25B-S

20,000 9072 LCP1250-20K DPiS, DP41-S, DP25B-S

30,000 13,608 LCP1500-30K DPiS, DP41-S, DP25B-S

Comes complete with NIST traceable calibration certiﬁcate. Ordering Example: LCP750-5K, 2268 kgf (5000 lb) capacity load pin with integral twist-lock connector. Custom capacities and sizes not shown on this page are available, please contact OMEGA for details.

3
