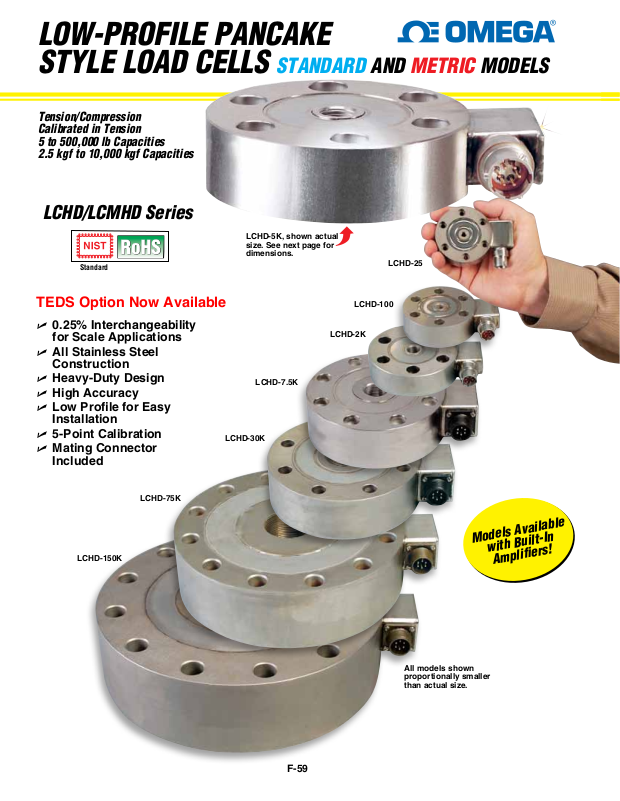

Page 1

LOW-PROFILE PANCAKE STYLE LOAD CELLS

Tension/Compression Calibrated in Tension 5 to 500,000 lb Capacities

2.5 kgf to 10,000 kgf Capacities

LCHD/LCMHD Series

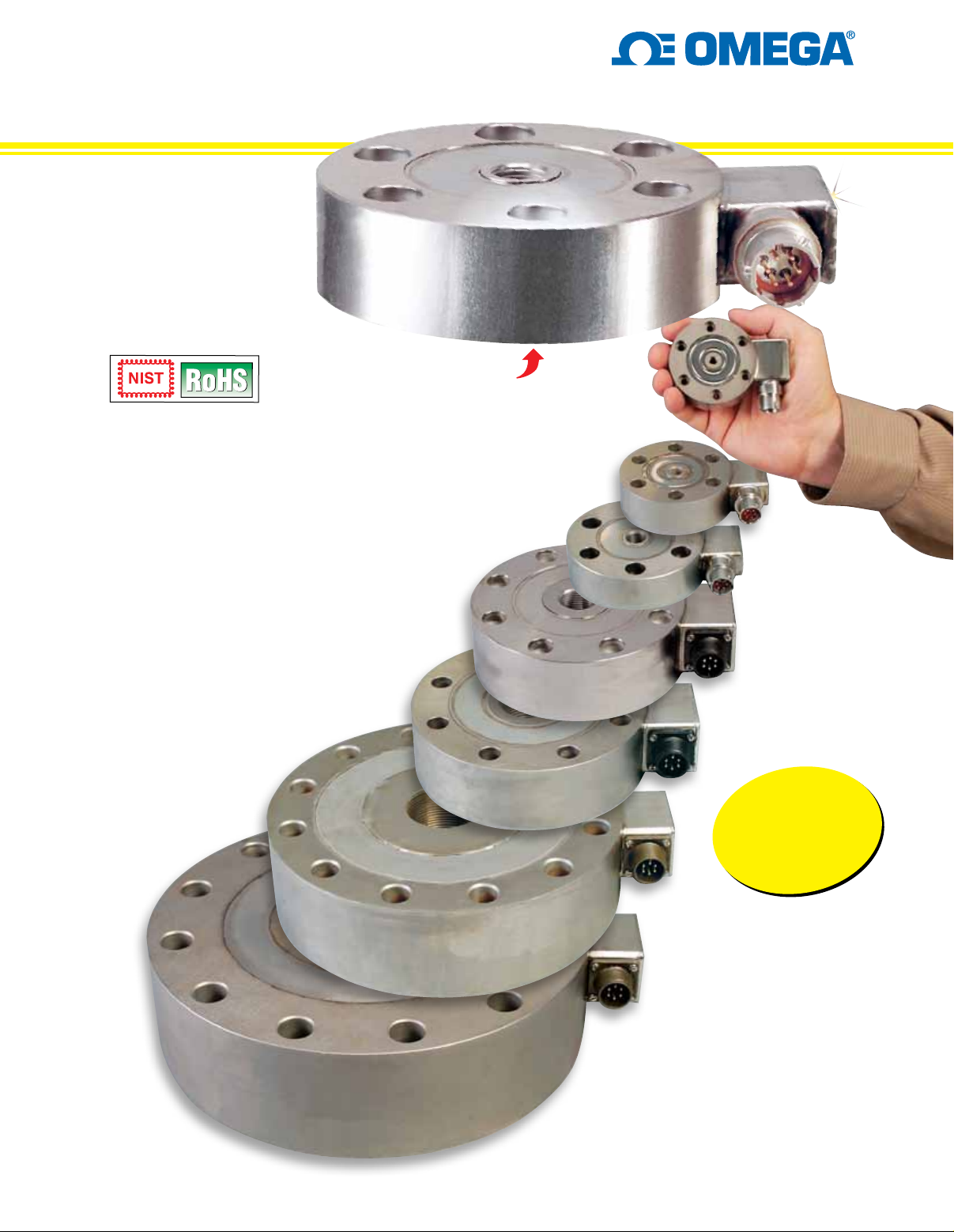

LCHD-5K, shown actual size. See next page for dimensions.

Standard

TEDS Option Now Available

U 0.25% Interchangeability

for Scale Applications

U All Stainless Steel

Construction

U Heavy-Duty Design U High Accuracy U Low Proﬁle for Easy

Installation

U 5-Point Calibration U Mating Connector

Included

LCHD-30K

LCHD-7.5K

STANDARD AND METRIC MODELS

LCHD-25

LCHD-100

LCHD-2K

LCHD-150K

LCHD-75K

F-59

odels

All models shown proportionally smaller than actual size.

vailable

with Built-I

mpliﬁers!

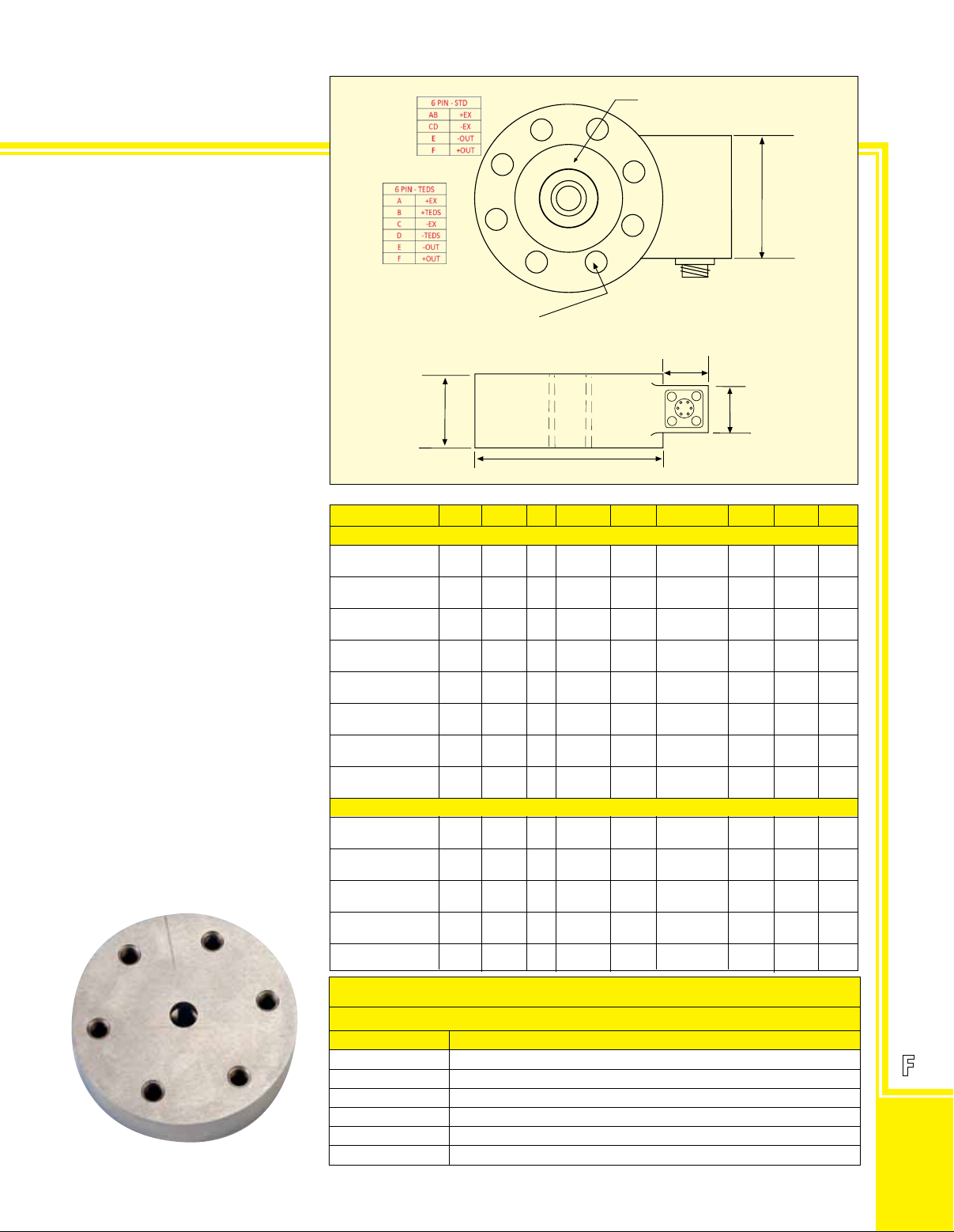

Page 2

T (THREAD)

SPECIFICATIONS

Excitation: 10 Vdc (15 V max) Output (FSO):

≤25 lb/10 kgf: 2 mV/V ±0.25% ≥50 lb/20 kgf: 3 mV/V ±0.25%

5-Point Calibration (in Tension):

0%, 50%, 100%, 50%, 0% Linearity:

≤25 lb/10 kgf: ±0.20% FSO ≥50 lb/20 kgf: ±0.10% FSO

Hysteresis:

≤25 lb/10 kgf: ±0.10% FSO ≥50 lb/20 kgf: ±0.08% FSO

Repeatability:

≤25 lb/10 kgf: ±0.1% FSO ≥50 lb/20 kgf: ±0.03% FSO

Zero Balance: ±1% of FSO Operating Temp Range:

-54 to 121°C (-65 to 250°F)

Compensated Temp Range:

16 to 71°C (60 to 160°F)

Thermal Effects: Zero: 0.0036% FSO/°C

Span: 0.0036% FSO/°C Safe Overload: 150% of capacity Ultimate Overload: 300% of capacity Input Resistance: 350 ±10 Ω Output Resistance: 350 ±10 Ω FS Deﬂection:

0.025 to 0.076 mm (0.001 to 0.003") typical

Construction: 17-4 PH stainless steel Electrical:

≤5000 lb/2000 kgf: DT02H-10-6P

>5000 lb/2500 kgf: MS3102E-14S-6P

(or equiv.)

Mating Connector (Included):

≤5000 lb/2000 kgf: PT06F-10-6S

>5000 lb/2500 kgf: MS3102E-14S-6S

(or equiv.)

LCHD-TP263, optional tension plate for 2k to 5k LCHD load cells, shown smaller than actual size.

F CLEARANCE HOLES (5-15 K lb, 2.5-7500 kgf Counter Bored) EQUALLY SPACED ON G DIA. B.C., K DIA. THRU

Dimensions: mm (inch) CAPACITY D H F G K T A B C

STANDARD MODELS

5 to 25 lb

(2.5) (0.80) (2.0) (0.18) (0.94) (0.75) (1.25)

50 to 1K lb

(3.0) (1.0) (2.25) (0.28) (0.94) (0.75) (1.25)

2K to 5K lb

(3.5) (1.0) (2.63) (0.34) (0.94) (0.75) (1.25)

7.5K to 15K lb

(5.5) (1.8) (4.5) (0.40) (1.25) (1.5) (2.0)

20K to 50K lb

(6.0) (1.8) (4.88) (0.53) (1.25) (1.5) (2.0)

75K to 100K lb

(9.0) (2.5) (7.75) (0.66) (1.25) (1.5) (2.0)

150K to 200

(11) (3.0) (9.5) (0.78) (1.25) (1.5) (2.0)

300K to 500

(14) (4.25) (11.75) (1.0) (1.25) (1.5) (2.0)

2.5 to 10 kgf

(2.5) (0.80) (2.0) (0.18) (0.94) (0.75) (1.25)

25 to 500 kgf

(3.0) (1.0) (2.25) (0.28) (0.94) (0.75) (1.25)

1000 to 2500 kgf

(3.5) (1.0) (2.63) (0.34) (0.94) (0.75) (1.25)

5000 to 7500 kgf

(5.5) (1.8) (4.5) (0.40) (1.25) (1.5) (2.0)

10000 kgf

(6.0) (1.8) (4.88) (0.53) (1.25) (1.5) (2.0)

K lb

64 20 6 51 4.6

76 25 6 57 7.1

89 25 6 67 8.6

140 46 8 114 10

152 46 8 124 13

229 64 12 197 17

279 76 12 241 20

356 108 12 298 25

METRIC MODELS

64 20 6 51 4.6

76 25 6 57 7.1

89 25 6 67 8.6

140 46 8 114 10

152 46 8 124 13

⁄4-28 UNF

⁄8-24 UNF

⁄2-20 UNF

1-14 UNS

11⁄2-12 UNF

2-12 UN

21⁄2-12 UN

31⁄2-8 UN

M6 x 1.00

M10 x 1.5

M12 x 1.75

M24 x 2.0

M36 x 2.0

24 19 32

32 38 51

24 19 32

32 38 51

LOAD CELLS

To Order

TENSION PLATES

MODEL NO. DESCRIPTION LCHD-TP200 LCHD-TP225 LCHD-TP263 LCHD-TP450 LCHD-TP488 LCHD-TP775

Tension plate, 5 to 25 lb ranges Tension plate, 50 to 1000 lb ranges Tension plate, 2000 to 5000 lb ranges Tension plate, 7500 to 15,000 lb ranges Tension plate, 20,000 to 50,000 lb ranges Tension plate, 75,000 to 100,000 lb ranges

F-60

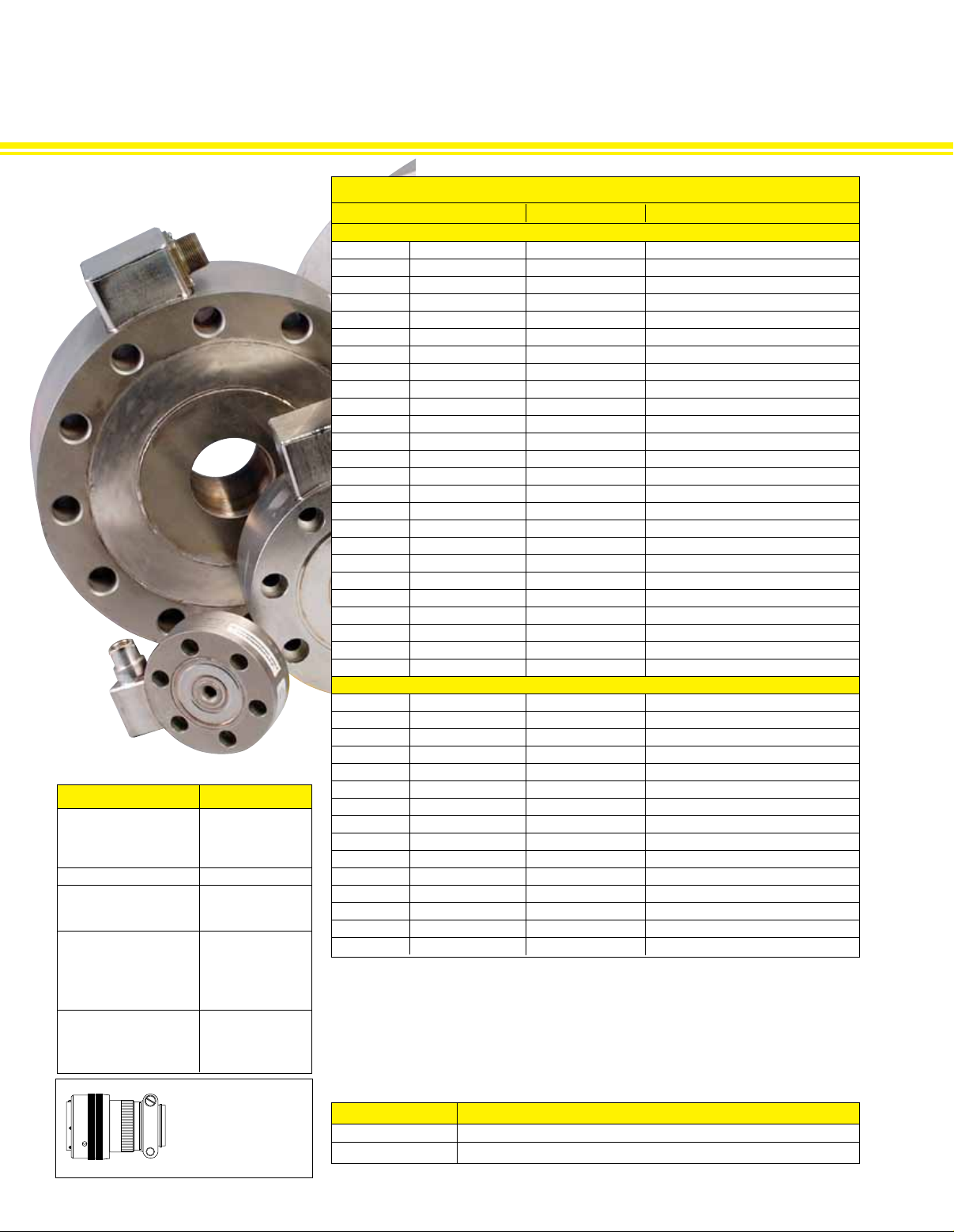

Page 3

LOW-PROFILE PANCAKE STYLE LOAD CELLS

To Order

CAPACITY MODEL NO. COMPATIBLE METERS

STANDARD MODELS

5 lb 2.3 kgf LCHD-5 DPiS, DP41-S, DP25B-S 10 lb 4.5 kgf LCHD-10 DPiS, DP41-S, DP25B-S 25 lb 11 kgf LCHD-25 DPiS, DP41-S, DP25B-S 50 lb 23 kgf LCHD-50 DPiS, DP41-S, DP25B-S

100 lb 45 kgf LCHD-100 DPiS, DP41-S, DP25B-S 250 lb 114 kgf LCHD-250 DPiS, DP41-S, DP25B-S 500 lb 227 kgf LCHD-500 DPiS, DP41-S, DP25B-S

1K lb 455 kgf LCHD-1K DPiS, DP41-S, DP25B-S 2K lb 909 kgf LCHD-2K DPiS, DP41-S, DP25B-S 3K lb 1361 kgf LCHD-3K DPiS, DP41-S, DP25B-S 4K lb 1815 kgf LCHD-4K DPiS, DP41-S, DP25B-S 5K lb 2269 kgf LCHD-5K DPiS, DP41-S, DP25B-S

7.5K lb 3403 kgf LCHD-7.5K DPiS, DP41-S, DP25B-S 10K lb 4537 kgf LCHD-10K DPiS, DP41-S, DP25B-S 15K lb 6806 kgf LCHD-15K DPiS, DP41-S, DP25B-S* 20K lb 9074 kgf LCHD-20K DPiS, DP41-S, DP25B-S* 30K lb 13,612 kgf LCHD-30K DPiS, DP41-S, DP25B-S* 50K lb 22,686 kgf LCHD-50K DPiS, DP41-S, DP25B-S* 75K lb 34,029 kgf LCHD-75K DPiS, DP41-S, DP25B-S*

100K lb 45,372 kgf LCHD-100K DPiS, DP41-S, DP25B-S* 150K lb 68,058 kgf LCHD-150K DPiS, DP41-S, DP25B-S* 200K lb 90,744 kgf LCHD-200K DPiS, DP41-S, DP25B-S* 300K lb 136,116 kgf LCHD-300K DPiS, DP41-S, DP25B-S* 400K lb 181,488 kgf LCHD-400K DPiS, DP41-S, DP25B-S* 500K lb 226,860 kgf LCHD-500K DPiS, DP41-S, DP25B-S*

METRIC MODELS

5.5 lb 2.5 kgf LCMHD-2.5 DPiS, DP41-S, DP25B-S 11 lb 5 kgf LCMHD-5 DPiS, DP41-S, DP25B-S 22 lb 10 kgf LCMHD-10 DPiS, DP41-S, DP25B-S 55 lb 25 kgf LCMHD-25 DPiS, DP41-S, DP25B-S

POPULAR OPTIONS

DESCRIPTION SUFFIX

5V Output Calibrated 0 to 5 Vdc in tension. (Output is bi-directional ± 5 Vdc)

Overload Stops “-OL”

Dual Bridge

≤5000 lb/2500 kgf

>5000 lb/2500 kgf

Extended Temperature Range between: -45 to 93°C

(-50 to 200°F) and to 163°C (325°F)

TEDS IEEE 1451.4 module

Other Custom Pinout

( Avail)

“-5T”

“-DUAL” “-DUAL”

“-TC1” “-TC2”

EDS”

“-T

PT06F10-6S, mating connector (included).

110 lb 50 kgf LCMHD-50 DPiS, DP41-S, DP25B-S 220 lb 100 kgf LCMHD-100 DPiS, DP41-S, DP25B-S

551 lb 250 kgf LCMHD-250 DPiS, DP41-S, DP25B-S 1102 lb 500 kgf LCMHD-500 DPiS, DP41-S, DP25B-S 2205 lb 1000 kgf LCMHD-1K DPiS, DP41-S, DP25B-S 3307 lb 1500 kgf LCMHD-1.5K DPiS, DP41-S, DP25B-S 4409 lb 2000 kgf LCMHD-2K DPiS, DP41-S, DP25B-S 5512 lb 2500 kgf LCMHD-2.5K DPiS, DP41-S, DP25B-S

11,023 lb 5000 kgf LCMHD-5K DPiS, DP41-S, DP25B-S 16,535 lb 7500 kgf LCMHD-7.5K DPiS, DP41-S, DP25B-S

22,046 lb 10,000 kgf LCMHD-10K DPiS, DP41-S, DP25B-S

Comes complete with 5-point NIST-traceable calibration, mating connector, and 59 kΩ shunt data.

* 4-digit meter. **

DPiS meter suitable for one direction measurement only.

Note: Models >300,000 lb are calibrated at 300,000 lb—see Speciﬁcations. Ordering Examples: LCHD-500, 500 lb capacity load cell. LCMHD-500, 500 kgf capacity load cell. PT06F10-6S, mating connector (included). LCMHD-10K, 10,000 kgf capacity load cell. MS3106E-14S-6S, mating connector (included).

ACCESSORIES MODEL NO. DESCRIPTION

MS3106E-14S-6S Spare mating connector for units above 5000 lb capacity PT06F10-6S Spare mating connector for units below 7500 lb capacity

F-61
