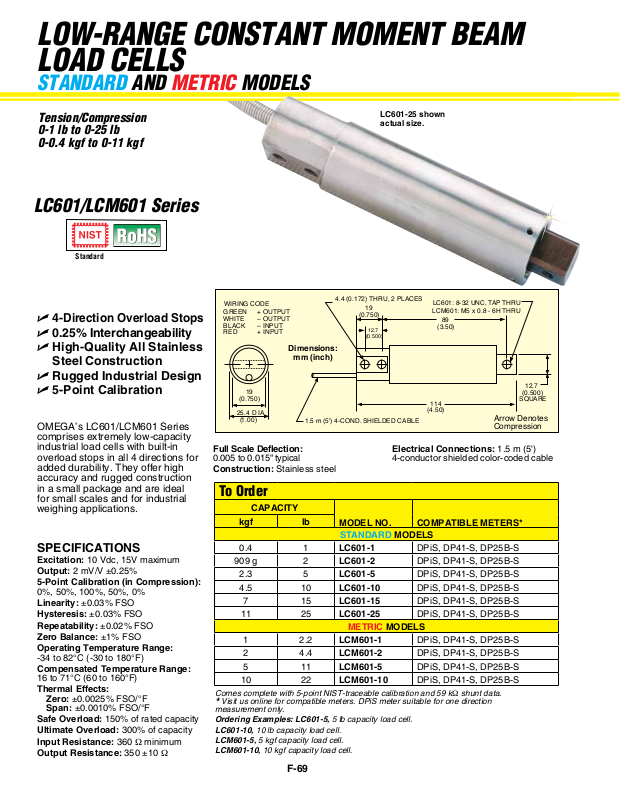

LC601
(0-1 THRU 0-25 LBS)
LOW-RANGE CONSTANT MOMENT BEAM
LOAD CELLS
STANDARD AND METRIC MODELS
Tension/Compression
0-1 lb to 0-25 lb
0-0.4 kgf to 0-11 kgf
LC601/LCM601 Series
Standard
U 4
-Direction Overload Stops
U 0.25% Interchangeability
U High-Quality All Stainless
Steel Construction
U Rugged Industrial Design
U 5-Point Calibration
OMEGA’s LC601/LCM601 Series
comprises extremely low-capacity
industrial load cells with built-in
overload stops in all 4 directions for
added durability. They offer high
accuracy and rugged construction
in a small package and are ideal
for small scales and for industrial
weighing applications.
SPECIFICATIONS
Excitation: 10 Vdc, 15V maximum
Output: 2 mV/V ±0.25%
5-Point Calibration (in Compression):
0%, 50%, 100%, 50%, 0%
Linearity: ±0.03% FSO
Hysteresis: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1% FSO
Operating Temperature Range:
-34 to 82°C (-30 to 180°F)
Compensated Temperature Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0025% FSO/°F
Span: ±0.0010% FSO/°F
Safe Overload: 150% of rated capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±10 Ω

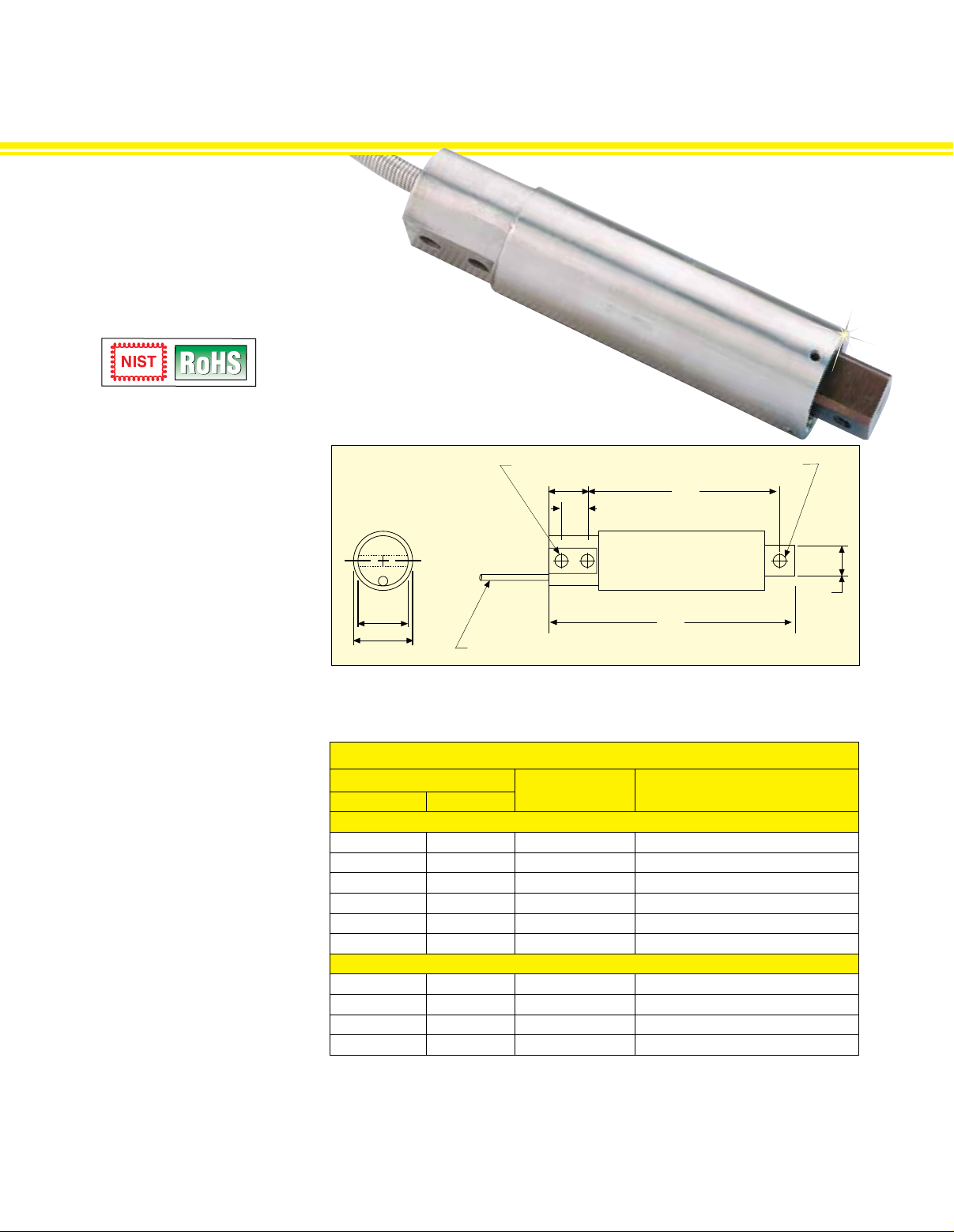

LC601-25 shown
actual size.
WIRING CODE
GREEN
WHITE
BLACK
RED
Full Scale Deflection:
0.005 to 0.015" typical
Construction: Stainless steel
+ OUTPUT
– OUTPUT
– INPUT
+ INPUT
19
(0.750)
25.4 DIA.
(1 .00)
Dimensions:
mm (inch)
1.5 m (5') 4-COND. SHIELDED CABLE
4.4 (0.172) THRU, 2 PLACES
19
(0.750)
12.7
(0.500)
Electrical Connections: 1.5 m (5')
4-conductor shielded color-coded cable
LC601: 8-32 UNC, TAP THRU
LCM601: M5 x 0.8 - 6H THRU
89
(3.50)
114
(4.50)
Arrow Denotes
Compression
12.7
(0.500)
SQUARE
To Order
CAPACITY
kgf lb
0.4 1
909 g 2
2.3 5
4.5 10
7 15
11 25
1 2.2
2 4.4
5 11
10 22
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Visit us online for compatible meters. DPiS meter suitable for one direction
*
measurement only.
Ordering Examples: LC601-5, 5 lb capacity load cell.
LC601-10, 10 lb capacity load cell.
LCM601-5, 5 kgf capacity load cell.
LCM601-10, 10 kgf capacity load cell.
F-69
MODEL NO. COMPATIBLE METERS*
STANDARD MODELS
LC601-1
LC601-2
LC601-5
LC601-10
LC601-15
LC601-25
METRIC MODELS
LCM601-1
LCM601-2
LCM601-5
LCM601-10
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
