I
R

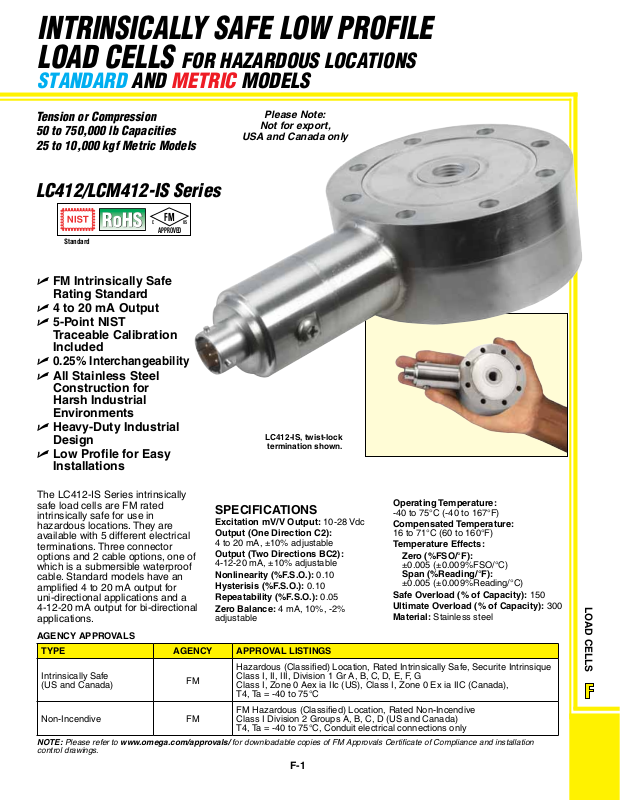

INTRINSICALLY SAFE LOW PROFILE
LOAD CELLS
FOR HAZARDOUS LOCATIONS
STANDARD AND METRIC MODELS
Tension or Compression
50 to 750,000 lb Capacities
25 to 10,000 kgf Metric Models
LC412/LCM412-IS Series
FM
C
US
APPROVED
Standard
U FM Intrinsically Safe
Rating Standard
U 4 to 20 mA Output
U 5-Point NIST
Traceable Calibration
Included
U
0.25% Interchangeability
U All Stainless Steel
Construction for
Harsh Industrial
Environments
U Heavy-Duty Industrial
Design
U Low Profile for Easy
Installations
Please Note:
Not for export,
USA and Canada only

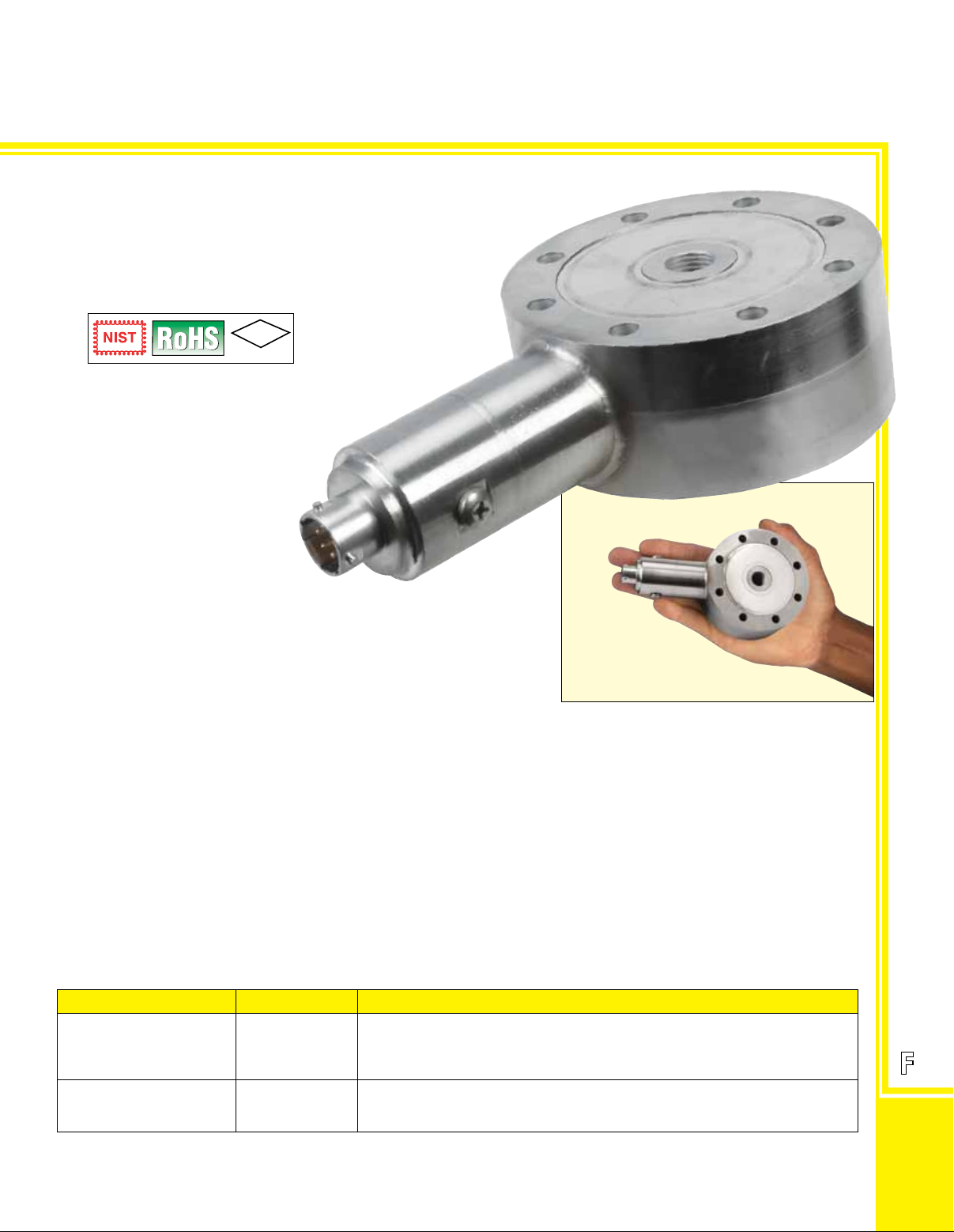

LC412-IS, twist-lock
termination shown.
The LC412-IS Series intrinsically
safe load cells are FM rated
intrinsically safe for use in
hazardous locations. They are
available with 5 different electrical
terminations. Three connector
options and 2 cable options, one of
which is a submersible waterproof
cable. Standard models have an
amplified 4 to 20 mA output for
uni-directional applications and a
4-12-20 mA output for bi-directional
applications.
AGENCY APPROVALS
TYPE AGENCY APPROVAL LISTINGS
Intrinsically Safe
(US and Canada)
Non-Incendive FM
NOTE: Please refer to www.omega.com/approvals/ for downloadable copies of FM Approvals Certificate of Compliance and installation
control drawings.
SPECIFICATIONS
Excitation mV/V Output: 10-28 Vdc
Output (One Direction C2):
4 to 20 mA, ±10% adjustable
Output (Two Directions BC2):
4-12-20 mA, ±10% adjustable
Nonlinearity (%F.S.O.): 0.10
Hysterisis (%F.S.O.): 0.10
Repeatability (%F.S.O.): 0.05
Zero Balance: 4 mA, 10%, -2%
adjustable
Hazardous (Classified) Location, Rated Intrinsically Safe, Securite Intrinsique
FM
Class I, II, III, Division 1 Gr A, B, C, D, E, F, G
Class I, Zone 0 Aex ia IIc (US), Class I, Zone 0 Ex ia IIC (Canada),
T4, Ta = -40 to 75°C
FM Hazardous (Classified) Location, Rated Non-Incendive
Class I Division 2 Groups A, B, C, D (US and Canada)
T4, Ta = -40 to 75°C, Conduit electrical connections only
F-1
Operating Temperature:
-40 to 75°C (-40 to 167°F)
Compensated Temperature:
16 to 71°C (60 to 160°F)
Temperature Effects:
Zero (%FSO/°F):
±0.005 (±0.009%FSO/°C)
Span (%Reading/°F):
±0.005 (±0.009%Reading/°C)
Safe Overload (% of Capacity): 150
Ultimate Overload (% of Capacity): 300
Material: Stainless steel
LOAD CELLS
F
Page 2
F
I
R
INTRINSICALLY SAFE LOAD CELLS

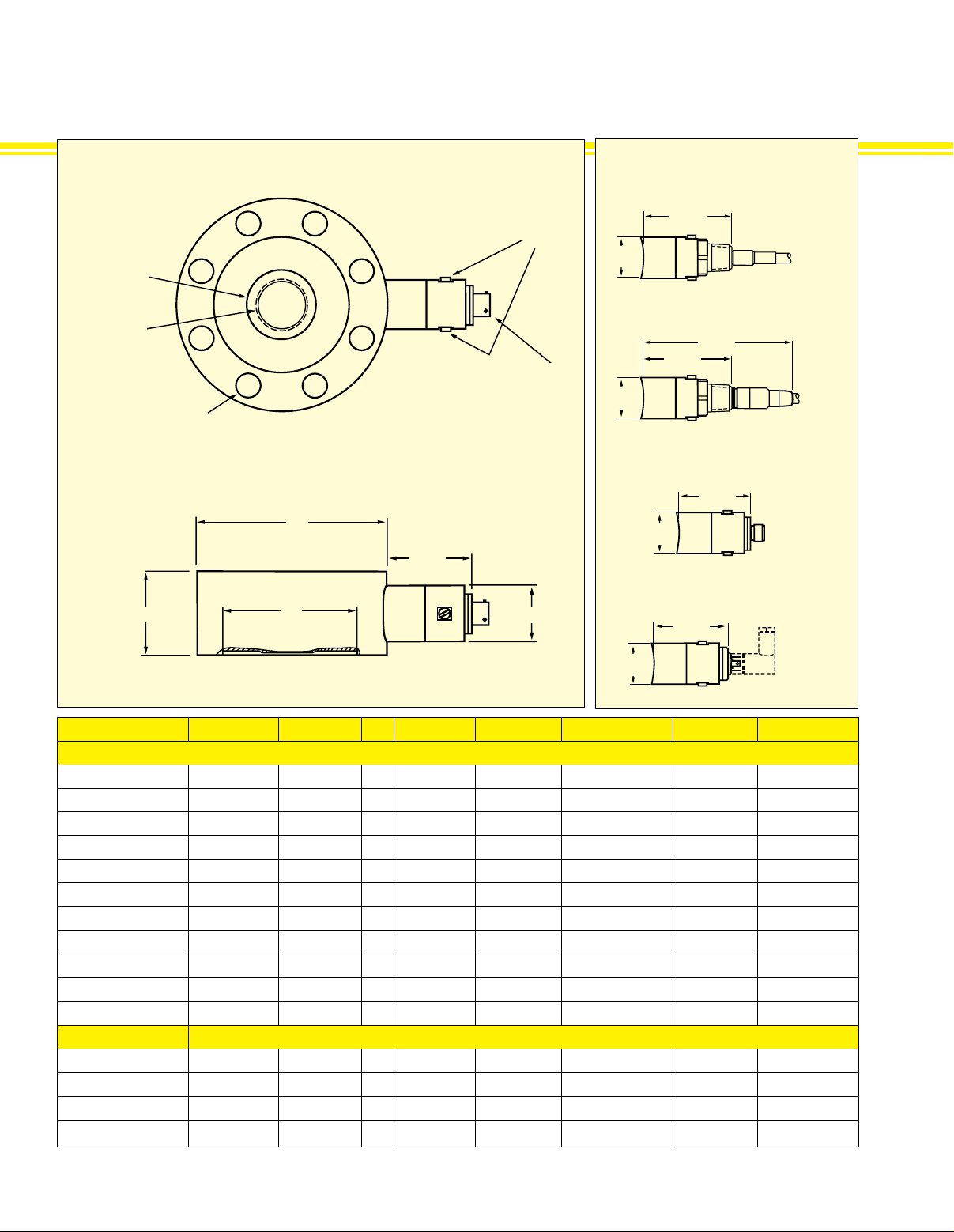

Dimensions: mm (inch)
ø = diameter
Ø“W”. FLUSH W/
TOP SURFACE
OF CELL
“T” THREAD
THRU
“K” DIA. “F” HOLES EQ
SP ON A “G” DIA. BC
H
ØA
ØD
ZERO AND SPAN
ADJUSTMENT
(NO ADJUSTMENT
OPTION AVAILABLE)
Electrical Connection “1”
(PTIH–10–6P twist-lock)
ELECTRICAL CODE
PIN A = + INPUT
PIN B = – INPUT
PIN E = CASE
PIN C, D, F = NO CONNECTION
T THREAD THRU
63.5
(2.5)
30.5 (1.2)
ELECTRICAL CONNECTION WITH
30.5
(1.2)
30.5
(1.2)
WIRE/PIN CODE
0 (CABLE/CONDUIT)
76.2
(3.0)
GW (CABLE BACKEND WITH
1/2 CONDUIT WATERPROOF)
30.5
(1.2)
124.5
76.2
(3.0)
5 (M12)
6 (mini-DIN)
66
(2.6)
RED = + INPUT
BLACK = – INPUT
GREEN = CASE
(4.9)
RED = + INPUT
BLACK = – INPUT
GREEN = CASE
63.5
(2.5)
1 = + INPUT
2 = – INPUT
4 = CASE
1 = + INPUT
2 = – INPUT
GND = CASE
30.5
(1.2)
Mating DIN connector not included
CAPACITY (lbs) D H F G K T W A
STANDARD MODEL (LC412)
3
50 to 300 76 (3.00) 38 (1.50) 8 57 (2.25) 6.7 (0.266)
500 to 3000 89 (3.50) 38 (1.50) 8 73 (2.875) 6.7 (0.266)
5000 to 10,000 95 (3.75) 38 (1.50) 8 83 (3.25) 6.7 (0.266)
⁄8–24UNF–2B 14.2 (0.56) 45.2 (1.78)
1
⁄2–20UNF–2B 22.1 (0.87) 63.0 (2.48)
3
⁄4–16UNF–2B 28.7 (1.13) 66.8 (2.63)
15,000 to 25,000 102 (4.00) 51 (2.00) 8 89 (3.50) 10.3 (0.406) 1–14UNF–2B 33 (1.30) 74.9 (2.95)
1
30,000 to 50,000 178 (7.00) 76 (3.00) 8 143 (5.625) 13.4 (0.531) 1
75,000 203 (8.00) 89 (3.50) 8 171 (6.75) 16.7 (0.656) 1
⁄2–12UN–2B 77.5 (3.05) 113.0 (4.45)
3
⁄4–12UN–2B 104.9 (4.13) 140.7 (5.54)
100,000 242 (9.50) 102 (4.00) 8 203 (8.00) 19.8 (0.781) 2–12UN–2B 110.2 (4.34) 169.2 (6.66)
1
150,000 to 200,000 279 (11.00) 102 (4.00) 12 235 (9.25) 26 (1.030) 2
⁄2–12UN–2B 124.5 (4.90) 183.4 (7.22)
300,000 to 400,000 279 (11.00) 102 (4.00) 12 235 (9.25) 26 (1.030) 3–12UN–2B 124.5 (4.90) 183.4 (7.22)
1
440,000 to 500,000 305 (12.00) 102 (4.00) 12 280 (10.25) 29 (1.156) 3
⁄2–8UN–2B 137.2 (5.4) 196.1 (7.72)
600,000 to 750,000 330 (13.00) 114 (4.50) 12 279 (11.00) 33 (1.281) 4–8UN–2B 149.9 (5.9) 208.8 (8.22)
CAPACITY (kgf) METRIC MODEL (LCM412)
25 to 100 76 (3.00) 38 (1.50) 8 57 (2.25) 6.7 (0.266) M10 x 1.5–6G 14.2 (.56) 45.2 (1.78)
250 to 1500 89 (3.50) 38 (1.50) 8 73 (2.875) 6.7 (0.266) M12 x 1.75–6G 22.1 (.87) 63 (2.48)
2500 to 5000 95 (3.75) 38 (1.50) 8 83 (3.25) 6.7 (0.266) M20 x 1.5–6G 28.7 (1.13) 66.8 (2.63)
7500 to 10,000 102 (4.00) 50 (2.00) 8 89 (3.50) 10.3 (0.406) M24 x 2.0–6G 33.0 (1.30) 74.9 (2.95)
F-2
Page 3
I
R
INTRINSICALLY SAFE – STANDARD AND
METRIC MODELS
To Order
CAPACITY
lb kgf MODEL NO. COMPATIBLE METERS MODEL NO.
INTRINSICALLY SAFE STANDARD MODELS
50 23 LC412-50 [*] [**] [***] DP41-E, 6-digit display
100 45 LC412-100 [*] [**] [***] DP41-E, 6-digit display
250 114 LC412-250 [*] [**] [***] DP41-E, 6-digit display
500 227 LC412-500 [*] [**] [***] DP41-E, 6-digit display
1000 455 LC412-1K [*] [**] [***] DP41-E, 6-digit display
2000 909 LC412-2K [*] [**] [***] DP41-E, 6-digit display
3000 1361 LC412-3K [*] [**] [***] DP41-E, 6-digit display
5000 2269 LC412-5K [*] [**] [***] DP41-E, 6-digit display
10,000 4537 LC412-10K [*] [**] [***] DP41-E, 6-digit display
15,000 6806 LC412-15K [*] [**] [***] DP41-E, 6-digit display
20,000 9074 LC412-20K [*] [**] [***] DP41-E, 6-digit display
25,000 11,343 LC412-25K [*] [**] [***] DP41-E, 6-digit display
50,000 22,686 LC412-50K [*] [**] [***] DP41-E, 6-digit display
75,000 34,029 LC412-75K [*] [**] [***] DP41-E, 6-digit display
100,000 45,372 LC412-100K [*] [**] [***] DP41-E, 6-digit display
200,000 90,744 LC412-200K [*] [**] [***] DP41-E, 6-digit display
300,000 136,116 LC412-300K [*] [**] [***] DP41-E, 6-digit display
400,000 181,488 LC412-400K [*] [**] [***] DP41-E, 6-digit display
500,000 226,860 LC412-500K [*] [**] [***] DP41-E, 6-digit display
750,000 340,290 LC412-750K [*] [**] [***] DP41-E, 6-digit display
All models come complete with 5-point NIST traceable calibration.
Note: Ranges over 300,000 lb are calibrated at 300,000 lb. Full calibration is available by adding a “ZXX” at the end of the part number.
Ordering Example: LC412-100K0BC2IS, 100,000 lb capacity, bidirectional, with PVC cable and FMIS approvals.
TENSION BASE PLATE
LC412-TP225
LC412-TP225
LC412-TP225
LC412-TP288
LC412-TP288
LC412-TP288
LC412-TP288
LC412-TP325
LC412-TP325
LC412-TP350
LC412-TP350
LC412-TP350
LC412-TP563
LC412-TP675
LC412-TP800
LC412-TP925
LC412-TP925-3
LC412-TP925-3
LC412-TP1025
LC412-TP1100
CAPACITY
kgf Ib MODEL NO. MODEL NO.
INTRINSICALLY SAFE METRIC MODELS
25 55 LCM412-25 [*] [**] [***] DP41-E, 6-digit display
50 110 LCM412-50 [*] [**] [***] DP41-E, 6-digit display
100 220 LCM412-100 [*] [**] [***] DP41-E, 6-digit display
250 551 LCM412-250 [*] [**] [***] DP41-E, 6-digit display
500 1102 LCM412-500 [*] [**] [***] DP41-E, 6-digit display
1000 2205 LCM412-1K [*] [**] [***] DP41-E, 6-digit display
1500 3307 LCM412-1.5K [*] [**] [***] DP41-E, 6-digit display
2500 5512 LCM412-2.5K [*] [**] [***] DP41-E, 6-digit display
5000 11,023 LCM412-5K [*] [**] [***] DP41-E, 6-digit display
7500 16,535 LCM412-7.5K [*] [**] [***] DP41-E, 6-digit display
10,000 22,046 LCM412-10K [*] [**] [***] DP41-E, 6-digit display
All models come complete with 5-point NIST traceable calibration.
Ordering Example: LCM412-5K1C2IS, 5000 kg capacity load cell.
COMPATIBLE METERS
F-3
TENSION BASE PLATE
LCM412-TP225
LCM412-TP225
LCM412-TP225
LCM412-TP288
LCM412-TP288
LCM412-TP288
LCM412-TP288
LCM412-TP325
LCM412-TP325
LCM412-TP350
LCM412-TP350
LOAD CELLS
F
Page 4
[*] ELECTRICAL TERMINATIONS
TERMINATIONS SUFFIX
2 m (6.6’) PVC cable with
1
⁄2 NPT conduit
†
PTIH-10-6P twist-lock mating connector
PT06F10-6S (sold separately) 1
M12 4-pin 5
mini-DIN (mating DIN connector not included) 6
1
3 m (10') submersible cable with
†
Other cable lengths are available; please contact Factors for price and availability
⁄2 NPT conduit GW
[**] OUTPUT OPTIONS
INTRINSICALLY SAFE AMPLIFIERS SUFFIX
FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full
scale in compression) C2IS
0
Any cable or connector must meet
the requirements of the environment
where it is being installed. The safety
engineer should specify the cables
and connectors.
FM Intrinsically Safe 4-12-20 mA Output [calibrated (-)full
scale to (+)full scale] BC2IS
[***] FINAL SUFFIX OPTIONS
DESCRIPTION SUFFIX
Potentiometers Standard (No Suffix)
No Potentiometers NP

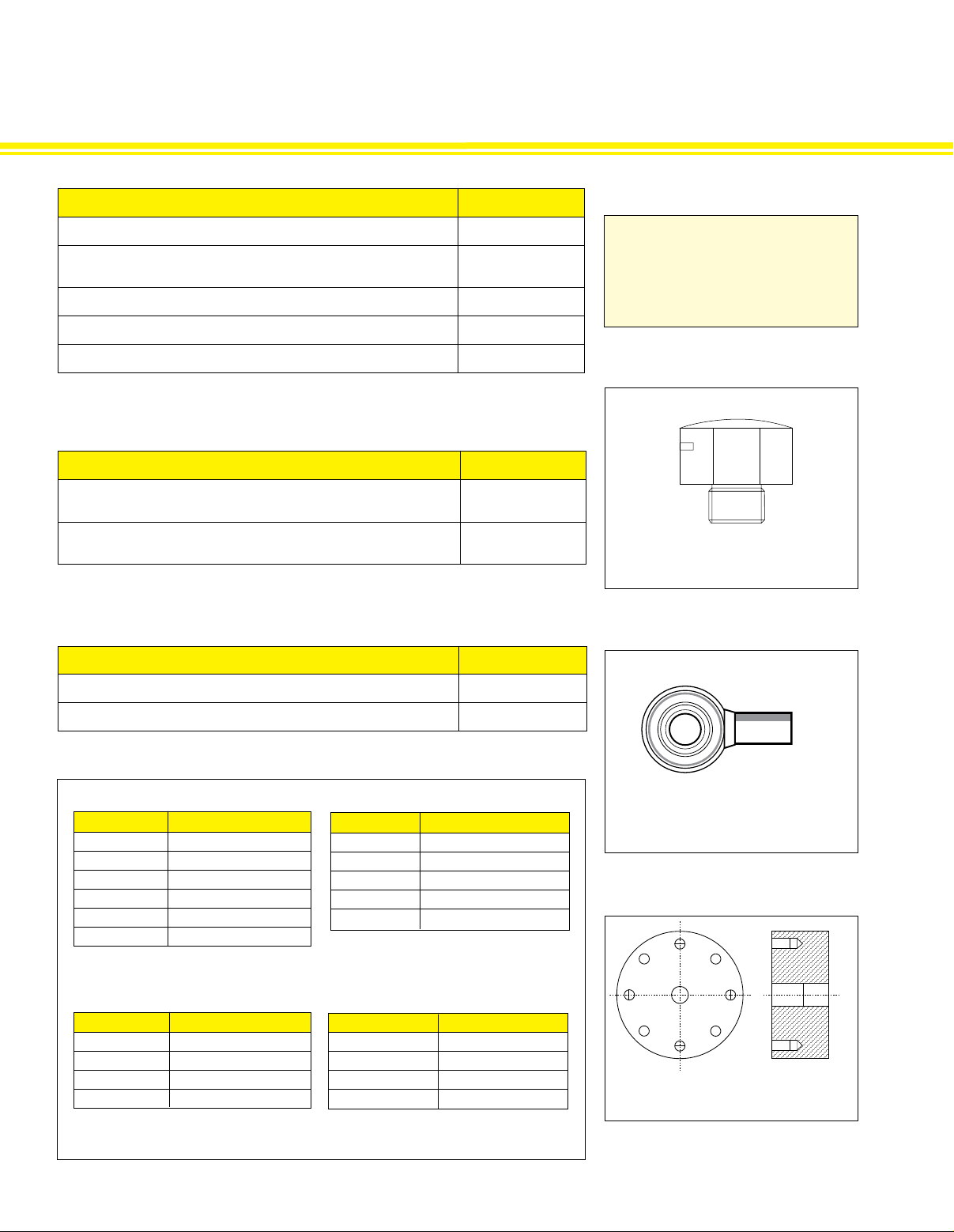

STANDARD LOAD BUTTONS
MODEL THREAD
LBC-038
LBC-012
LBC-034
3
⁄8-24
1
⁄2-20
3
⁄4-16
LBC-100 1-14
LBC-112 1
1
⁄2-12
LBC-200-12 2-12
STANDARD MALE ROD ENDS
MODEL NO. THREAD
REC-038M
REC-012M
REC-034M
3
⁄8-24
1
⁄2-20
3
⁄4-16
REC-100M 1-14
1
REC-112M 1
⁄2-12
Load Buttons
Visit us online
Rod Ends
Visit us online
METRIC LOAD BUTTONS
MODEL NO. THREAD
MLBC-M10 M10 x 1.5
MLBC-M12 M12 x 1.75
MLBC-M20 M20 x 1.5
MLBC-M24 M24 x 2.0
Visit us online for load button and rod end dimensions
METRIC MALE ROD ENDS
MODEL NO. THREAD
MREC-M10M M10 x 1.5
MREC-M12M M12 x 1.75
MREC-M20M M20 x 1.5
MREC-M24M M24 x 2.0
F-4
