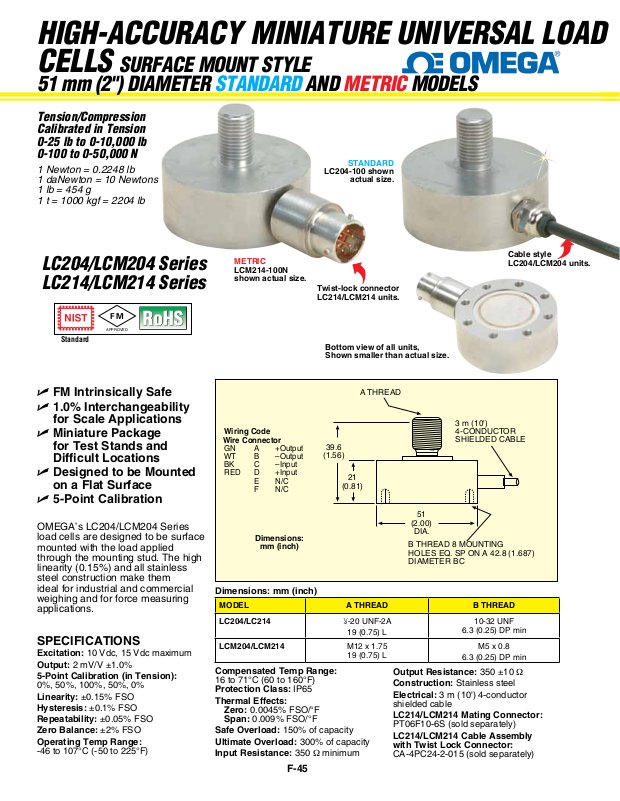

HIGH-ACCURACY MINIATURE UNIVERSAL LOAD
CELLS SURFACE MOUNT STYLE
51 mm (2") DIAMETER STANDARD AND METRIC MODELS
Tension/Compression
Calibrated in Tension
0-25 lb to 0-10,000 lb
0-100 to 0-50,000 N
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kgf = 2204 lb
LC204/LCM204 Series
LC214/LCM214 Series
FM
APPROVED
Standard
METRIC
LCM214-100N

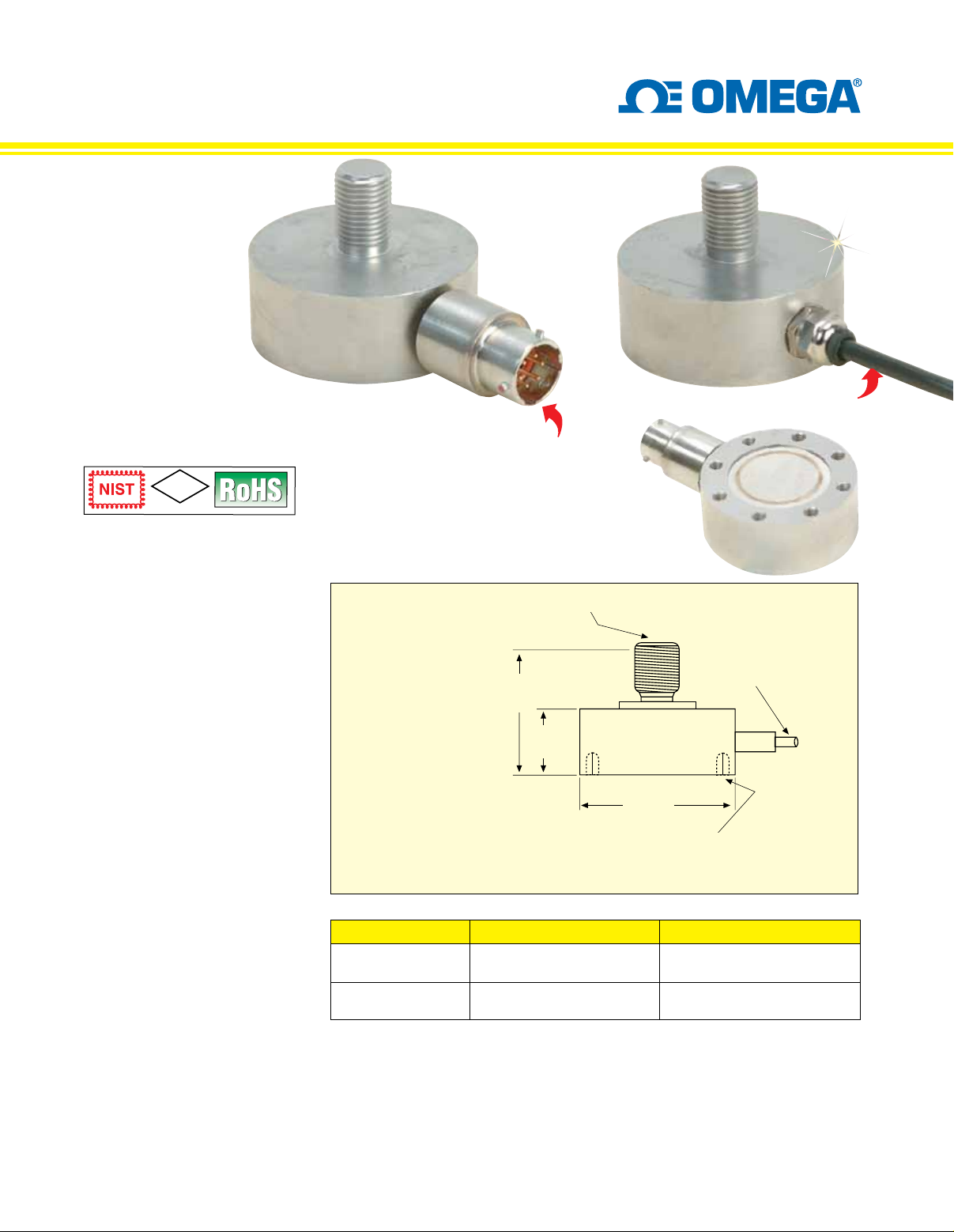

shown actual size.
STANDARD

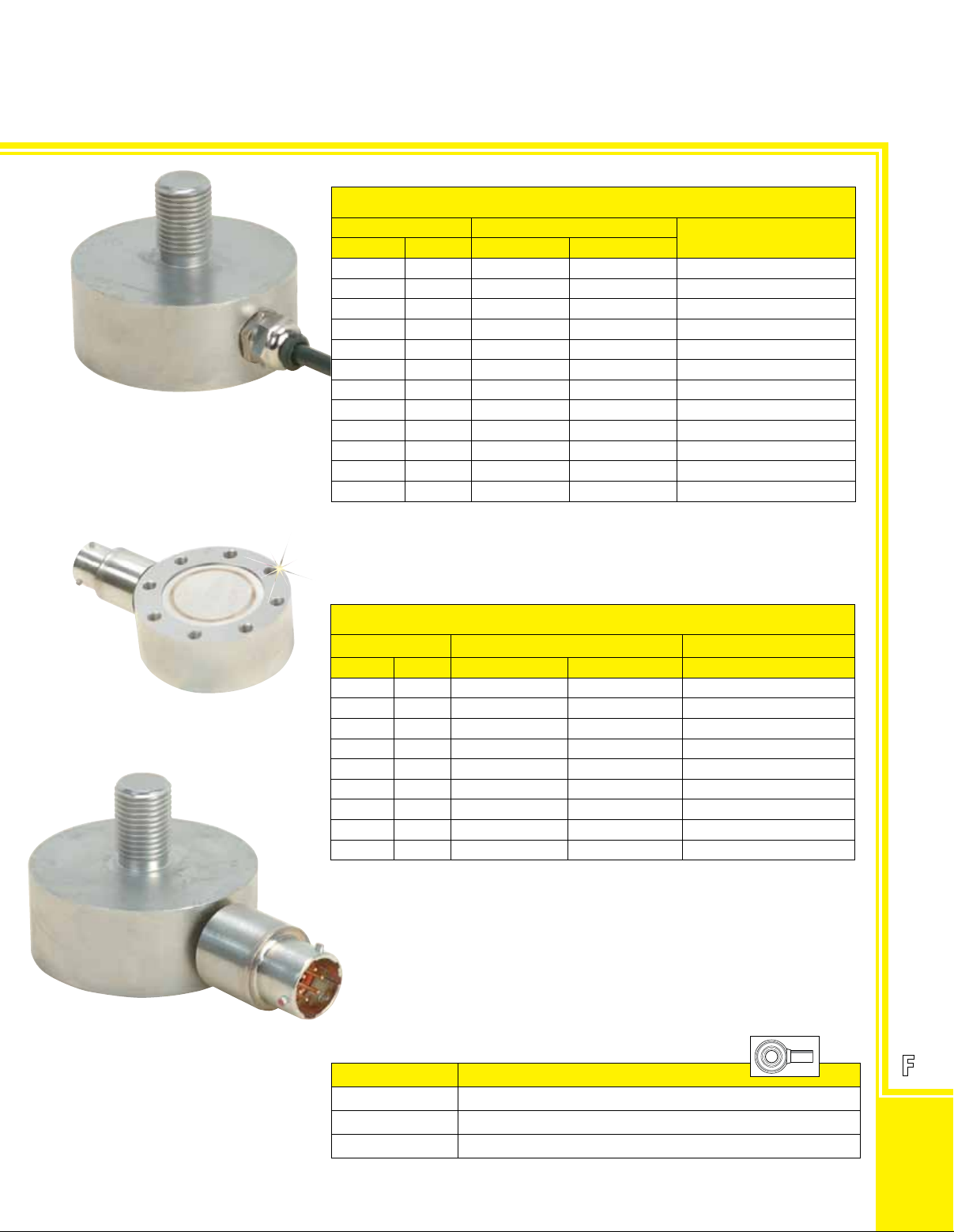

LC204-100 shown
actual size.
Twist-lock connector
LC214/LCM214 units.
Bottom view of all units,
Shown smaller than actual size.
Cable style
LC204/LCM204 units.
U FM Intrinsically Safe
U 1.0% Interchangeability
for Scale Applications
U Miniature Package
for Test Stands and
Difficult Locations
U Designed to be Mounted
on a Flat Surface
U 5-Point Calibration
OMEGA’s LC204/LCM204 Series
load cells are designed to be surface
mounted with the load applied
through the mounting stud. The high
linearity (0.15%) and all stainless
steel construction make them
ideal for industrial and commercial
weighing and for force measuring
applications.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc maximum
Output: 2 mV/V ±1.0%
5-Point Calibration (in Tension):
0%, 50%, 100%, 50%, 0%
Linearity: ±0.15% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp Range:
-46 to 107°C (-50 to 225°F)
A THREAD
A THREAD
3 m (10')
4-CONDUCTOR
3 m (10')
SHIELDED
Wiring Code
Wire Connector
GN A +Output
WT B –Output
BK C –Input
RED D +Input
E N/C
F N/C
Dimensions:
mm (inch)
Dimensions: mm (inch)
MODEL A THREAD B THREAD
LC204/LC214
LCM204/LCM214
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Protection Class: IP65
Thermal Effects:
Zero: 0.0045% FSO/°F
Span: 0.009% FSO/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 Ω minimum
39.6
39.6
(1.56)
(1.56)
21
21
(0.81)
(0.81)
1
⁄2-20 UNF-2A
19 (0.75) L
M12 x 1.75
19 (0.75) L
51
51
(2.00)
(2.00)
DIA.
DIA.
B THREAD 8 MOUNTING
B THREAD
HOLES EQ. SP ON A 42.8 (1.687)
8 MOUNTING HOLES EQ. SP
DIAMETER BC
ON A 42.8 (1.687) DIAMETER BC
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 3 m (10') 4-conductor
shielded cable
LC214/LCM214 Mating Connector:
PT06F10-6S (sold separately)
LC214/LCM214 Cable Assembly
with Twist Lock Connector:
CA-4PC24-2-015 (sold separately)
4-CONDUCTOR
CABLE
SHIELDED CABLE
10-32 UNF
6.3 (0.25) DP min
M5 x 0.8
6.3 (0.25) DP min
F-45
Page 2
F
I
R
STANDARD
LC204-100 shown
actual size.
Bottom view of all units,
shown smaller than actual size.
STANDARD MODELS
To Order
CAPACITY MODEL NO. COMPATIBLE
lb N CABLE CONNECTOR
25 111
50 222
100 445
200 890
300 1334
500 2224
1000 4448
2000 8897
2500 11,121
5000 22,242
8000 35,587
10,000 44,484
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Visit us online for compatible meters. DPiS meter suitable for one direction
**
measurement only.
Ordering Examples: LC204-25, 25 lb capacity surface mount load cell.
LC204-1K, 1000 lb capacity surface mount load cell.
LC204-25 LC214-25
LC204-50 LC214-50
LC204-100 LC214-100
LC204-200 LC214-200
LC204-300 LC214-300
LC204-500 LC214-500
LC204-1K LC214-1K
LC204-2K LC214-2K
LC204-2.5K LC214-2.5K
LC204-5K LC214-5K
LC204-8K LC214-8K
LC204-10K LC214-10K
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
METRIC MODELS
METERS**
To Order
CAPACITY
N lb CABLE CONNECTOR COMPATIBLE METERS**
100 22
200 45
500 112
1000 225
2000 450
5000 1124
10,000 2248
20,000 4496
50,000 11,241
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
4-digit meter.
*
measurement only.
Ordering Examples: LCM204-100, 100 N capacity surface-mount load cell.
LCM204-5KN, 5000 N capacity surface-mount load cell.
LCM204-100N LCM214-100N
LCM204-200N LCM214-200N
LCM204-500N LCM214-500N
LCM204-1KN LCM214-1KN
LCM204-2KN LCM214-2KN
LCM204-5KN LCM214-5KN
LCM204-10KN LCM214-10KN
LCM204-20KN LCM214-20KN
LCM204-50KN LCM214-50KN
Visit us online for compatible meters. DPiS meter suitable for one direction
**
MODEL NO.
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S*
DPiS, DP41-S, DP25B-S*
LOAD CELLS
METRIC
LCM214-100N
shown actual size.
ACCESSORIES
MODEL NO. DESCRIPTION
REC-012F
MREC-M12F
PT06F10-6S
Rod end for LC204/LC214 Series
Rod end for LCM204/LCM214 Series
Mating connector for LC214/LCM214 series load cells
F-46
