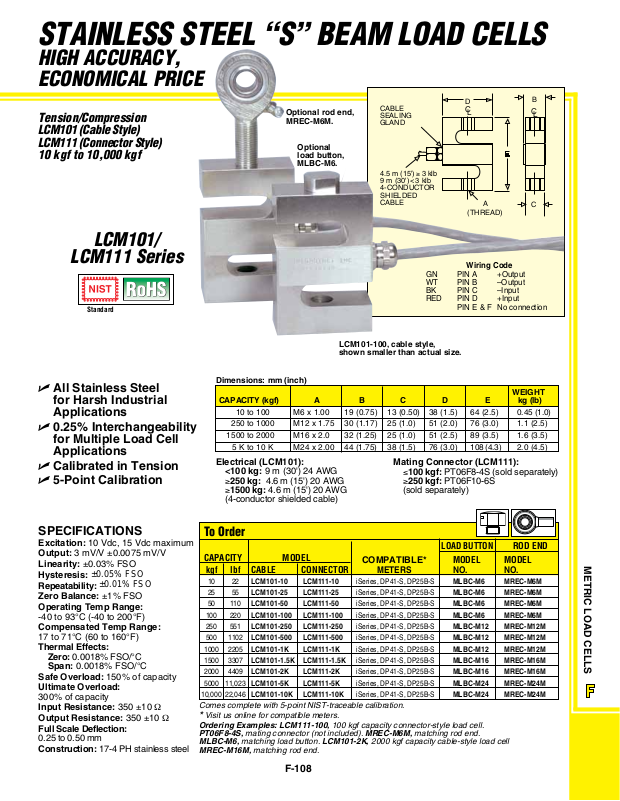

STAINLESS STEEL “S” BEAM LOAD CELLS
HIGH ACCURACY,
ECONOMICAL PRICE
B
C
L
C
Tension/Compression
LCM101 (Cable Style)
LCM111 (Connector Style)
10 kgf to 10,000 kgf
LCM101/
LCM111 Series
Standard
Optional rod end,
MREC-M6M.
Optional
load button,
MLBC-M6.
CABLE
SEALING
GLAND
4.5 m (15') ≥ 3 klb
9 m (30') < 3 klb
4-CONDUCTOR
SHIELDED
CABLE
Wiring Code
GN PIN A +Output
WT PIN B –Output
BK PIN C –Input
RED PIN D +Input
PIN E & F No connection
D
C
L
A
(THREAD)
U All Stainless Steel
for Harsh Industrial
Applications
U 0.25% Interchangeability
for Multiple Load Cell
Applications
U Calibrated in Tension
U 5-Point Calibration
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc maximum
Output: 3 mV/V ±0.0075 mV/V
Linearity: ±0.03% FSO
Hysteresis:
Repeatability:
Zero Balance: ±1% FSO
Operating Temp Range:
-40 to 93°C (-40 to 200°F)
Compensated Temp Range:
17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.0018% FSO/°C
Span: 0.0018% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload:
300% of capacity
Input Resistance: 350 ±10 Ω
Output Resistance: 350 ±10 Ω
Full Scale Deflection:
0.25 to 0.50 mm
Construction: 17-4 PH stainless steel
±0.05% FSO
±0.01% FSO

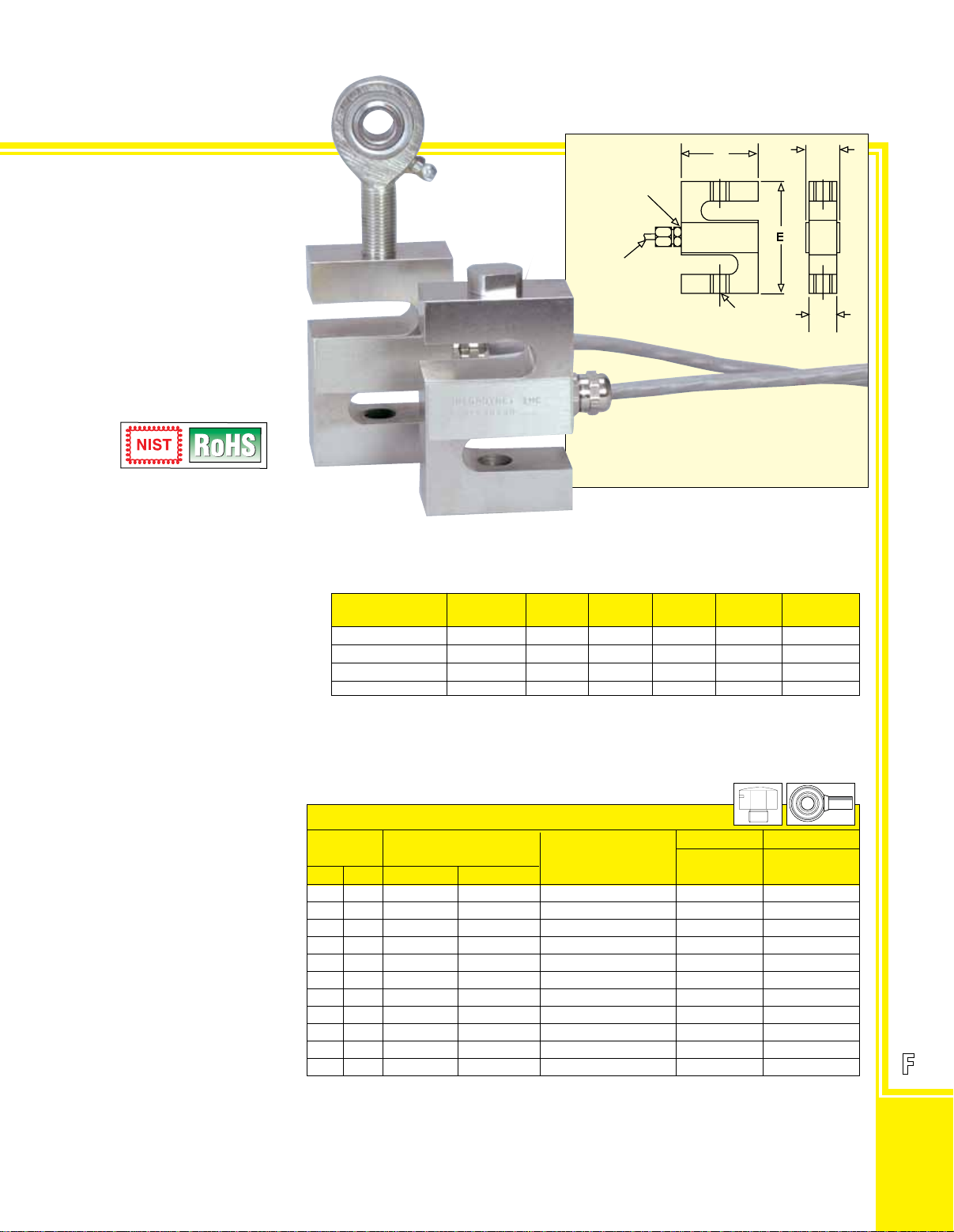

LCM101-100, cable style,
shown smaller than actual size.
Dimensions: mm (inch)
WEIGHT
CAPACITY (kgf) A B C D E kg (lb)
10 to 100 M6 x 1.00 19 (0.75) 13 (0.50) 38 (1.5) 64 (2.5) 0.45 (1.0)
250 to 1000 M12 x 1.75 30 (1.17) 25 (1.0) 51 (2.0) 76 (3.0) 1.1 (2.5)
1500 to 2000 M16 x 2.0 32 (1.25) 25 (1.0) 51 (2.5) 89 (3.5) 1.6 (3.5)
5 K to 10 K M24 x 2.00 44 (1.75) 38 (1.5) 76 (3.0) 108 (4.3) 2.0 (4.5)
Electrical (LCM101):
<100 kg: 9 m (30') 24 AWG
≥250 kg: 4.6 m (15') 20 AWG
≥1500 kg: 4.6 m (15') 20 AWG
(4-conductor shielded cable)
To Order
CAPACITY
kgf lbf CABLE CONNECTOR
10 22 LCM101-10 LCM111-10
25 55 LCM101-25 LCM111-25
50 110 LCM101-50 LCM111-50
100 220 LCM101-100 LCM111-100
250 551 LCM101-250 LCM111-250
500 1102 LCM101-500 LCM111-500
1000 2205 LCM101-1K LCM111-1K
1500 3307 LCM101-1.5K LCM111-1.5K
2000 4409 LCM101-2K LCM111-2K
5000 11,023 LCM101-5K LCM111-5K
10,000 22,046 LCM101-10K LCM111-10K
Comes complete with 5-point NIST-traceable calibration.
* Visit us online for compatible meters.
Ordering Examples: LCM111-100, 100 kgf capacity connector-style load cell.
PT06F8-4S, mating connector (not included). MREC-M6M, matching rod end.
MLBC-M6, matching load button. LCM101-2K, 2000 kgf capacity cable-style load cell
MREC-M16M, matching rod end.
MODEL
COMPATIBLE*
METERS NO. NO.
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
iSeries, DP41-S, DP25B-S
Mating Connector (LCM111):
≤100 kgf: PT06F8-4S (sold separately)
≥250 kgf: PT06F10-6S
(sold separately)
LOAD BUTTON ROD END
MODEL MODEL
MLBC-M6 MREC-M6M
MLBC-M6 MREC-M6M
MLBC-M6 MREC-M6M
MLBC-M6 MREC-M6M
MLBC-M12 MREC-M12M
MLBC-M12 MREC-M12M
MLBC-M12 MREC-M12M
MLBC-M16 MREC-M16M
MLBC-M16 MREC-M16M
MLBC-M24 MREC-M24M
MLBC-M24 MREC-M24M
METRIC LOAD CELLS
F-108
