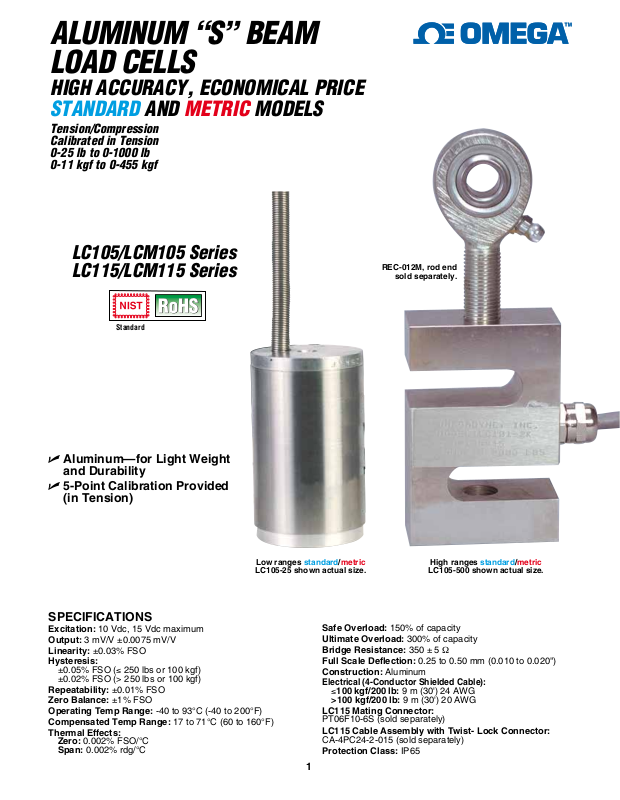

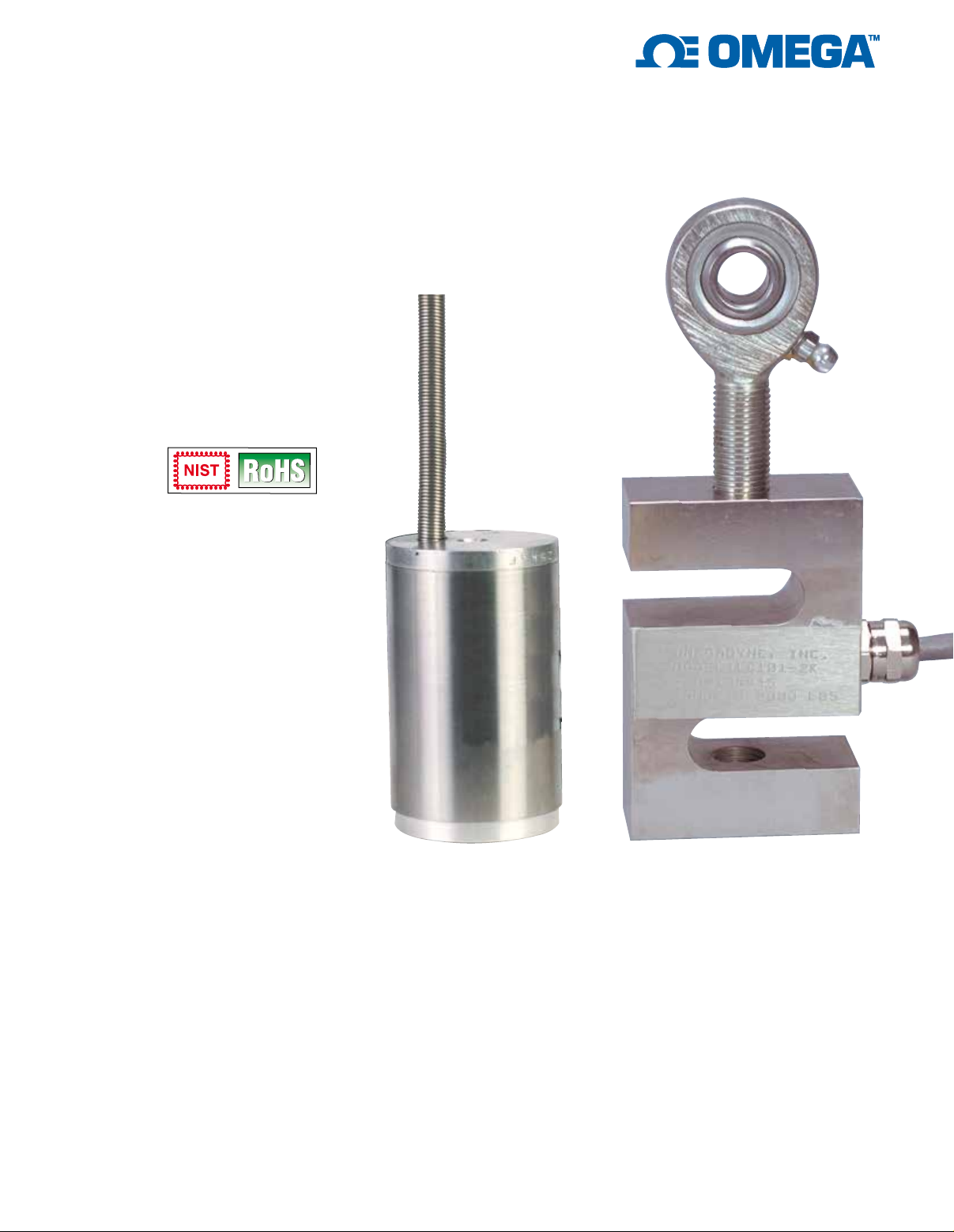

ALUMINUM “S” BEAM
LOAD CELLS
HIGH ACCURACY, ECONOMICAL PRICE
STANDARD AND METRIC MODELS
Tension/Compression
Calibrated in Tension
0-25 lb to 0-1000 lb
0-11 kgf to 0-455 kgf
LC105/LCM105 Series
LC115/LCM115 Series
Standard
REC-012M, rod end
sold separately.
U Aluminum—for Light Weight
and Durability
U 5-Point Calibration Provided
(in Tension)
Low ranges standard/metric
LC105-25 shown actual size.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc maximum
Output: 3 mV/V ±0.0075 mV/V
Linearity: ±0.03% FSO
Hysteresis:
±0.05% FSO (≤ 250 lbs or 100 kgf)
±0.02% FSO (> 250 lbs or 100 kgf)
Repeatability: ±0.01% FSO
Zero Balance: ±1% FSO
Operating Temp Range: -40 to 93°C (-40 to 200°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.002% FSO/°C
Span: 0.002% rdg/°C
High ranges standard/metric
LC105-500 shown actual size.
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 ± 5 Ω
Full Scale Deflection: 0.25 to 0.50 mm (0.010 to 0.020")
Construction: Aluminum
Electrical (4-Conductor Shielded Cable):
≤100 kgf/200 lb: 9 m (30') 24 AWG
>100 kgf/200 lb: 9 m (30') 20 AWG
LC115 Mating Connector:
PT06F10-6S (sold separately)
LC115 Cable Assembly with Twist- Lock Connector:
CA-4PC24-2-015 (sold separately)
Protection Class: IP65
1
Page 2

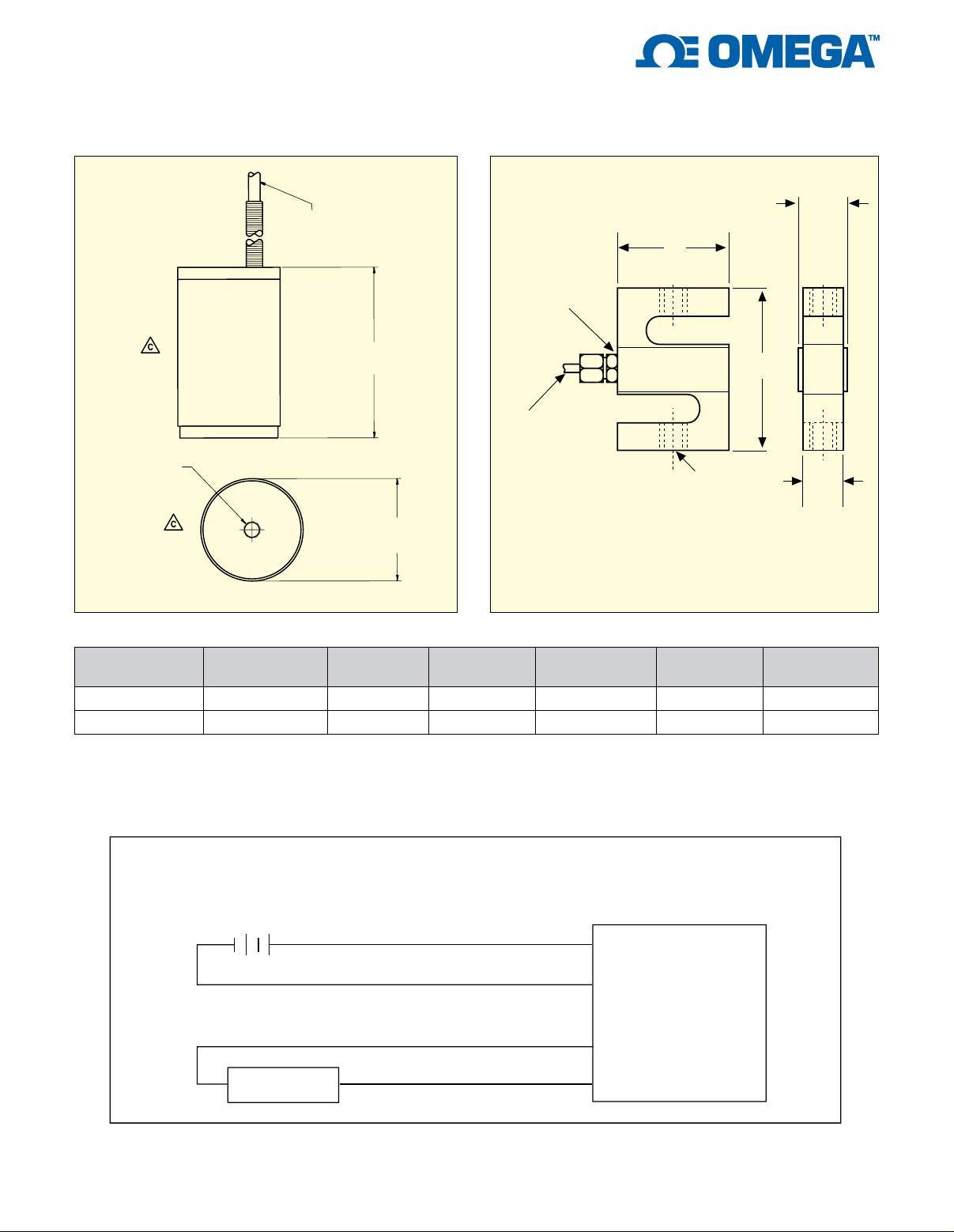

Low Ranges
C
L
E
9 m (30')
4-Conductor
Shielded
Cable
Cable
Sealing
Gland
A
(Thread)
C
B
D
64
(2.5)
9 m (30')
4-Conductor PVC
Shielded Cable
ø = diameter
High Ranges
RANGES ≤100 kgf
≤200 lb
ø = diameter
¼-2OUNC–2B
or metric m6
Both Ends
Dimensions: mm
(inch)
9 m (30')
4-Conductor PVC
Shielded Cable
64
(2.5)
ø38
(1.50)
RANGES >100 kgf
>200 lb
Wiring Code
Wiring Pin Connection
GN A +Output
WT B –Output
BK C –Input
RED D +Input
Pins E, F: Not
connected
Dimensions: mm (inch)
Capacity
250 to 1000 (lb)
250 to 500 (kgf) M12 x 1.75-6H 32 (1.25) 25 (1.0) 51 (2.0) 76 (3.0) 0.5 (1.1)
Electrical Wiring
ELECTRICAL WIRING
–
+
A
1
⁄2 -20 UNF 32 (1.25) 25 (1.0) 51 (2.0) 76 (3.0) 0.5 (1.1)
10 Vdc
10 Vdc
+
Meter
METER
B
C
Red
RED
Black
BLACK
Green
GREEN
White
WHITE
D
Load
LOAD
Cell
E
Weight
CELL
–
kg (lb)
2
Page 3

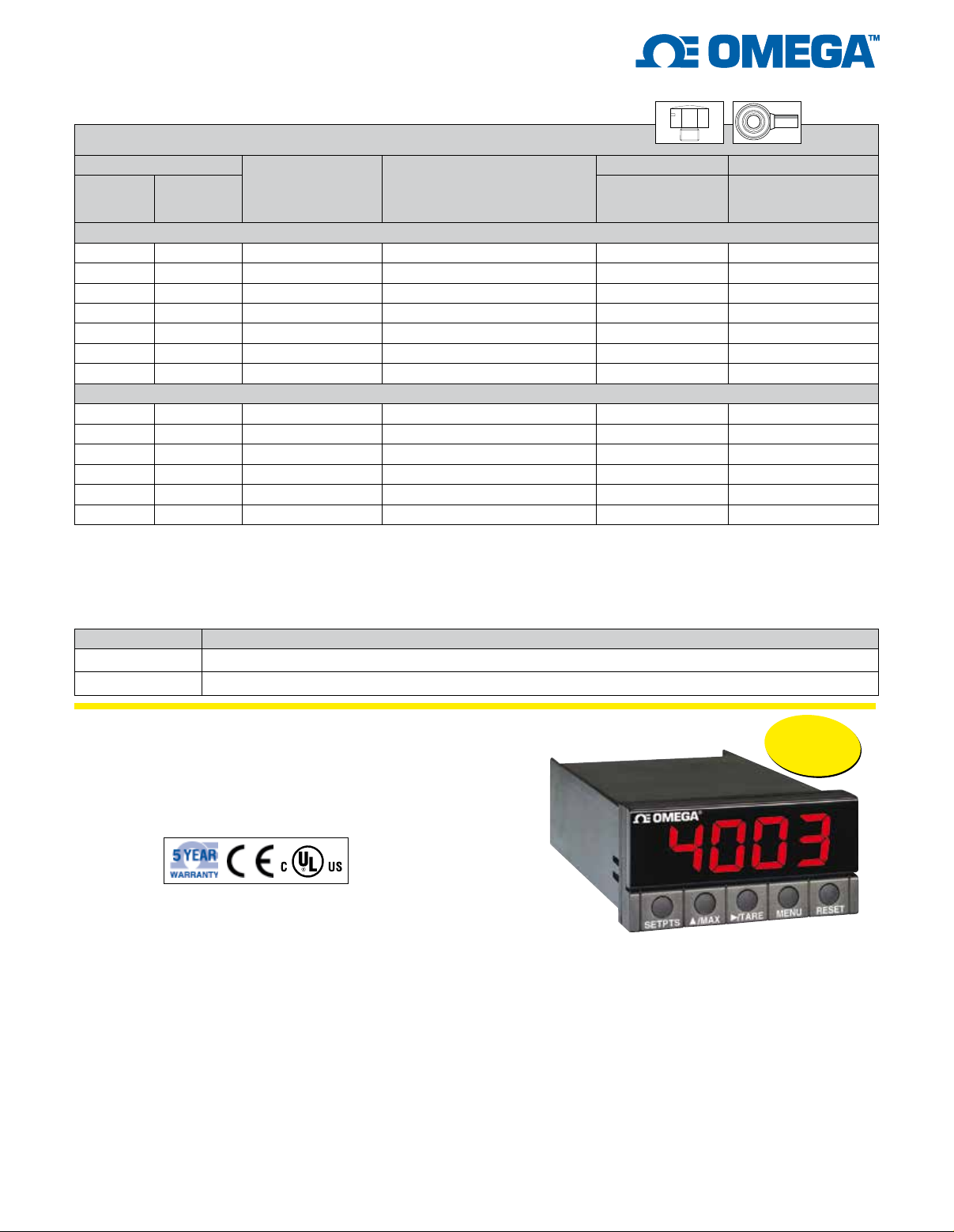

ALUMINUM “S” BEAM LOAD CELLS
TM
HIGH ACCURACY, ECONOMICAL PRICE
STANDARD AND METRIC MODELS
To Order
Capacity
lb kgf
25 11
50 23
100 45
200 91
250 114
500 227
1000 455
22 10
55 25
110 50
220 100
551 250
1102 500
Comes complete with 5-point NIST-traceable calibration
* Visit us online for compatible meters.
† Connector style available: change model number from LC105 to LC115, or from LCM105 to LCM115, no additional charge.
Ordering Examples: LC105-100, ±100 lb capacity load cell.
LCM105-250, 250 kgf capacity load cell. REC-012M, matching rod end. PT06F10-6S, mating connector (sold separately).
†
Cable
Model No.
LC105-25
LC105-50
LC105-100
LC105-200
LC105-250
LC105-500
LC105-1K
LCM105-10
LCM105-25
LCM105-50
LCM105-100
LCM105-250
LCM105-500
†
†
†
†
†
Accessories
Model No. Description
PT06F10-6S
CA-4PC24-2-015
Mating connector for LC115/LCM115 series load cells
Cable assembly with twist lock connector for LC115/LCM115 series load cells
Compatible Meters*
STANDARD MODELS
DPiS, DP41-S, DP25B-S — —
DPiS, DP41-S, DP25B-S — —
DPiS, DP41-S, DP25B-S — —
DPiS, DP41-S, DP25B-S — —
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
METRIC MODELS
DP41-B, DP41-S, DP25B-S
DP41-B, DP41-S, DP25B-S
DP41-B, DP41-S, DP25B-S
DP41-B, DP41-S, DP25B-S
DP41-B, DP41-S, DP25B-S
DP41-B, DP41-S, DP25B-S
and 59 kΩ shunt data.
Load Button Rod End
Model No. Model No.
LBC-012 REC-012M
LBC-012 REC-012M
LBC-012 REC-012M
MLBC-M6 MREC-M6M
MLBC-M6 MREC-M6M
MLBC-M6 MREC-M6M
MLBC-M6 MREC-M6M
MLBC-M12 MREC-M12M
MLBC-M12 MREC-M12M
1
⁄8 DIN STRAIN METERS WITH OPTIONAL RELAYS
Visit
Omega for more
information
AND ANALOG OUTPUT
DP25B Series
U Relay Output with Adjustable Deadband
U Isolated or Non-Isolated Analog Output
U Totally Programmable Color Display
U Low-Voltage Power Options
The OMEGATM DP25B Series meters have the
biggest, brightest display of any 1⁄8 DIN panel meter.
The user can select the display color: RED, AMBER,
or GREEN.
Along with the 4-digit, 9-segment display, these
low-cost panel meters/controllers provide unparalleled
accuracy in signal conditioning. Additional features
include microprocessor-based operation; dual 5 A
SPDT relays (optional); and isolated or non-isolated
PATENTED
DP25B shown smaller than actual size.
analog output in ranges of 0 to 10 Vdc, 0 to 20 mA, or
4 to 20 mA, which can be used for retransmission of the
display value or as a proportional control output.
Because they accept a wide range of DC voltage and
current inputs, the DP25B-E strain meters can handle
most process and strain applications. Features include
easy front-panel scaling to virtually any engineering units,
a remote tare function for weighing applications, and a
hardware lockout to prevent unauthorized changes in
setup. In addition, the DP25B-E meters feature built-in
excitation in 4 user-selectable voltages, which makes
them compatible with most transducers and transmitters.
