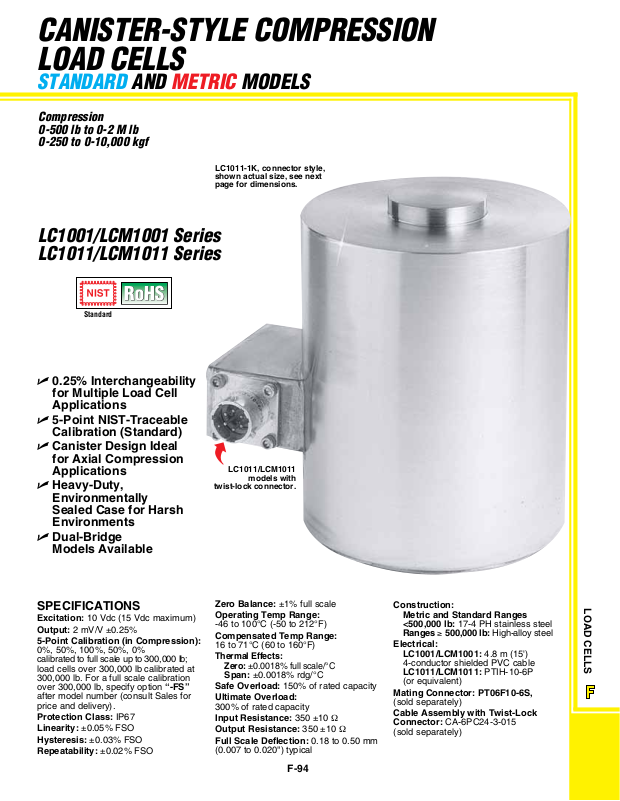

CANISTER-STYLE COMPRESSION
LOAD CELLS
STANDARD AND METRIC MODELS
Compression
0-500 lb to 0-2 M lb
0-250 to 0-10,000 kgf

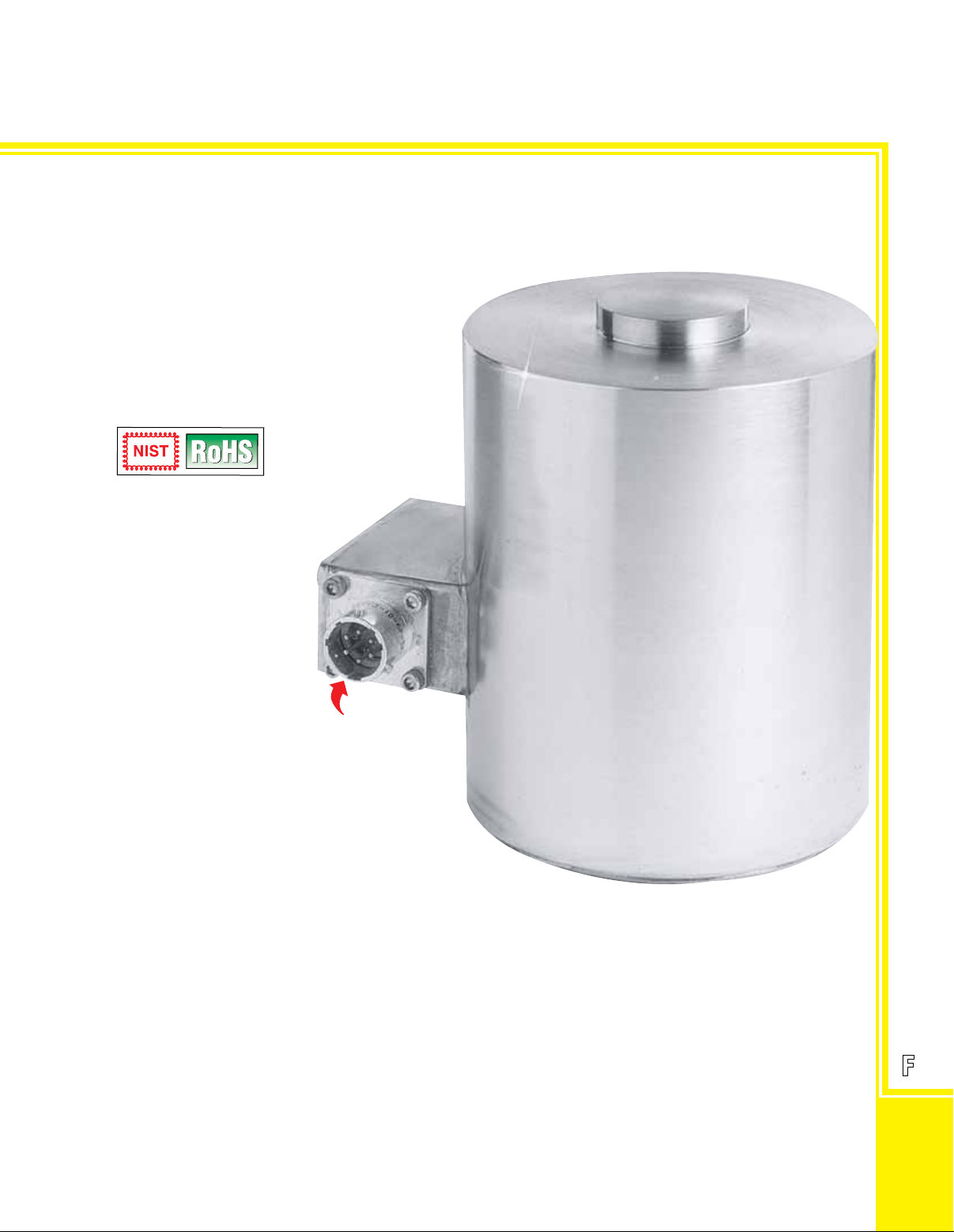

LC1011-1K, connector style,
shown actual size, see next
page for dimensions.
LC1001/LCM1001 Series
LC1011/LCM1011 Series
Standard
U 0.25% Interchangeability
for Multiple Load Cell
Applications
U 5-Point NIST-Traceable
Calibration (Standard)
U Canister Design Ideal
for Axial Compression
Applications
U Heavy-Duty,
Environmentally
Sealed Case for Harsh
Environments
U Dual-Bridge
Models Available
SPECIFICATIONS
Excitation: 10 Vdc (15 Vdc maximum)
Output: 2 mV/V ±0.25%
5-Point Calibration (in Compression):
0%, 50%, 100%, 50%, 0%
calibrated to full scale up to 300,000 lb;
load cells over 300,000 lb calibrated at
300,000 lb. For a full scale calibration
over 300,000 lb, specify option “-FS”
after model number (consult Sales for
price and delivery).
Protection Class: IP67
Linearity: ±0.05% FSO
Hysteresis: ±0.03% FSO
Repeatability: ±0.02% FSO
LC1011/LCM1011
twist-lock connector.
Zero Balance: ±1% full scale
Operating Temp Range:
-46 to 100°C (-50 to 212°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0018% full scale/°C
Safe Overload: 150% of rated capacity
Ultimate Overload:
300% of rated capacity
Input Resistance: 350 ±10 Ω
Output Resistance: 350 ±10 Ω
Full Scale Deflection: 0.18 to 0.50 mm
(0.007 to 0.020") typical
models with
Span: ±0.0018% rdg/°C
Construction:
Metric and Standard Ranges
<500,000 lb: 17-4 PH stainless steel
Ranges ≥ 500,000 lb: High-alloy steel
Electrical:
LC1001/LCM1001: 4.8 m (15')
4-conductor shielded PVC cable
LC1011/LCM1011: PTIH-10-6P
(or equivalent)
Mating Connector: PT06F10-6S,
(sold separately)
Cable Assembly with Twist-Lock
Connector: CA-6PC24-3-015
(sold separately)
LOAD CELLS
F-94
Page 2

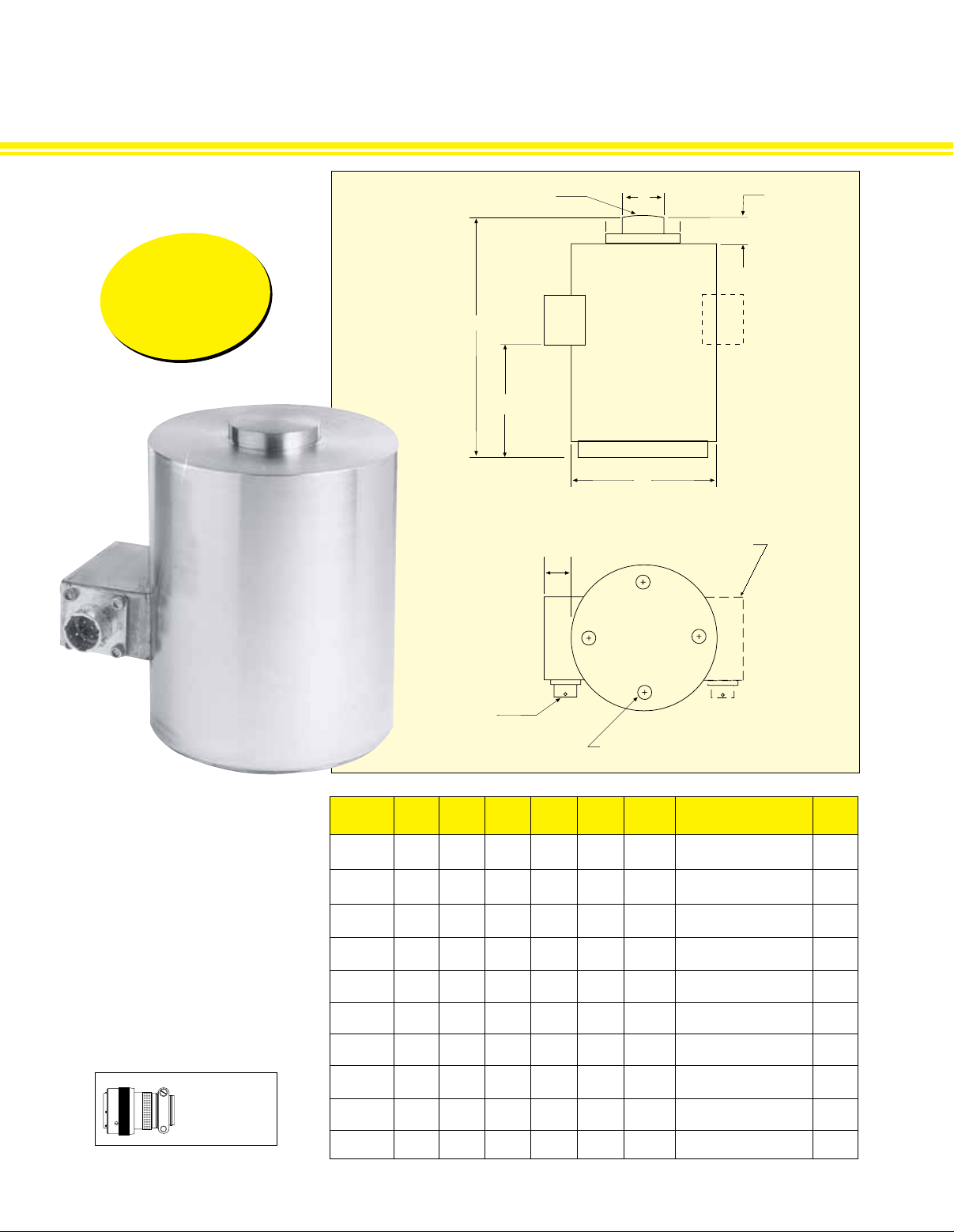

HEAVY-DUTY CANISTER STYLE COMPRESSION LOAD CELLS
Available with
Built-In Amplifiers!
LC1011-10K,
connector
style, shown
smaller than
actual size.
Models
SPHERICAL RAD.
B
G
WIRING CODE
WIRE PIN CONNECTION
GN A+OUTPUT
WT B-OUTPUT
BK C&E -INPUT
REDD&F +INPUT
YELLOWSHIELD
1.13
(29)
C
D
BRIDGE NO.2 WHEN SPECIFIED
E
POPULAR OPTIONS
(Additional Cost)
0 to 5 Vdc Output: (≥5000 kg) “-5V”
Overload Stops: “-OL”
Dual Bridge: “-DUAL”
Extended Temperature Range:
-45 to 93°C (-50 to 200°F) “-TC1”
-45 to 177°C (-50 to 350°F) “-TC2”
Mating
Connector
PT06F10-6S
PTIH-10-6P
OR EQUAL
K THREADS, 4 HOLES EQ. SP.
ON "I" DIA.
Dimensions: mm (inch)
CAPACITY
kgf (lb) B C D E G ±.005 K (THREAD) kg (lb)
250 to 1K 116 32 89 6 32 60 M10 x 1.5 x
(500 to 2.5K)
2K to 5K 151 32 89 19 46 60 M10 x 1.5 x
(5K to 10K)
(20K to 50K)
(100,000)
(9.1) (1.75) (5.56) (1.06) (4.75) (4.000) (40)
(200,000)
(11.6) (2.50) (6.63) (1.06) (6.25) (5.500) (95)
(300,000)
(14) (3.00) (8.63) (1.31) (7.63) (5.500) (105)
(400,000)
(14) (3.50) (8.63) (1.31) (7.63) (5.500) (140)
(500,000)
(14) (3.50) (8.63) (0.88) (7.63) (3.500) (170)
(1,000,000)
(14) (5.50) (8.63) (0.88) (5.50) (4.500) (250)
(2,000,000)
(16) (7.00) (10.75) (1.00) (6.00) (5.500) (400)
I
(4.6) (1.25) (3.50) (0.25) (1.25) (2.375)
(5.9) (1.25) (3.50) (0.75) (1.81) (2.375)
10K
191 32 114 19 77 60 M10 x 1.5 x
(7.5) (1.25) (4.50) (0.75) (3.44) (2.375)
232 44 141 27 121 102
295 64 168 27 159 140
356 76 219 33 194 140
356 89 219 33 194 140
356 89 219 22 194 89
356 140 219 22 140 114
406 178 273 25 152 140
3
⁄8-24 UNF-2B x 3⁄8 DP (6)
3
⁄8-24 UNF-2B x 3⁄8 DP (10)
3
⁄8-24 UNF-2B x 3⁄8 DP (20)
½-20 UNF-2B x ½ DP
5
⁄8-18 UNF-2B x 1 DP
¾-16 UNF-2B x 1¼ DP
¾-16 UNF-2B x 1¼ DP
½-20 UNF-2B x ¾ DP
5
⁄8-18 UNF-2B x 1.0 DP
1-14 UNS-2B x 1¼ DP
WEIGHT
3
⁄8 DP 2.7
3
⁄8 DP 4.5
3
⁄8 DP 9
88
43
48
64
77
115
182
F-95
Page 3
F
I
R

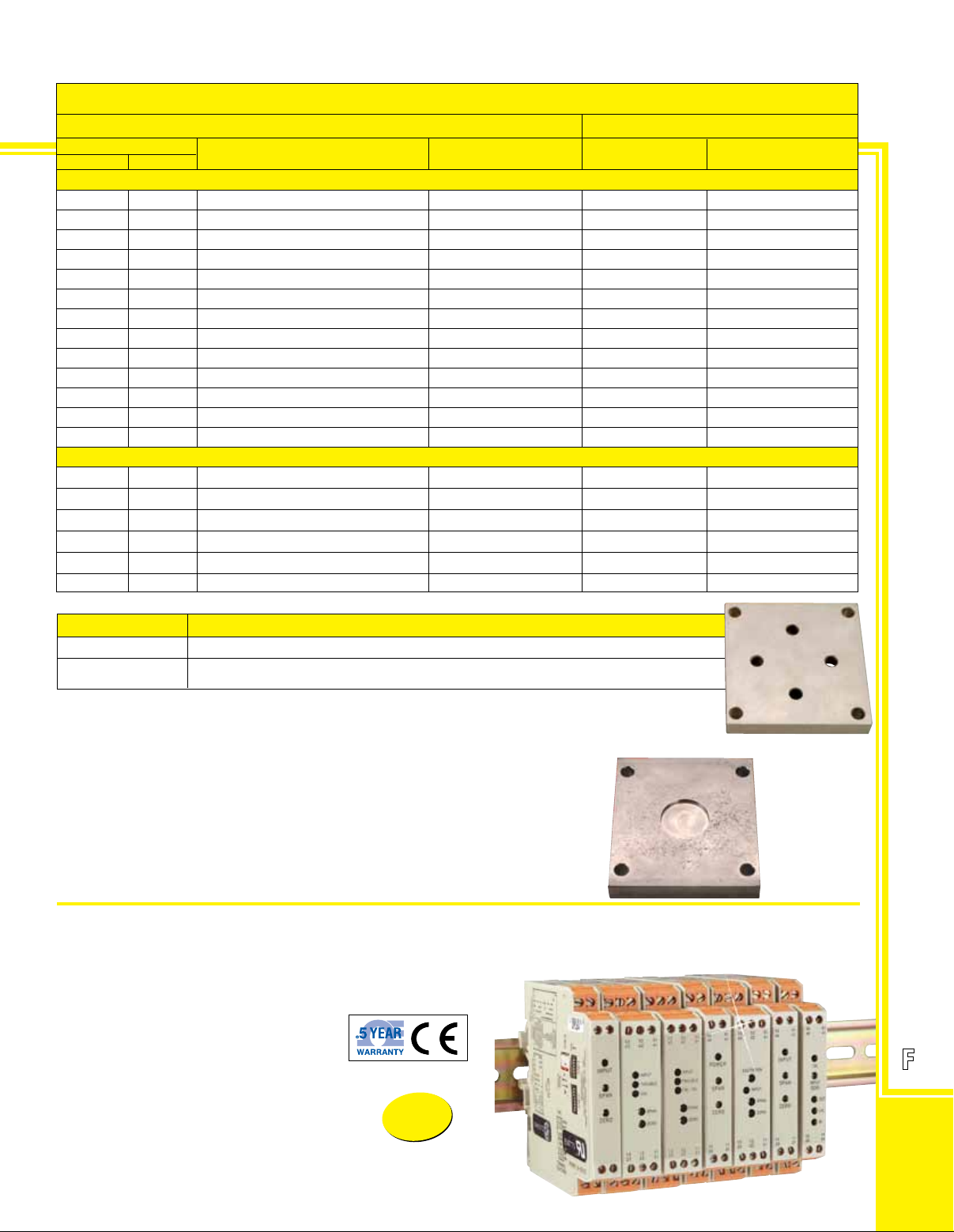

To Order
Canister-Style Compression Load Cells Accessories
CAPACITY CABLE CONNECTOR COMPATABLE BASE PLATE** TOP PLATE**
kgf lb STYLE STYLE METERS* MODEL NO. MODEL NO.
227 500 LC1001-500 LC1011-500 DP41-W, DP41-S LC1000-BP4 LC1000-TP4
455 1000 LC1001-1K LC1011-1K DP41-W, DP41-S LC1000-BP4 LC1000-TP4
1134 2500 LC1001-2.5K LC1011-2.5K DP41-W, DP41-S LC1000-BP4 LC1000-TP4
2269 5000 LC1001-5K LC1011-5K DP41-W, DP41-S LC1000-BP4 LC1000-TP4
4537 10 K LC1001-10K LC1011-10K DP41-W, DP41-S LC1000-BP4 LC1000-TP4
9074 20 K LC1001-20K LC1011-20K DP41-W, DP41-S LC1000-BP4 LC1000-TP4
22,686 50 K LC1001-50K LC1011-50K DP41-W, DP41-S LC1000-BP4 LC1000-TP4
45,372 100 K LC1001-100K LC1011-100K DP41-W, DP41-S LC1000-BP6 LC1000-TP6
90,744 200 K LC1001-200K LC1011-200K DP41-W, DP41-S LC1000-BP8 LC1000-TP8
136,116 300 K LC1001-300K LC1011-300K DP41-W, DP41-S LC1000-BP9 LC1000-TP9
226,860 500 K LC1001-500K LC1011-500K DP41-W, DP41-S n/a n/a
453,721 1 M LC1001-1M LC1011-1M DP41-W, DP41-S n/a n/a
746,483 2 M LC1001-2M LC1011-2M DP41-W, DP41-S n/a n/a
METRIC MODELS
250 551 LCM1001-250 LCM1011-250 DP41-B, DP41-S LCM1000-BP4 LCM1000-TP4
500 1102 LCM1001-500 LCM1011-500 DP41-B, DP41-S LCM1000-BP4 LCM1000-TP4
1000 2205 LCM1001-1K LCM1011-1K DP41-B, DP41-S LCM1000-BP4 LCM1000-TP4
2000 4409 LCM1001-2K LCM1011-2K DP41-B, DP41-S LCM1000-BP4 LCM1000-TP4
5000 11,023 LCM1001-5K LCM1011-5K DP41-B, DP41-S LCM1000-BP4 LCM1000-TP4
10,000 22,046 LCM1001-10K LCM1011-10K DP41-B, DP41-S LCM1000-BP4 LCM1000-TP4
ACCESSORY
MODEL NO. DESCRIPTION
PT06F10-6S Mating connector for LC1011/LCM1011 series load cells
CA-6PC24-3-015 Cable assembly with twist-lock connector for LC1011/LCM1011
series load cells
Visit us online for top mounting plates.
Visit us online for base plates.
Comes complete with 5-point NIST-traceable calibration
Visit us online for compatible meters.
*
Base plates and top plates referenced are carbon steel.
**
To order CSA-approved Intrinsically Safe version, add suffix “-CSA” to model number (no extra charge).
To order dual-bridge load cell, add suffix “-DUAL” to model number.
Ordering Examples: LC1001-100K, 100,000 lb capacity cable-style load cell.
LC1000-BP6, accompanying base plate. LC1000-TP6, accompanying top plate.
LCM1001-10K, 10 ton capacity cable-style load cell, LCM1000-BP4, accompanying base plate.
LCM1000-TP4, accompanying top plate.
LCM1011-500-Dual, dual-bridge 500 kgf capacity connector-style load cell.
PT06F10-6S, mating connector (not included).
and 59 kΩ shunt data.
STANDARD MODELS
LC1000-BP4,
base plates shown smaller
than actual size.
LC1000-TP4,
top plates
shown smaller
than actual size.
BRIDGE/STRAIN GAGE INPUT SIGNAL CONDITIONER
DRG-SC models are available for a wide variety
U
Five Field Configurable
Output Ranges: 0 to 5 V,
0 to 10 V, 0 to 1 mA,
0 to 20 mA, and 4 to 20 mA
U Slim Housing Mounts on
DIN Rail for High Density
Installations
U 1800 V Isolation
Between Input, Output
and Power Supply
DIN Rail
Mount
F-96
of process signals shown smaller than actual size.
