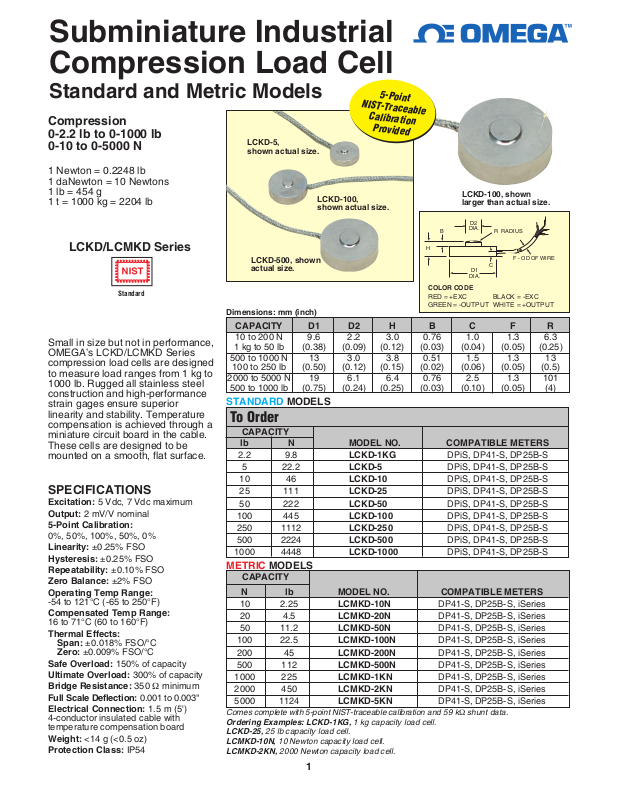

Subminiature Industrial
Compression Load Cell
Standard and Metric Models
Compression
0-2.2 lb to 0-1000 lb
0-10 to 0-5000 N
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kg = 2204 lb
LCKD/LCMKD Series
Standard
Small in size but not in performance,
OMEGA’s LCKD/LCMKD Series
compression load cells are designed
to measure load ranges from 1 kg to
1000 lb. Rugged all stainless steel
construction and high-performance
strain gages ensure superior
linearity and stability. Temperature
compensation is achieved through a
miniature circuit board in the cable.
These cells are designed to be
mounted on a smooth, flat surface.
SPECIFICATIONS
Excitation: 5 Vdc, 7 Vdc maximum
Output: 2 mV/V nominal
5-Point Calibration:
0%, 50%, 100%, 50%, 0%
Linearity: ±0.25% FSO
Hysteresis: ±0.25% FSO
Repeatability: ±0.10% FSO
Zero Balance: ±2% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Span: ±0.018% FSO/°C
Zero: ±0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω minimum
Full Scale Deflection: 0.001 to 0.003"
Electrical Connection: 1.5 m (5')
4-conductor insulated cable with
temperature compensation board
Weight: <14 g (<0.5 oz)
Protection Class: IP54

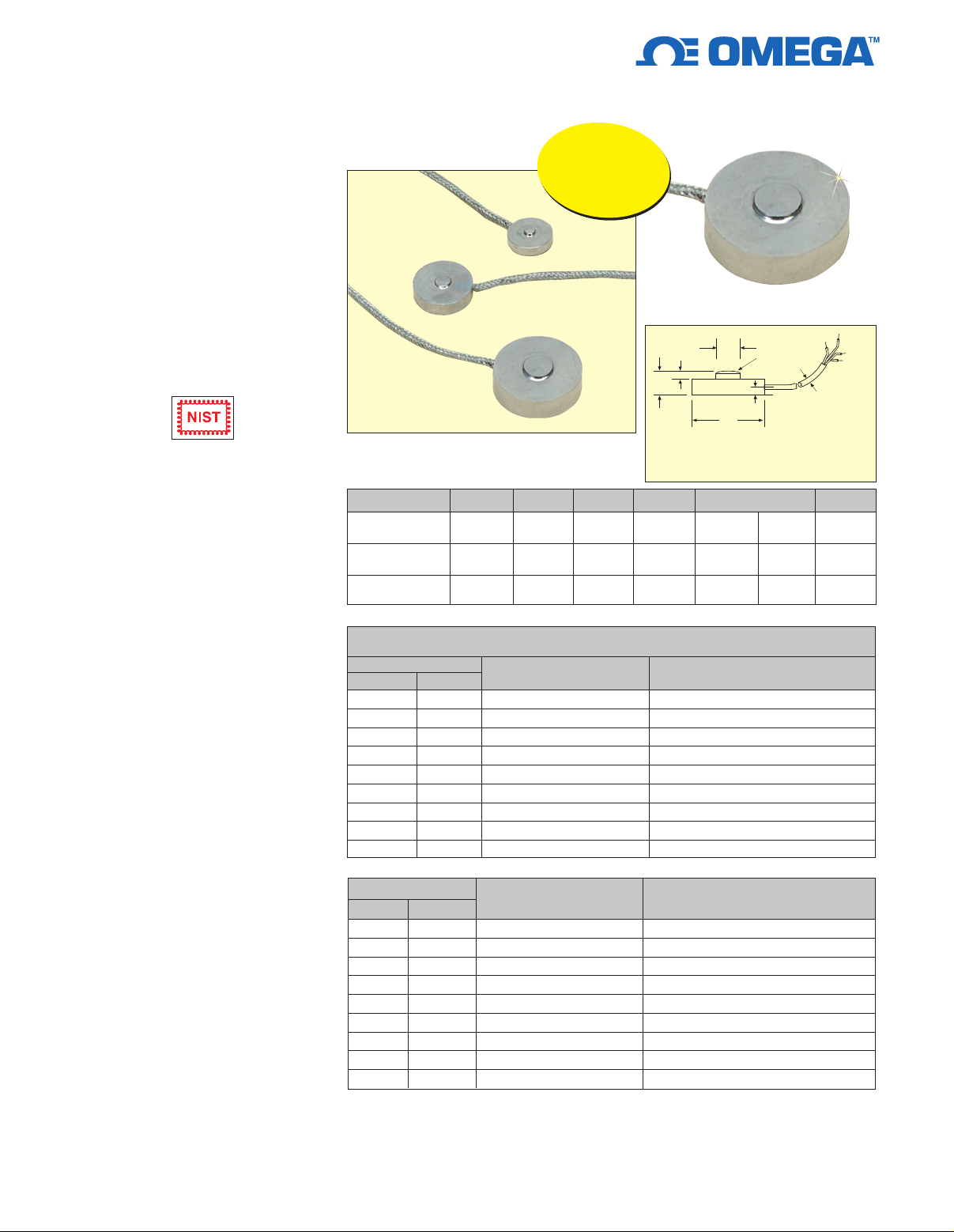

LCKD-5,
shown actual size.
LCKD-500, shown
actual size.
Dimensions: mm (inch)
CAPACITY D1 D2 H B C F R
10 to 200 N 9.6 2.2 3.0 0.76 1.0 1.3 6.3
1 kg to 50 lb (0.38) (0.09) (0.12) (0.03) (0.04) (0.05) (0.25)
500 to 1000 N 13 3.0 3.8 0.51 1.5 1.3 13
100 to 250 lb (0.50) (0.12) (0.15) (0.02) (0.06) (0.05) (0.5)
2000 to 5000 N 19 6.1 6.4 0.76 2.5 1.3 101
500 to 1000 lb (0.75) (0.24) (0.25) (0.03) (0.10) (0.05) (4)
STANDARD MODELS
To Order
CAPACITY
lb N MODEL NO. COMPATIBLE METERS
2.2 9.8 LCKD-1KG
5 22.2 LCKD-5
10 46 LCKD-10
25 111 LCKD-25
50 222 LCKD-50
100 445 LCKD-100
250 1112 LCKD-250
500 2224 LCKD-500
1000
4448
METRIC MODELS
CAPACITY
N lb MODEL NO. COMPATIBLE METERS
10 2.25 LCMKD-10N
20 4.5 LCMKD-20N
50 11.2 LCMKD-50N
100 22.5 LCMKD-100N
200 45 LCMKD-200N
500 112 LCMKD-500N
1000 225 LCMKD-1KN
2000 450 LCMKD-2KN
5000
1124
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Ordering Examples: LCKD-1KG, 1 kg capacity load cell.
LCKD-25, 25 lb capacity load cell.
LCMKD-10N, 10 Newton capacity load cell.
LCMKD-2KN, 2000 Newton capacity load cell.
1
5-Point
NIST-Traceable
Calibration
Provided
LCKD-100,
shown actual size.
LCKD-1000
LCMKD-5KN
LCKD-100, shown
larger than actual size.
D2
DIA.
B
H
COLOR CODE
RED = +EXC BLACK = -EXC
GREEN = -OUTPUT WHITE = +OUTPUT
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DP41-S, DP25B-S, iSeries
DP41-S, DP25B-S, iSeries
DP41-S, DP25B-S, iSeries
DP41-S, DP25B-S, iSeries
DP41-S, DP25B-S, iSeries
DP41-S, DP25B-S, iSeries
DP41-S, DP25B-S, iSeries
DP41-S, DP25B-S, iSeries
DP41-S, DP25B-S, iSeries
D1
DIA.
R RADIUS
C
F - OD OF WIRE
