3-19/32
[91.01]
1-47/64
[43.94]
15/64
[5.84]
4-31/32
[126.25]
5/8
[15.82]
3-25/32
[96.04]
1-57/64
[48.02]
3-25/32
[96.01]

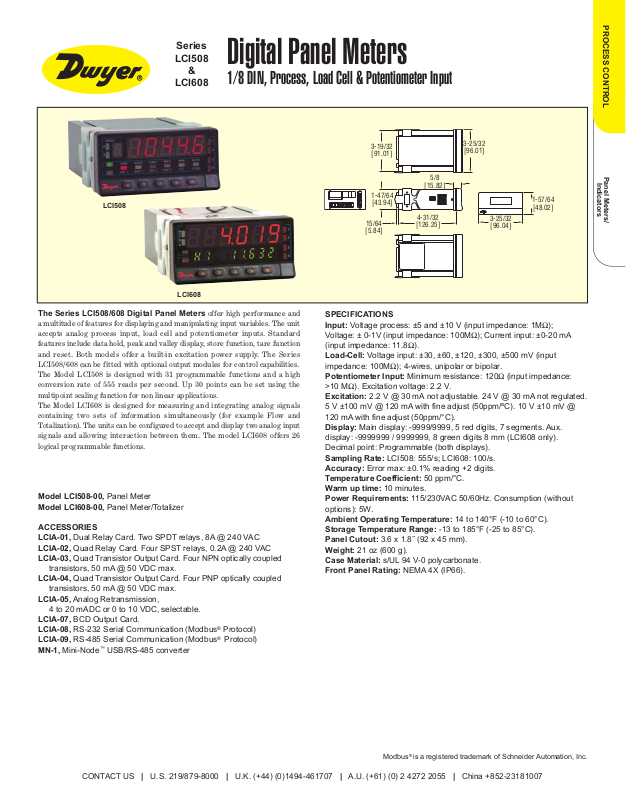

LCI508
Series
LCI508
&
LCI608
LCI608
Digital Panel Meters
1/8 DIN, Process, Load Cell & Potentiometer Input
PROCESS CONTROL
Panel Meters/
Indicators
The Series LCI508/608 Digital Panel Meters offer high performance and
a multitude of features for displaying and manipulating input variables. The unit
accepts analog process input, load cell and potentiometer inputs. Standard
features include data hold, peak and valley display, store function, tare function
and reset. Both models offer a built-in excitation power supply. The Series
LCI508/608 can be fitted with optional output modules for control capabilities.
The Model LCI508 is designed with 31 programmable functions and a high
conversion rate of 555 reads per second. Up 30 points can be set using the
multipoint scaling function for non linear applications.
The Model LCI608 is designed for measuring and integrating analog signals
containing two sets of information simultaneously (for example Flow and
Totalization). The units can be configured to accept and display two analog input
signals and allowing interaction between them. The model LCI608 offers 26
logical programmable functions.
Model LCI508-00, Panel Meter
Model LCI608-00, Panel Meter/Totalizer
ACCESSORIES
LCIA-01, Dual Relay Card. Two SPDT relays, 8A @ 240 VAC
LCIA-02, Quad Relay Card. Four SPST relays, 0.2A @ 240 VAC
LCIA-03, Quad Transistor Output Card. Four NPN optically coupled
transistors, 50 mA @ 50 VDC max.
LCIA-04, Quad Transistor Output Card. Four PNP optically coupled
transistors, 50 mA @ 50 VDC max.
LCIA-05, Analog Retransmission,
4 to 20 mADC or 0 to 10 VDC, selectable.
LCIA-07, BCD Output Card.
LCIA-08, RS-232 Serial Communication (Modbus®Protocol)
LCIA-09, RS-485 Serial Communication (Modbus® Protocol)
MN-1, Mini-Node™USB/RS-485 converter
SPECIFICATIONS
Input: Voltage process: ±5 and ±10 V (input impedance: 1MΩ);
Voltage: ± 0-1V (input impedance: 100MΩ); Current input: ±0-20 mA
(input impedance: 11.8Ω).
Load-Cell: Voltage input: ±30, ±60, ±120, ±300, ±500 mV (input
impedance: 100MΩ); 4-wires, unipolar or bipolar.
Potentiometer Input: Minimum resistance: 120Ω (input impedance:
>10 MΩ). Excitation voltage: 2.2 V.
Excitation: 2.2 V @ 30 mA not adjustable. 24 V @ 30 mA not regulated.
5 V ±100 mV @ 120 mA with fine adjust (50ppm/ºC). 10 V ±10 mV @
120 mA with fine adjust (50ppm/°C).
Display: Main display: -9999/9999, 5 red digits, 7 segments. Aux.
display: -9999999 / 9999999, 8 green digits 8 mm (LCI608 only).
Decimal point: Programmable (both displays).
Sampling Rate: LCI508: 555/s; LCI608: 100/s.
Accuracy: Error max: ±0.1% reading +2 digits.
Temperature Coefficient: 50 ppm/°C.
Warm up time: 10 minutes.
Power Requirements: 115/230VAC 50/60Hz. Consumption (without
options): 5W.
Ambient Operating Temperature: 14 to 140°F (-10 to 60°C).
Storage Temperature Range: -13 to 185°F (-25 to 85°C).
Panel Cutout: 3.6 x 1.8˝ (92 x 45 mm).
Weight: 21 oz (600 g).
Case Material: s/UL 94 V-0 polycarbonate.
Front Panel Rating: NEMA 4X (IP66).
CONTACT US | U.S. 219/879-8000 | U.K. (+44) (0)1494-461707 | A.U. (+61) (0) 2 4272 2055 | China +852-23181007
®
is a registered trademark of Schneider Automation, Inc.
