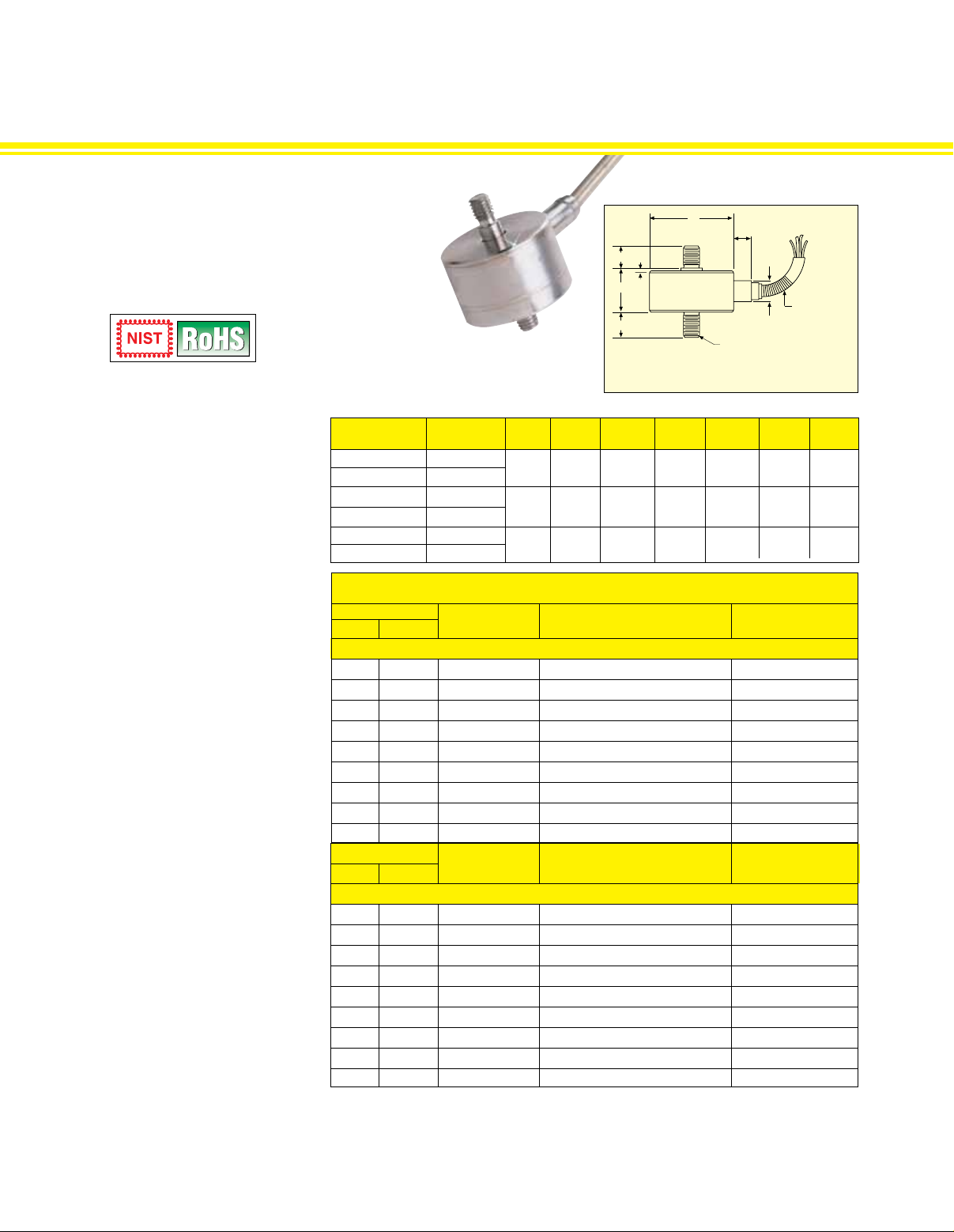

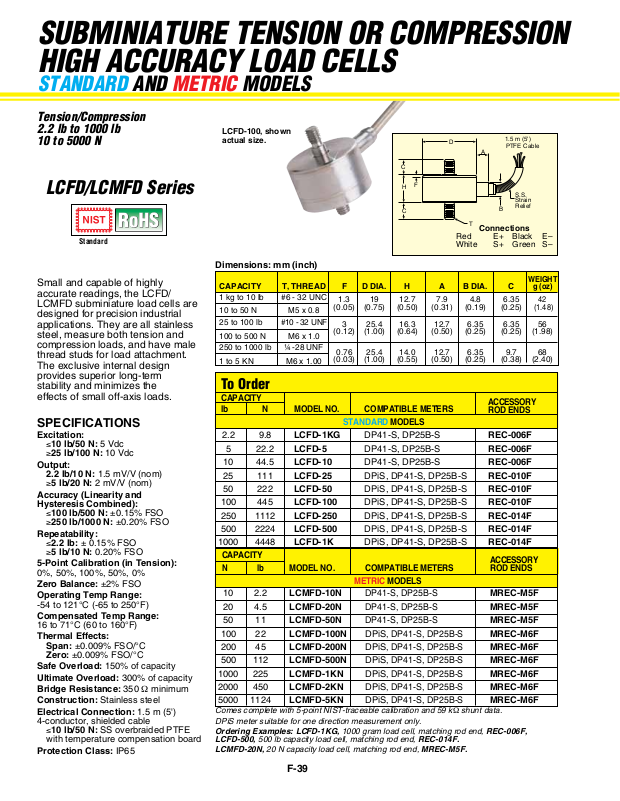

SUBMINIATURE TENSION OR COMPRESSION
hIgh ACCURACy LOAD CELLS
STANDARD AND METRIC MODELS
Tension/Compression
2.2 lb to 1000 lb
10 to 5000 N
LCFD/LCMFD Series
Standard
Small and capable of highly
accurate readings, the LCFD/
LCMFD subminiature load cells are
designed for precision industrial
applications. They are all stainless
steel, measure both tension and
compression loads, and have male
thread studs for load attachment.
The exclusive internal design
provides superior long-term
stability and minimizes the
effects of small off-axis loads.
SPECIFICATIONS
Excitation:
≤10 lb/50 N: 5 Vdc
≥25 lb/100 N: 10 Vdc
Output:
2.2 lb/10 N: 1.5 mV/V (nom)
≥5 lb/20 N: 2 mV/V (nom)
Accuracy (Linearity and
Hysteresis Combined):
≤100 lb/500 N: ±0.15% FSO
≥250 lb/1000 N: ±0.20% FSO
Repeatability:
≤2.2 lb: ± 0.15% FSO
≥5 lb/10 N: 0.20% FSO
5-Point Calibration (in Tension):
0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Span: ±0.009% FSO/°C
Zero: ±0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω minimum
Construction: Stainless steel
Electrical Connection: 1.5 m (5')
4-conductor, shielded cable
≤10 lb/50 N: SS overbraided PTFE
with temperature compensation board
Protection Class: IP65
LCFD-100, shown
actual size.
C
F
H
C
Dimensions: mm (inch)
CAPACITY T, THREAD F D DIA. H A B DIA. C
1 kg to 10 lb #6 - 32 UNC
10 to 50 N
25 to 100 lb #10 - 32 UNF
100 to 500 N
250 to 1000 lb ¼- 28 UNF
1 to 5 KN M6 x 1.00
M5 x 0.8
M6 x 1.0
1.3 19 12.7 7.9 4.8 6.35
(0.05) (0.75) (0.50) (0.31) (0.19) (0.25)
3 25.4 16.3 12.7 6.35 6.35 56
(0.12) (1.00) (0.64) (0.50) (0.25) (0.25) (1.98)
0.76 25.4 14.0 12.7 6.35 9.7 68
(0.03) (1.00) (0.55) (0.50) (0.25) (0.38) (2.40)
D
T
Red E+ Black E–
White S+ Green S–
1.5 m (5')
PTFE Cable
A
S.S.
Strain
Relief
B
Connections
g (oz)
WEIGHT
42
(1.48)
To Order
CAPACITY
lb N MODEL NO. COMPATIBLE METERS
STANDARD MODELS
2.2 9.8 LCFD-1KG DP41-S, DP25B-S REC-006F
5 22.2 LCFD-5 DP41-S, DP25B-S REC-006F
10 44.5 LCFD-10 DP41-S, DP25B-S REC-006F
25 111 LCFD-25 DPiS, DP41-S, DP25B-S REC-010F
50 222 LCFD-50 DPiS, DP41-S, DP25B-S REC-010F
100 445 LCFD-100 DPiS, DP41-S, DP25B-S REC-010F
250 1112 LCFD-250 DPiS, DP41-S, DP25B-S REC-014F
500 2224 LCFD-500 DPiS, DP41-S, DP25B-S REC-014F
1000 4448 LCFD-1K DPiS, DP41-S, DP25B-S REC-014F
CAPACITY
N lb
10 2.2 LCMFD-10N
20 4.5 LCMFD-20N
50 11 LCMFD-50N
100 22 LCMFD-100N DPiS
200 45 LCMFD-200N DPiS
500 112 LCMFD-500N DPiS
1000 225 LCMFD-1KN DPiS
2000 450 LCMFD-2KN DPiS
5000 1124 LCMFD-5KN DPiS
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
DPiS meter suitable for one direction measurement only.
Ordering Examples: LCFD-1KG, 1000 gram load cell, matching rod end, REC-006F,
LCFD-500, 500 lb capacity load cell, matching rod end, REC-014F.
LCMFD-20N, 20 N capacity load cell, matching rod end, MREC-M5F.
MODEL NO. COMPATIBLE METERS ROD ENDS
ACCESSORY
ACCESSORY
METRIC MODELS
DP41-S, DP25B-S
DP41-S, DP25B-S
DP41-S, DP25B-S
, DP41-S, DP25B-S
, DP41-S, DP25B-S
, DP41-S, DP25B-S
, DP41-S, DP25B-S
, DP41-S, DP25B-S
, DP41-S, DP25B-S
MREC-M5F
MREC-M5F
MREC-M5F
ROD ENDS
MREC-M6F
MREC-M6F
MREC-M6F
MREC-M6F
MREC-M6F
MREC-M6F
F-39
