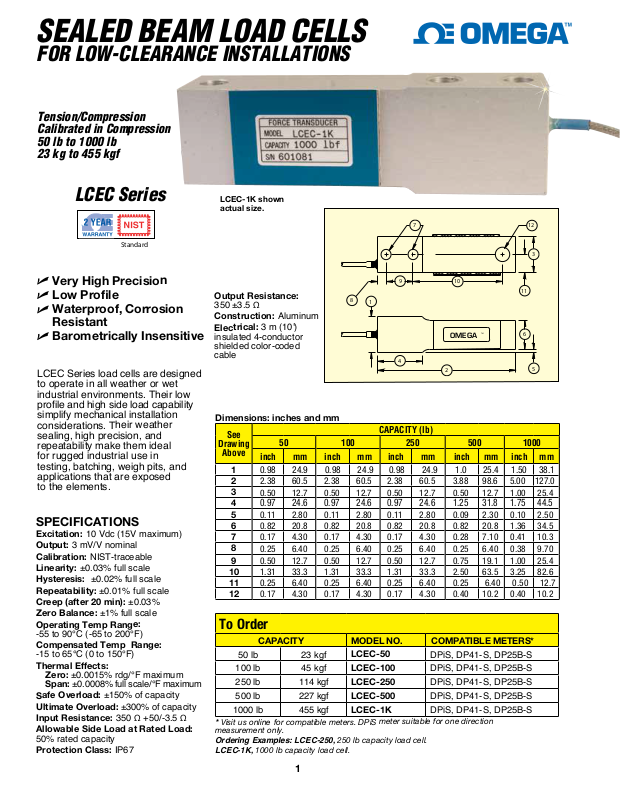

OMEGA

SEALED BEAM LOAD CELLS

FOR LOW-CLEARANCE INSTALLATIONS

Tension/Compression Calibrated in Compression 50 lb to 1000 lb 23 kg to 455 kgf

LCEC Series

Standard

Very High Precision Low Proﬁle Waterproof, Corrosion

Resistant Barometrically Insensitive

LCEC Series load cells are designed to operate in all weather or wet industrial environments. Their low profile and high side load capability simplify mechanical installation considerations. Their weather sealing, high precision, and repeatability make them ideal for rugged industrial use in testing, batching, weigh pits, and applications that are exposed to the elements.

SPECIFICATIONS

Excitation: 10 Vdc (15V maximum) Output: 3 mV/V nominal Calibration: NIST-traceable Linearity: ±0.03% full scale Hysteresis: ±0.02% full scale Repeatability: ±0.01% full scale Creep (after 20 min): ±0.03% Zero Balance: ±1% full scale Operating Temp Range:

-55 to 90°C (-65 to 200°F)

Compensated Temp Range:

-15 to 65°C (0 to 150°F)

Thermal Effects: Zero: ±0.0015% rdg/°F maximum

Span: ±0.0008% full scale/°F maximum Safe Overload: ±150% of capacity Ultimate Overload: ±300% of capacity Input Resistance: 350 Ω +50/-3.5 Ω Allowable Side Load at Rated Load:

50% rated capacity

Protection Class: IP67

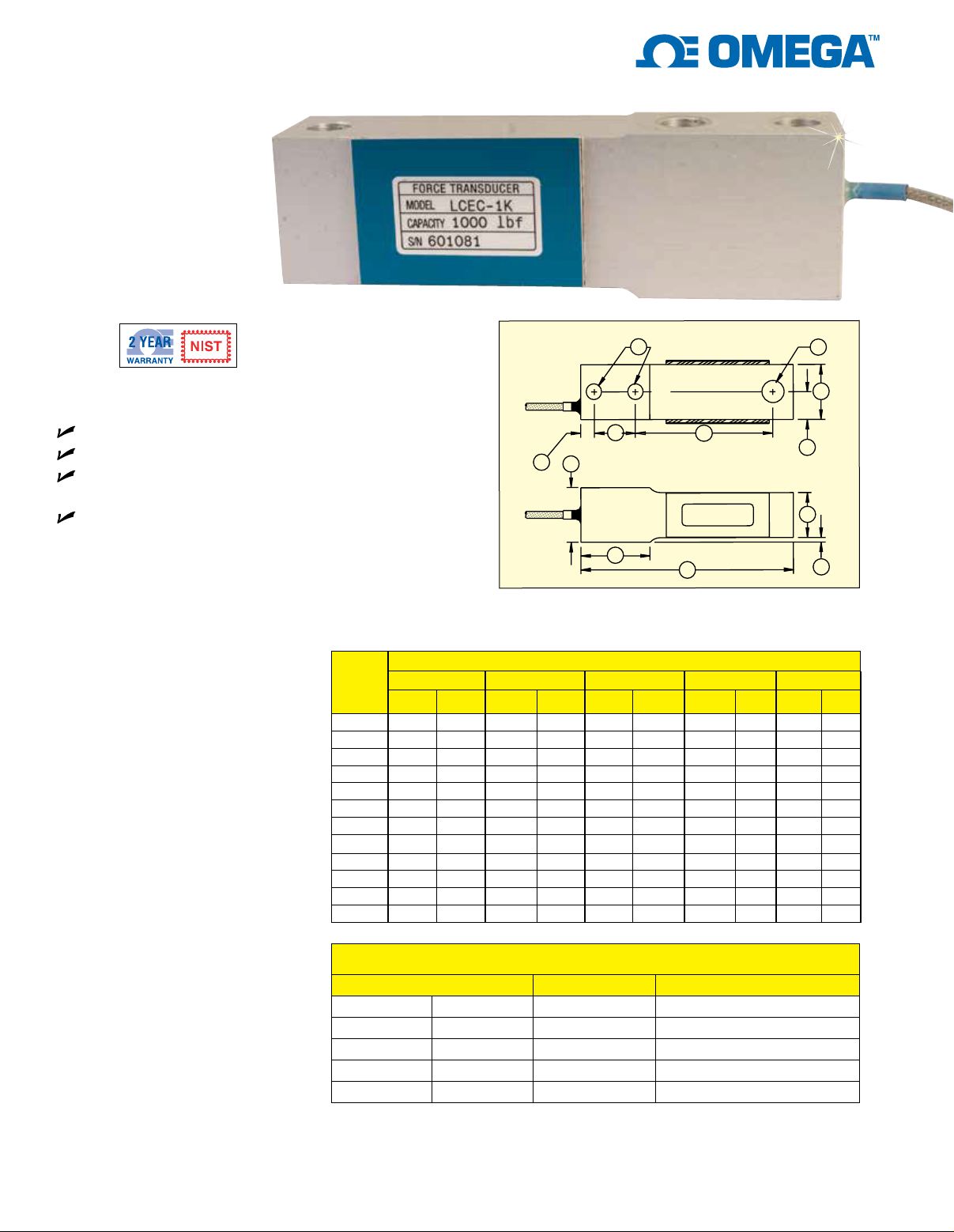

LCEC-1K shown actual size.

Output Resistance: 350 ±3.5 Ω

Construction: Aluminum Electrical: 3 m (10')

insulated 4-conductor shielded color-coded cable

Dimensions: inches and mm

See

Drawing

Above

1 2 3 4 5 6 7 8

9 10 11 12

50 100 250 500 1000

inch mm inch mm inch mm inch mm inch mm

0.98 24.9 0.98 24.9 0.98 24.9 1.0 25.4 1.50 38.1

2.38 60.5 2.38 60.5 2.38 60.5 3.88 98.6 5.00 127.0

0.50 12.7 0.50 12.7 0.50 12.7 0.50 12.7 1.00 25.4

0.97 24.6 0.97 24.6 0.97 24.6 1.25 31.8 1.75 44.5

0.11 2.80 0.11 2.80 0.11 2.80 0.09 2.30 0.10 2.50

0.82 20.8 0.82 20.8 0.82 20.8 0.82 20.8 1.36 34.5

0.17 4.30 0.17 4.30 0.17 4.30 0.28 7.10 0.41 10.3

0.25 6.40 0.25 6.40 0.25 6.40 0.25 6.40 0.38 9.70

0.50 12.7 0.50 12.7 0.50 12.7 0.75 19.1 1.00 25.4

1.31 33.3 1.31 33.3 1.31 33.3 2.50 63.5 3.25 82.6

0.25 6.40 0.25 6.40 0.25 6.40 0.25 6.40 0.50 12.7

0.17 4.30 0.17 4.30 0.17 4.30 0.40 10.2 0.40 10.2

CAPACITY (lb)

To Order

* Visit us online for compatible meters. DPiS meter suitable for one direction measurement only.

Ordering Examples: LCEC-250, 250 lb capacity load cell.

LCEC-1K, 1000 lb capacity load cell.

CAPACITY MODEL NO. COMPATIBLE METERS*

50 lb 23 kgf

100 lb 45 kgf

250 lb 114 kgf

500 lb 227 kgf

1000 lb 455 kgf

LCEC-50

LCEC-100

LCEC-250

LCEC-500

LCEC-1K

DPiS, DP41-S, DP25B-S
