FORCE
5
4
2
6
1
OMEGA
®
– OUTPU
T
+ OUTPUT
– EXCITATION
+ EXCITATION
FORCE
5
4
2
6
1
OMEGA
®
WIRING CODE
GREEN
WHITE
BLACK
RED
– OUTPU
T
+ OUTPUT
– EXCITATION
+ EXCITATION
FORCE
F
I
R

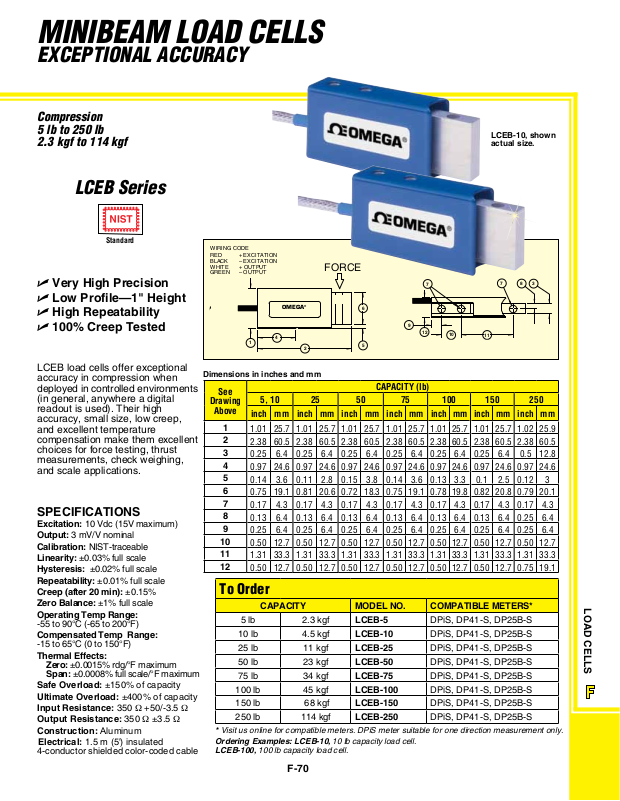

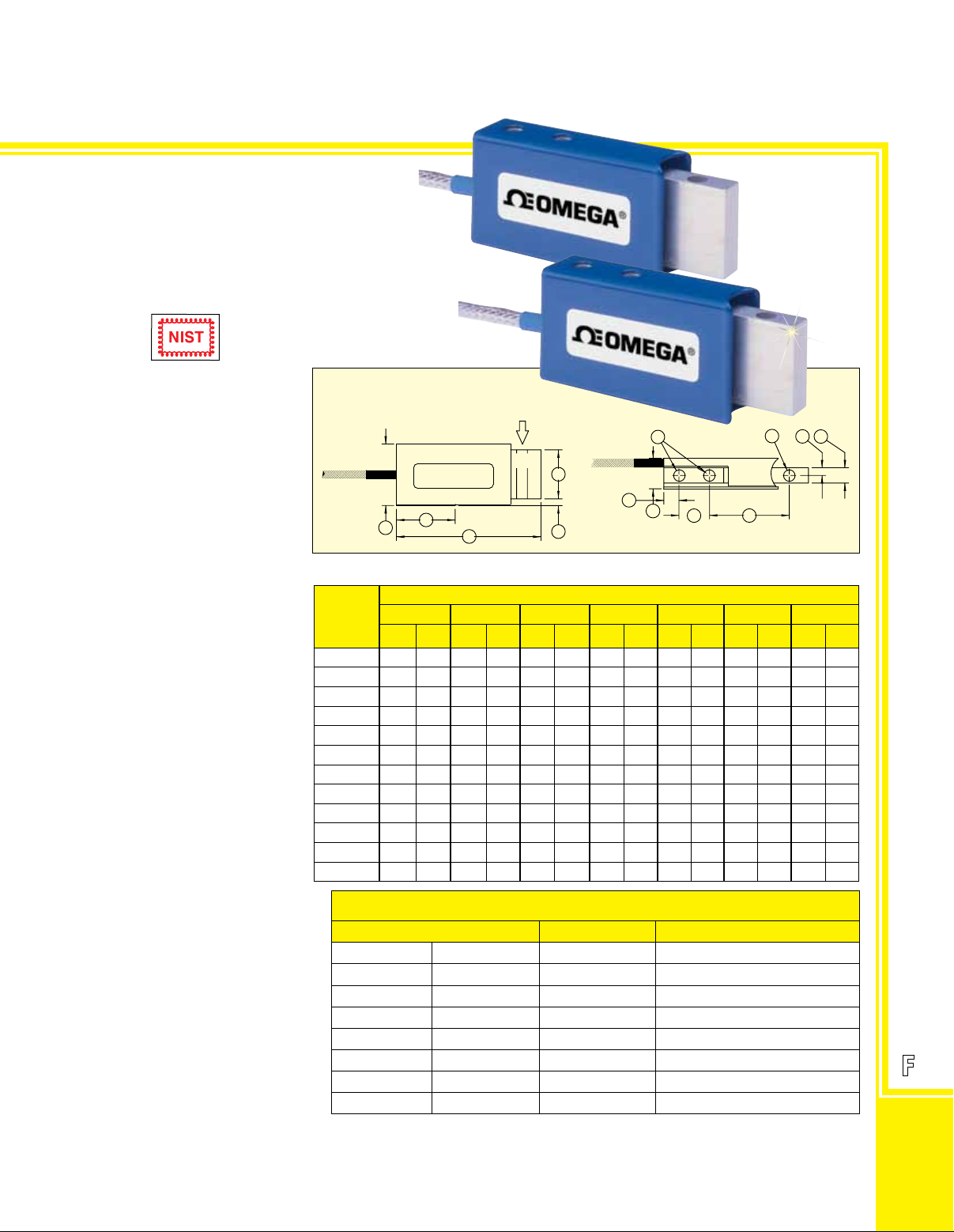

MINIBEAM LOAD CELLS
EXCEPTIONAL ACCURACY
Compression
5 lb to 250 lb
2.3 kgf to 114 kgf
LCEB Series
LCEB-10, shown
actual size.
Standard
U Very High Precision
U Low Profile—1" Height
U High Repeatability
U 100% Creep Tested
LCEB load cells offer exceptional
accuracy in compression when
deployed in controlled environments
(in general, anywhere a digital
readout is used). Their high
accuracy, small size, low creep,
and excellent temperature
compensation make them excellent
choices for force testing, thrust
measurements, check weighing,
and scale applications.
SPECIFICATIONS
Excitation: 10 Vdc (15V maximum)
Output: 3 mV/V nominal
Calibration: NIST-traceable
Linearity: ±0.03% full scale
Hysteresis: ±0.02% full scale
Repeatability: ±0.01% full scale
Creep (after 20 min): ±0.15%
Zero Balance: ±1% full scale
Operating Temp Range:
-55 to 90°C (-65 to 200°F)
Compensated Temp Range:
-15 to 65°C (0 to 150°F)
Thermal Effects:
Zero: ±0.0015% rdg/°F maximum
Span: ±0.0008% full scale/°F maximum
Safe Overload: ±150% of capacity
Ultimate Overload: ±400% of capacity
Input Resistance: 350 Ω +50/-3.5 Ω
Output Resistance: 350 Ω ±3.5 Ω
Construction: Aluminum
4-conductor shielded color-coded cable
Electrical: 1.5 m (5') insulated
WIRING CODE
RED
+ EXCITATION
BLACK
– EXCITATION
WHITE
+ OUTPUT
GREEN
Dimensions in inches and mm
See
Drawing
Above
1
2
3
4
5
6
7
8
9
10
11
12
T
– OUTPU
7
7
9
12
10
11
8
CAPACITY (lb)
5, 10 25 50 75 100 150 250
inch mm inch mm inch mm inch mm inch mm inch mm inch mm
1.01 25.7 1.01 25.7 1.01 25.7 1.01 25.7 1.01 25.7 1.01 25.7 1.02 25.9
2.38 60.5 2.38 60.5 2.38 60.5 2.38 60.5 2.38 60.5 2.38 60.5 2.38 60.5
0.25 6.4 0.25 6.4 0.25 6.4 0.25 6.4 0.25 6.4 0.25 6.4 0.5 12.8
0.97 24.6 0.97 24.6 0.97 24.6 0.97 24.6 0.97 24.6 0.97 24.6 0.97 24.6
0.14 3.6 0.11 2.8 0.15 3.8 0.14 3.6 0.13 3.3 0.1 2.5 0.12 3
0.75 19.1 0.81 20.6 0.72 18.3 0.75 19.1 0.78 19.8 0.82 20.8 0.79 20.1
0.17 4.3 0.17 4.3 0.17 4.3 0.17 4.3 0.17 4.3 0.17 4.3 0.17 4.3
0.13 6.4 0.13 6.4 0.13 6.4 0.13 6.4 0.13 6.4 0.13 6.4 0.25 6.4
0.25 6.4 0.25 6.4 0.25 6.4 0.25 6.4 0.25 6.4 0.25 6.4 0.25 6.4
0.50 12.7 0.50 12.7 0.50 12.7 0.50 12.7 0.50 12.7 0.50 12.7 0.50 12.7
1.31 33.3 1.31 33.3 1.31 33.3 1.31 33.3 1.31 33.3 1.31 33.3 1.31 33.3
0.50 12.7 0.50 12.7 0.50 12.7 0.50 12.7 0.50 12.7 0.50 12.7 0.75 19.1
3
To Order
CAPACITY MODEL NO. COMPATIBLE METERS*
5 lb 2.3 kgf
10 lb 4.5 kgf
25 lb 11 kgf
50 lb 23 kgf
75 lb 34 kgf
100 lb 45 kgf
150 lb 68 kgf
250 lb 114 kgf
* Visit us online for compatible meters. DPiS meter suitable for one direction measurement only.
Ordering Examples: LCEB-10, 10 lb capacity load cell.
LCEB-100, 100 lb capacity load cell.
LCEB-5
LCEB-10
LCEB-25
LCEB-50
LCEB-75
LCEB-100
LCEB-150
LCEB-250
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
DPiS, DP41-S, DP25B-S
LOAD CELLS
F-70
