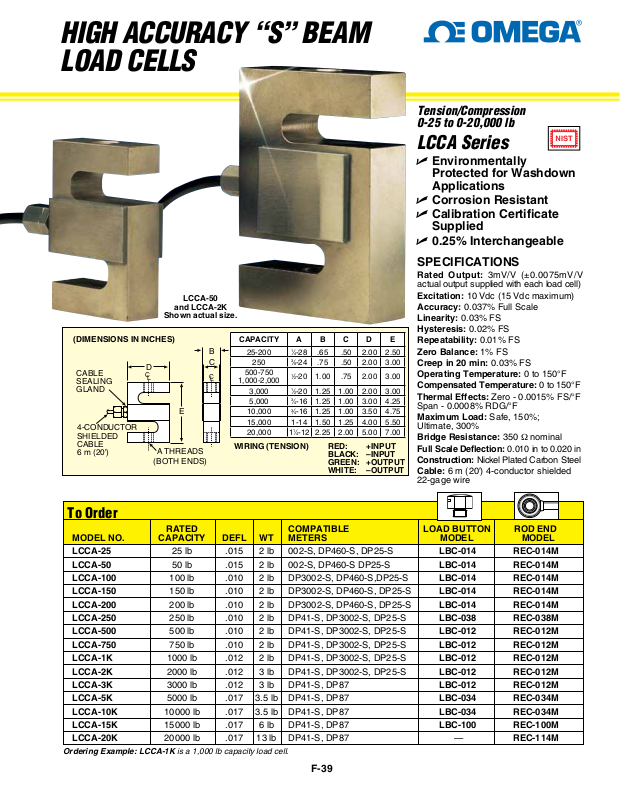

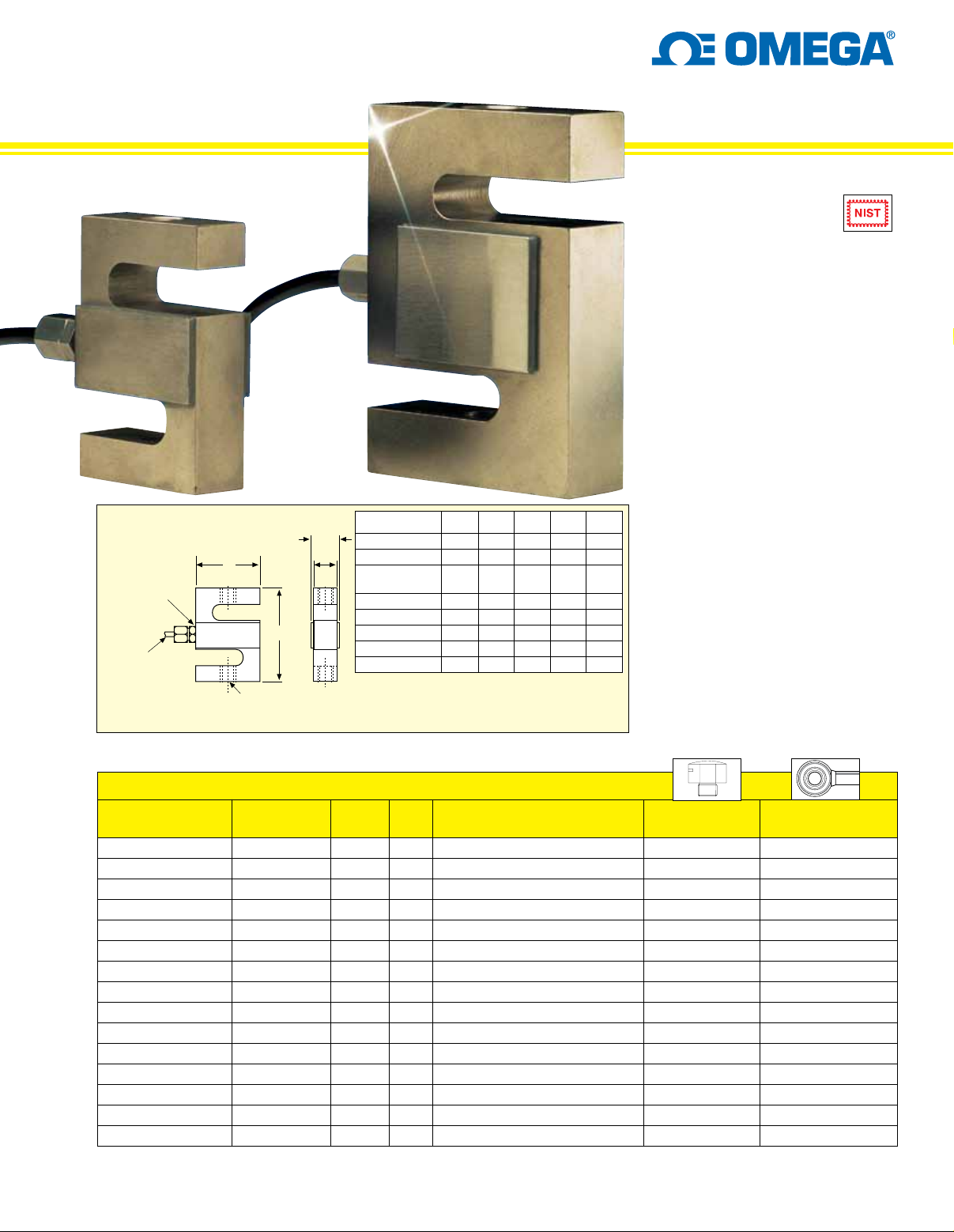

HIGH ACCURACY “S” BEAM
LOAD CELLS
LCCA-50
and LCCA-2K
Shown actual size.
(DIMENSIONS IN INCHES)
CABLE
SEALING
GLAND
4-CONDUCTOR
SHIELDED
CABLE
6 m (20')
D
C
L
A THREADS
(BOTH ENDS)
E
CAPACITY A B C D E
B
C
C
L
25-200
250
500-750
1,000-2,000
3,000
5,000
10,000
15,000 1-14 1.50 1.25 4.00 5.50
20,000 1
WIRING (TENSION) RED: +INPUT
BLACK: –INPUT
GREEN: +OUTPUT
WHITE: –OUTPUT
1
⁄4-28 .65 .50 2.00 2.50
3
⁄8-24 .75 .50 2.00 3.00
1
⁄2-20 1.00 .75 2.00 3.00
1
⁄2-20 1.25 1.00 2.00 3.00
3
⁄4-16 1.25 1.00 3.00 4.25
3
⁄4-16 1.25 1.00 3.50 4.75
1
⁄4-12 2.25 2.00 5.00 7.00
Tension/Compression
0-25 to 0-20,000 lb
LCCA Series
U Environmentally
Protected for Washdown
Applications
U Corrosion Resistant
U Calibration Certificate
Supplied
U 0.25% Interchangeable
SPECIFICATIONS
Rated Output: 3mV/V (±0.0075mV/V
actual output supplied with each load cell)
Excitation: 10 Vdc (15 Vdc maximum)
Accuracy: 0.037% Full Scale
Linearity: 0.03% FS
Hysteresis: 0.02% FS
Repeatability: 0.01% FS
Zero Balance: 1% FS
Creep in 20 min: 0.03% FS
Operating Temperature: 0 to 150°F
Compensated Temperature: 0 to 150°F
Thermal Effects: Zero - 0.0015% FS/°F
Span - 0.0008% RDG/°F
Maximum Load: Safe, 150%;
Ultimate, 300%
Bridge Resistance: 350 Ω nominal
Full Scale Deflection: 0.010 in to 0.020 in
Construction: Nickel Plated Carbon Steel
Cable: 6 m (20') 4-conductor shielded
22-gage wire
To Order
RATED COMPATIBLE LOAD BUTTON ROD END
MODEL NO. CAPACITY DEFL WT METERS MODEL MODEL
LCCA-25 25 lb .015 2 lb 002-S, DP460-S, DP25-S LBC-014 REC-014M
LCCA-50 50 lb .015 2 lb 002-S, DP460-S DP25-S LBC-014 REC-014M
LCCA-100 100 lb .010 2 lb DP3002-S, DP460-S,DP25-S LBC-014 REC-014M
LCCA-150 150 lb .010 2 lb DP3002-S, DP460-S, DP25-S LBC-014 REC-014M
LCCA-200 200 lb .010 2 lb DP3002-S, DP460-S, DP25-S LBC-014 REC-014M
LCCA-250 250 lb .010 2 lb DP41-S, DP3002-S, DP25-S LBC-038 REC-038M
LCCA-500 500 lb .010 2 lb DP41-S, DP3002-S, DP25-S LBC-012 REC-012M
LCCA-750 750 lb .010 2 lb DP41-S, DP3002-S, DP25-S LBC-012 REC-012M
LCCA-1K 1000 lb .012 2 lb DP41-S, DP3002-S, DP25-S LBC-012 REC-012M
LCCA-2K 2000 lb .012 3 lb DP41-S, DP3002-S, DP25-S LBC-012 REC-012M
LCCA-3K 3000 lb .012 3 lb DP41-S, DP87 LBC-012 REC-012M
LCCA-5K 5000 lb .017 3.5 lb DP41-S, DP87 LBC-034 REC-034M
LCCA-10K 10000 lb .017 3.5 lb DP41-S, DP87 LBC-034 REC-034M
LCCA-15K 15000 lb .017 6 lb DP41-S, DP87 LBC-100 REC-100M
LCCA-20K 20000 lb .017 13 lb DP41-S, DP87 — REC-114M
Ordering Example: LCCA-1K is a 1,000 lb capacity load cell.
F-39
