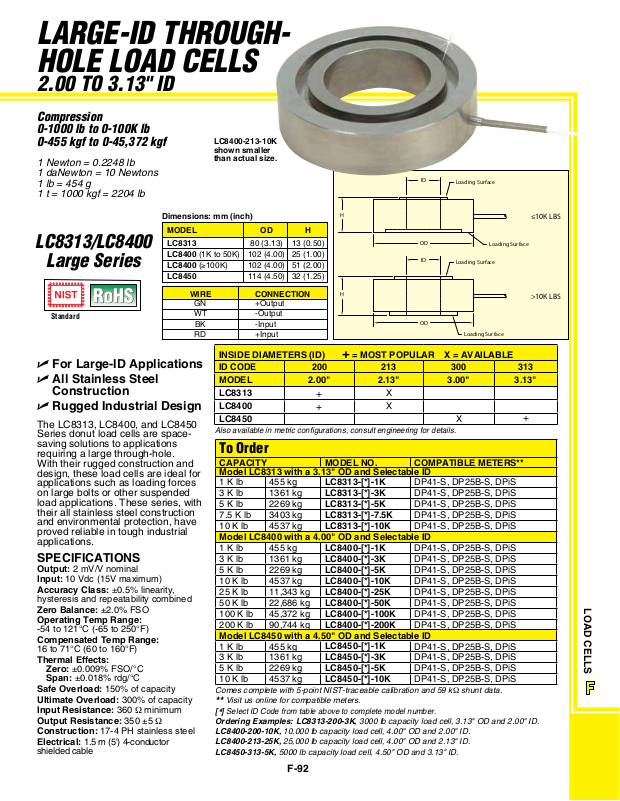

LARGE-ID THROUGHHOLE LOAD CELLS
2.00 TO 3.13" ID
Compression
0-1000 lb to 0-100K lb
0-455 kgf to 0-45,372 kgf
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kgf = 2204 lb

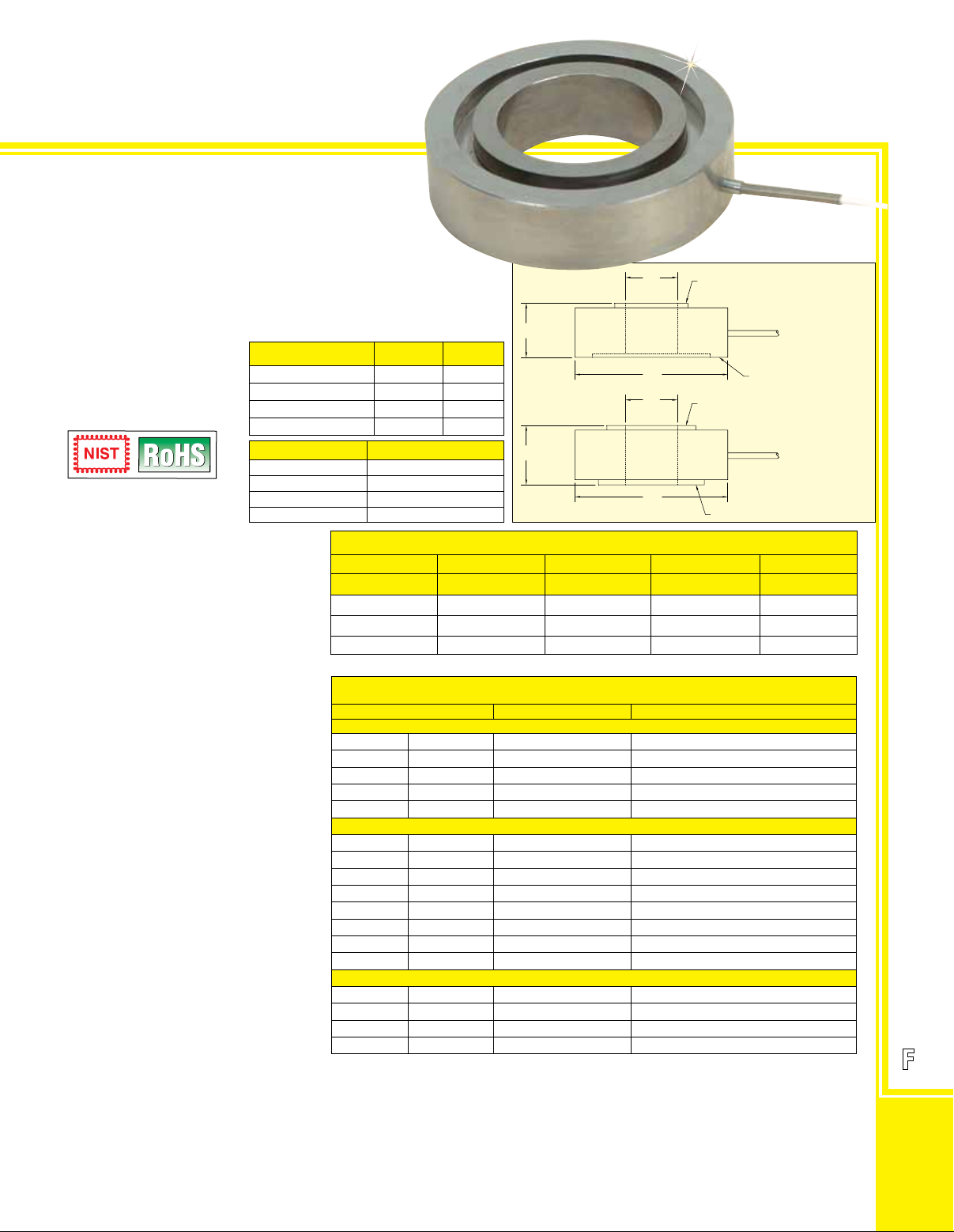

LC8400-213-10K
shown smaller
than actual size.
ID
Loading Surface
LC8313/LC8400
Large Series
Standard
U For Large-ID Applications
U All Stainless Steel
Construction
U Rugged Industrial Design
The LC8313, LC8400, and LC8450
Series donut load cells are spacesaving solutions to applications
requiring a large through-hole.
With their rugged construction and
design, these load cells are ideal for
applications such as loading forces
on large bolts or other suspended
load applications. These series, with
their all stainless steel construction
and environmental protection, have
proved reliable in tough industrial
applications.
SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V maximum)
Accuracy Class: ±0.5% linearity,
hysteresis and repeatability combined
Zero Balance: ±2.0% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor
shielded cable
Dimensions: mm (inch)
MODEL OD H
LC8313 80 (3.13) 13 (0.50)
LC8400 (1K to 50K) 102 (4.00) 25 (1.00)
LC8400 (≥100K) 102 (4.00) 51 (2.00)
LC8450 114 (4.50) 32 (1.25)
WIRE CONNECTION
GN +Output
WT -Output
BK -Input
RD +Input
INSIDE DIAMETERS (ID) + = MOST POPULAR X = AVAILABLE
ID CODE 200 213 300 313
MODEL 2.00"
LC8313
LC8400
LC8450
Also available in metric configurations, consult engineering for details.
+
+
To Order
CAPACITY MODEL NO. COMPATIBLE METERS**
Model LC8313 with a 3.13" OD and Selectable ID
1 K lb 455 kg
3 K lb 1361 kg
5 K lb 2269 kg
7.5 K lb 3403 kg
10 K lb 4537 kg
Model LC8400 with a 4.00" OD and Selectable ID
1 K lb 455 kg
3 K lb 1361 kg
5 K lb 2269 kg
10 K lb 4537 kg
25 K lb 11,343 kg
50 K lb 22,686 kg
100 K lb 45,372 kg
200 K lb 90,744 kg
Model LC8450 with a 4.50" OD and Selectable ID
1 K lb 455 kg
3 K lb 1361 kg
5 K lb 2269 kg
10 K lb 4537 kg
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Visit us online for compatible meters.
**
[*] Select ID Code from table above to complete model number.
Ordering Examples: LC8313-200-3K, 3000 lb capacity load cell, 3.13" OD and 2.00" ID.
LC8400-200-10K, 10,000 lb capacity load cell, 4.00" OD and 2.00" ID.
LC8400-213-25K, 25,000 lb capacity load cell, 4.00" OD and 2.13" ID.
LC8450-313-5K, 5000 lb capacity load cell, 4.50" OD and 3.13" ID.
F-92
H
H
2.13
X
X
LC8313-[*]-1K
LC8313-[*]-3K
LC8313-[*]-5K
LC8313-[*]-7.5K
LC8313-[*]-10K
LC8400-[*]-1K
LC8400-[*]-3K
LC8400-[*]-5K
LC8400-[*]-10K
LC8400-[*]-25K
LC8400-[*]-50K
LC8400-[*]-100K
LC8400-[*]-200K
LC8450-[*]-1K
LC8450-[*]-3K
LC8450-[*]-5K
LC8450-[*]-10K
OD
ID
OD
" 3.00" 3.13"
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
Loading Surface
X
Loading Surface
Loading Surface
+
≤10K LBS
>10K LBS
