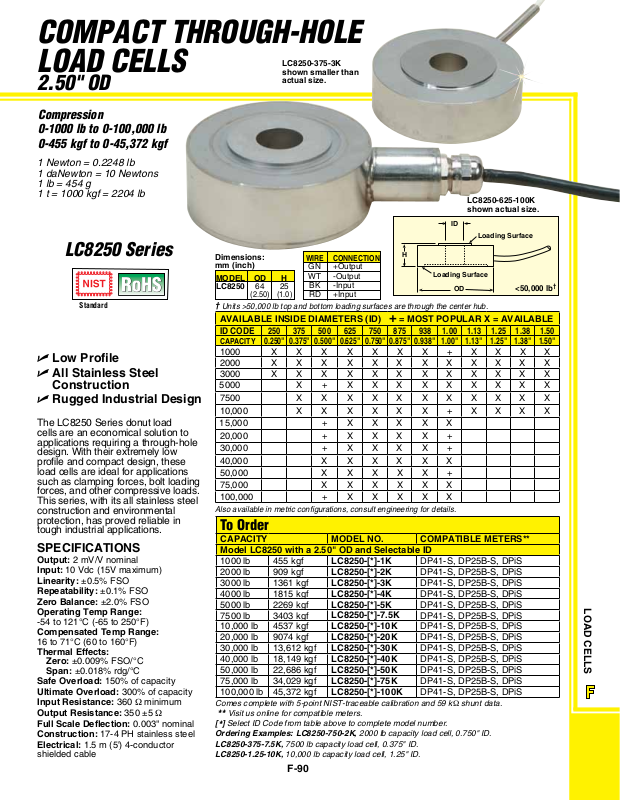

COMPACT THROUGH-HOLE
LOAD CELLS
2.50" OD
Compression
0-1000 lb to 0-100,000 lb
0-455 kgf to 0-45,372 kgf
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kgf = 2204 lb
LC8250 Series
Standard
U Low Profile
U All Stainless Steel
Construction
U Rugged Industrial Design
The LC8250 Series donut load
cells are an economical solution to
applications requiring a through-hole
design. With their extremely low
profile and compact design, these
load cells are ideal for applications
such as clamping forces, bolt loading
forces, and other compressive loads.
This series, with its all stainless steel
construction and environmental
protection, has proved reliable in
tough industrial applications.
SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V maximum)
Linearity: ±0.5% FSO
Repeatability: ±0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Full Scale Deflection: 0.003" nominal
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor
shielded cable

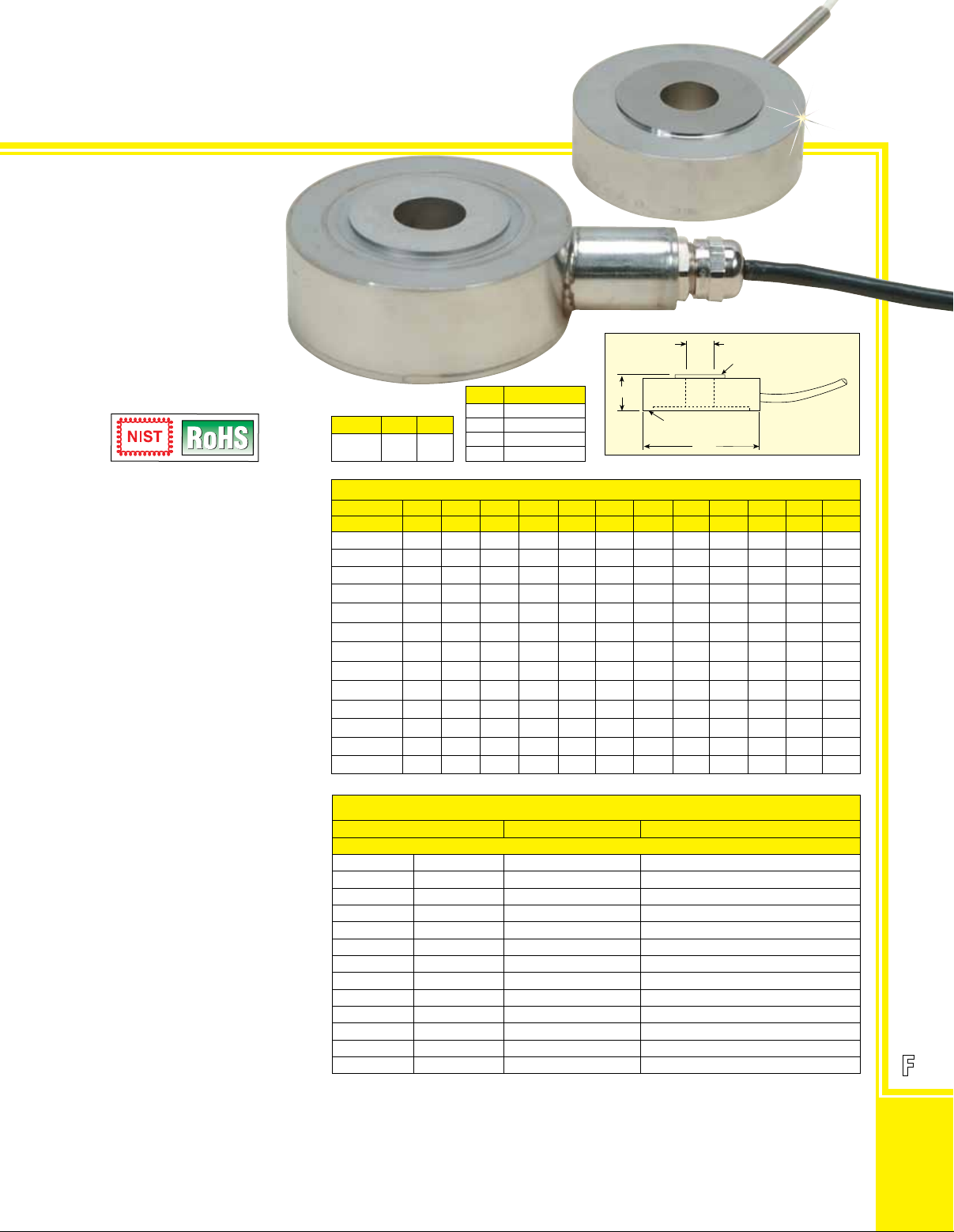

LC8250-375-3K
shown smaller than
actual size.
LC8250-625-100K
shown actual size.
ID
Loading Surface
Dimensions:
mm (inch)
MODEL OD H
LC8250 64 25
†
Also available in metric configurations, consult engineering for details.
(2.50) (1.0)
Units >50,000 lb top and bottom loading surfaces are through the center hub.
AVAILABLE INSIDE DIAMETERS (ID) + = MOST POPULAR X = AVAILABLE
ID CODE
CAPACITY
1000 X X X X X X X + X X X X
2000 X X X X X X X X X X X X
3000 X X X X X X X X X X X X
5000 X + X X X X X X X X X
7500 X X X X X X X X X X X
10,000 X X X X X X + X X X X
15,000 + X X X X X
20,000 + X X X X +
30,000 + X X X X +
40,000 X X X X X X
50,000 X X X X X +
75,000 X X X X X X
100,000 + X X X X X
250 375 500 625 750 875 938 1.00 1.13 1.25 1.38 1.50
0.250" 0.375" 0.500" 0.625" 0.750" 0.875" 0.938" 1.00" 1.13" 1.25" 1.38" 1.50"
WIRE CONNECTION
GN +Output
WT -Output
BK -Input
RD +Input
H
Loading Surface
OD
<50,000 lb
†
To Order
CAPACITY MODEL NO. COMPATIBLE METERS**
Model LC8250 with a 2.50" OD and Selectable ID
1000 lb 455 kgf
2000 lb 909 kgf
3000 lb 1361 kgf
4000 lb 1815 kgf
5000 lb 2269 kgf
7500 lb 3403 kgf
10,000 lb 4537 kgf
20,000 lb 9074 kgf
30,000 lb 13,612 kgf
40,000 lb 18,149 kgf
50,000 lb 22,686 kgf
75,000 lb 34,029 kgf
100,000 lb 45,372 kgf
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
** Visit us online for compatible meters.
[*] Select ID Code from table above to complete model number.
Ordering Examples: LC8250-750-2K, 2000 lb capacity load cell, 0.750" ID.
LC8250-375-7.5K, 7500 lb capacity load cell, 0.375" ID.
LC8250-1.25-10K, 10,000 lb capacity load cell, 1.25" ID.
F-90
LC8250-[*]-1K
LC8250-[*]-2K
LC8250-[*]-3K
LC8250-[*]-4K
LC8250-[*]-5K
LC8250-[*]-7.5K
LC8250-[*]-10K
LC8250-[*]-20K
LC8250-[*]-30K
LC8250-[*]-40K
LC8250-[*]-50K
LC8250-[*]-75K
LC8250-[*]-100K
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
