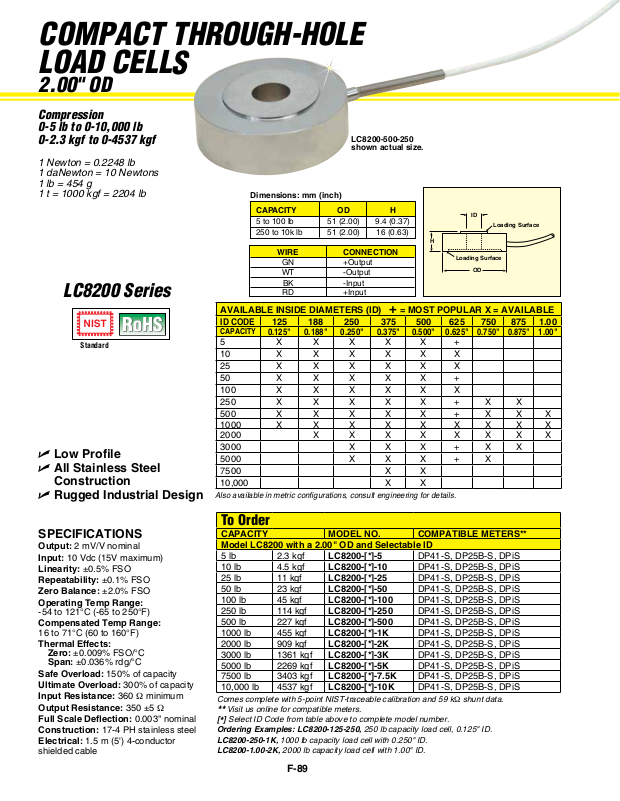

COMPACT THROUGH-HOLE
LOAD CELLS
2.00" OD
Compression
0-5 lb to 0-10,000 lb
0-2.3 kgf to 0-4537 kgf
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kgf = 2204 lb
LC8200 Series
Standard
U Low Profile
U All Stainless Steel
Construction
U Rugged Industrial Design
Dimensions: mm (inch)
CAPACITY OD H
5 to 100 lb 51 (2.00) 9.4 (0.37)
250 to 10k lb 51 (2.00) 16 (0.63)
WIRE CONNECTION
WT -Output
BK -Input
RD +Input
AVAILABLE INSIDE DIAMETERS (ID) + = MOST POPULAR X = AVAILABLE
ID CODE
CAPACITY
5 X X X X X +
10 X X X X X X
25 X X X X X X
50 X X X X X +
100 X X X X X X
250 X X X X X + X X
500 X X X X X + X X X
1000 X X X X X X X X X
2000 X X X X X X X X
3000 X X X + X X
5000 X X X + X
7500 X X
10,000 X X
Also available in metric configurations, consult engineering for details.
GN +Output
125 188 250 375 500 625 750 875 1.00
0.125" 0.188" 0.250" 0.375" 0.500" 0.625"

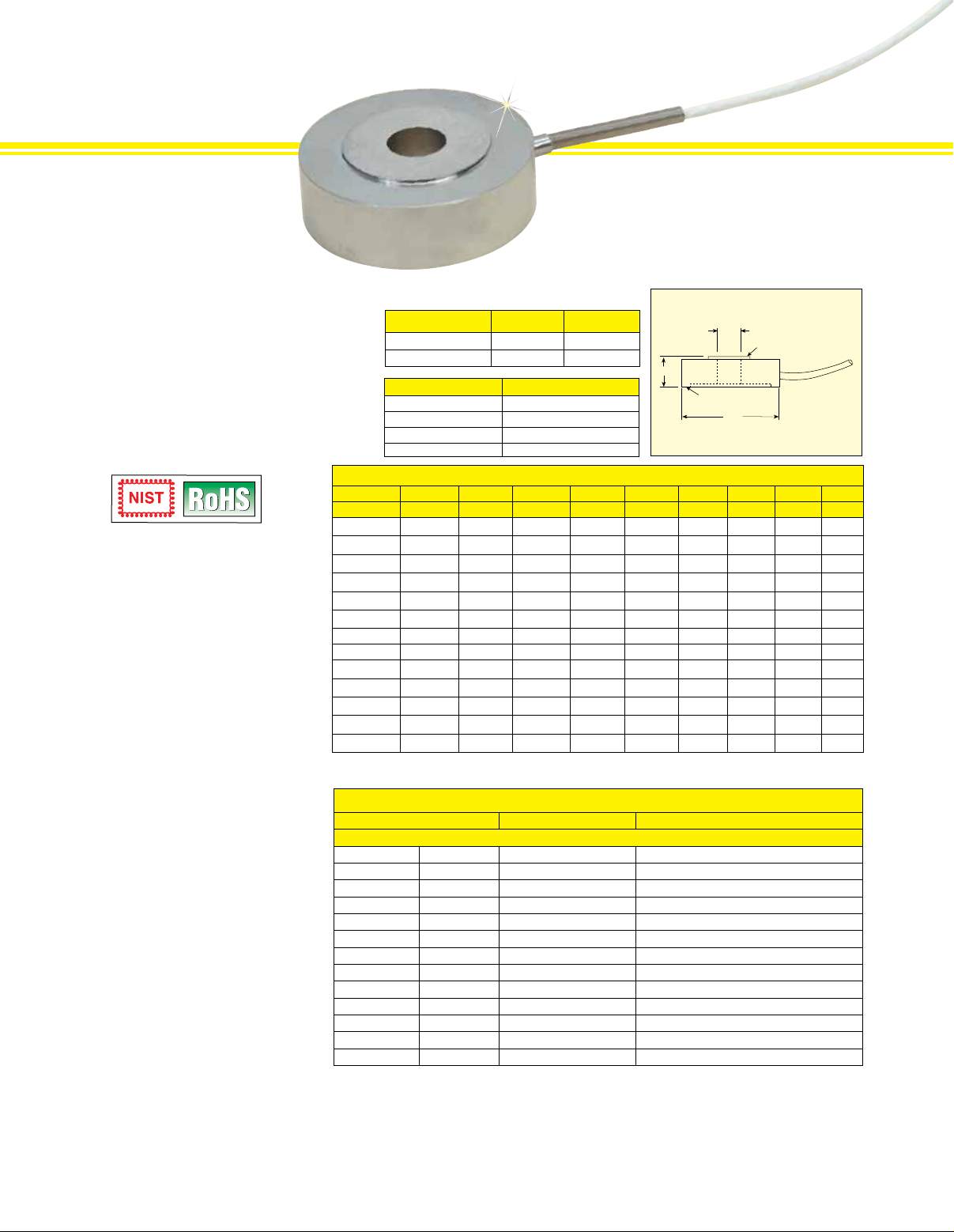

LC8200-500-250
shown actual size.
H
ID
Loading Surface
Loading Surface
OD
0.750" 0.875"
1.00"
SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V maximum)
Linearity: ±0.5% FSO
Repeatability: ±0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.036% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Full Scale Deflection: 0.003" nominal
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor
shielded cable
To Order
CAPACITY MODEL NO. COMPATIBLE METERS**
Model LC8200 with a 2.00" OD and Selectable ID
5 lb 2.3 kgf
10 lb 4.5 kgf
25 lb 11 kgf
50 lb 23 kgf
100 lb 45 kgf
250 lb 114 kgf
500 lb 227 kgf
1000 lb 455 kgf
2000 lb 909 kgf
3000 lb 1361 kgf
5000 lb 2269 kgf
7500 lb 3403 kgf
10,000 lb 4537 kgf
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Visit us online for compatible meters.
**
[*] Select ID Code from table above to complete model number.
Ordering Examples: LC8200-125-250, 250 lb capacity load cell, 0.125" ID.
LC8200-250-1K, 1000 lb capacity load cell with 0.250" ID.
LC8200-1.00-2K, 2000 lb capacity load cell with 1.00" ID.
F-89
LC8200-[*]-5
LC8200-[*]-10
LC8200-[*]-25
LC8200-[*]-50
LC8200-[*]-100
LC8200-[*]-250
LC8200-[*]-500
LC8200-[*]-1K
LC8200-[*]-2K
LC8200-[*]-3K
LC8200-[*]-5K
LC8200-[*]-7.5K
LC8200-[*]-10K
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
