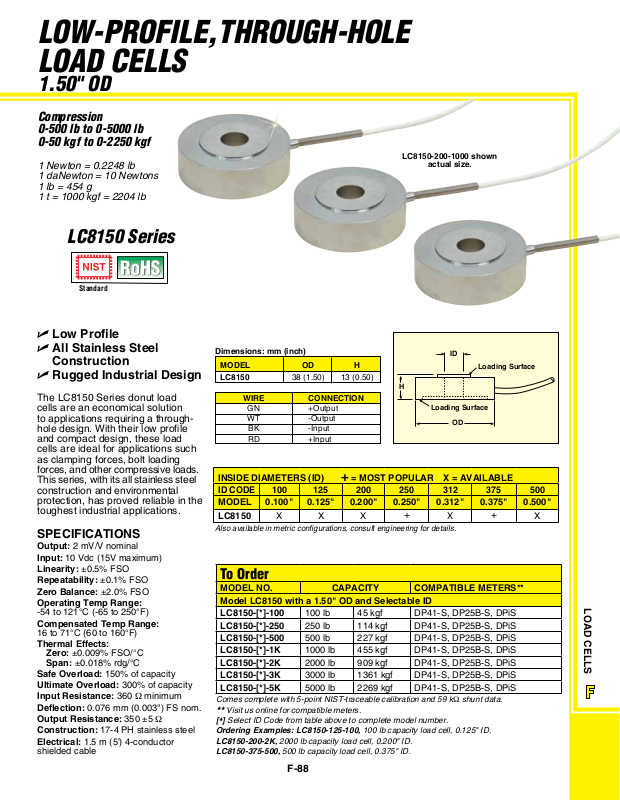

LOW-PROFILE,THROUGH-HOLE
LOAD CELLS
1.50" OD
Compression
0-500 lb to 0-5000 lb
0-50 kgf to 0-2250 kgf

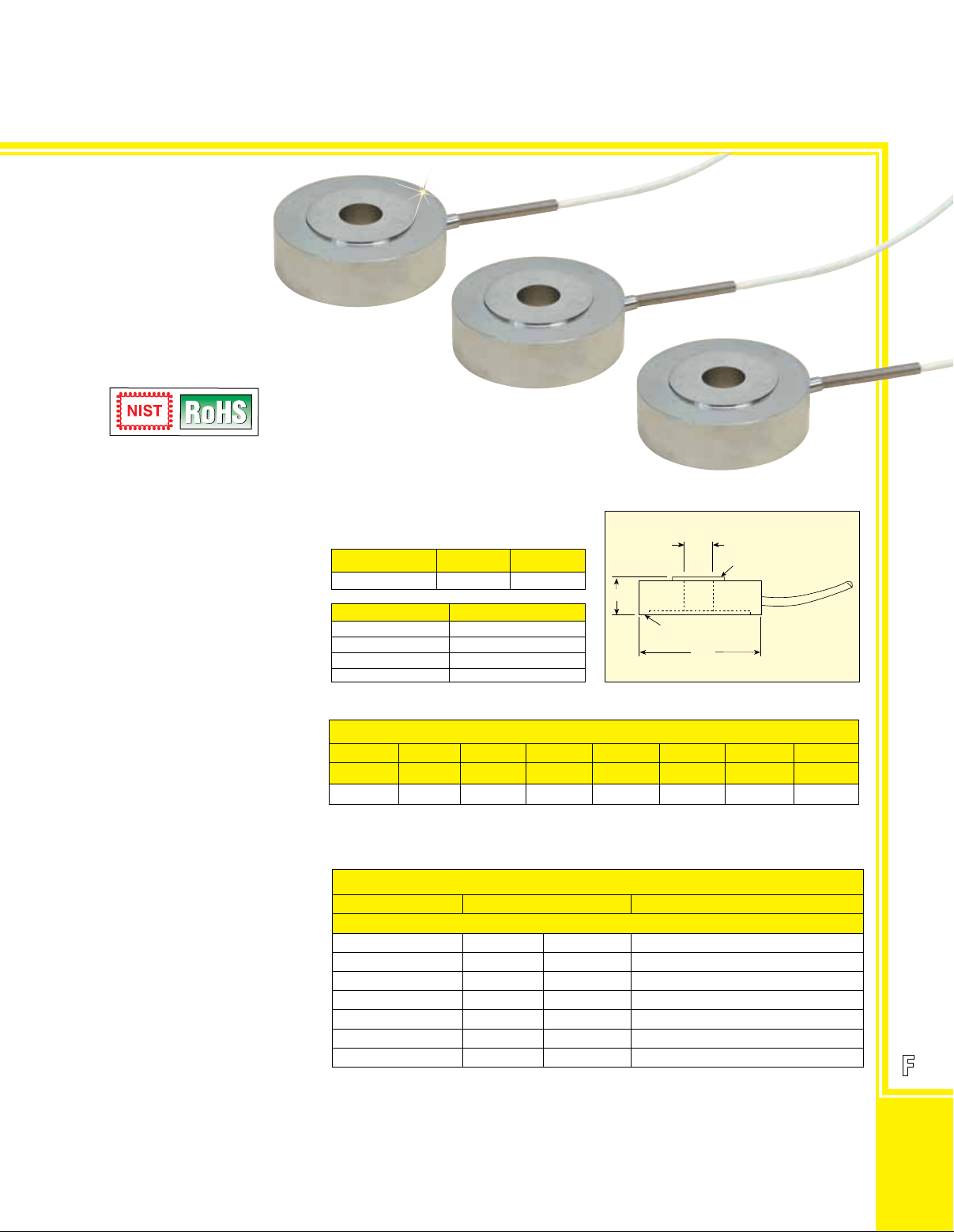

LC8150-200-1000 shown
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kgf = 2204 lb
LC8150 Series
Standard
U Low Profile
U All Stainless Steel
Construction
U Rugged Industrial Design
The LC8150 Series donut load
cells are an economical solution
to applications requiring a throughhole design. With their low profile
and compact design, these load
cells are ideal for applications such
as clamping forces, bolt loading
forces, and other compressive loads.
This series, with its all stainless steel
construction and environmental
protection, has proved reliable in the
toughest industrial applications.
SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V maximum)
Linearity: ±0.5% FSO
Repeatability: ±0.1% FSO
Zero Balance: ±2.0% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Deflection: 0.076 mm (0.003") FS nom.
Output Resistance: 350 ±5 Ω
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor
shielded cable
Dimensions: mm (inch)
MODEL OD H
LC8150 38 (1.50) 13 (0.50)
WIRE CONNECTION
GN +Output
WT -Output
BK -Input
RD +Input
INSIDE DIAMETERS (ID) + = MOST POPULAR X = AVAILABLE
ID CODE 100 125 200 250 312 375 500
MODEL 0.100" 0.125" 0.200" 0.250" 0.312" 0.375" 0.500"
LC8150
Also available in metric configurations, consult engineering for details.
X X X
H
+
To Order
MODEL NO. CAPACITY COMPATIBLE METERS**
Model LC8150 with a 1.50" OD and Selectable ID
LC8150-[*]-100
LC8150-[*]-250
LC8150-[*]-500
LC8150-[*]-1K
LC8150-[*]-2K
LC8150-[*]-3K
LC8150-[*]-5K
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Visit us online for compatible meters.
**
[*] Select ID Code from table above to complete model number.
Ordering Examples: LC8150-125-100, 100 lb capacity load cell, 0.125" ID.
LC8150-200-2K, 2000 lb capacity load cell, 0.200" ID.
LC8150-375-500, 500 lb capacity load cell, 0.375" ID.
100 lb 45 kgf DP41-S, DP25B-S, DPiS
250 lb 114 kgf DP41-S, DP25B-S, DPiS
500 lb 227 kgf DP41-S, DP25B-S, DPiS
1000 lb 455 kgf DP41-S, DP25B-S, DPiS
2000 lb 909 kgf DP41-S, DP25B-S, DPiS
3000 lb 1361 kgf DP41-S, DP25B-S, DPiS
5000 lb 2269 kgf DP41-S, DP25B-S, DPiS
actual size.
ID
Loading Surface
OD
X
Loading Surface
+
X
LOAD CELLS
