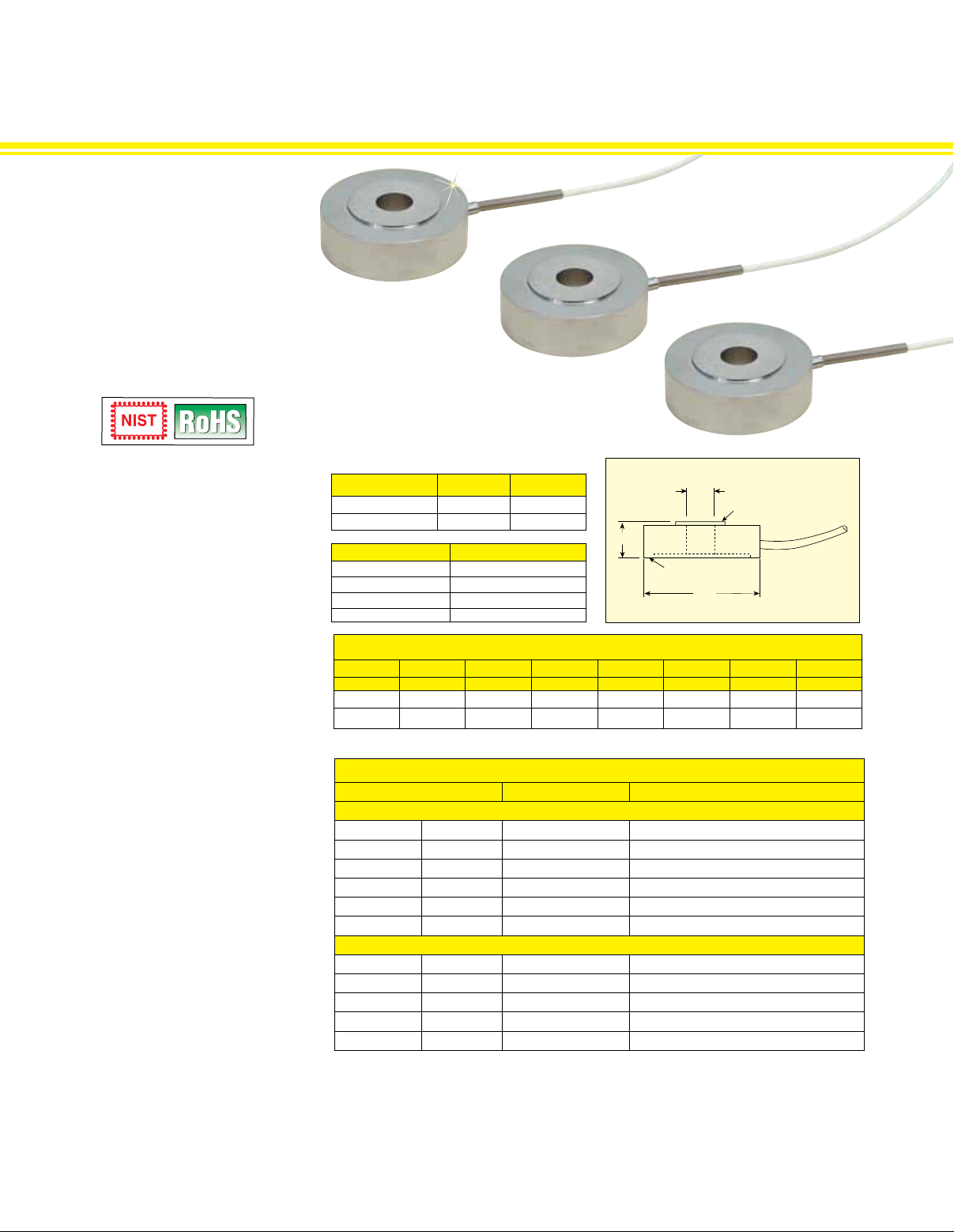

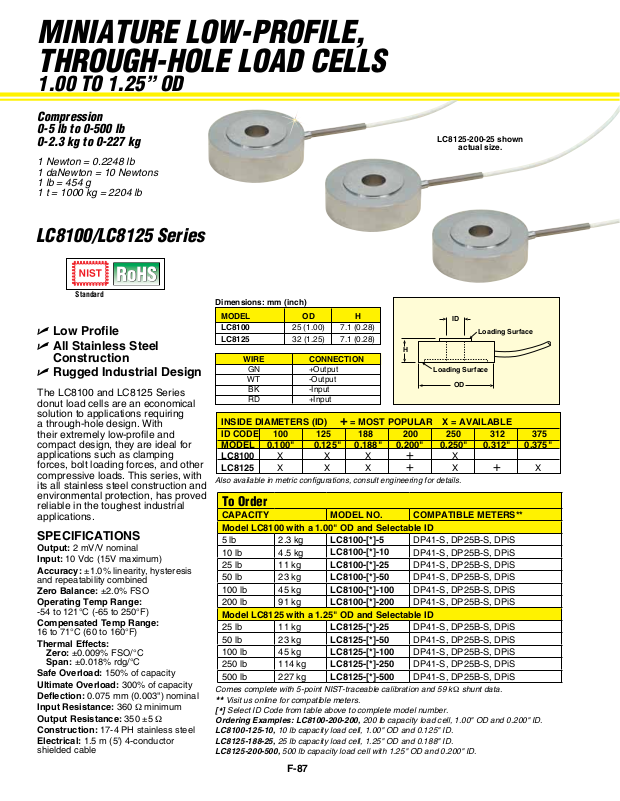

MINIATURE LOW-PROFILE,
THROUGH-HOLE LOAD CELLS
1.00 TO 1.25” OD
Compression
0-5 lb to 0-500 lb
0-2.3 kg to 0-227 kg
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kg = 2204 lb
LC8100/LC8125 Series
LC8125-200-25 shown
actual size.
Standard
U Low Profile
U All Stainless Steel
Construction
U Rugged Industrial Design
The LC8100 and LC8125 Series
donut load cells are an economical
solution to applications requiring
a through-hole design. With
their extremely low-profile and
compact design, they are ideal for
applications such as clamping
forces, bolt loading forces, and other
compressive loads. This series, with
its all stainless steel construction and
environmental protection, has proved
reliable in the toughest industrial
applications.
SPECIFICATIONS
Output: 2 mV/V nominal
Input: 10 Vdc (15V maximum)
Accuracy: ±1.0% linearity, hysteresis
and repeatability combined
Zero Balance: ±2.0% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.018% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Deflection: 0.075 mm (0.003") nominal
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±5 Ω
Construction: 17-4 PH stainless steel
Electrical: 1.5 m (5') 4-conductor
shielded cable
Dimensions: mm (inch)
MODEL OD H
LC8100 25 (1.00) 7.1 (0.28)
LC8125 32 (1.25) 7.1 (0.28)
WIRE CONNECTION
GN +Output
WT -Output
BK -Input
RD +Input
INSIDE DIAMETERS (ID) + = MOST POPULAR X = AVAILABLE
ID CODE 100 125 188 200 250 312 375
MODEL 0.100" 0.125" 0.188" 0.200" 0.250" 0.312" 0.375"
LC8100 X X X
LC8125 X X X
Also available in metric configurations, consult engineering for details.
H
+ X
+ X + X
ID
Loading Surface
Loading Surface
OD
To Order
CAPACITY MODEL NO. COMPATIBLE METERS**
Model LC8100 with a 1.00" OD and Selectable ID
5 lb 2.3 kg
10 lb 4.5 kg
25 lb 11 kg
50 lb 23 kg
100 lb 45 kg
200 lb 91 kg
Model LC8125 with a 1.25" OD and Selectable ID
25 lb 11 kg
50 lb 23 kg
100 lb 45 kg
250 lb 114 kg
500 lb 227 kg
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Visit us online for compatible meters.
**
[*] Select ID Code from table above to complete model number.
Ordering Examples: LC8100-200-200, 200 lb capacity load cell, 1.00" OD and 0.200" ID.
LC8100-125-10, 10 lb capacity load cell, 1.00" OD and 0.125" ID.
LC8125-188-25, 25 lb capacity load cell, 1.25" OD and 0.188" ID.
LC8125-200-500, 500 lb capacity load cell with 1.25" OD and 0.200" ID.
LC8100-[*]-5
LC8100-[*]-10
LC8100-[*]-25
LC8100-[*]-50
LC8100-[*]-100
LC8100-[*]-200
LC8125-[*]-25
LC8125-[*]-50
LC8125-[*]-100
LC8125-[*]-250
LC8125-[*]-500
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
DP41-S, DP25B-S, DPiS
