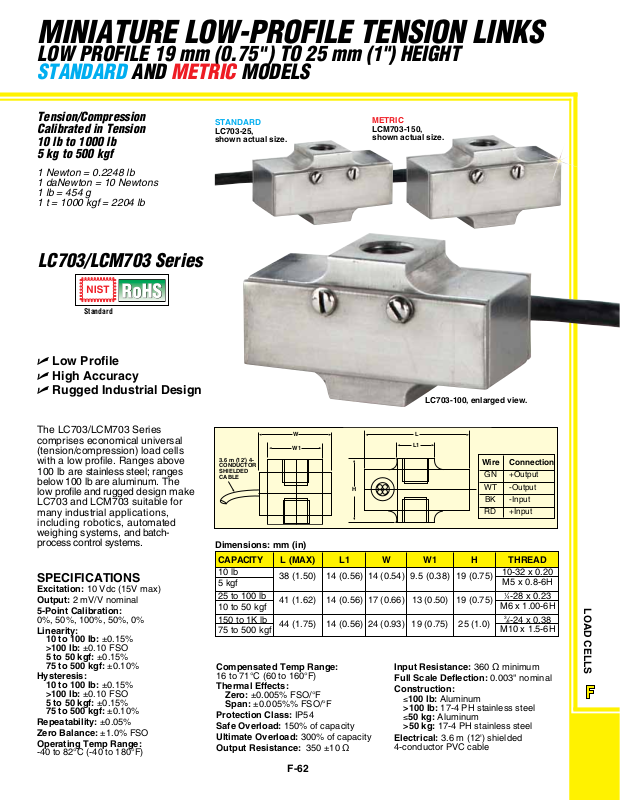

MINIATURE LOW-PROFILE TENSION LINKS
L
L1
H
LOW PROFILE 19 mm (0.75") TO 25 mm (1") HEIGHT
STANDARD AND METRIC MODELS
Tension/Compression
Calibrated in Tension
10 lb to 1000 lb
5 kg to 500 kgf
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kgf = 2204 lb
LC703/LCM703 Series
Standard
U Low Profile
U High Accuracy
U Rugged Industrial Design
STANDARD
LC703-25,
shown actual size.
METRIC
LCM703-150,
shown actual size.

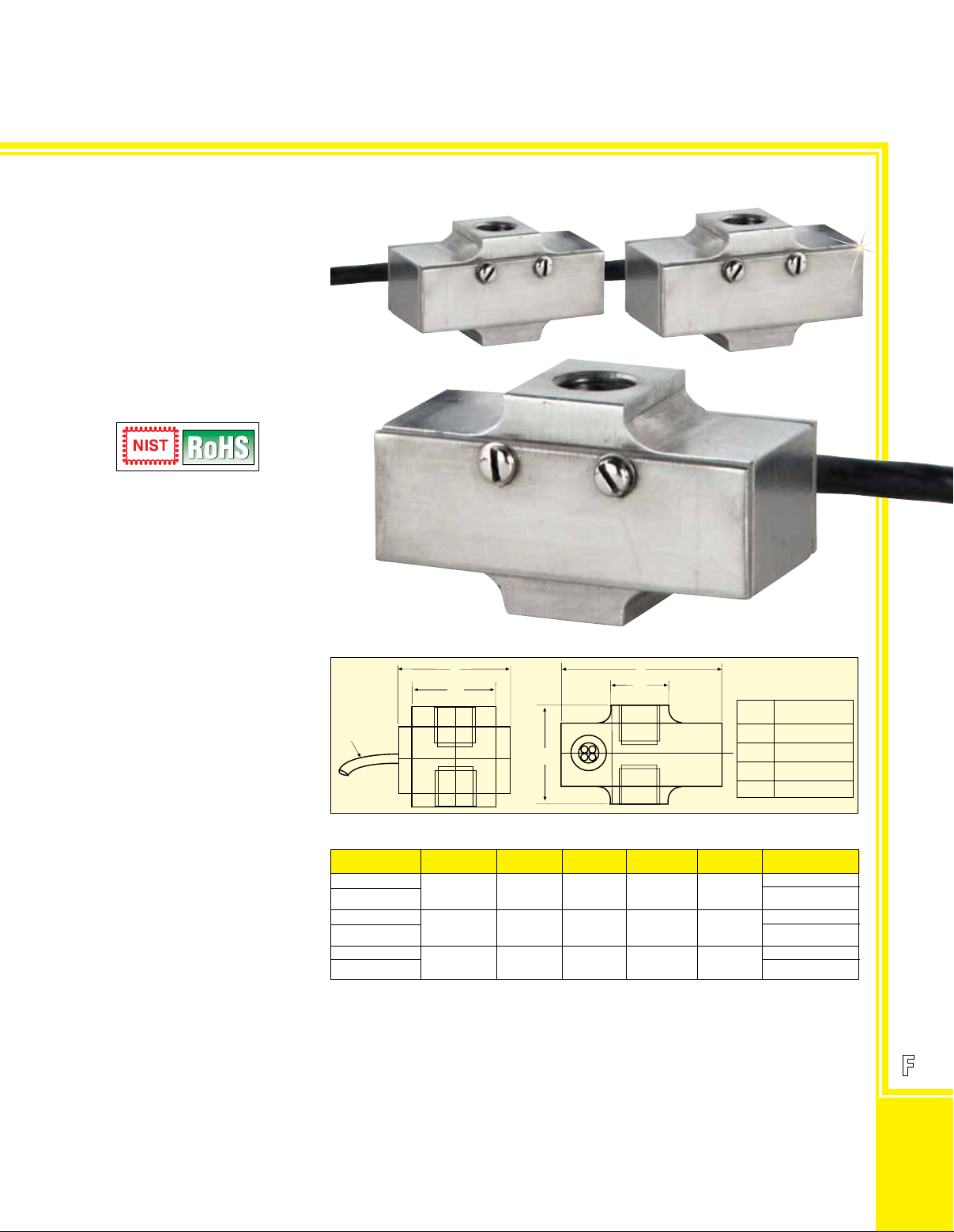

LC703-100, enlarged view.
The LC703/LCM703 Series
comprises economical universal
(tension/compression) load cells
with a low profile. Ranges above
100 lb are stainless steel; ranges
below 100 lb are aluminum. The
low profile and rugged design make
LC703 and LCM703 suitable for
many industrial applications,
including robotics, automated
weighing systems, and batchprocess control systems.
SPECIFICATIONS
Excitation: 10 Vdc (15V max)
Output: 2 mV/V nominal
5-Point Calibration:
0%, 50%, 100%, 50%, 0%
Linearity:
10 to 100 lb: ±0.15%
>100 lb: ±0.10 FSO
5 to 50 kgf: ±0.15%
75 to 500 kgf: ±0.10%
Hysteresis:
10 to 100 lb: ±0.15%
>100 lb: ±0.10 FSO
5 to 50 kgf: ±0.15%
75 to 500 kgf: ±0.10%
Repeatability: ±0.05%
Zero Balance: ±1.0% FSO
Operating Temp Range:
-40 to 82°C (-40 to 180°F)
W
W1
3.6 m (12') 4CONDUCTOR
SHIELDED
CABLE
H
Dimensions: mm (in)
CAPACITY L (MAX) L1 W W1 H THREAD
10 lb
M5 x 0.8-6H
5 kgf
25 to 100 lb
10 to 50 kgf
150 to 1K lb
75 to 500 kgf
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005%% FSO/°F
Protection Class: IP54
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Output Resistance: 350 ±10 Ω
38 (1.50) 14 (0.56) 14 (0.54) 9.5 (0.38) 19 (0.75)
41 (1.62) 14 (0.56) 17 (0.66) 13 (0.50) 19 (0.75)
M6 x 1.00-6H
44 (1.75) 14 (0.56) 24 (0.93) 19 (0.75) 25 (1.0)
M10 x 1.5-6H
L
L1
Wire Connection
GN +Output
WT -Output
BK -Input
RD +Input
10-32 x 0.20
1
⁄4-28 x 0.23
3
⁄8-24 x 0.38
Input Resistance: 360 Ω minimum
Full Scale Deflection: 0.003" nominal
Construction:
≤100 lb: Aluminum
>100 lb: 17-4 PH stainless steel
≤50 kg: Aluminum
>50 kg: 17-4 PH stainless steel
Electrical: 3.6 m (12') shielded
4-conductor PVC cable
F-62
LOAD CELLS
Page 2
MINIATURE LOW-PROFILE TENSION LINKS
To Order
CAPACITY
kgf lb MODEL NO. COMPATIBLE METERS ROD END
STANDARD MODELS
4.5 10 LC703-10 DPiS, DP41-S, DP25B-S REC-010M
11 25 LC703-25 DPiS, DP41-S, DP25B-S REC-014M
23 50 LC703-50 DPiS, DP41-S, DP25B-S REC-014M
34 75 LC703-75 DPiS, DP41-S, DP25B-S REC-014M
45 100 LC703-100 DPiS, DP41-S, DP25B-S REC-014M
68 150 LC703-150 DPiS, DP41-S, DP25B-S REC-038M
91 200 LC703-200 DPiS, DP41-S, DP25B-S REC-038M
136 300 LC703-300 DPiS, DP41-S, DP25B-S REC-038M
227 500 LC703-500 DPiS, DP41-S, DP25B-S REC-038M
341 750 LC703-750 DPiS, DP41-S, DP25B-S REC-038M
455 1000 LC703-1K DPiS, DP41-S, DP25B-S REC-038M
METRIC MODELS
5 11 LCM703-5 DPiS, DP41-S, DP25B-S MREC-M5M
10 22 LCM703-10 DPiS, DP41-S, DP25B-S MREC-M6M
25 55 LCM703-25 DPiS, DP41-S, DP25B-S MREC-M6M
50 110 LCM703-50 DPiS, DP41-S, DP25B-S MREC-M6M
75 165 LCM703-75 DPiS, DP41-S, DP25B-S MREC-M10M
100 220 LCM703-100 DPiS, DP41-S, DP25B-S MREC-M10M
150 331 LCM703-150 DPiS, DP41-S, DP25B-S MREC-M10M
250 551 LCM703-250 DPiS, DP41-S, DP25B-S MREC-M10M
500 1102 LCM703-500 DPiS, DP41-S, DP25B-S MREC-M10M
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
DPiS meter suitable for one direction measurement only.
Ordering Examples: LC703-200, 200 lb capacity universal link with 3.6 m (12') cable.
LCM703-100, 100 kgf capacity universal link with 3.6 m (12') cable, MREC-M10M, accessory rod ends.

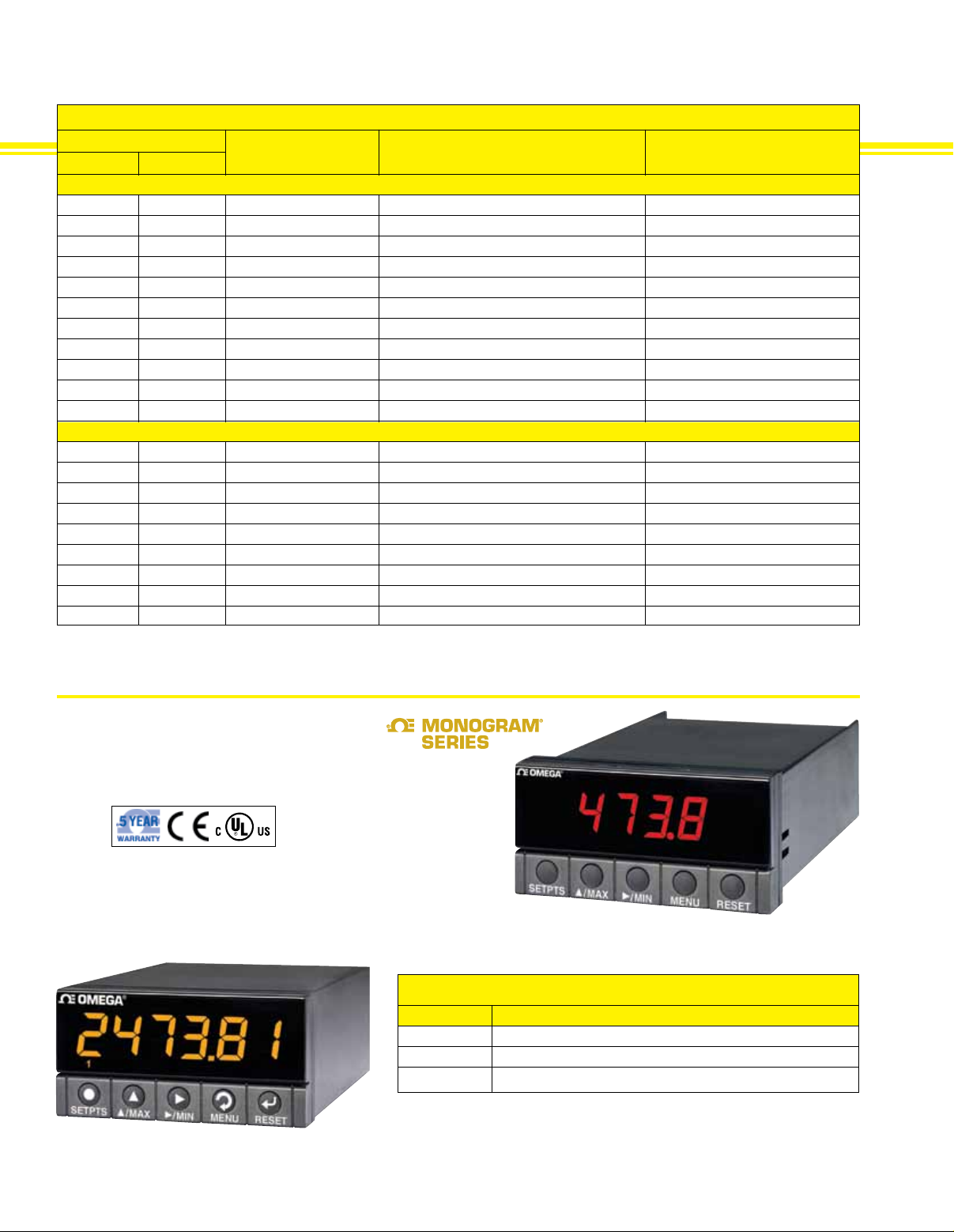

COMPATIBLE METERS
DP25B/DP41-B
U mV, V, mA, Strain Gage
Thermocouple, RTD Inputs
U Full Process Unit Scaling
U Built-In Transducer Power
DP41-B, shown smaller than actual size.
PATENTED
DP25B-E, shown smaller than
actual size.
To Order
MODEL NO. DESCRIPTION
DP25B-E 4-digit voltage/current input meter with excitation
DP25B-S 4-digit mV input meter with excitation
DP41-B 6-digit
Comes complete with operator’s manual.
Ordering Examples: DP25B-E, voltage/current input meter for use with 0 to 5 V,
0 to 10 V, 4 to 20 mA output transducers.
DP25B-S, mV input meter for use with mV/V output transducers, DP41-B,
universal input meter for use with all standard transducer outputs.
F-63
1
⁄8 DIN universal input meter with excitation
