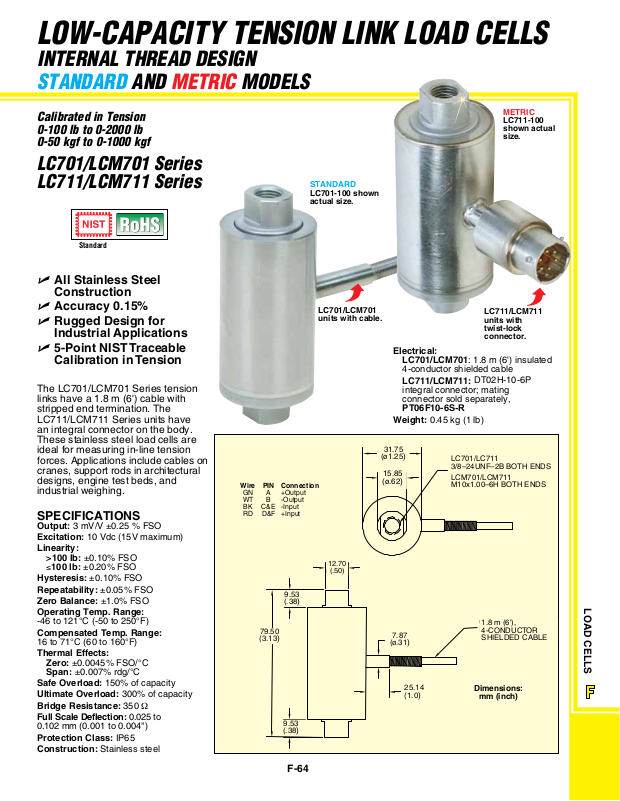

LOW-CAPACITY TENSION LINK LOAD CELLS
INTERNAL THREAD DESIGN
STANDARD AND METRIC MODELS
Calibrated in Tension
0-100 lb to 0-2000 lb
0-50 kgf to 0-1000 kgf
LC701/LCM701 Series
LC711/LCM711 Series
Standard
U All Stainless Steel
Construction
U Accuracy 0.15%
U Rugged Design for
Industrial Applications
U 5-Point NIST Traceable
Calibration in Tension
The LC701/LCM701 Series tension
links have a 1.8 m (6') cable with
stripped end termination. The
LC711/LCM711 Series units have
an integral connector on the body.
These stainless steel load cells are
ideal for measuring in-line tension
forces. Applications include cables on
cranes, support rods in architectural
designs, engine test beds, and
industrial weighing.
SPECIFICATIONS
Output: 3 mV/V ±0.25 % FSO
Excitation: 10 Vdc (15V maximum)
Linearity:
>100 lb: ±0.10% FSO
≤100 lb: ±0.20% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1.0% FSO
Operating Temp. Range:
-46 to 121°C (-50 to 250°F)
Compensated Temp. Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.0045% FSO/°C
Span: ±0.007% rdg/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω
Full Scale Deflection: 0.025 to
0.102 mm (0.001 to 0.004")
Protection Class: IP65
Construction: Stainless steel
STANDARD

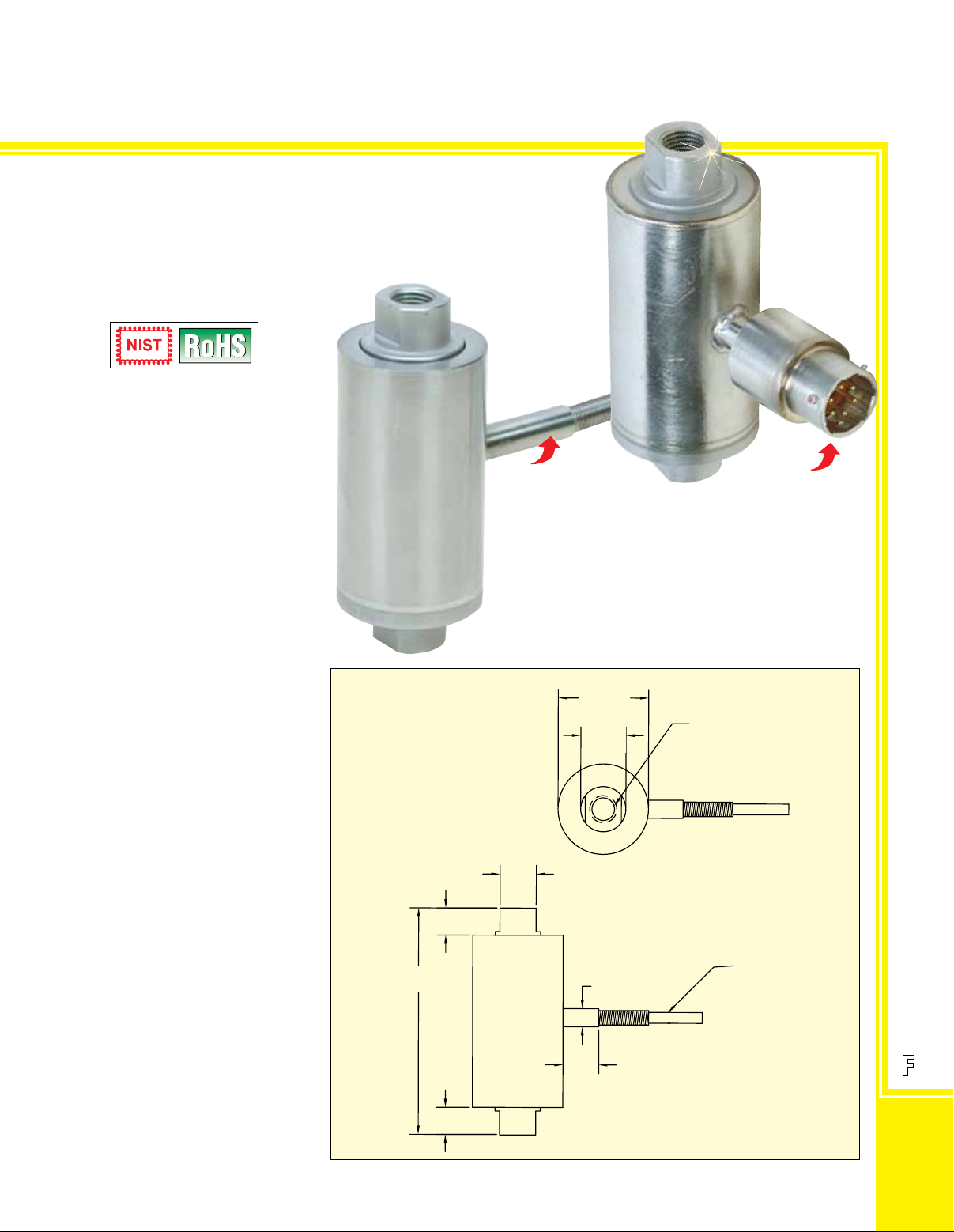

LC701-100 shown
actual size.
Wire PIN Connection
GN A +Output
WT B -Output
BK C&E -Input
RD D&F +Input
9.53
9.53
(.38
(.38
)
)
79.50
(3.13
)
9.53
(.38
)
LC701/LCM701
units with cable.
15.85
12.70
(ø.62
)
(.50)
METRIC
LC711-100
shown actual
size.
LC711/LCM711
units with
twist-lock
connector.
Electrical:
LC701/LCM701: 1.8 m (6') insulated
4-conductor shielded cable
LC711/LCM711:
integral connector; mating
connector sold separately,
PT06F10-6S-R
Weight: 0.45 kg (1 lb)
31.75
(ø1.25
)
15.85
(ø.62
)
7.87
(ø.31
)
25.14
(1.0
)
DT02H-10-6P
LC701/LC711
3/8–24UNF–2B BOTH ENDS
LCM701/LCM711
M10x1.00–6H BOTH ENDS
1.8 m (6'),
4-CONDUCTOR
SHIELDED CABLE
Dimensions:
mm (inch)
LOAD CELLS
F-64
Page 2
LOW-CAPACITY TENSION LINK LOAD CELLS
To Order
CABLE STYLE CONNECTOR STYLE
CAPACITY MODEL NO. MODEL NO. COMPATIBLE METERS
STANDARD MODELS
100 lb 45 kgf LC701-100 LC711-100 DPiS, DP41-S, DP25B-S
250 lb 114 kgf LC701-250 LC711-250 DPiS, DP41-S, DP25B-S
750 lb 341 kgf LC701-750 LC711-750 DPiS, DP41-S, DP25B-S
1000 lb 455 kgf LC701-1K LC711-1K DPiS, DP41-S, DP25B-S
2000 lb 909 kgf LC701-2K LC711-2K DPiS, DP41-S, DP25B-S
METRIC MODELS
50 kgf 110 lb LCM701-50 LCM711-50 DPiS, DP41-S, DP25B-S
500 kgf 1100 lb LCM701-500 LCM711-500 DPiS, DP41-S, DP25B-S
1000 kgf 2200 lb LCM701-1K LCM711-1K DPiS, DP41-S, DP25B-S
ACCESSORIES
MODEL NO. DESCRIPTION
REC-038M
PT06F10-6S
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Ordering Examples: LC701-1K, 1000 lb capacity tension link with 1.8 m (6') cable.
LC711-250, 250 lb capacity tension link with integral connector on the body.
LCM701-1K, 1000 kgf capacity tension link with 1.8 m (6') cable.
LCM711-50, 50 kgf capacity tension link with integral connector on the body.
PT06F10-6S-R, mating connector (sold separately).
-R
3
-24 male rod end
⁄
8
Mating connector for LC711/LCM711 series load cells
F-65
