Omega LC602, LCM602 Specification

Page 1
LC602
WIRING CODE RED
BLACK GREEN
WHITE
+ INPUT – INPUT +OUTPUT –OUTPUT
W
D DIA. 3 HOLES
(0-50 THRU 0-10,000 LBS)
(0-200 thru 0-44,000N)
4.6 m (15') 4-COND. SHIELDED PVC CABLE
E
C
L
BA

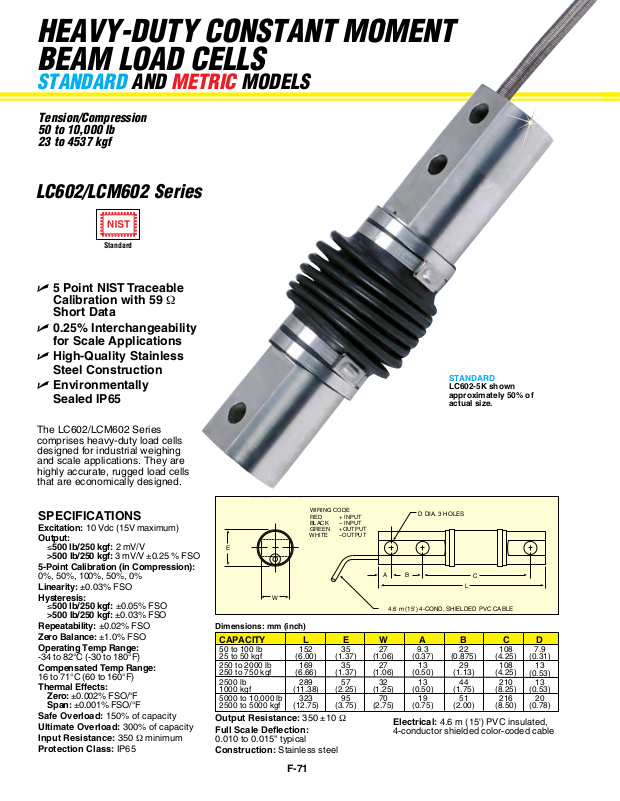

HEAVY-DUTY CONSTANT MOMENT
LC602
WIRING CODE RED
BLACK GREEN WHITE
+ INPUT – INPUT +OUTPUT –OUTPUT
D DIA. 3 HOLES
(0-50 THRU 0-10,000 LBS)
(0-200 thru 0-44,000N)
BEAM LOAD CELLS
STANDARD AND METRIC MODELS
Tension/Compression 50 to 10,000 lb 23 to 4537 kgf
LC602/LCM602 Series
Standard
U 5 Point NIST Traceable
Calibration with 59 Ω Short Data
U 0.25% Interchangeability
for Scale Applications
U High-Quality Stainless
Steel Construction
U Environmentally
Sealed IP65
STANDARD

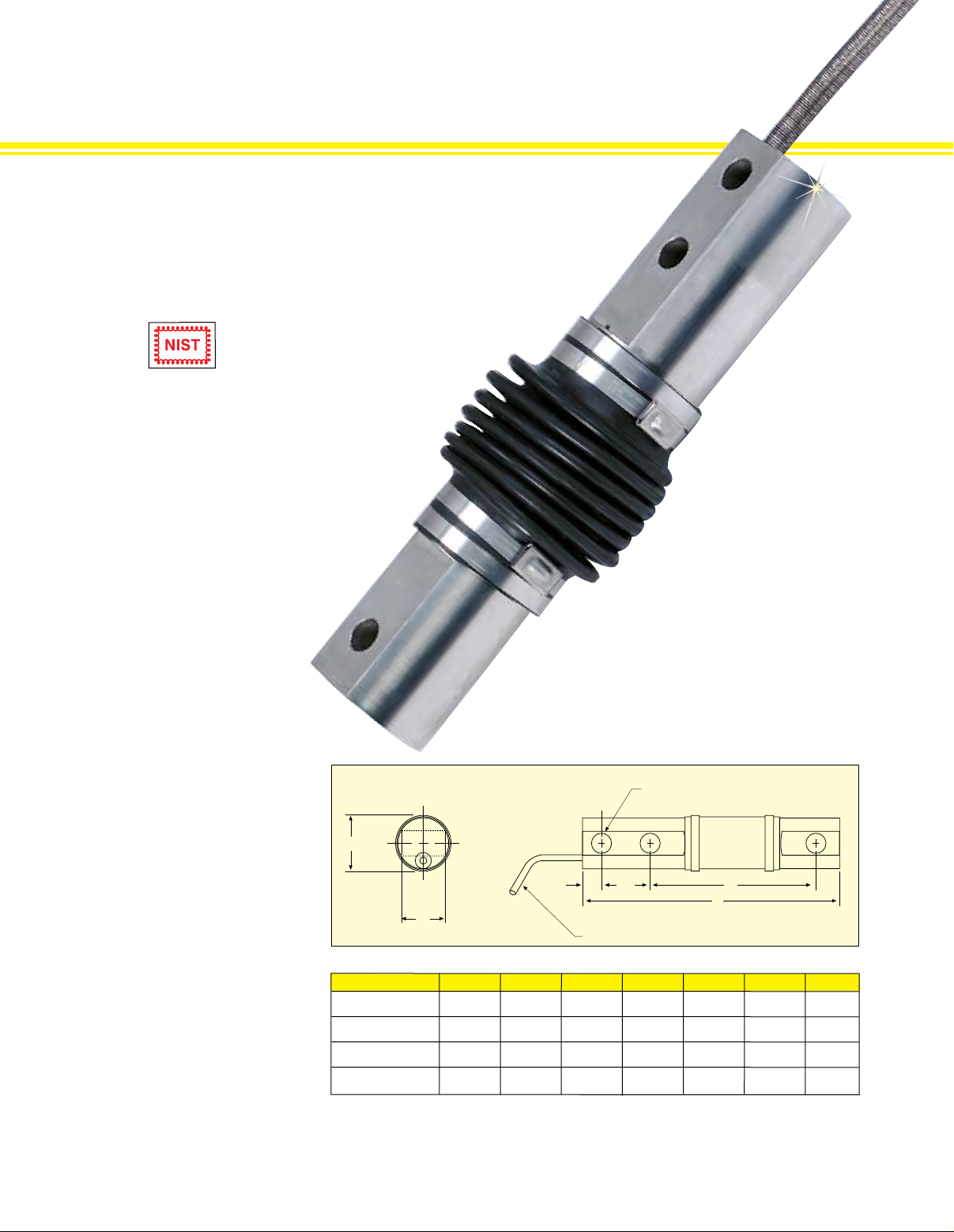

LC602-5K shown approximately 50% of actual size.
The LC602/LCM602 Series comprises heavy-duty load cells designed for industrial weighing and scale applications. They are highly accurate, rugged load cells that are economically designed.
SPECIFICATIONS
Excitation: 10 Vdc (15V maximum) Output:
≤500 lb/250 kgf: 2 mV/V >500 lb/250 kgf: 3 mV/V ±0.25 % FSO
5-Point Calibration (in Compression):
0%, 50%, 100%, 50%, 0%
Linearity: ±0.03% FSO Hysteresis:
≤500 lb/250 kgf: ±0.05% FSO >500 lb/250 kgf: ±0.03% FSO
Repeatability: ±0.02% FSO Zero Balance: ±1.0% FSO Operating Temp Range:
-34 to 82°C (-30 to 180°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects: Zero: ±0.002% FSO/°F Span: ±0.001% FSO/°F
Safe Overload: 150% of capacity Ultimate Overload: 300% of capacity Input Resistance: 350 Ω minimum Protection Class: IP65
Dimensions: mm (inch)
CAPACITY L E W A B C D
50 to 100 lb 152 35 27 9.3 22 108 7.9 25 to 50 kgf (6.00) (1.37) (1.06) (0.37) (0.875) (4.25) (0.31)
250 to 2000 lb 169 35 27 13 29 108 13 250 to 750 kgf (6.66) (1.37) (1.06) (0.50) (1.13) (4.25) (0.53)
2500 lb 289 57 32 13 44 210 13 1000 kgf (11.38) (2.25) (1.25) (0.50) (1.75) (8.25) (0.53)
5000 to 10,000 lb 323 95 70 19 51 216 20 2500 to 5000 kgf (12.75) (3.75) (2.75) (0.75) (2.00) (8.50) (0.78)
Output Resistance: 350 ±10 Ω Full Scale Deflection:
0.010 to 0.015" typical
Electrical: 4.6 m (15') PVC insulated, 4-conductor shielded color-coded cable
Construction: Stainless steel
F-71
Page 2
F
I
R
150 (5.9)
MIN
25
(0.98)
M5-P 0.8 Thread 2 Places
4.2 (0.165) Diameter, 2 Places
12.7
(0.50)
25
(0.98)
12.7
(0.50)
Square
15
(0.59)
15 (0.59)
5
(0.20)
5 (0.20)
80
(3.15)
Wiring Color Code Input: Red (+), White (–) Output: Green (+), Blue (–)
Dimensions: mm (in)
HIGH PERFORMANCE METER
To Order
CAPACITY lb kgf
50 23 100 45 250 114 500 227
1000 455

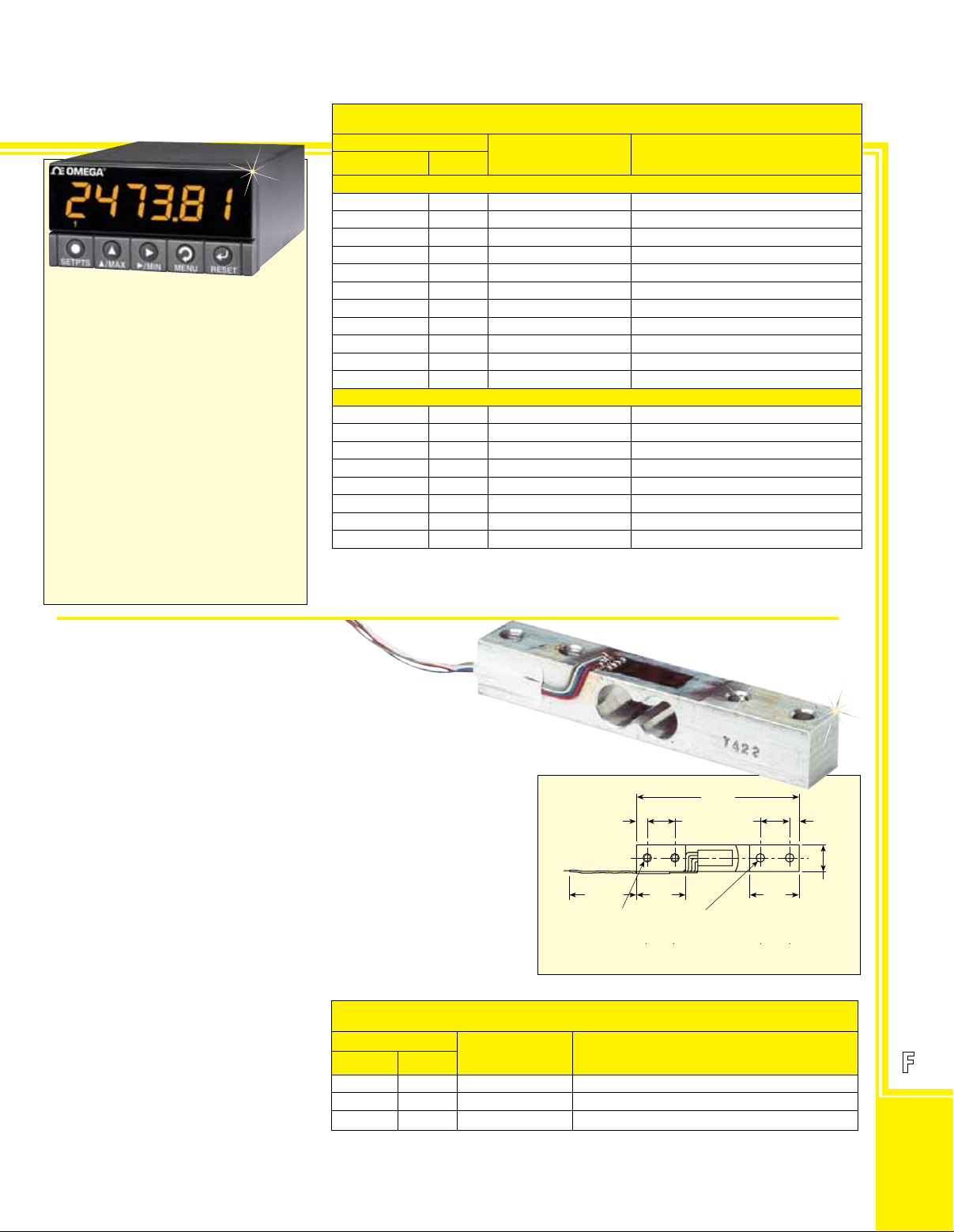

DP41-B shown smaller than actual size.
DP41-B
U Universal Inputs U ±0.005% Rdg Accuracy U 6-Digit Color-Changing
LED Display U Up to 166 Readings
per Second U Optional Ethernet
or RS232/RS485
1500 682 2000 909 2500 1134 5000 2269 7500 3403
10,000 4537
55 25 110 50 551 250
1102 500 1653 750 2205 1000 5512 2500
11,023 5000
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Visit us online for compatible meters.
*
Ordering Examples: LC602-250, 250 lb capacity load cell. LCM602-250, 250 kgf capacity load cell.
MODEL NO.
STANDARD MODELS
LC602-50 LC602-100 LC602-250 LC602-500 LC602-1K LC602-1.5K LC602-2K LC602-2.5K LC602-5K LC602-7.5 LC602-10K
METRIC MODELS
LCM602-25 LCM602-50 LCM602-250 LCM602-500 LCM602-750 LCM602-1K LCM602-2.5K LCM602-5K
COMPATIBLE METERS
*
DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S
DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S
ECONOMICAL BENDING BEAM LOAD CELLS
Bi-directional 0-1 kgf to 0-5 kgf 0-2.2 lb to 0-11 lb
LCEA Series
U Economical Design—
Ideal for OEM Use
U All-Aluminum
Construction
U 1, 2, and 5 kg Ranges
SPECIFICATIONS
Output: 0.5 mV/V ±10%
(end user must calibrate to eliminate 10%)
Excitation: 5 Vdc (8 Vdc maximum) Non-Linearity: 0.5% full scale
LCEA-2KG shown actual size.
Hysteresis: 0.3% FS Zero Balance: ±1 mV/V Bridge Resistance: 350 Ω Construction: Aluminum with
acrylic resin protective coating
(0.20)
5
15 (0.59)
80
(3.15)
(0.59)
15
5 (0.20)
Operating Temperature:
-10 to 80°C (14 to 176°F)
Compensated Temperature:
0 to 65°C (32 to 140°F)
Temp Effect: Zero: ±0.1% full scale /°C Span: ±0.1% rdg/°C
Safe Overload: 200% full scale
150 (5.9)
MIN
M5-P 0.8 Thread 2 Places
25
(0.98)
4.2 (0.165) Diameter, 2 Places
(0.98)
Dimensions: mm (inch)
12.7
25
(0.50)
Square
12.7
(0.50)
LOAD CELLS
Lead Wire: 6", 30 AWG,
pigtail leads
To Order
CAPACITY
kgf lb MODEL NO. COMPATIBLE METERS*
1 2.2 2 4.4
5 11
* Visit us online for compatible meters. Ordering Example: LCEA-2KG, 2 kgf load cell.
LCEA-1KG LCEA-2KG
LCEA-5KG
DP25B-S, DP41-S, DP87 DP25B-S, DP41-S, DP87
DP25B-S, DP41-S, DP87
F-72
