Page 1

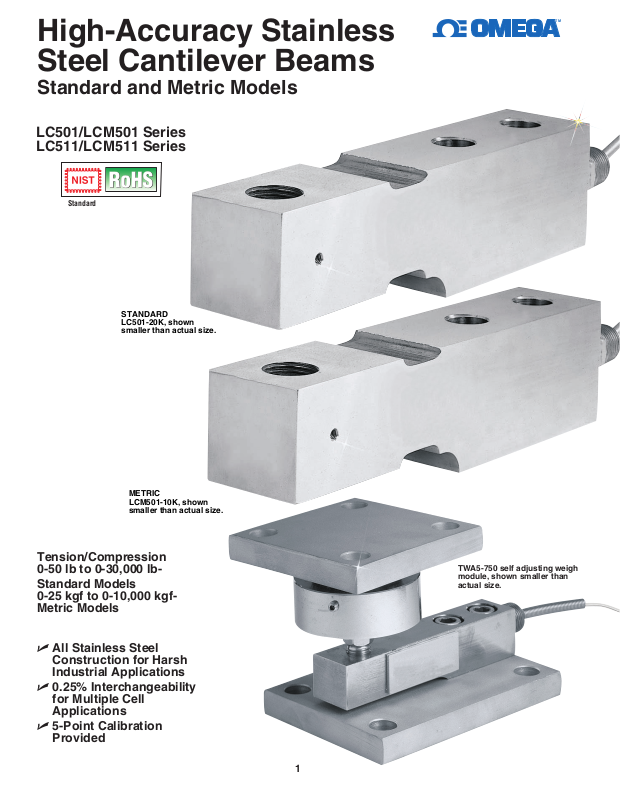

High-Accuracy Stainless

Steel Cantilever Beams

Standard and Metric Models

LC501/LCM501 Series LC511/LCM511 Series

Standard

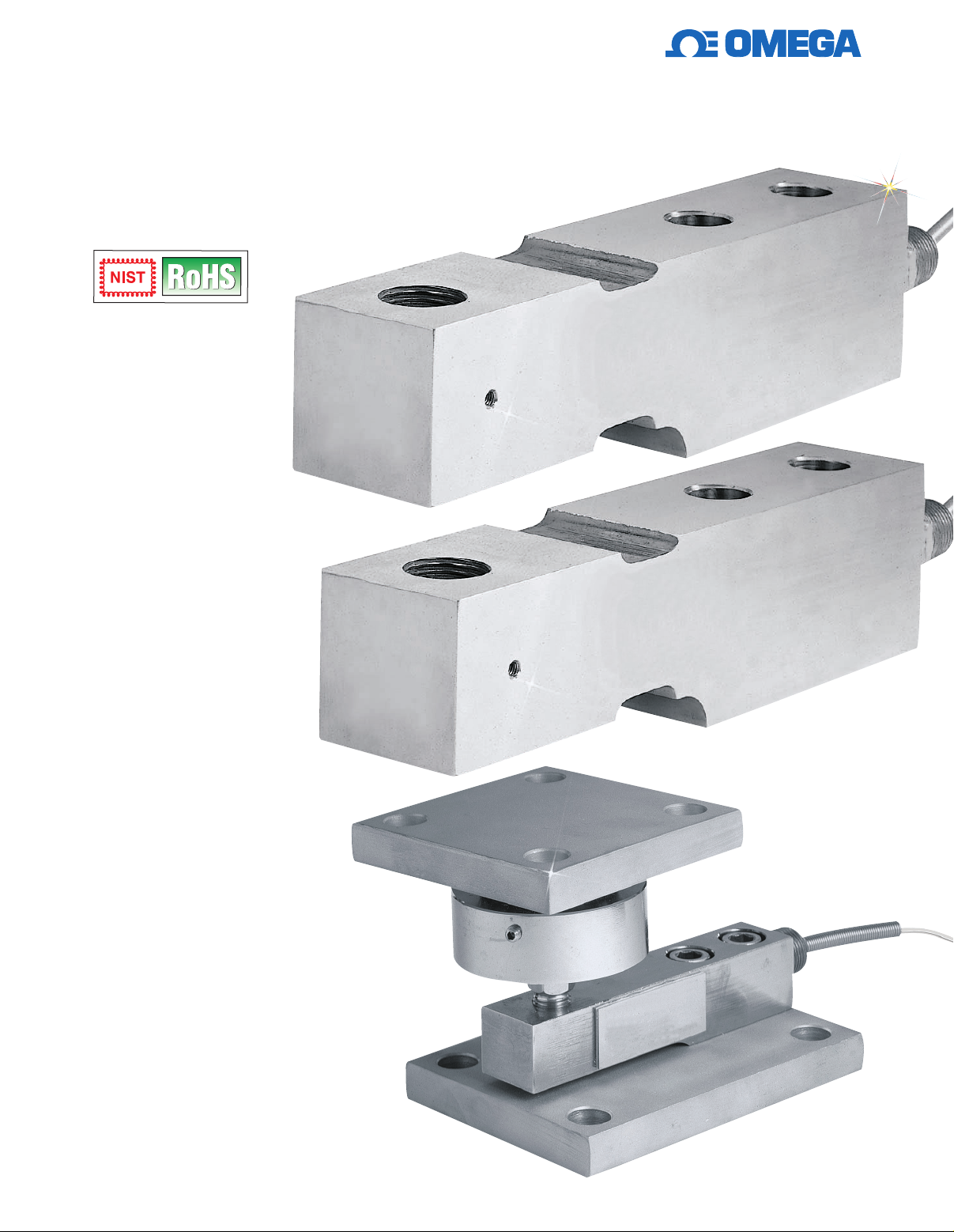

STANDARD LC501-20K, shown smaller than actual size.

METRIC LCM501-10K, shown smaller than actual size.

Tension/Compression 0-50 lb to 0-30,000 lb-

Standard Models 0-25 kgf to 0-10,000 kgfMetric Models

All Stainless Steel

Construction for Harsh Industrial Applications

0.25% Interchangeability

for Multiple Cell Applications

5-Point Calibration

Provided

TWA5-750 self adjusting weigh module, shown smaller than actual size.

Page 2

SPECIFICATIONS

4.6 m (15') 4-CONDUCTOR PVC CABLE

LC501/LC511: 10-32

TAPPED HOLE FOR

LOCKING SCREW

4.6 m (15') 4-CONDUCTOR PVC CABLE

LCM501/LCM511: M5 x 0.8

Excitation: 10 Vdc, 15 Vdc maximum Output: 3 mV/V ±0.25% 5-Point Calibrated (in Compression):

0%, 50%, 100%, 50%, 0%

Linearity: ±0.03% FSO Hysteresis: ±0.05% FSO Repeatability: ±0.02% FSO Zero Balance: ±1% FSO Operating Temp Range:

-34 to 82°C (-30 to 180°F) Compensated Temp Range:

16 to 71°C (60 to 160°F)

Thermal Effects:

Zero: ±0.001% FSO/ºF (0.0018%/°C)

Span: ±0.001% FSO/ºF (0.0018%/°C) Safe Overload: 150% of capacity Ultimate Overload: 300% of capacity Input Resistance: 360 Ω minimum Output Resistance: 350 ±10 Ω FS Deﬂection: 0.5 mm (0.02") typical Construction: 17-4 PH stainless steel,

>30,000 lb, high-alloy steel

Electrical:

LC501/LCM501: 4.6 m (15')

4 conductor shielded cable

LC511/LCM511: 6-pin DT02H-10-6P

or equivalent

Mating Connector: PT06F10-6S-R

(sold separately)

LC501/LCM501

Wire Connection

GN +Output WT -Output BK -Input RD +Input

LC511/LCM511

ELECTRICAL CONNECTION: PT1H-10-6P OR EQUAL

10-32UNF-2B

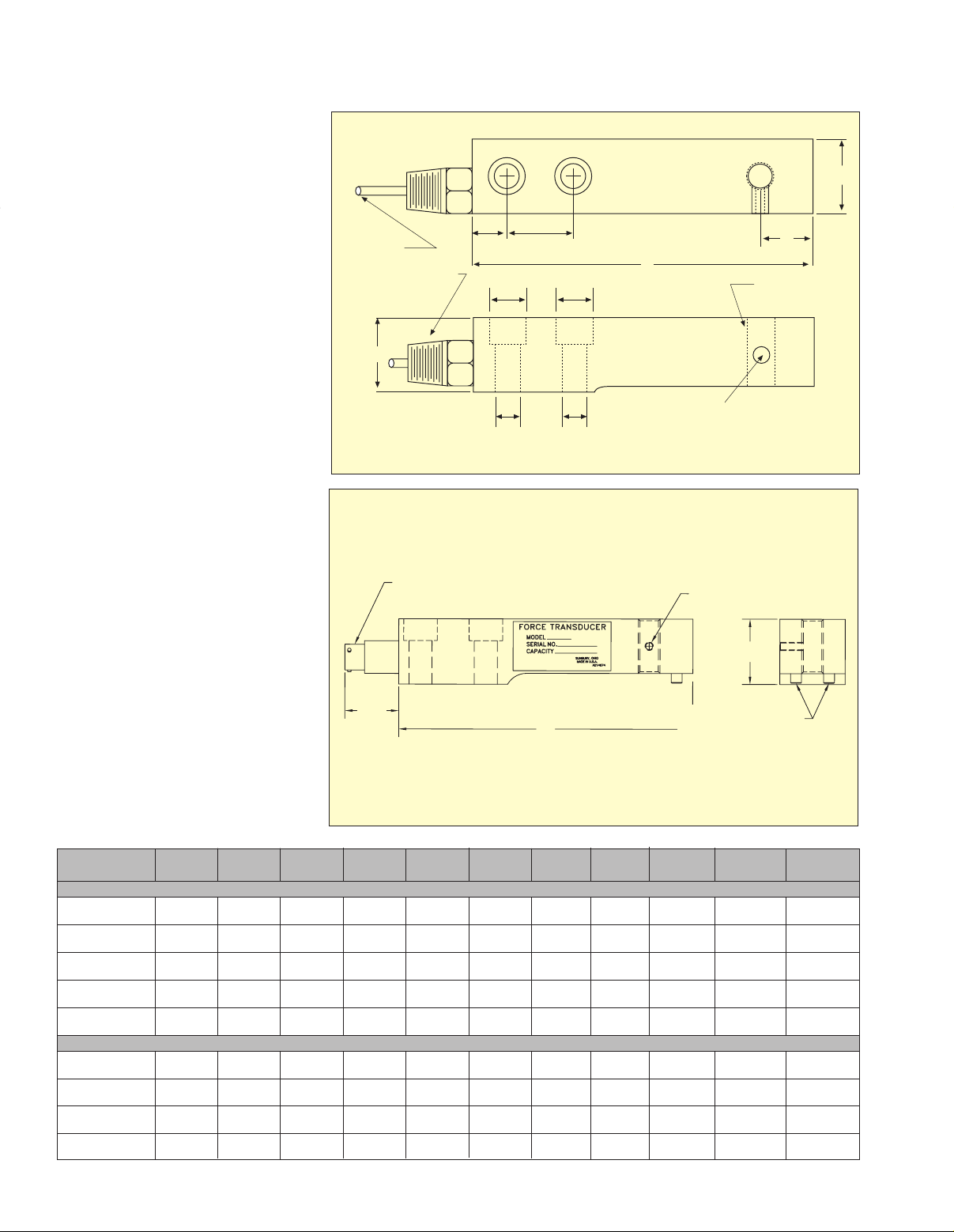

Dimensions: mm (inch)

CAPACITY A B C D D1 E F G I J kg (lb)

50 to 121 19 25 9.9 15 25 13 25 3⁄8-18 UNC 1⁄2-20 0.9

750 lb (4.75) (0.75) (1.0) (0.39) (0.59) (1.0) (0.50) (1.0) (2)

1K to 6.5K lb 173 25 38 13 20 38 13 38 1⁄2-14 UNC 1⁄2-20 1.8

7.5K to 10K lb 197 25 38 20 n/a 38 19 51 1⁄2-14 UNC 3⁄4-16 2.3

20K lb 241 25 64 20 n/a 51 25 57 1⁄2-14 UNC 1-12 5

30K lb 241 25 64 27 n/a 51 25 57 1⁄2-14 UNC 1-12 n/a

25 to 121 19 25 9.9 15 25 13 25 3⁄8-18 UNC M12 x 1.75 0.9

250 kgf (4.75) (0.75) (1.0) (0.39) (0.59) (1.0) (0.50) (1.0) (2)

500 to 173 25 38 13 20 38 13 38 1⁄2-14 UNC M12 x 1.75 1.8

2500 kgf (6.75) (1.0) (1.5) (0.53) (0.77) (1.5) (0.50) (1.5) (4) 5000 kgf 197 25 38 20 n/a 38 19 51 1⁄2-14 UNC M20 x 1.5 2.3

10,000 kgf 241 25 64 20 n/a 51 25 57 1⁄2-14 UNC M24 x 2.0 5

Accessory Hardware:

Self-Adjusting Weigh Modules

Nickel-Plated Carbon Streel or

TWA/TWAM Series

Stainless Steel

(6.75) (1.0) (1.5) (0.53) (0.77) (1.5) (0.50) (1.5) (4)

(7.75) (1.0) (1.5) (0.77) (1.5) (0.75) (2.0) (5)

(9.50) (1.0) (2.5) (0.77) (2.0) (1.00) (2.25) (11)

(9.50) (1.0) (2.5) (1.06) (2.0) (1.00) (2.25)

(7.75) (1.0) (1.5) (0.77) (1.5) (0.75) (2.0) (5)

(9.50) (1.0) (2.5) (0.77) (2.0) (1.00) (2.25) (11)

(1.25)

MAXIMUM

Electrical Connection

PIN A +Output PIN B -Output PIN C -Input PIN D +Input PIN E, F No Connection

STANDARD

METRIC

OVERLOAD

STOPS OPTIONAL

Dimensions:

mm (inch)

WEIGHT

Page 3

High-Accuracy Stainless Steel Cantilever Beams

To Order

CAPACITY MODEL NO.

kgf

45 100

91 200 227 500 341 750 455 1000 909 2000

1361 3000 2269 5000 3402 7500 4537 10,000 9074 20,000

13,612 30,000

25 55

50 110 250 551 500 1102

1000 2205 2500 5512 5000 11,023

10,000 22,046

CABLE STYLE

LC501-100 LC511-100 LC501-200 LC511-200 LC501-500 LC511-500 LC501-750 LC511-750 LC501-1K LC511-1K LC501-2K LC511-2K LC501-3K LC511-3K LC501-5K LC511-5K LC501-7.5K LC511-7.5K LC501-10K LC511-10K LC501-20K LC511-20K LC501-30K LC511-30K

LCM501-25 LCM511-25 LCM501-50 LCM511-50 LCM501-250 LCM511-250 LCM501-500 LCM511-500 LCM501-1K LCM511-1K LCM501-2.5K LCM511-2.5K LCM501-5K LCM511-5K LCM501-10K LCM511-10K

CONNECTOR STYLE

STANDARD MODELS

METRIC MODELS

COMPATIBLE METERS

DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S DP41-B, DP41-S, DP25B-S* DP41-B, DP41-S, DP25B-S*

DPiS, DP41-S, DP25B-S DPiS, DP41-S, DP25B-S DPiS, DP41-S, DP25B-S DPiS, DP41-S, DP25B-S DPiS, DP41-S, DP25B-S DPiS, DP41-S, DP25B-S DPiS, DP41-S, DP25B-S DPiS*, DP41-S, DP25B-S*

BASE PLATE

BP-10

BP-15

BP-20

MBP-10

MBP-15

MBP-20

ACCESSORIES

MODEL NO. DESCRIPTION LOAD BUTTON ROD END STANDARD MODELS

LBC-012 Load button for ranges 100 to 5000 lb LBC-034 Load button for LC501/511- 7.5K to 10K Ib

LBC-101 Load button for LC501/511-20K, LC501/511-30 K REC-012M Rod end for ranges 100 to 7500 lb

REC-034M Rod end for LC501/511-10K METRIC MODELS

MLBC-M12 Load button for ranges 25 to 2500 kgf

MLBC-M20 Load button for LCM501-5K, LCM511-5K

MLBC-M24 Load button for LCM501-10K, LCM511-10K

MREC-M12M Rod end for ranges 25 to 2500 kgf

MREC-M20M Rod end for LCM501-5K, LCM511-5K

MREC-M24M Rod end for LCM501-10K, LCM511-10K

COMMON

PT06F10-6S-R Mating connector for LC511/LCM511 series load cells

CA-4PC24-2-015 4.6 m (15') PVC cable with PT06F10-6S, LC511/LCM511 cable assembly

Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.

4-digit meter.

Note: Base plates are nickel-plated carbon steel.

To order stainless steel base plates (see Accessories), specify BP-10-SS, BP-15-SS, BP-20-SS. To order load cells with a twist-lock 6 pin connector, specify LC511 (standard) or LCM511 (metric), no extra charge. PT06F10-6S-R, mating connector (sold separately).

Ordering Examples: LC501-5K, 5000 lb capacity load cell. REC-012M, optional rod end, BP-15, optional base plate. LCM511-5K, 5000 kgf capacity load cell with twist-lock 6 pin connector, PT06F10-6S-R, mating connector. MREC-M20M, optional rod end, MBP-15, optional base plate.

Visit us online for compatible meters.
