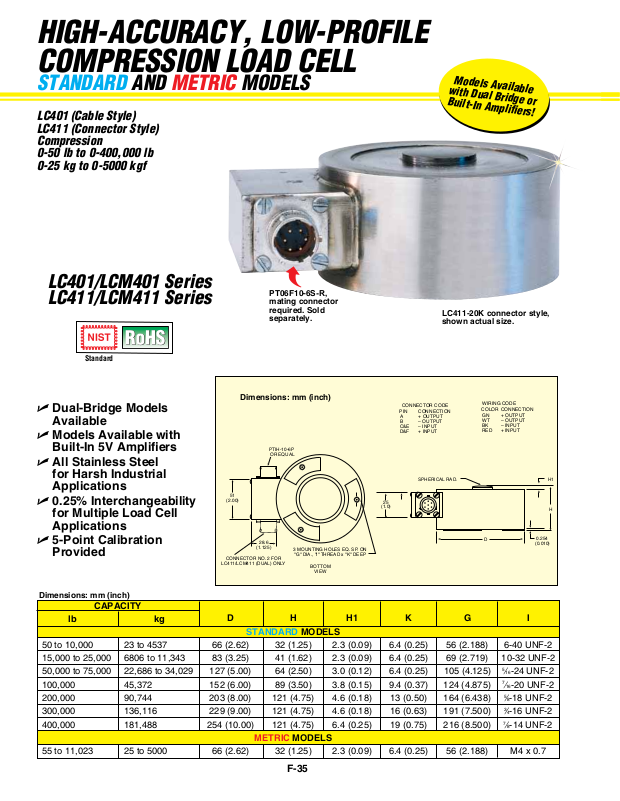

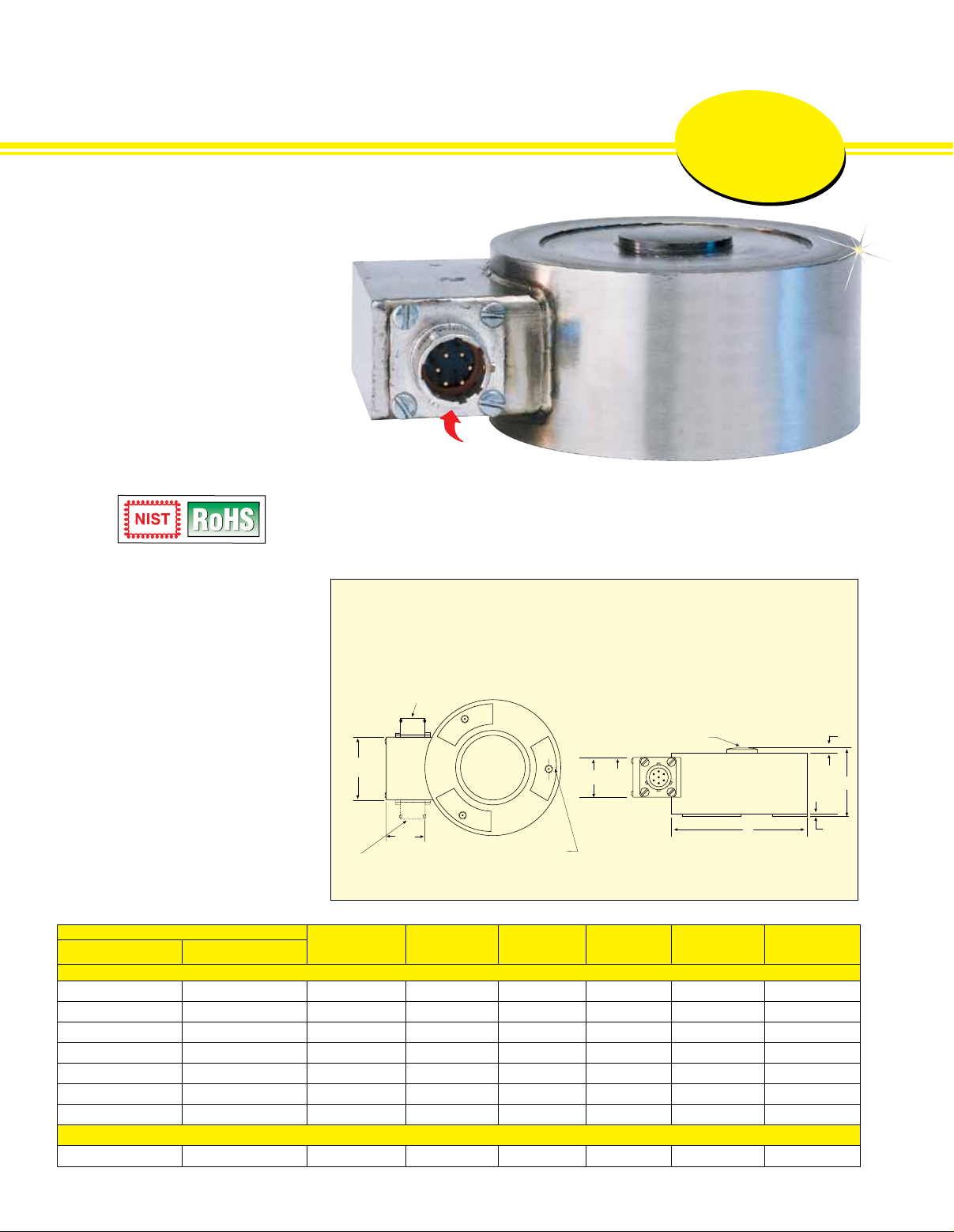

HIGH-ACCURACY, LOW-PROFILE

PTIH-10-6P

OR EQUAL

(2.00)

28.6

(1.125)

CONNECTOR NO. 2 FOR

LC411/LCM411 (DUAL) ONLY

BOTTOM

VIEW

3 MOUNTING HOLES EQ. SP. ON

"G" DIA., "I" THREAD x "K" DEEP

CONNECTOR CODE

A B C&E D&F

+ OUTPUT – OUTPUT – INPUT + INPUT

PIN CONNECTION

WIRING CODE

RED+ INPUT

GN WT BK

+ OUTPUT – OUTPUT – INPUT

COLOR CONNECTION

(1.0)

SPHERICAL RAD.

0.254

(0.010)

PTIH-10-6P

OR EQUAL

WIRING CODE

RED+ INPUT

GN WT BK

+ OUTPUT – OUTPUT – INPUT

COLOR CONNECTION

(1.0)

SPHERICAL RAD.

0.254

(0.010)

WIRING CODE

RED+ INPUT

GN WT BK

+ OUTPUT – OUTPUT – INPUT

COLOR CONNECTION

0.254 (0.010)

COMPRESSION LOAD CELL

STANDARD AND METRIC MODELS

LC401 (Cable Style) LC411 (Connector Style) Compression 0-50 lb to 0-400,000 lb 0-25 kg to 0-5000 kgf

Models Available

with Dual Bridge or

Built-In Ampliﬁers!

LC401/LCM401 Series LC411/LCM411 Series

U Dual-Bridge Models

U Models Available with

U All Stainless Steel

U 0.25% Interchangeability

U 5-Point Calibration

Dimensions: mm (inch)

50 to 10,000 23 to 4537 66 (2.62) 32 (1.25) 2.3 (0.09) 6.4 (0.25) 56 (2.188) 6-40 UNF-2 15,000 to 25,000 6806 to 11,343 83 (3.25) 41 (1.62) 2.3 (0.09) 6.4 (0.25) 69 (2.719) 10-32 UNF-2 50,000 to 75,000 22,686 to 34,029 127 (5.00) 64 (2.50) 3.0 (0.12) 6.4 (0.25) 105 (4.125) 100,000 45,372 152 (6.00) 89 (3.50) 3.8 (0.15) 9.4 (0.37) 124 (4.875) 200,000 90,744 203 (8.00) 121 (4.75) 4.6 (0.18) 13 (0.50) 164 (6.438) 300,000 136,116 229 (9.00) 121 (4.75) 4.6 (0.18) 16 (0.63) 191 (7.500) 400,000 181,488 254 (10.00) 121 (4.75) 6.4 (0.25) 19 (0.75) 216 (8.500) METRIC MODELS 55 to 11,023 25 to 5000 66 (2.62) 32 (1.25) 2.3 (0.09) 6.4 (0.25) 56 (2.188) M4 x 0.7

Standard

Available

Built-In 5V Ampliﬁers

for Harsh Industrial Applications

for Multiple Load Cell Applications

Provided

CAPACITY

lb kg

D H H1 K G I

PT06F10-6S-R, mating connector required. Sold separately.

Dimensions: mm (inch)

CONNECTOR CODE PIN CONNECTION A

B C&E D&F

(1.0)

LC411-20K connector style, shown actual size.

+ OUTPUT – OUTPUT – INPUT + INPUT

SPHERICAL RAD.

0.254

STANDARD MODELS

⁄16-24 UNF-2

⁄16-20 UNF-2

⁄8-18 UNF-2

⁄4-16 UNF-2

⁄8-14 UNF-2

F-35

Page 2

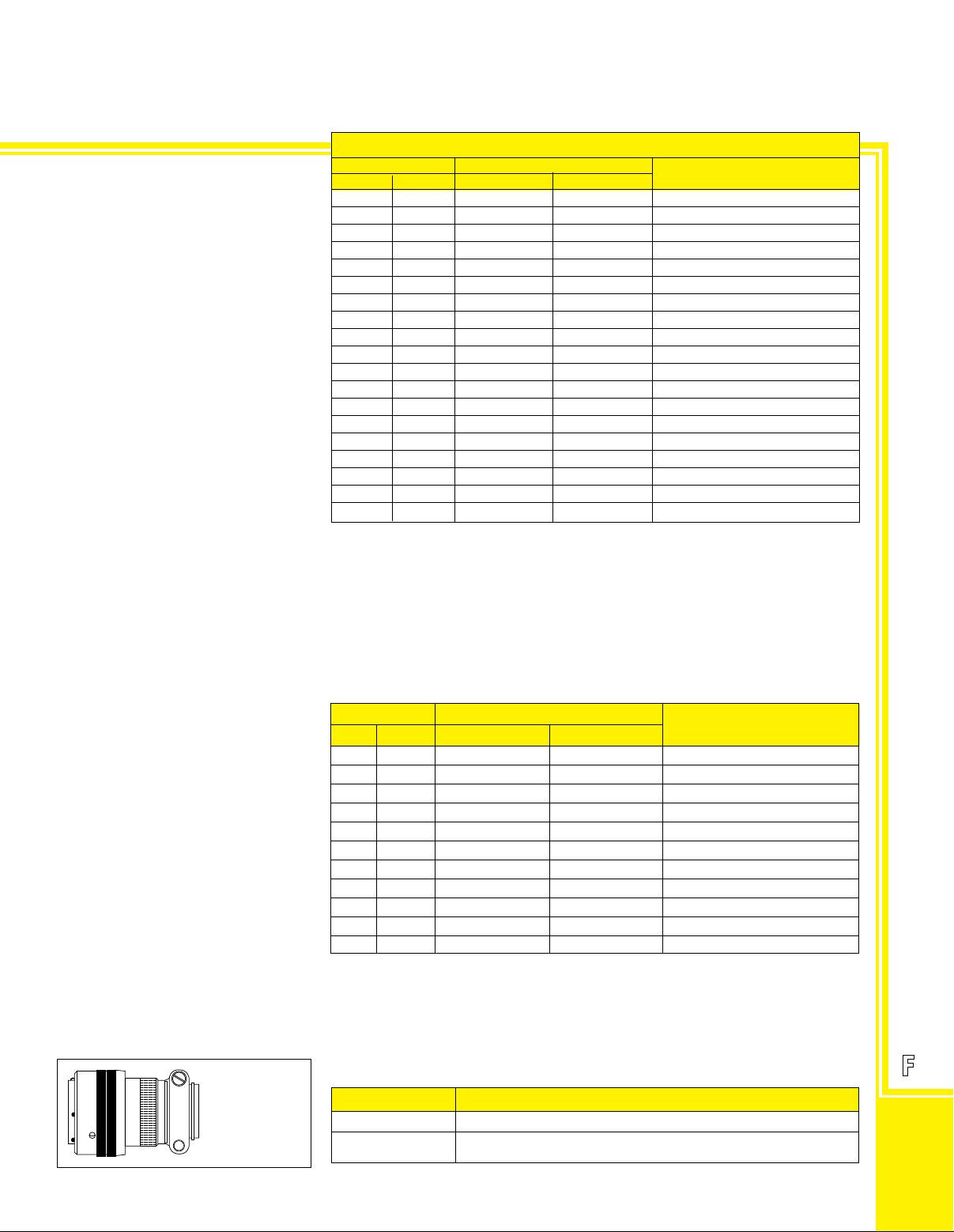

LOW-PROFILE COMPRESSION LOAD CELLS

STANDARD MODELS

To Order

SPECIFICATIONS

Excitation: 10 Vdc (15 Vdc maximum) Output: 3 mV/V ±0.25% 5-Point Calibration: Calibrated at 0%,

50%, 100%, 50%, 0%.

Note: Models >300,000 lb are calibrated to 300,000 lb. Full scale calibration above 300,000 lb within ±1% available.

Linearity: >3000 lb: 0.10% FSO ≤3000 lb: 0.13% FSO

Hysteresis: >3000 lb: 0.10% FSO

≤3000 lb: 0.12 % FSO

Repeatability: 0.05% FSO Zero Balance: ±1% FSO Operating Temp Range:

-54 to 107°C (-65 to 225°F)

Compensated Temp Range:

16 to 71°C (60 to 160°F)

Thermal Effects: Zero: 0.0045% FSO/°C Span: 0.006% FSO/°C

Safe Overload: 150% full scale capacity Ultimate Overload: 300% full scale

capacity

Bridge Resistance: 350 ±5Ω FS Deﬂection: 0.001 to 0.003" typical Construction: 17-4 PH stainless steel Electrical Connection:

LC401: 4.8 m (15') 4-conductor

shielded PVC cable LC411: PTIH-10-6P twist-lock connector (or equivalent)

Mating Connector: PT06F10-6S-R

(sold separately)

Cable Assembly with Twist-Lock Connector: CA-6PC24-3-015

(sold separately)

Protection Class: IP65

POPULAR OPTIONS (Additional Cost)

0 to 5 Vdc Output: (≥5000 kg) “-5V” Overload Stops: “-OL” Dual Bridge: “-DUAL” Extended Temperature Range:

-45 to 93°C (-50 to 200°F) “-TC1”

-45 to 163°C (-50 to 325°F) “-TC2”

CAPACITY

lb kgf CABLE CONNECTOR COMPATIBLE METERS**

50 23 LC401-50 LC411-50 DP41-B, DP41-S, DP25B-S

100 45 LC401-100 LC411-100 DP41-B, DP41-S, DP25B-S 250 114 LC401-250 LC411-250 DP41-B, DP41-S, DP25B-S 500 227 LC401-500 LC411-500 DP41-B, DP41-S, DP25B-S 1000 455 LC401-1K LC411-1K DP41-B, DP41-S, DP25B-S 1500 682 LC401-1.5K LC411-1.5K DP41-B, DP41-S, DP25B-S 2000 909 LC401-2K LC411-2K DP41-B, DP41-S, DP25B-S 3000 1361 LC401-3K LC411-3K DP41-B, DP41-S, DP25B-S 5000 2269 LC401-5K LC411-5K DP41-B, DP41-S, DP25B-S 10,000 4537 LC401-10K LC411-10K DP41-B, DP41-S, DP25B-S

15,000

20,000

25,000

50,000

75,000

100,000

200,000

300,000

400,000

Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.

4-digit meter.

To order dual-bridge models, add sufﬁx “-DUAL” to model number and additional cost to price. To order optional 0 to 5 V output, add sufﬁx “-5V” to model number and additional cost to price.

Note: Models >300,000 lb are calibrated at 300,000 lb. Full scale calibration above 300,000 lb within ±1% available. Add sufﬁx “-FS” to the model number; consult Sales for price and availability.

Ordering Examples: LC401-1K, 1000 lb capacity cable-style load cell. LC411-10K-DUAL, 10,000 lb capacity connector-style load cell with dual-bridge option,

PT06F10-6S-R, mating connector (2 required on dual models), sold separately.

6806

LC401-15K LC411-15K DP41-B, DP41-S, DP25B-S*

9074

LC401-20K LC411-20K DP41-B, DP41-S, DP25B-S*

11,343

LC401-25K LC411-25K DP41-B, DP41-S, DP25B-S*

22,686

LC401-50K LC411-50K DP41-B, DP41-S, DP25B-S*

34,029

LC401-75K LC411-75K DP41-B, DP41-S, DP25B-S

45,372

LC401-100K LC411-100K DP41-B, DP41-S, DP25B-S*

90,744

LC401-200K LC411-200K DP41-B, DP41-S, DP25B-S* 136,116 181,488

METRIC MODELS

CAPACITY MODEL NO.

kgf lb CABLE CONNECTOR COMPATIBLE METERS**

25 55 LCM401-25 LCM411-25 iSeries, DP41-S, DP25B-S 50 110 LCM401-50 LCM411-50 iSeries, DP41-S, DP25B-S 100 220 LCM401-100 LCM411-100 iSeries, DP41-S, DP25B-S 150 331 LCM401-150 LCM411-150 iSeries, DP41-S, DP25B-S 250 551 LCM401-250 LCM411-250 iSeries, DP41-S, DP25B-S 500 1102 LCM401-500 LCM411-500 iSeries, DP41-S, DP25B-S 750 1653 LCM401-750 LCM411-750 iSeries, DP41-S, DP25B-S 1000 2205 LCM401-1K LCM411-1K iSeries, DP41-S, DP25B-S 1500 3307 LCM401-1.5K LCM411-1.5K iSeries, DP41-S, DP25B-S 2500 5512 LCM401-2.5K LCM411-2.5K iSeries, DP41-S, DP25B-S 5000 11,023 LCM401-5K LCM411-5K iSeries, DP41-S, DP25B-S

Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.

Visit us online for compatible meters.

Ordering Examples: LCM401-500, 500 kgf capacity cable-style load cell; LCM401-2.5K-DUAL, 2500 kgf capacity cable-style dual-bridge load cell.

PT06F10-6S-R, mating connector (2 required on dual-bridge models), sold separately.

MODEL NO.

LC401-300K LC411-300K DP41-B, DP41-S, DP25B-S* LC401-400K LC411-400K DP41-B, DP41-S, DP25B-

LOAD CELLS

ACCESSORY

Mating Connector PT06F10-6S-R

MODEL NO. DESCRIPTION

PT06F10-6S-R Mating connector for LC411/LCM411 series load cells

CA-6PC24-3-015 Cable assembly with twist-lock connector for LC411/LCM411 series load cells
