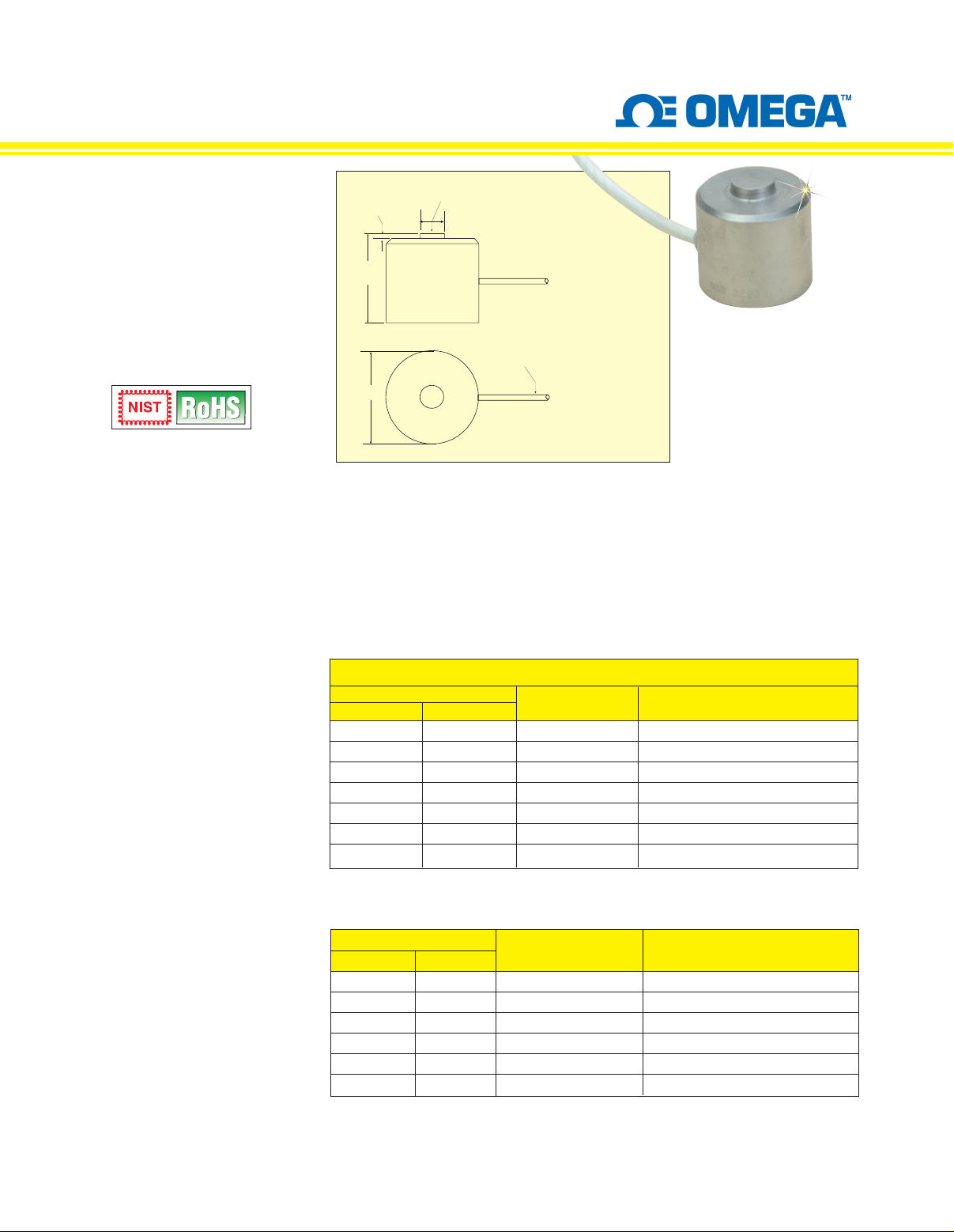

OD-LC304
25.4
(1.00)
3.0
(0.12)
SPHERICAL RADIUS
9.7 (0.38) DIA.
1.5 m (5') 4-CONDUCTOR CABLE
25.4
(1.00)

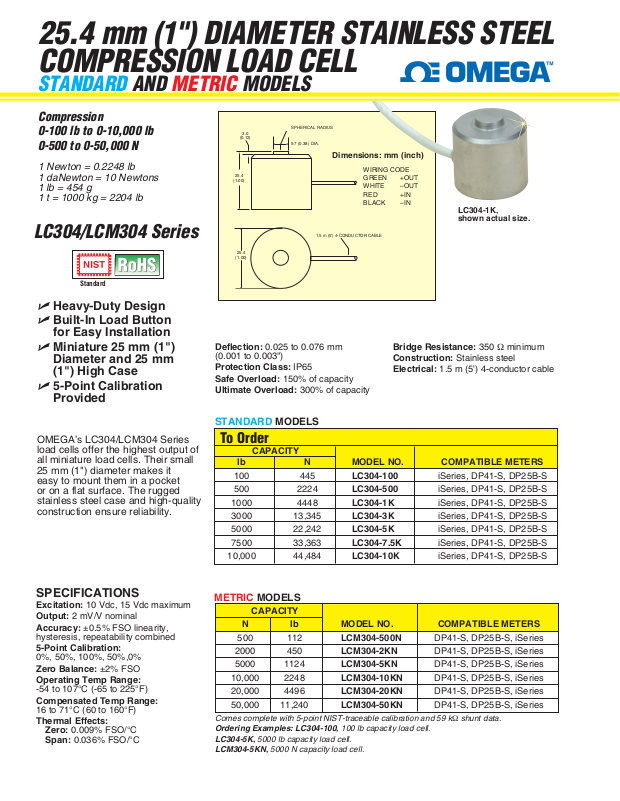

25.4 mm (1") DIAMETER STAINLESS STEEL
COMPRESSION LOAD CELL
STANDARD AND METRIC MODELS
Compression
0-100 lb to 0-10,000 lb
0-500 to 0-50,000 N
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kg = 2204 lb
LC304/LCM304 Series
Standard
U Heavy-Duty Design
U Built-In Load Button
for Easy Installation
Miniature 25 mm (1")
U
Diameter and 25 mm
(1") High Case
U 5-Point Calibration
Provided
Deflection: 0.025 to 0.076 mm
(0.001 to 0.003")
Protection Class: IP65
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Dimensions: mm (inch)
WIRING CODE
GREEN +OUT
WHITE –OUT
RED +IN
BLACK –IN
Bridge Resistance: 350 Ω minimum
Construction: Stainless steel
Electrical:
LC304-1K,
shown actual size.
1.5 m (5') 4-conductor cable
OMEGA’s LC304/LCM304 Series
load cells offer the highest output of
all miniature load cells. Their small
25 mm (1") diameter makes it
easy to mount them in a pocket
or on a flat surface. The rugged
stainless steel case and high-quality
construction ensure reliability.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc maximum
Output: 2 mV/V nominal
Accuracy: ±0.5% FSO linearity,
hysteresis, repeatability combined
5-Point Calibration:
0%, 50%, 100%, 50%,0%
Zero Balance: ±2% FSO
Operating Temp Range:
-54 to 107°C (-65 to 225°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C
Span: 0.036% FSO/°C
STANDARD MODELS
To Order
CAPACITY
lb N MODEL NO. COMPATIBLE METERS
100 445 LC304-100 iSeries, DP41-S, DP25B-S
500 2224 LC304-500 iSeries, DP41-S, DP25B-S
1000 4448 LC304-1K iSeries, DP41-S, DP25B-S
3000 13,345 LC304-3K iSeries, DP41-S, DP25B-S
5000 22,242 LC304-5K iSeries, DP41-S, DP25B-S
7500 33,363 LC304-7.5K iSeries, DP41-S, DP25B-S
10,000 44,484 LC304-10K iSeries, DP41-S, DP25B-S
METRIC MODELS
CAPACITY
N lb MODEL NO. COMPATIBLE METERS
500 112 LCM304-500N DP41-S, DP25B-S, iSeries
2000 450 LCM304-2KN DP41-S, DP25B-S, iSeries
5000 1124 LCM304-5KN DP41-S, DP25B-S, iSeries
10,000 2248 LCM304-10KN DP41-S, DP25B-S, iSeries
20,000 4496 LCM304-20KN DP41-S, DP25B-S, iSeries
50,000 11,240 LCM304-50KN DP41-S, DP25B-S, iSeries
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
Ordering Examples: LC304-100, 100 lb capacity load cell.
LC304-5K, 5000 lb capacity load cell.
LCM304-5KN, 5000 N capacity load cell.
