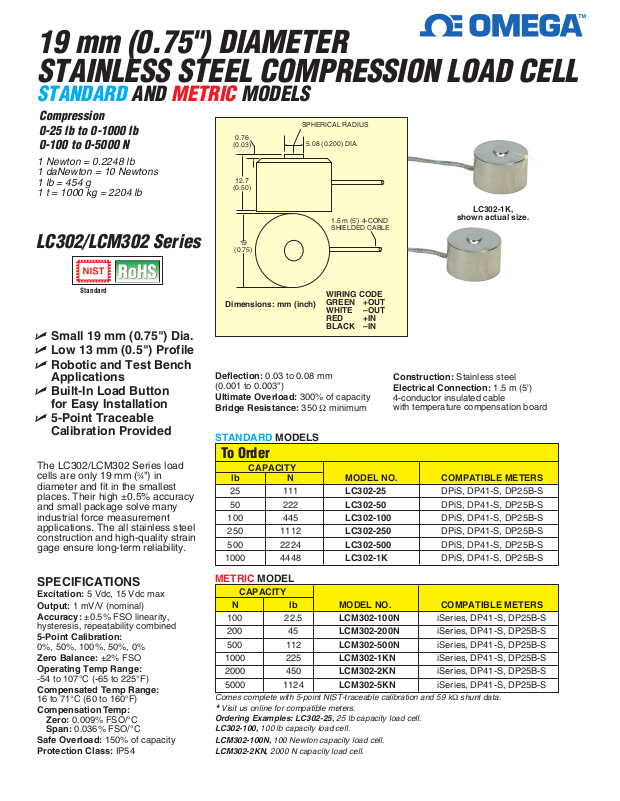

19 mm (0.75") DIAMETER
OD-LCM302
OD-LCM302
STAINLESS STEEL COMPRESSION LOAD CELL
STANDARD AND METRIC MODELS
Compression
0-25 lb to 0-1000 lb
0-100 to 0-5000 N
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kg = 2204 lb
LC302/LCM302 Series
Standard
U Small 19 mm (0.75") Dia.
U Low 13 mm (0.5") Profile
U Robotic and Test Bench
Applications
U Built-In Load Button
for Easy Installation
U 5-Point Traceable
Calibration Provided

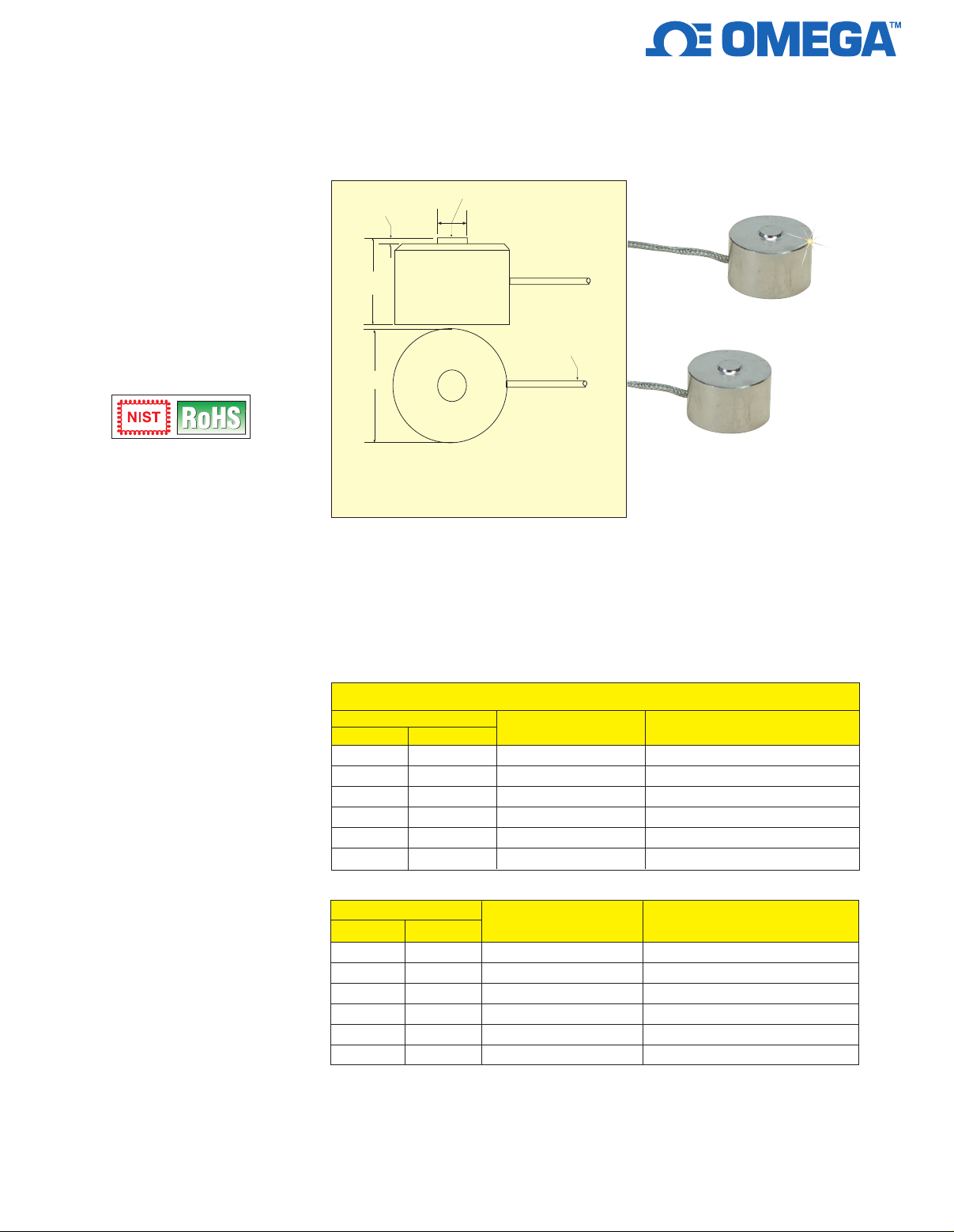

SPHERICAL RADIUS
0.76
(0.03)
12.7
(0.50)
19
(0.75)
Dimensions: mm (inch)
Deflection: 0.03 to 0.08 mm
(0.001 to 0.003")
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω minimum
5.08 (0.200) DIA.
1.5 m (5') 4-COND
SHIELDED CABLE
WIRING CODE
GREEN +OUT
WHITE –OUT
RED +IN
BLACK –IN
STANDARD MODELS
LC302-1K,
shown actual size.
Construction: Stainless steel
Electrical Connection: 1.5 m (5')
4-conductor insulated cable
with temperature compensation board
The LC302/LCM302 Series load
cells are only 19 mm (3⁄4") in
diameter and fit in the smallest
places. Their high ±0.5% accuracy
and small package solve many
industrial force measurement
applications. The all stainless steel
construction and high-quality strain
gage ensure long-term reliability.
SPECIFICATIONS
Excitation: 5 Vdc, 15 Vdc max
Output: 1 mV/V (nominal)
Accuracy: ±0.5% FSO linearity,
hysteresis, repeatability combined
5-Point Calibration:
0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range:
-54 to 107°C (-65 to 225°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Compensation Temp:
Zero: 0.009% FSO/°C
Span: 0.036% FSO/°C
Safe Overload: 150% of capacity
Protection Class: IP54
To Order
lb N MODEL NO. COMPATIBLE METERS
25 111 LC302-25 DPiS, DP41-S, DP25B-S
50 222 LC302-50 DPiS, DP41-S, DP25B-S
100 445 LC302-100 DPiS, DP41-S, DP25B-S
250 1112 LC302-250 DPiS, DP41-S, DP25B-S
500 2224 LC302-500 DPiS, DP41-S, DP25B-S
1000 4448 LC302-1K DPiS, DP41-S, DP25B-S
METRIC MODEL
N lb MODEL NO. COMPATIBLE METERS
100 22.5 LCM302-100N iSeries, DP41-S, DP25B-S
200 45 LCM302-200N iSeries, DP41-S, DP25B-S
500 112 LCM302-500N iSeries, DP41-S, DP25B-S
1000 225 LCM302-1KN iSeries, DP41-S, DP25B-S
2000 450 LCM302-2KN iSeries, DP41-S, DP25B-S
5000 1124 LCM302-5KN iSeries, DP41-S, DP25B-S
Comes complete with 5-point NIST-traceable calibration and 59 kΩ shunt data.
*
Ordering Examples: LC302-25, 25 lb capacity load cell.
LC302-100, 100 lb capacity load cell.
LCM302-100N, 100 Newton capacity load cell.
LCM302-2KN, 2000 N capacity load cell.
CAPACITY
CAPACITY
Visit us online for compatible meters.
