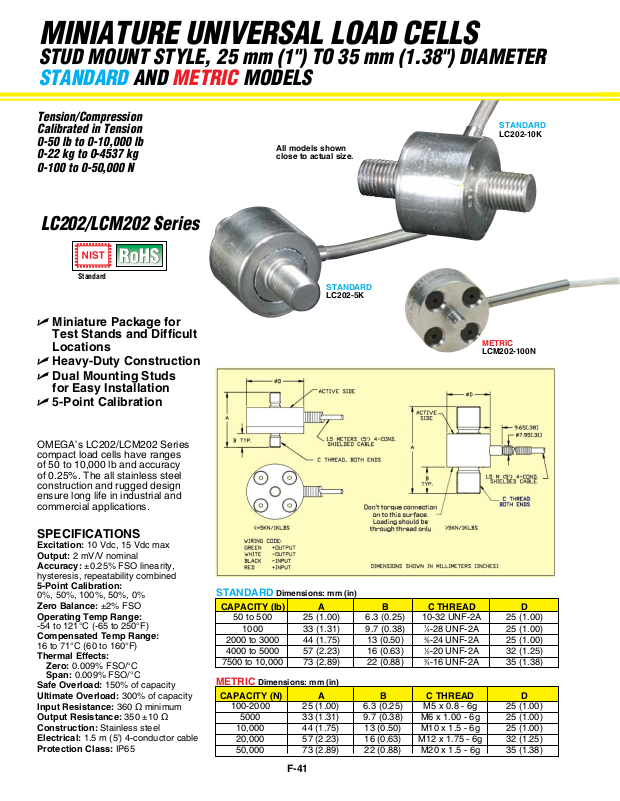

MINIATURE UNIVERSAL LOAD CELLS
STUD MOUNT STYLE, 25 mm (1") TO 35 mm (1.38") DIAMETER
STANDARD AND METRIC MODELS
Tension/Compression
Calibrated in Tension
0-50 lb to 0-10,000 lb
0-22 kg to 0-4537 kg
0-100 to 0-50,000 N
LC202/LCM202 Series
Standard
U Miniature Package for
Test Stands and Difficult
Locations
U Heavy-Duty Construction
U Dual Mounting Studs
for Easy Installation
U 5-Point Calibration
STANDARD
LC202-10K
All models shown
close to actual size.
STANDARD
LC202-5K
METRIC
LCM202-100N
Dimensions: mm (in)
OMEGA’s LC202/LCM202 Series
compact load cells have ranges
of 50 to 10,000 lb and accuracy
of 0.25%. The all stainless steel
construction and rugged design
ensure long life in industrial and
commercial applications.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±0.25% FSO linearity,
hysteresis, repeatability combined
5-Point Calibration:
0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C
Span: 0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 1.5 m (5') 4-conductor cable
Protection Class: IP65
STANDARD Dimensions: mm (in)
CAPACITY (lb) A B C THREAD D
50 to 500 25 (1.00) 6.3 (0.25) 10-32 UNF-2A 25 (1.00)
1000 33 (1.31) 9.7 (0.38) 1⁄4-28 UNF-2A 25 (1.00)
2000 to 3000 44 (1.75) 13 (0.50) 3⁄8-24 UNF-2A 25 (1.00)
4000 to 5000 57 (2.23) 16 (0.63) 1⁄2-20 UNF-2A 32 (1.25)
7500 to 10,000 73 (2.89) 22 (0.88) 3⁄4-16 UNF-2A 35 (1.38)
METRIC Dimensions: mm (in)
CAPACITY (N) A B C THREAD D
100-2000 25 (1.00) 6.3 (0.25) M5 x 0.8 - 6g 25 (1.00)
5000 33 (1.31) 9.7 (0.38) M6 x 1.00 - 6g 25 (1.00)
10,000 44 (1.75) 13 (0.50) M10 x 1.5 - 6g 25 (1.00)
20,000 57 (2.23) 16 (0.63) M12 x 1.75 - 6g 32 (1.25)
50,000 73 (2.89) 22 (0.88) M20 x 1.5 - 6g 35 (1.38)
F-41
Page 2
F
I
R
STANDARD
LC202-10K, shown
close to actual size.
METRIC
LCM202-20KN,
shown close
to actual size.
METRIC
LCM202-1.5KN,
shown close to
actual size.

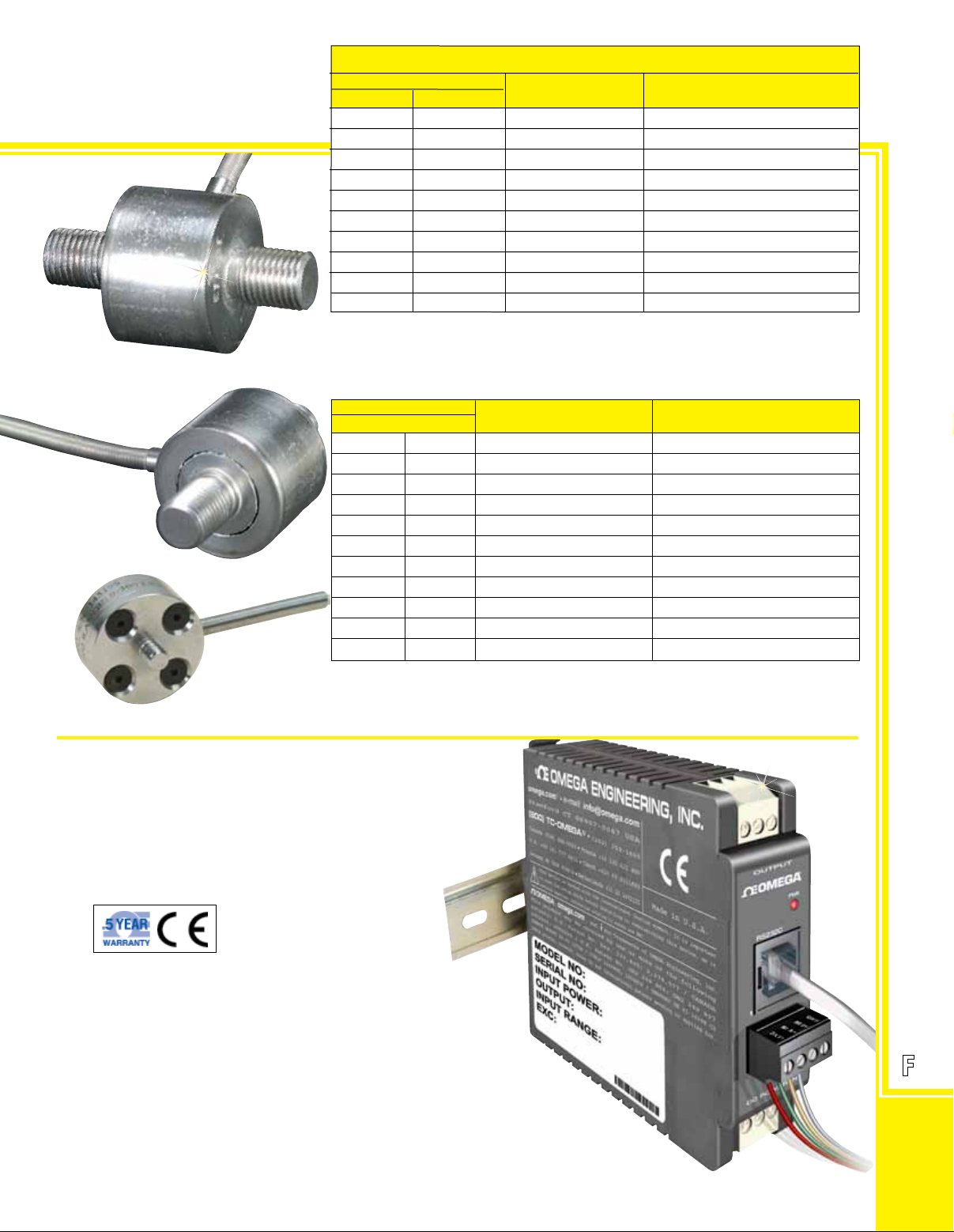

STANDARD MODELS
To Order
CAPACITY
lb N MODEL NO. COMPATIBLE METERS*
50 222 LC202-50 DPiS, DP41-S, DP25B-S
100 445 LC202-100 DPiS, DP41-S, DP25B-S
300 1334 LC202-300 DPiS, DP41-S, DP25B-S
500 2224 LC202-500 DPiS, DP41-S, DP25B-S
1000 4448 LC202-1K DPiS, DP41-S, DP25B-S
2000 8896 LC202-2K DPiS, DP41-S, DP25B-S
3000 13,344 LC202-3K DPiS, DP41-S, DP25B-S
5000 22,240 LC202-5K DPiS, DP41-S, DP25B-S
7500 33,360 LC202-7.5K DPiS, DP41-S, DP25B-S
10,000 44,480 LC202-10K DPiS, DP41-S, DP25B-S
Comes complete with 5-point NIST-traceable calibration.
Visit us online for compatible meters. DPiS meter suitable for one direction measurement only.
*
Ordering Examples: LC202-100, 100 lb capacity miniature universal load cell.
LC202-1K, 1000 lb capacity miniature universal load cell.
METRIC MODELS
CAPACITY
N lb MODEL NO. COMPATIBLE METERS*
100 22 LCM202-100N DPiS, DP41-S, DP25B-S
200 45 LCM202-200N DPiS, DP41-S, DP25B-S
300 67 LCM202-300N DPiS, DP41-S, DP25B-S
500 112 LCM202-500N DPiS, DP41-S, DP25B-S
1000 225 LCM202-1KN DPiS, DP41-S, DP25B-S
1500 337 LCM202-1.5KN DPiS, DP41-S, DP25B-S
2000 450 LCM202-2KN DPiS, DP41-S, DP25B-S
5000 1124 LCM202-5KN DPiS, DP41-S, DP25B-S
10,000 2248 LCM202-10KN DPiS, DP41-S, DP25B-S
20,000 4496 LCM202-20KN DPiS, DP41-S, DP25B-S
50,000 11,241 LCM202-50KN DPiS, DP41-S, DP25B-S
Comes complete with 5-point NIST-traceable calibration.
Visit us online for compatible meters.
*
Ordering Examples: LCM202-100N, 100 N capacity miniature universal load cell.
LCM202-1KN, 1000 N capacity miniature universal load cell.
STRAIN GAGE/BRIDGE
TRANSDUCER-SIGNAL
CONDITIONERS
U Unipolar/Bipolar
30 mV to 100 mV
U 13-Bit Resolution
U 10 Vdc Excitation
U 0.2% FS Accuracy
U 1800 Vdc Isolation
LOAD CELLS
The iDRN-ST and iDRX-ST signal
conditioners provide highly accurate,
stable, isolated measurement for
strain gage transducers such as
load cells, torque transducers,
non-amplified pressure transducers,
and other bridge based transducers.
Both models can accept signals
from 30 to 100 mV full scale and
provide 10 Vdc reference voltage
which may be used for
transducer excitation.
