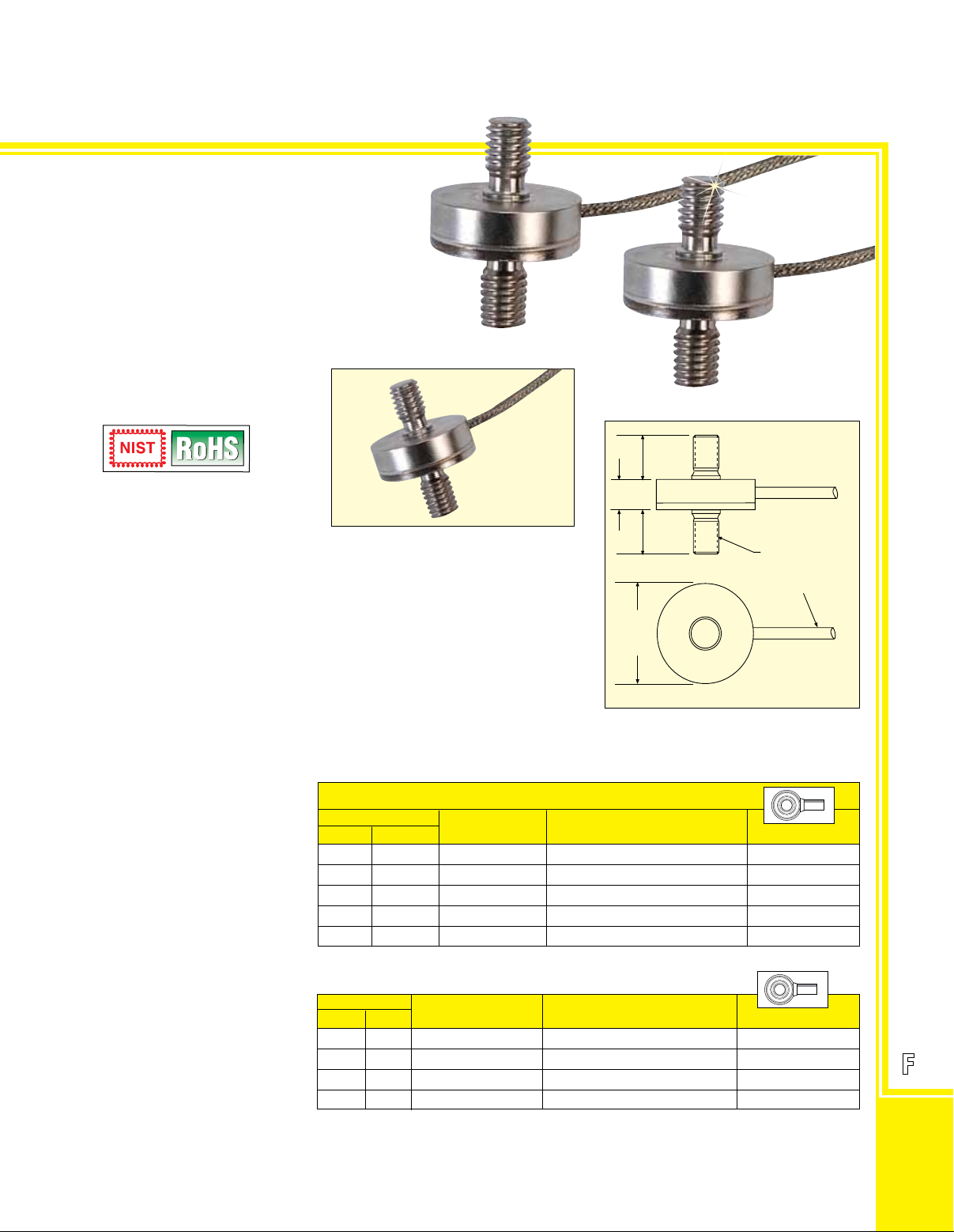

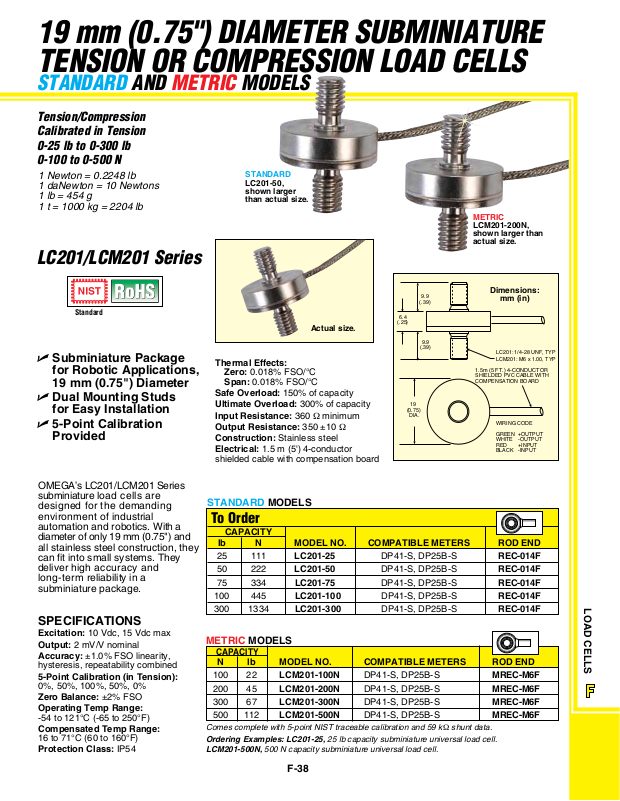

19 mm (0.75") DIAMETER SUBMINIATURE
9.9
(.39)
9.9
(.39)
6.4
(.25)
19
(0.75)
DIA.
1.5m (5 FT.) 4-CONDUCT
OR
SHIELDED PVC CABLE WITH
COMPENSATION BOARD
OD-LC201
WIRING CODE
GREEN +OUTPUT
WHITE -OUTPUT
RED +INPUT
BLACK -INPUT
LC201: 1/4-28 UNF, TYP
LCM201: M6 x 1.00, TYP
TENSION OR COMPRESSION LOAD CELLS
STANDARD AND METRIC MODELS
Tension/Compression
Calibrated in Tension
0-25 lb to 0-300 lb
0-100 to 0-500 N
1 Newton = 0.2248 lb
1 daNewton = 10 Newtons
1 lb = 454 g
1 t = 1000 kg = 2204 lb
LC201/LCM201 Series
Standard
STANDARD
LC201-50,
shown larger
than actual size.
METRIC
LCM201-200N,
shown larger than
actual size.
Dimensions:
mm (in)
Actual size.
U Subminiature Package
for Robotic Applications,
19 mm (0.75") Diameter
U Dual Mounting Studs
for Easy Installation
U 5-Point Calibration
Provided
OMEGA’s LC201/LCM201 Series
subminiature load cells are
designed for the demanding
environment of industrial
automation and robotics. With a
diameter of only 19 mm (0.75") and
all stainless steel construction, they
can fit into small systems. They
deliver high accuracy and
long-term reliability in a
subminiature package.
SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±1.0% FSO linearity,
hysteresis, repeatability combined
5-Point Calibration (in Tension):
0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range:
-54 to 121°C (-65 to 250°F)
Compensated Temp Range:
16 to 71°C (60 to 160°F)
Protection Class: IP54
Thermal Effects:
Zero: 0.018% FSO/°C
Span: 0.018% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 360 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 1.5 m (5') 4-conductor
shielded cable with compensation board
STANDARD MODELS
To Order
CAPACITY
lb N MODEL NO. COMPATIBLE METERS ROD END
25 111 LC201-25 DP41-S, DP25B-S REC-014F
50 222 LC201-50 DP41-S, DP25B-S REC-014F
75 334 LC201-75 DP41-S, DP25B-S REC-014F
100 445 LC201-100 DP41-S, DP25B-S REC-014F
300 1334 LC201-300 DP41-S, DP25B-S REC-014F
METRIC MODELS
CAPACITY
N lb MODEL NO. COMPATIBLE METERS ROD END
100 22 LCM201-100N DP41-S, DP25B-S MREC-M6F
200 45 LCM201-200N DP41-S, DP25B-S MREC-M6F
300 67 LCM201-300N DP41-S, DP25B-S MREC-M6F
500 112 LCM201-500N DP41-S, DP25B-S MREC-M6F
Comes complete with 5-point NIST traceable calibration and 59 kΩ shunt data.
Ordering Examples: LC201-25, 25 lb capacity subminiature universal load cell.
LCM201-500N, 500 N capacity subminiature universal load cell.
F-38
LOAD CELLS
