Page 1
• Our smallest S-beam yet!
• High linearity at low capacities
• 5-Point NIST traceable
calibration included
• Precision tension and
compression force
measurement
• Durable, anti-corrosive,
stainless steel construction for
rugged environments
• Ultra low capacities, down to
10 lbs., and even smaller
models coming soon!
Output
±0.1% FSO
±0.1% FSO
±0.05% FSO
Zero Balance
±1.0% FSO
-40 to 93
°C
(-
40 to 200°F)
15 to 71
°C
(60 to 160
°F)
Safe Overload
150% of capacity
Ultimate Overload
Ingress Protection
Construction Materials
Stainless Steel with
Aluminum Side Cover
Overview
LC10
7
High Accuracy, Miniature, S-Beam
The LC107 series is our smallest s-beam load cell.
These load cells are so small, that they are shorter
than a paperclip - they are only 1.25"x0.5"x1.1".
Th
e LC107 products are compact, lightweight load
cells. They are designed to measure ultra low
tension and compression forces without sacrificing
accuracy. Linearity is often the trade-off made in
exchange for the small size of miniature load cells.
However, the LC107 has a high linearity of 0.1%,
even at the lowest 10lb capacity. They are also
temperature compensated, and NIST calibrated in
tension for superior performance. They have a
300% overload protection and stainless-steel
construction to increase durability and longevity.
These miniature s-beam load cells are well suited
for space-constrained areas requiring high
accuracy. Potential applications include scales,
other weigh assemblies, assembly machinery,
packaging machinery, test equipment, feedback for
machine control, and many more.
Load Cells
Specifications
Operating Temperature
Compensated Temperature
Thermal Effects - Zero
Thermal Effects - Span
1
Excitation
Linearity
Hysteresis
Repeatability
Range
Range
>= 10lbs.: 2 mV/V ±10%
FSO
< 10lbs.: 2 mV/V ±25%
FSO
5 Vdc Nominal, 15 Vdc
Maximum to 5 Vdc Nominal,
12 Vdc Maximum
±0.009% FSO/°C
(±0.005% FSO/°F)
±0.009% FSO/°C
(±0.005% FSO/°F)
300% of capacity
IP40
omega.com
Page 2
2
LC10
7
High Accuracy,
Installation Precautions
When handling and installing unit, hold it by the blue side cover to ensure that it is not
overloaded. There is a 150% safe overload and 300% ultimate overload built-in as a safeguard.
However, these ultra-low capacities still require careful handling to avoid overload.
Calibration
Units are calibrated in tension and come with a 5-Point NIST calibration certificate. They can
also be return to the factory for recalibration. Calibration options include tension only
(standard) , tension and compression, and compression only. Consult sales for these additional
calibration options.

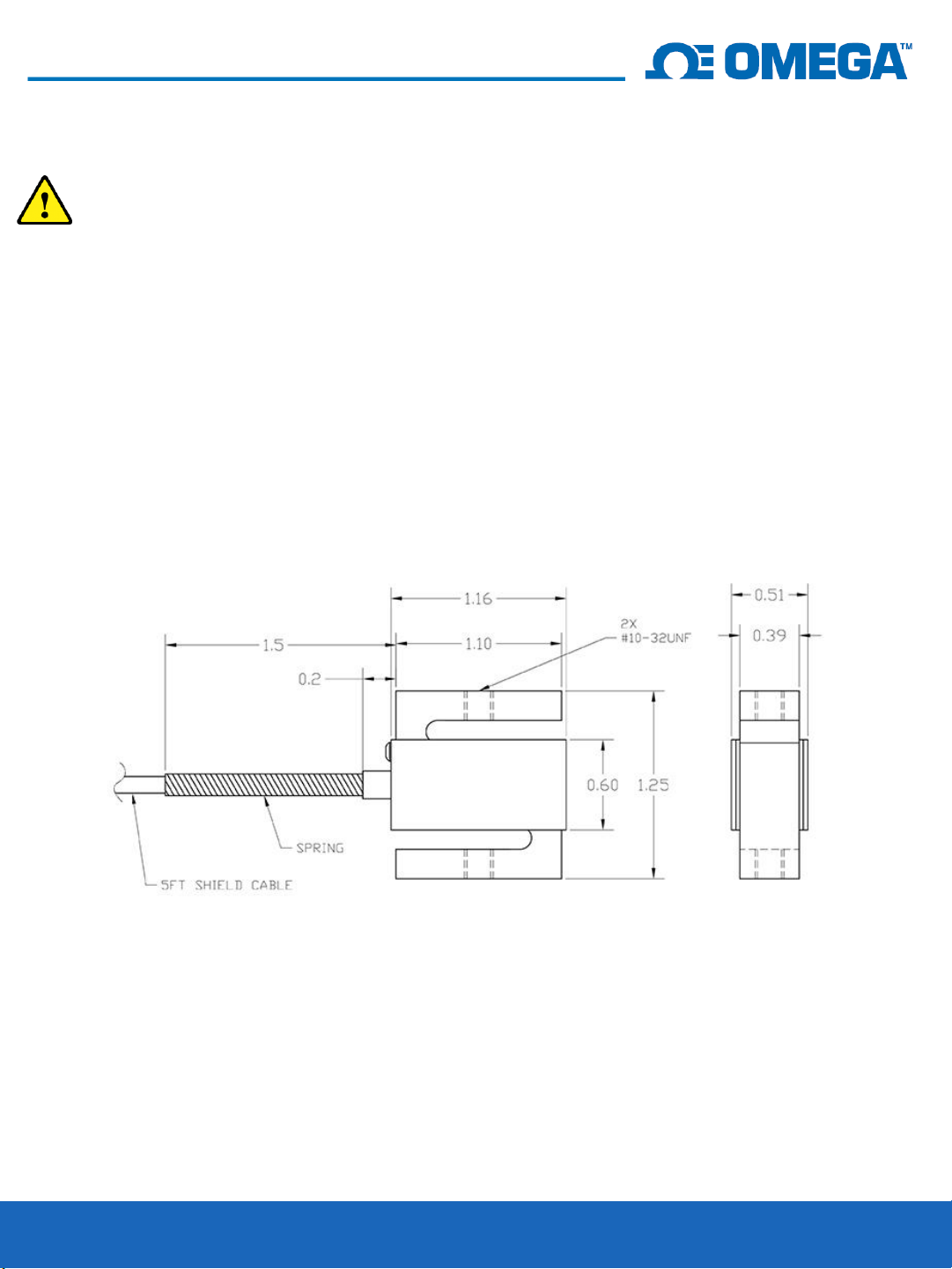

Dimensional Drawing
Miniature, S-Beam Load Cells
omega.com
