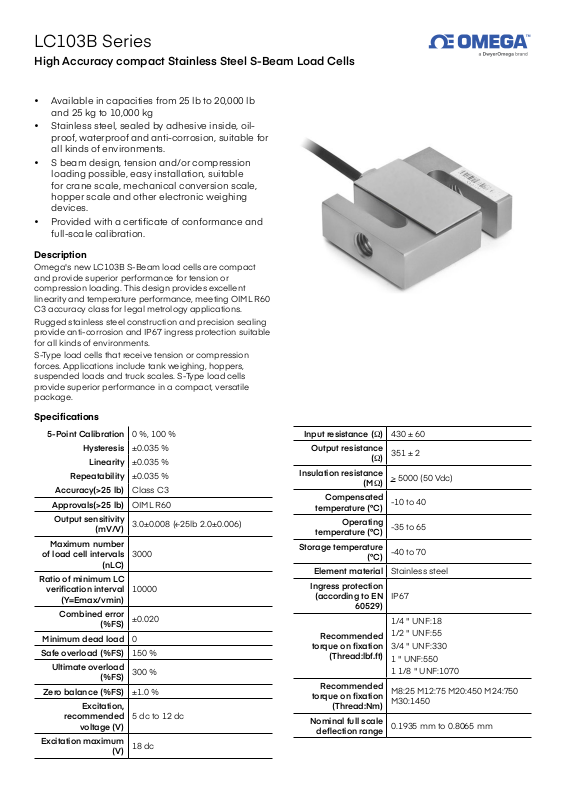

LC103B Series
High Accuracy compact Stainless Steel S-Beam Load Cells
• Available in capacities from 25 lb to 20,000 lb
and 25 kg to 10,000 kg
• Stainless steel, sealed by adhesive inside, oilproof, waterproof and anti-corrosion, suitable for
all kinds of environments.
• S beam design, tension and/or compression
loading possible, easy installation, suitable
for crane scale, mechanical conversion scale,
hopper scale and other electronic weighing
devices.
• Provided with a certicate of conformance and
full-scale calibration.
Description
Omega's new LC103B S-Beam load cells are compact
and provide superior performance for tension or
compression loading. This design provides excellent
linearity and temperature performance, meeting OIML R60
C3 accuracy class for legal metrology applications.
Rugged stainless steel construction and precision sealing
provide anti-corrosion and IP67 ingress protection suitable
for all kinds of environments.
S-Type load cells that receive tension or compression
forces. Applications include tank weighing, hoppers,
suspended loads and truck scales. S-Type load cells
provide superior performance in a compact, versatile
package.
Specications
5-Point Calibration
Hysteresis
Linearity
Repeatability
Accuracy(>25 lb)
Approvals(>25 lb)
Output sensitivity
(mV/V)
Maximum number
of load cell intervals
(nLC)
Ratio of minimum LC
verication interval
(Y=Emax/vmin)
Combined error
(%FS)
Minimum dead load
Safe overload (%FS)
Ultimate overload
(%FS)
Zero balance (%FS)
Excitation,
recommended
voltage (V)
Excitation maximum
0 %, 100 %
±0.035 %
±0.035 %
±0.035 %
Class C3
OIML R60
3.0±0.008 (≤25lb 2.0±0.006)
3000
10000
±0.020
0
150 %
300 %
±1.0 %
5 dc to 12 dc
18 dc
(V)
Input resistance (Ω)
Output resistance
(Ω)
Insulation resistance
(MΩ)
Compensated
temperature (°C)
Operating
temperature (°C)
Storage temperature
(°C)
Element material
Ingress protection
(according to EN
60529)
Recommended
torque on xation
(Thread:lbf.ft)
Recommended
torque on xation
(Thread:Nm)
Nominal full scale
deection range
430 ± 60
351 ± 2
> 5000 (50 Vdc)
-10 to 40
-35 to 65
-40 to 70
Stainless steel
IP67
1/4 " UNF:18
1/2 " UNF:55
3/4 " UNF:330
1 " UNF:550
1 1/8 " UNF:1070
M8:25 M12:75 M20:450 M24:750
M30:1450
0.1935 mm to 0.8065 mm
Page 2
Improving the world, one measurement at a time.
TM

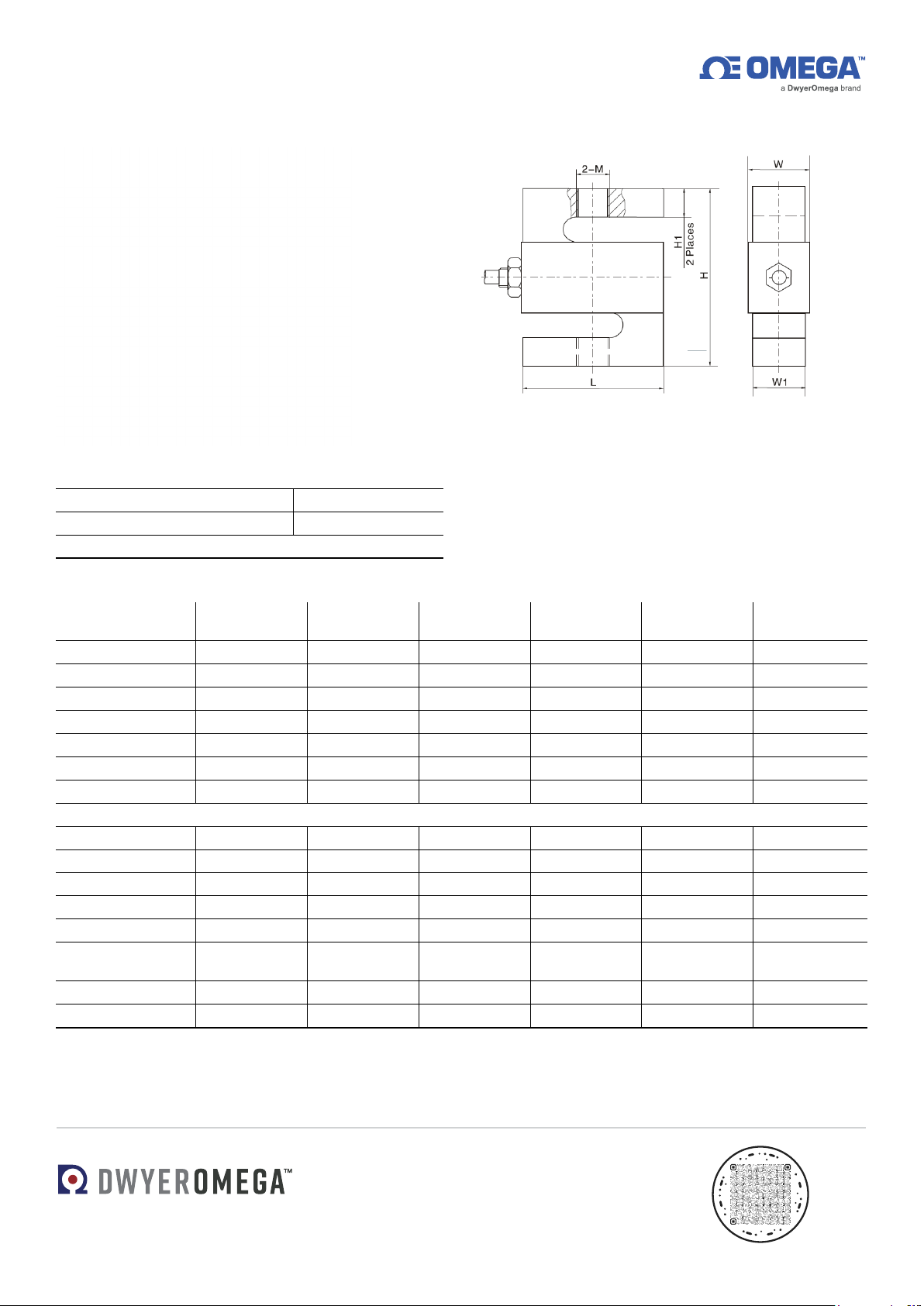

Dimensions and Wiring Diagram
Shielded, 4 Conductor Cable
Cable diameter
Standard cable length
5 mm
6 m
Shield not connected to element
Capacity L
mm (in)
H
mm (in)
H1
mm (in)
W1
mm (in)
W
mm (in)
M(thread)
25 lbf to 300 lbf 50.8 (2.0) 60.96 (2.4) 8.89 (0.4) 11.96 (0.5) 15.06 (0.6) 1/4-28UNF
500 lbf to 1500 lbf 50.8 (2.0) 60.96 (2.4) 8.89 (0.4) 18.03 (0.7) 21.4 (0.8) 1/2-20UNF
2000 lbf to 2500 lbf 50.8 (2.0) 60.96 (2.4) 8.89 (0.4) 24.38 (1.0) 27.76 (1.1) 1/2-20UNF
3,000 lbf 76.2 (3.0) 99.06 (3.9) 13.97 (0.55) 24.38 (0.96) 27.76 (1.09) 1/2-20UNF
5000 lbf 76.2 (3.0) 99.06 (3.9) 13.97 (0.6) 24.38 (1.0) 27.76 (1.1) 3/4-16UNF
10,000 lbf 74.68 (2.9) 99.06 (3.9) 15.75 (0.6) 30.74 (1.2) 34.12 (1.3) 3/4-16UNF
20,000 lbf 112.8 (4.4) 177.8 (7.0) 39.9 (1.6) 42.93 (1.7) 46.31 (1.8) 1 1/4-12UNF
Metric
25 kg 76.2 (3.0) 50.8 (2.0) 12.7 (0.5) 16.1 (0.63) 15.7 (0.62) M8
50 kgf to 100 kgf 50.8 (2.0) 60.96 (2.4) 8.89 (0.35) 11.68 (0.46) 15.06 (0.59) M8
250 kgf to 500 kgf 50.8 (2.0) 60.96 (2.4) 8.89 (0.35) 18.03 (0.71) 21.4 (0.84) M12
1,000 kgf 50.8 (2.0) 60.96 (2.4) 8.89 (0.35) 24.38 (0.96) 27.76 (1.09) M12
2,500 kgf 76.2 (3.0) 99.06 (3.9) 13.97 (0.55) 24.38 (0.96) 27.76 (1.09) M20 x 1.5
5,000 kgf 74.68 (2.94) 99.06 (3.9) 18.37 (0.72)
30.74 (1.21) 34.12 (1.34) M20 x 1.5
15.75 (0.62)
7,500 kgf 87.38 (3.44) 139.7 (5.5) 27.5 (1.08) 37.08 (1.46) 40.46 (1.59) M24 x 2
10,000 kgf 112.78 (4.44) 177.8 (7.0) 39.9 (1.57) 42.93 (1.69) 46.31 (1.82) M30 x 2
DS-LC103B
