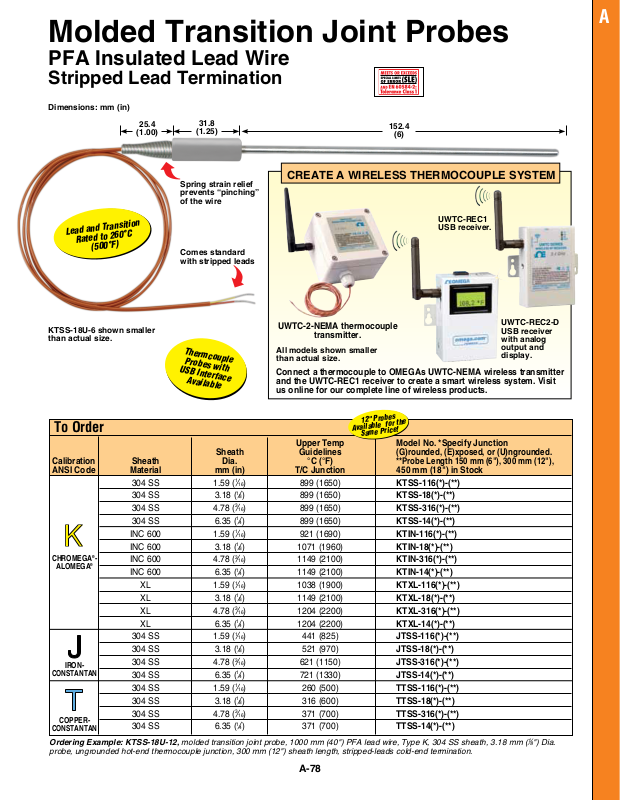

Molded Transition Joint Probes
PFA Insulated Lead Wire
Stripped Lead Termination
Dimensions: mm (in)
25.4
(1.00)
31.8
(1.25)
152.4
(6)
A
Spring strain relief
CREATE A WIRELESS THERMOCOUPLE SYSTEM
prevents “pinching”
of the wire
UWTC-REC1
Lead and Transition
Rated to 260°C
(500°F)
KTSS-18U-6 shown smaller
than actual size.
Comes standard
with stripped leads
Thermcouple
Probes with
USB Interface
Available
UWTC-2-NEMA thermocouple
transmitter.
All models shown smaller
than actual size.
Connect a thermocouple to OMEGAs UWTC-NEMA wireless transmitter
and the UWTC-REC1 receiver to create a smart wireless system. Visit
us online for our complete line of wireless products.
12" Probes
To Order
Sheath Guidelines
Calibration Sheath Dia. °C (°F)
Upper Temp
Available for the
Same Price!
Model No. *Specify Junction
(G)rounded, (E)xposed, or (U)ngrounded.
**Probe Length 150 mm (6"), 300 mm (12"),
ANSI Code Material mm (in) T/C Junction 450 mm (18") in Stock
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
304 SS 6.35 (
INC 600 1.59 (
INC 600 3.18 (
CHROMEGA®-
INC 600 4.78 (
ALOMEGA
INC 600 6.35 (
®
XL 1.59 (
XL 3.18 (
XL 4.78 (
XL 6.35 (
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
IRON-
CONSTANTAN
304 SS 6.35 (
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
COPPER-
304 SS 6.35 (
CONSTANTAN
Ordering Example: KTSS-18U-12, molded transition joint probe, 1000 mm (40") PFA lead wire, Type K, 304 SS sheath, 3.18 mm (
probe, ungrounded hot-end thermocouple junction, 300 mm (12") sheath length, stripped-leads cold-end termination.
1
⁄16) 899 (1650) KTSS-116(*)-(**)
1
⁄8) 899 (1650) KTSS-18(*)-(**)
3
⁄16) 899 (1650) KTSS-316(*)-(**)
1
⁄4) 899 (1650) KTSS-14(*)-(**)
1
⁄16) 921 (1690) KTIN-116(*)-(**)
1
⁄8) 1071 (1960) KTIN-18(*)-(**)
3
⁄16) 1149 (2100) KTIN-316(*)-(**)
1
⁄4) 1149 (2100) KTIN-14(*)-(**)
1
⁄16) 1038 (1900) KTXL-116(*)-(**)
1
⁄8) 1149 (2100) KTXL-18(*)-(**)
3
⁄16) 1204 (2200) KTXL-316(*)-(**)
1
⁄4) 1204 (2200) KTXL-14(*)-(**)
1
⁄16) 441 (825) JTSS-116(*)-(**)
1
⁄8) 521 (970) JTSS-18(*)-(**)
3
⁄16) 621 (1150) JTSS-316(*)-(**)
1
⁄4) 721 (1330) JTSS-14(*)-(**)
1
⁄16) 260 (500) TTSS-116(*)-(**)
1
⁄8) 316 (600) TTSS-18(*)-(**)
3
⁄16) 371 (700) TTSS-316(*)-(**)
1
⁄4) 371 (700) TTSS-14(*)-(**)
USB receiver.
UWTC-REC2-D
USB receiver
with analog
output and
display.
1
⁄8") Dia.
