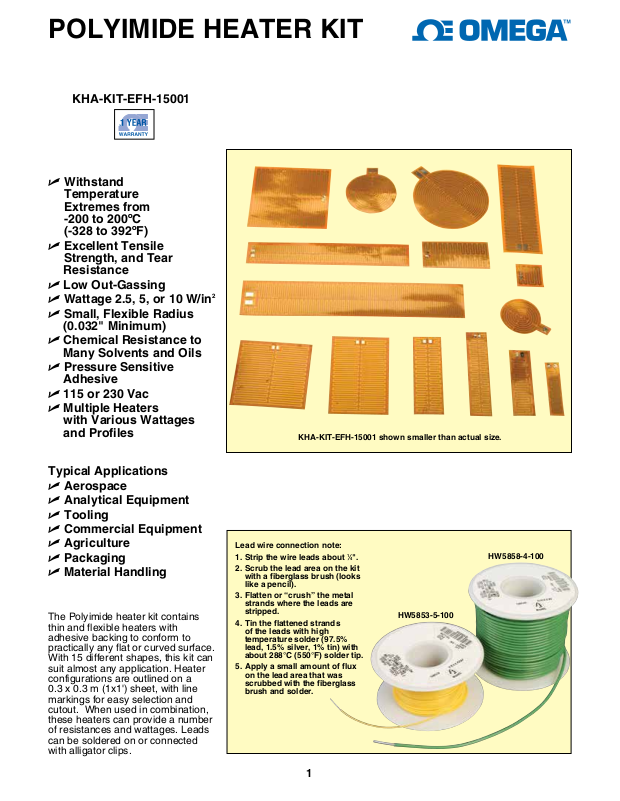

POLYIMIDE HEATER KIT
KHA-KIT-EFH-15001
TM
U Withstand
Temperature
Extremes from
-200 to 200ºC
(-328 to 392ºF)
U Excellent Tensile
Strength, and Tear
Resistance
U Low Out-Gassing
U Wattage 2.5, 5, or 10 W/in
U Small, Flexible Radius
(0.032" Minimum)
U Chemical Resistance to
Many Solvents and Oils
U Pressure Sensitive
Adhesive
U 115 or 230 Vac
U Multiple Heaters
with Various Wattages
and Profiles
2

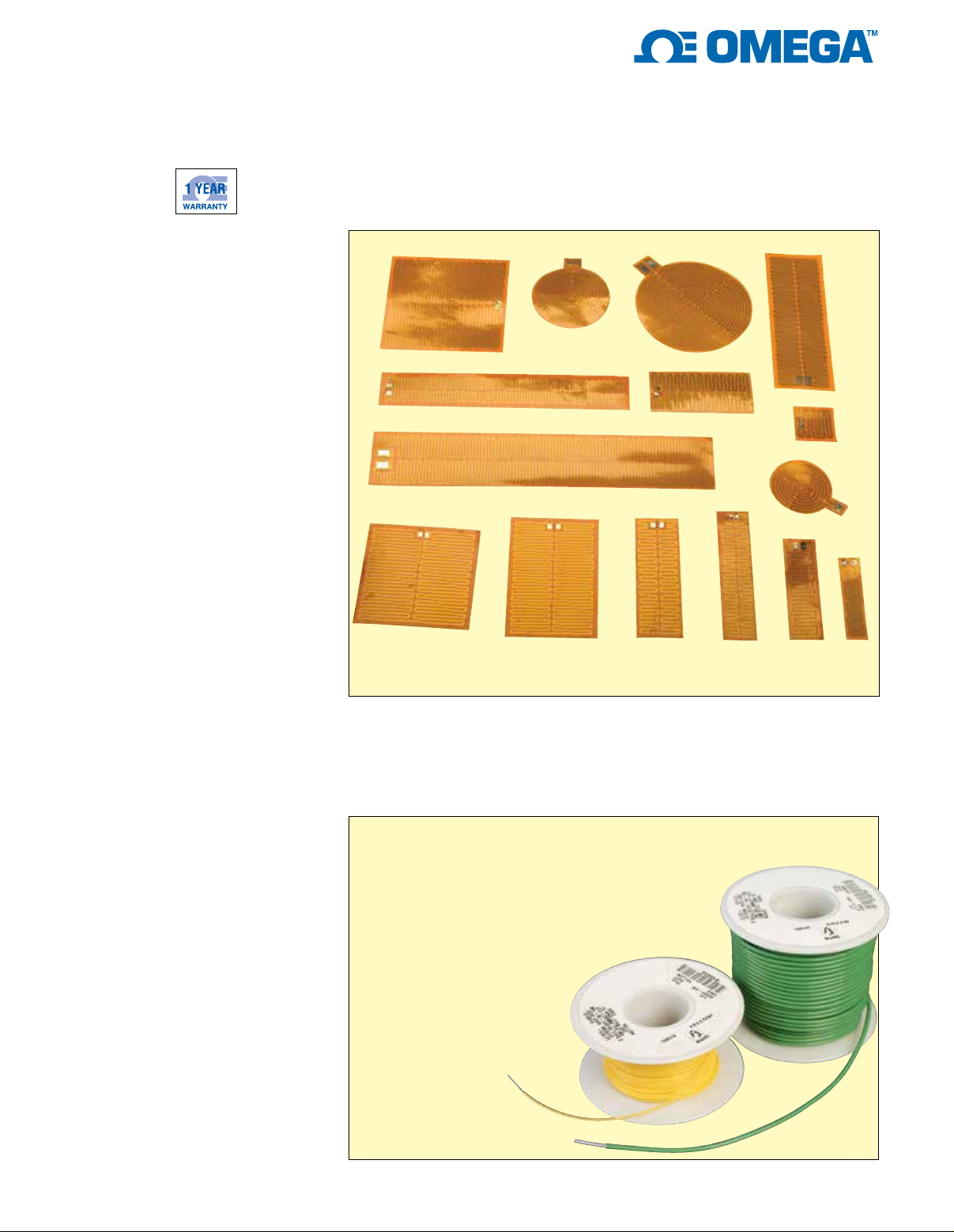

KHA-KIT-EFH-15001 shown smaller than actual size.
Typical Applications
U Aerospace
U Analytical Equipment
U Tooling
U Commercial Equipment
U Agriculture
U Packaging
U Material Handling
The Polyimide heater kit contains
thin and flexible heaters with
adhesive backing to conform to
practically any flat or curved surface.
With 15 different shapes, this kit can
suit almost any application. Heater
configurations are outlined on a
0.3 x 0.3 m (1x1') sheet, with line
markings for easy selection and
cutout. When used in combination,
these heaters can provide a number
of resistances and wattages. Leads
can be soldered on or connected
with alligator clips.
Lead wire connection note:
1. Strip the wire leads about 1⁄4".
2. Scrub the lead area on the kit
with a fiberglass brush (looks
like a pencil).
3. Flatten or “crush” the metal
strands where the leads are
stripped.
4. Tin the flattened strands
of the leads with high
temperature solder (97.5%
lead, 1.5% silver, 1% tin) with
about 288°C (550°F) solder tip.
5. Apply a small amount of flux
on the lead area that was
scrubbed with the fiberglass
brush and solder.
HW5858-4-100
HW5853-5-100
1
Page 2
Specifications
Thickness: 0.203 mm (0.008")
Maximum Operating
Temperature:
Polyimide:
Adhesive Backing
(Continuous Use):
149°C (300ºF)
Adhesive Backing
(Short Time Periods):
Up to 232°C (450°F)
Dielectric Strength: 1000 Vac
minimum
200°C (392°F)
Recommended Leads: Current Rating Table
Wire Gage (AWG) Maximum Current (A)
28
26
24
22
20
18
16
14
A PTFE-insulated lead wire is recommended for energizing the heater. Use heater wattage
chart below along with current rating table to determine the recommended lead-wire gage.
1.25
1.25
3.16
5
10
15
15
20
Note: The chart below shows wattage
outputs when heaters are connected to
various power supplies. Resistance values
are nominal values only. The resistance
values have a tolerance of ±10%.
improperly or installed or used
Heater Wattage Chart
Size Resistance Watts Watts Watts Watts
(inch) (Ω) (12V) Amps (28V) Amps (115V) Watts (230V) Amps
0.5 x 2.0 8.8 16.4 1.4 89.1 3.2 1502.8 13.1 6011.4 26.1
0.75 x 2.5 23.5 6.1 0.5 33.4 1.2 562.8 4.9 2251.1 9.8
0.75 x 3.25 33.2 4.3 0.4 23.6 0.8 398.3 3.5 1593.4 6.9
1.0 x 1.0 11.0 13.1 1.1 71.3 2.5 1202.3 10.5 4809.1 20.9
1.0 x 3.0 40.0 3.6 0.3 19.6 0.7 330.6 2.9 1322.5 5.8
1.0 x 6.0 105.9 1.4 0.1 7.4 0.3 124.9 1.1 499.5 2.2
1.5 Dia. 32.8 4.4 0.4 23.9 0.9 403.2 3.5 1612.8 7.0
1.5 x 4.5 120.3 1.2 0.1 6.5 0.2 109.9 1.0 439.7 1.9
1.5 x 8.0 252.0 0.6 0.0 3.1 0.1 52.5 0.5 209.9 0.9
2.0 Dia. 56.4 2.6 0.2 13.9 0.5 234.5 2.0 937.9 4.1
2.0 x 3.0 103.7 1.4 0.1 7.6 0.3 127.5 1.1 510.1 2.2
2.5 x 1.25 42.8 3.4 0.3 18.3 0.7 309.0 2.7 1236.0 5.4
2.5 x 2.5 108.6 1.3 0.1 7.2 0.3 121.8 1.1 487.1 2.1
3.0 Dia. 169.0 0.9 0.1 4.6 0.2 78.3 0.7 313.0 1.4
3.0 x 3.0 153.7 0.9 0.1 5.1 0.2 86.0 0.7 344.2 1.5
Note: All kit heaters require either a temperature or power controller to regulate heater temperature.
WARNING!
Fire and elctrical shock may
result if products are used
by non-qualified personnel.
CAUTION AND
To Order
Model No. Description
KHA-KIT-EFH-15001 Polyimide flexible heater sample kit with 15 different shapes
