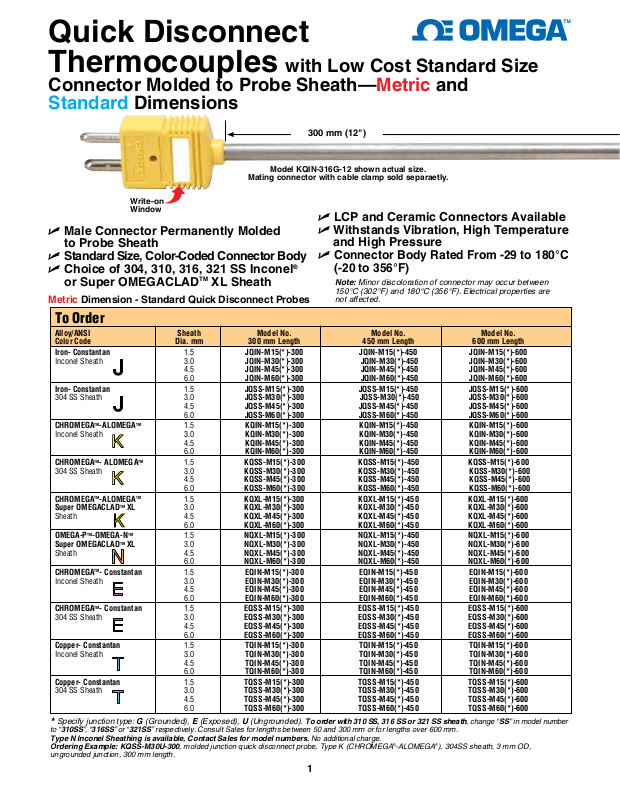

Page 1
Quick Disconnect
Thermocouples
with Low Cost Standard Size
Connector Molded to Probe Sheath—Metric and
Standard Dimensions
300 mm (12")

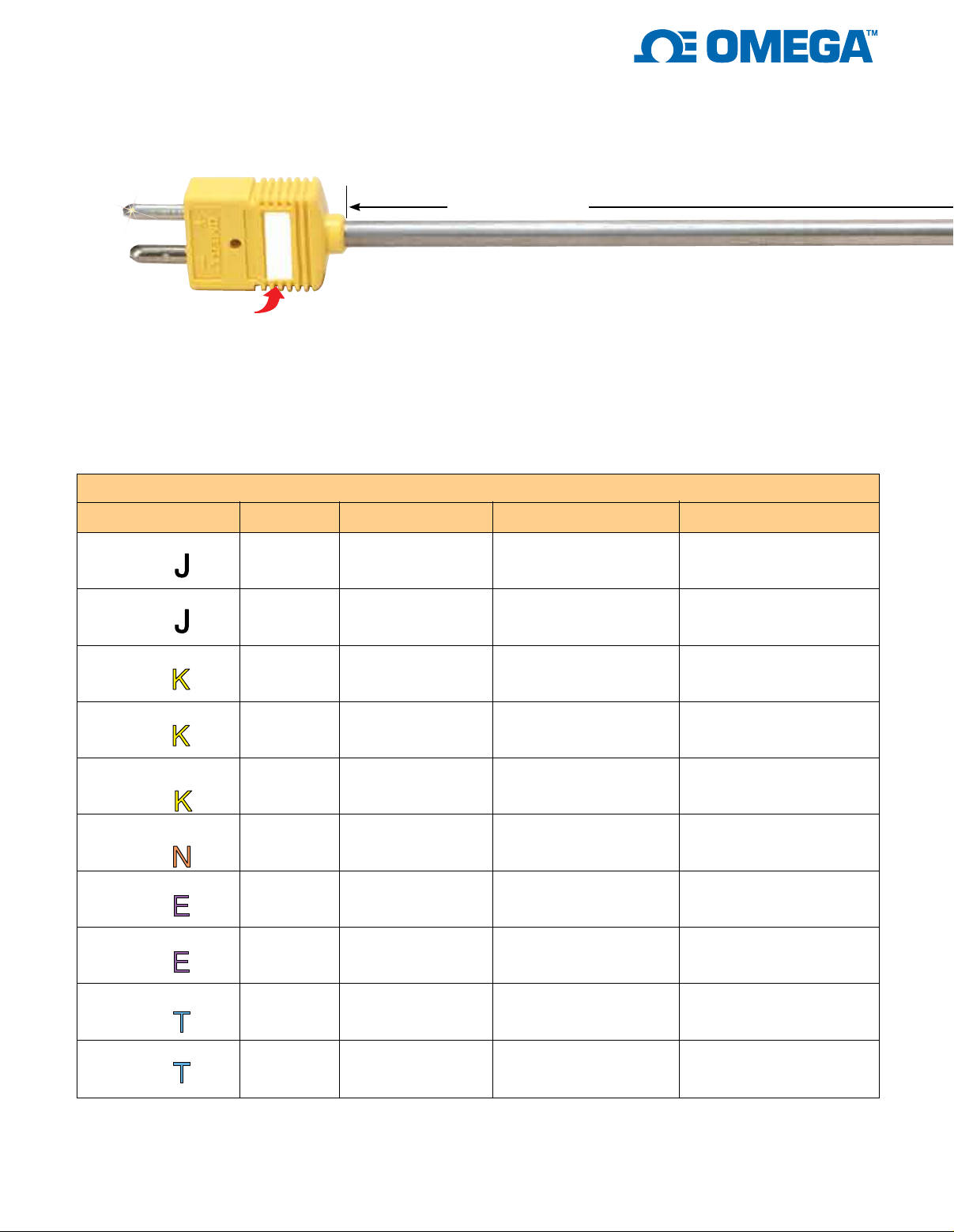

Model KQIN-316G-12 shown actual size.
Mating connector with cable clamp sold separaetly.
Write-on
Window
U Male Connector Permanently Molded
to Probe Sheath
U Standard Size, Color-Coded Connector Body
U Choice of 304, 310, 316, 321 SS Inconel
or Super OMEGACLADTM XL Sheath
Metric Dimension - Standard Quick Disconnect Probes
To Order
Alloy/ANSI Sheath Model No. Model No. Model No.
Color Code Dia. mm 300 mm Length 450 mm Length 600 mm Length
Iron- Constantan 1.5 JQIN-M15(*)-300 JQIN-M15(*)-450 JQIN-M15(*)-600
Inconel Sheath 3.0 JQIN-M30(*)-300 JQIN-M30(*)-450 JQIN-M30(*)-600
4.5 JQIN-M45(*)-300 JQIN-M45(*)-450 JQIN-M45(*)-600
6.0 JQIN-M60(*)-300 JQIN-M60(*)-450 JQIN-M60(*)-600
Iron- Constantan 1.5 JQSS-M15(*)-300 JQSS-M15(*)-450 JQSS-M15(*)-600
304 SS Sheath 3.0 JQSS-M30(*)-300 JQSS-M30(*)-450 JQSS-M30(*)-600
4.5 JQSS-M45(*)-300 JQSS-M45(*)-450 JQSS-M45(*)-600
6.0 JQSS-M60(*)-300 JQSS-M60(*)-450 JQSS-M60(*)-600
CHROMEGA
Inconel Sheath 3.0 KQIN-M30(*)-300 KQIN-M30(*)-450 KQIN-M30(*)-600
4.5 KQIN-M45(*)-300 KQIN-M45(*)-450 KQIN-M45(*)-600
6.0 KQIN-M60(*)-300 KQIN-M60(*)-450 KQIN-M60(*)-600
CHROMEGA
304 SS Sheath 3.0 KQSS-M30(*)-300 KQSS-M30(*)-450 KQSS-M30(*)-600
4.5 KQSS-M45(*)-300 KQSS-M45(*)-450 KQSS-M45(*)-600
6.0 KQSS-M60(*)-300 KQSS-M60(*)-450 KQSS-M60(*)-600
CHROMEGA
Super OMEGACLAD
Sheath 4.5 KQXL-M45(*)-300 KQXL-M45(*)-450 KQXL-M45(*)-600
6.0 KQXL-M60(*)-300 KQXL-M60(*)-450 KQXL-M60(*)-600
OMEGA-P
Super OMEGACLAD
Sheath 4.5 NQXL-M45(*)-300 NQXL-M45(*)-450 NQXL-M45(*)-600
6.0 NQXL-M60(*)-300 NQXL-M60(*)-450 NQXL-M60(*)-600
CHROMEGA
Inconel Sheath 3.0 EQIN-M30(*)-300 EQIN-M30(*)-450 EQIN-M30(*)-600
4.5 EQIN-M45(*)-300 EQIN-M45(*)-450 EQIN-M45(*)-600
6.0 EQIN-M60(*)-300 EQIN-M60(*)-450 EQIN-M60(*)-600
CHROMEGA
304 SS Sheath 3.0 EQSS-M30(*)-300 EQSS-M30(*)-450 EQSS-M30(*)-600
4.5 EQSS-M45(*)-300 EQSS-M45(*)-450 EQSS-M45(*)-600
6.0 EQSS-M60(*)-300 EQSS-M60(*)-450 EQSS-M60(*)-600
Copper- Constantan 1.5 TQIN-M15(*)-300 TQIN-M15(*)-450 TQIN-M15(*)-600
Inconel Sheath 3.0 TQIN-M30(*)-300 TQIN-M30(*)-450 TQIN-M30(*)-600
4.5 TQIN-M45(*)-300 TQIN-M45(*)-450 TQIN-M45(*)-600
6.0 TQIN-M60(*)-300 TQIN-M60(*)-450 TQIN-M60(*)-600
Copper- Constantan 1.5 TQSS-M15(*)-300 TQSS-M15(*)-450 TQSS-M15(*)-600
304 SS Sheath 3.0 TQSS-M30(*)-300 TQSS-M30(*)-450 TQSS-M30(*)-600
4.5 TQSS-M45(*)-300 TQSS-M45(*)-450 TQSS-M45(*)-600
6.0 TQSS-M60(*)-300 TQSS-M60(*)-450 TQSS-M60(*)-600
Specify junction type: G (Grounded), E (Exposed), U (Ungrounded). To order with 310 SS, 316 SS or 321 SS sheath, change “SS” in model number
*
to “310SS”, “316SS” or “321SS” respectively. Consult Sales for lengths between 50 and 300 mm or for lengths over 600 mm.
Type N Inconel Sheathing is available, Contact Sales for model numbers. No additional charge.
Ordering Example: KQSS-M30U-300, molded junction quick disconnect probe, Type K (CHROMEGA
ungrounded junction, 300 mm length.
TM
-ALOMEGATM 1.5 KQIN-M15(*)-300 KQIN-M15(*)-450 KQIN-M15(*)-600
TM
- ALOMEGATM 1.5 KQSS-M15(*)-300 KQSS-M15(*)-450 KQSS-M15(*)-600
TM
-ALOMEGATM 1.5 KQXL-M15(*)-300 KQXL-M15(*)-450 KQXL-M15(*)-600
TM
XL 3.0 KQXL-M30(*)-300 KQXL-M30(*)-450 KQXL-M30(*)-600
TM
-OMEGA-NTM 1.5 NQXL-M15(*)-300 NQXL-M15(*)-450 NQXL-M15(*)-600
TM
XL 3.0 NQXL-M30(*)-300 NQXL-M30(*)-450 NQXL-M30(*)-600
TM
- Constantan 1.5 EQIN-M15(*)-300 EQIN-M15(*)-450 EQIN-M15(*)-600
TM
- Constantan 1.5 EQSS-M15(*)-300 EQSS-M15(*)-450 EQSS-M15(*)-600
U LCP and Ceramic Connectors Available
U Withstands Vibration, High Temperature
and High Pressure
U
®
Connector Body Rated From -29 to 180°C
(-20 to 356°F)
Note: Minor discoloration of connector may occur between
150°C (302°F) and 180°C (356°F). Electrical properties are
not affected.
®
-ALOMEGA®), 304SS sheath, 3 mm OD,
1
Page 2

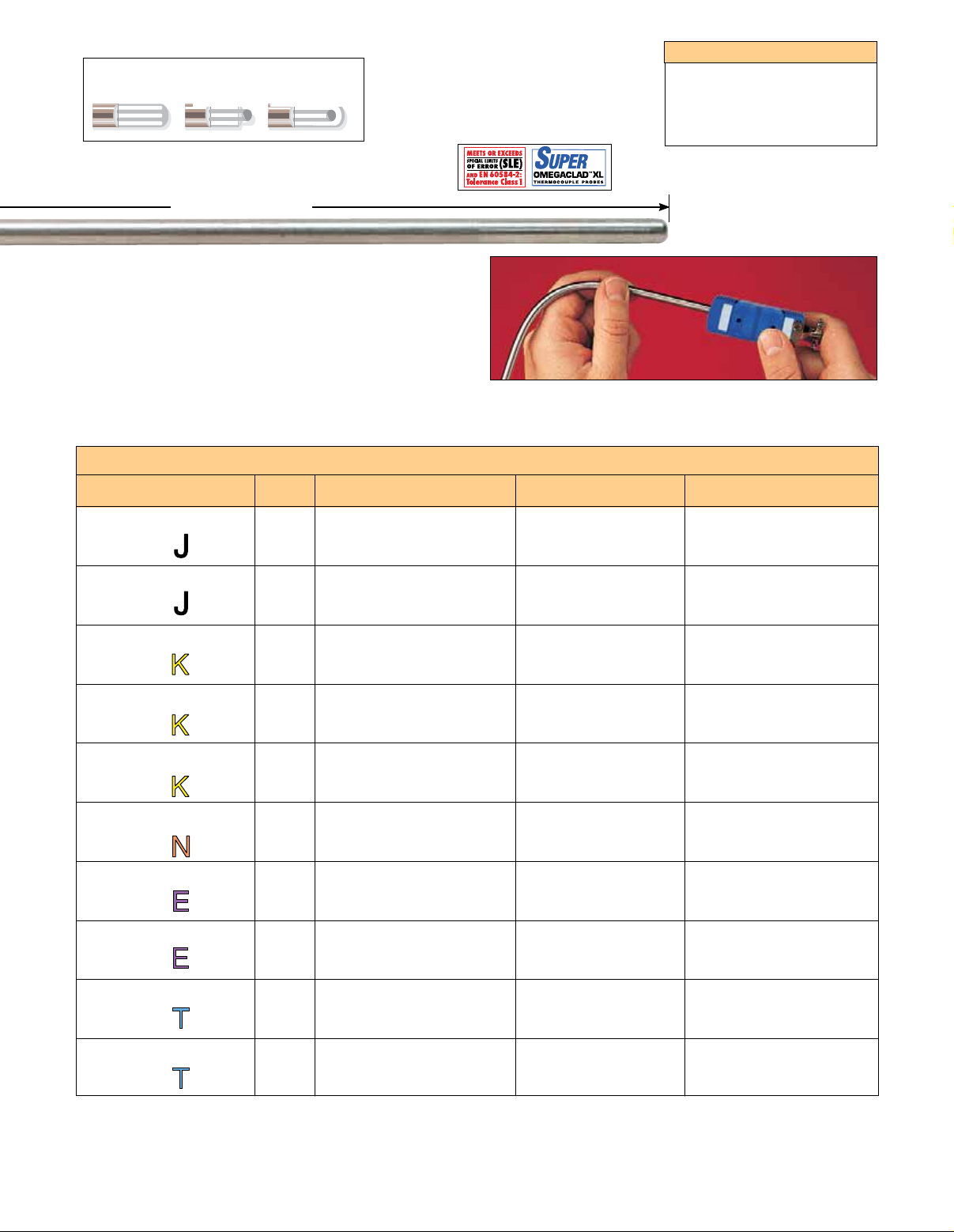

Grounded Exposed Ungrounded
Grounded
Junction Types
300 mm (12")
Discount Schedule
1-10 .................... Net
UngroundedExposed
11-24 ...................10%
25-49 ...................15%
Available as
50 and over ..... Consult Sales
The OMEGA
TM
quick disconnect molded
thermocouple assemblies are available with sheath
diameters of 1.5, 3, 4.5 and 6 mm (1⁄16, 1⁄8, 3⁄16 and 1⁄4")
in standard 300, 450 and 600 mm (12, 18 and 24")
nominal lengths. Custom lengths are also available,
consult sales for details.
Standard Dimension - Standard Quick Disconnect Probes
To Order
Alloy/ANSI Sheath Model No. Model No. Model No.
Color Code Dia. in. 12" Length 18" Length 24" Length
Iron- Constantan
Inconel Sheath
Iron- Constantan
304 SS Sheath
CHROMEGATM-ALOMEGATM
Inconel Sheath
CHROMEGATM- ALOMEGATM
304 SS Sheath
CHROMEGATM-ALOMEGATM
Super OMEGACLADTM XL
Sheath
OMEGA-PTM-OMEGA-NTM
Super OMEGACLADTM XL
Sheath
CHROMEGATM- Constantan
Inconel Sheath
CHROMEGATM- Constantan
304 SS Sheath
Copper- Constantan
Inconel Sheath
Copper- Constantan
304 SS Sheath
Specify junction type: G (Grounded), E (Exposed), U (Ungrounded).
*
To order with 310, 316 or 321 SS sheath, change “SS” in model number to “310SS”, “316SS” or “321SS” respectively; no additional charge. Consult Sales
for lengths between 2 to 12", or for lengths over 24". Type N Inconel Sheathing is available, Contact Sales for part numbers.
Ordering Example: KQSS-18U-12, molded junction quick disconnect probe, type K (CHROMEGATM-ALOMEGATM), 304SS sheath, 1⁄8" OD, ungrounded
junction, 12" length.
1
⁄16 JQIN-116(*)-12 JQIN-116(*)-18 JQIN-116(*)-24
1
⁄8 JQIN-18(*)-12 JQIN-18(*)-18 JQIN-18(*)-24
3
⁄16 JQIN-316(*)-12 JQIN-316(*)-18 JQIN-316(*)-24
1
⁄4 JQIN-14(*)-12 JQIN-14(*)-18 JQIN-14(*)-24
1
⁄16 JQSS-116(*)-12 JQSS-116(*)-18 JQSS-116(*)-24
1
⁄8 JQSS-18(*)-12 JQSS-18(*)-18 JQSS-18(*)-24
3
⁄16 JQSS-316(*)-12 JQSS-316(*)-18 JQSS-316(*)-24
1
⁄4 JQSS-14(*)-12 JQSS-14(*)-18 JQSS-14(*)-24
1
⁄16 KQIN-116(*)-12 KQIN-116(*)-18 KQIN-116(*)-24
1
⁄8 KQIN-18(*)-12 KQIN-18(*)-18 KQIN-18(*)-24
3
⁄16 KQIN-316(*)-12 KQIN-316(*)-18 KQIN-316(*)-24
1
⁄4 KQIN-14(*)-12 KQIN-14(*)-18 KQIN-14(*)-24
1
⁄16 KQSS-116(*)-12 KQSS-116(*)-18 KQSS-116(*)-24
1
⁄8 KQSS-18(*)-12 KQSS-18(*)-18 KQSS-18(*)-24
3
⁄16 KQSS-316(*)-12 KQSS-316(*)-18 KQSS-316(*)-24
1
⁄4 KQSS-14(*)-12 KQSS-14(*)-18 KQSS-14(*)-24
1
⁄16 KQXL-116(*)-12 KQXL-116(*)-18 KQXL-116(*)-24
1
⁄8 KQXL-18(*)-12 KQXL-18(*)-18 KQXL-18(*)-24
3
⁄16 KQXL-316(*)-12 KQXL-316(*)-18 KQXL-316(*)-24
1
⁄4 KQXL-14(*)-12 KQXL-14(*)-18 KQXL-14(*)-24
1
⁄16 NQXL-116(*)-12 NQXL-116(*)-18 NQXL-116(*)-24
1
⁄8 NQXL-18(*)-12 NQXL-18(*)-18 NQXL-18(*)-24
3
⁄16 NQXL-316(*)-12 NQXL-316(*)-18 NQXL-316(*)-24
1
⁄4 NQXL-14(*)-12 NQXL-14(*)-18 NQXL-14(*)-24
1
⁄16 EQIN-116(*)-12 EQIN-116(*)-18 EQIN-116(*)-24
1
⁄8 EQIN-18(*)-12 EQIN-18(*)-18 EQIN-18(*)-24
3
⁄16 EQIN-316(*)-12 EQIN-316(*)-18 EQIN-316(*)-24
1
⁄4 EQIN-14(*)-12 EQIN-14(*)-18 EQIN-14(*)-24
1
⁄16 EQSS-116(*)-12 EQSS-116(*)-18 EQSS-116(*)-24
1
⁄8 EQSS-18(*)-12 EQSS-18(*)-18 EQSS-18(*)-24
3
⁄16 EQSS-316(*)-12 EQSS-316(*)-18 EQSS-316(*)-24
1
⁄4 EQSS-14(*)-12 EQSS-14(*)-18 EQSS-14(*)-24
1
⁄16 TQIN-116(*)-12 TQIN-116(*)-18 TQIN-116(*)-24
1
⁄8 TQIN-18(*)-12 TQIN-18(*)-18 TQIN-18(*)-24
3
⁄16 TQIN-316(*)-12 TQIN-316(*)-18 TQIN-316(*)-24
1
⁄4 TQIN-14(*)-12 TQIN-14(*)-18 TQIN-14(*)-24
1
⁄16 TQSS-116(*)-12 TQSS-116(*)-18 TQSS-116(*)-24
1
⁄8 TQSS-18(*)-12 TQSS-18(*)-18 TQSS-18(*)-24
3
⁄16 TQSS-316(*)-12 TQSS-316(*)-18 TQSS-316(*)-24
1
⁄4 TQSS-14(*)-12 TQSS-14(*)-18 TQSS-14(*)-24
Images are for referance only.
Made from Special Limits of Error OMEGACLADTM wire. Probes
can be bent to between 2 and 3 times the diameter
2
Page 3
Metric Accessories
Alloy/ANSI
Color Code
Iron-
Constantan
Inconel
Sheath
Iron-
Constantan
304 SS
Sheath
CHROMEGA
ALOMEGA
Inconel
Sheath
CHROMEGA
ALOMEGA
304 SS
Sheath
CHROMEGATMALOMEGA
Super
OMEGACLAD
XL
Sheath
OMEGA-P
OMEGA-N
TM
TM
Super
OMEGACLAD
XL
Sheath
CHROMEGA
Constantan
Inconel
Sheath
CHROMEGA
Constantan
304 SS
Sheath
Copper-
Constantan
Inconel
Sheath
Copper-
Constantan
304 SS
Sheath
All Accessories Sold Seperately.
* Specify junction type: G (Grounded), E (Exposed), U (Ungrounded).
Model No.
300 mm Length
JQIN-M15(*)-300
JQIN-M30(*)-300
JQIN-M45(*)-300
JQIN-M60(*)-300
JQSS-M15(*)-300
JQSS-M30(*)-300
JQSS-M45(*)-300
JQSS-M60(*)-300
TM
KQIN-M15(*)-300
-
TM
KQIN-M30(*)-300
KQIN-M45(*)-300
KQIN-M60(*)-300
TM
KQSS-M15(*)-300
-
TM
KQSS-M30(*)-300
KQSS-M45(*)-300
KQSS-M60(*)-300
KQXL-M15(*)-300
TM
KQXL-M30(*)-300
KQXL-M45(*)-300
TM
KQXL-M60(*)-300
KQXL-M15(*)-300
-
KQXL-M30(*)-300
KQXL-M45(*)-300
TM
KQXL-M60(*)-300
TM
EQIN-M15(*)-300
-
EQIN-M30(*)-300
EQIN-M45(*)-300
EQIN-M60(*)-300
TM
EQSS-M15(*)-300
-
EQSS-M30(*)-300
EQSS-M45(*)-300
EQSS-M60(*)-300
TQIN-M15(*)-300
TQIN-M30(*)-300
TQIN-M45(*)-300
TQIN-M60(*)-300
TQSS-M15(*)-300
TQSS-M30(*)-300
TQSS-M45(*)-300
TQSS-M60(*)-300
Model No.
450 mm Length
JQIN-M15(*)-450
JQIN-M30(*)-450
JQIN-M45(*)-450
JQIN-M60(*)-450
JQSS-M15(*)-450
JQSS-M30(*)-450
JQSS-M45(*)-450
JQSS-M60(*)-450
KQIN-M15(*)-450
KQIN-M30(*)-450
KQIN-M45(*)-450
KQIN-M60(*)-450
KQSS-M15(*)-450
KQSS-M30(*)-450
KQSS-M45(*)-450
KQSS-M60(*)-450
KQXL-M15(*)-450
KQXL-M30(*)-450
KQXL-M45(*)-450
KQXL-M60(*)-450
NQXL-M15(*)-450
NQXL-M30(*)-450
NQXL-M45(*)-450
NQXL-M60(*)-450
EQIN-M15(*)-450
EQIN-M30(*)-450
EQIN-M45(*)-450
EQIN-M60(*)-450
EQSS-M15(*)-450
EQSS-M30(*)-450
EQSS-M45(*)-450
EQSS-M60(*)-450
TQIN-M15(*)-450
TQIN-M30(*)-450
TQIN-M45(*)-450
TQIN-M60(*)-450
TQSS-M15(*)-450
TQSS-M30(*)-450
TQSS-M45(*)-450
TQSS-M60(*)-450
Model No.
600 mm Length
JQIN-M15(*)-600
JQIN-M30(*)-600
JQIN-M45(*)-600
JQIN-M60(*)-600
JQSS-M15(*)-600
JQSS-M30(*)-600
JQSS-M45(*)-600
JQSS-M60(*)-600
KQIN-M15(*)-600
KQIN-M30(*)-600
KQIN-M45(*)-600
KQIN-M60(*)-600
KQSS-M15(*)-600
KQSS-M30(*)-600
KQSS-M45(*)-600
KQSS-M60(*)-600
KQXL-M15(*)-600
KQXL-M30(*)-600
KQXL-M45(*)-600
KQXL-M60(*)-600
NQXL-M15(*)-600
NQXL-M30(*)-600
NQXL-M45(*)-600
NQXL-M60(*)-600
EQIN-M15(*)-600
EQIN-M30(*)-600
EQIN-M45(*)-600
EQIN-M60(*)-600
EQSS-M15(*)-600
EQSS-M30(*)-600
EQSS-M45(*)-600
EQSS-M60(*)-600
TQIN-M15(*)-600
TQIN-M30(*)-600
TQIN-M45(*)-600
TQIN-M60(*)-600
TQSS-M15(*)-600
TQSS-M30(*)-600
TQSS-M45(*)-600
TQSS-M60(*)-600
Mating
Connector
Model No.
OSTW-J-F
OSTW-K-F
OSTW-N-F
OSTW-E-F
OSTW-T-F
Cable
Clamp
Model No.
Model No.
PCLM SFCL
Safety
Clip
3
Page 4
Standard Accessories
Alloy/ANSI
Color Code
Iron-
Constantan
Inconel
Sheath
Iron-
Constantan
304 SS
Sheath
CHROMEGA
ALOMEGA
Inconel
Sheath
CHROMEGA
ALOMEGA
304 SS
Sheath
CHROMEGATMALOMEGA
Super
OMEGACLAD
XL
Sheath
OMEGA-P
OMEGA-N
TM
TM
Super
OMEGACLAD
XL
Sheath
CHROMEGA
Constantan
Inconel
Sheath
CHROMEGA
Constantan
304 SS
Sheath
Copper-
Constantan
Inconel
Sheath
Copper-
Constantan
304 SS
Sheath
All Accessories Sold Seperately.
* Specify junction type: G (Grounded), E (Exposed), U (Ungrounded).
Model No.
12” Length
JQIN-116(*)-12
JQIN-18(*)-12
JQIN-316(*)-12
JQIN-14(*)-12
JQSS-116(*)-12
JQSS-18(*)-12
JQSS-316(*)-12
JQSS-14(*)-12
TM
KQIN-116(*)-12
-
TM
KQIN-18(*)-12
KQIN-316(*)-12
KQIN-14(*)-12
TM
KQSS-116(*)-12
-
TM
KQSS-18(*)-12
KQSS-316(*)-12
KQSS-14(*)-12
KQXL-116(*)-12
TM
KQXL-18(*)-12
KQXL-316(*)-12
TM
KQXL-14(*)-12
NQXL-116(*)-12
-
NQXL-18(*)-12
NQXL-316(*)-12
TM
NQXL-14(*)-12
TM
EQIN-116(*)-12
-
EQIN-18(*)-12
EQIN-316(*)-12
EQIN-14(*)-12
TM
EQSS-116(*)-12
-
EQSS-18(*)-12
EQSS-316(*)-12
EQSS-14(*)-12
TQIN-116(*)-12
TQIN-18(*)-12
TQIN-316(*)-12
TQIN-14(*)-12
TQSS-116(*)-12
TQSS-18(*)-12
TQSS-316(*)-12
TQSS-14(*)-12
Model No.
18” Length
JQIN-116(*)-18
JQIN-18(*)-18
JQIN-316(*)-18
JQIN-14(*)-18
JQSS-116(*)-18
JQSS-18(*)-18
JQSS-316(*)-18
JQSS-14(*)-18
KQIN-116(*)-18
KQIN-18(*)-18
KQIN-316(*)-18
KQIN-14(*)-18
KQSS-116(*)-18
KQSS-18(*)-18
KQSS-316(*)-18
KQSS-14(*)-18
KQXL-116(*)-18
KQXL-18(*)-18
KQXL-316(*)-18
KQXL-14(*)-18
NQXL-116(*)-18
NQXL-18(*)-18
NQXL-316(*)-18
NQXL-14(*)-18
EQIN-116(*)-18
EQIN-18(*)-18
EQIN-316(*)-18
EQIN-14(*)-18
EQSS-116(*)-18
EQSS-18(*)-18
EQSS-316(*)-18
EQSS-14(*)-18
TQIN-116(*)-18
TQIN-18(*)-18
TQIN-316(*)-18
TQIN-14(*)-18
TQSS-116(*)-18
TQSS-18(*)-18
TQSS-316(*)-18
TQSS-14(*)-18
Model No.
24” Length
JQIN-116(*)-24
JQIN-18(*)-24
JQIN-316(*)-24
JQIN-14(*)-24
JQSS-116(*)-24
JQSS-18(*)-24
JQSS-316(*)-24
JQSS-14(*)-24
KQIN-116(*)-24
KQIN-18(*)-24
KQIN-316(*)-24
KQIN-14(*)-24
KQSS-116(*)-24
KQSS-18(*)-24
KQSS-316(*)-24
KQSS-14(*)-24
KQXL-116(*)-24
KQXL-18(*)-24
KQXL-316(*)-24
KQXL-14(*)-24
NQXL-116(*)-24
NQXL-18(*)-24
NQXL-316(*)-24
NQXL-14(*)-24
EQIN-116(*)-24
EQIN-18(*)-24
EQIN-316(*)-24
EQIN-14(*)-24
EQSS-116(*)-24
EQSS-18(*)-24
EQSS-316(*)-24
EQSS-14(*)-24
TQIN-116(*)-24
TQIN-18(*)-24
TQIN-316(*)-24
TQIN-14(*)-24
TQSS-116(*)-24
TQSS-18(*)-24
TQSS-316(*)-24
TQSS-14(*)-24
Mating
Connector
Model No.
OSTW-J-F
OSTW-K-F
OSTW-N-F
OSTW-E-F
OSTW-T-F
Cable
Clamp
Model No.
Model No.
PCLM SFCL
Safety
Clip
4
Loading...
