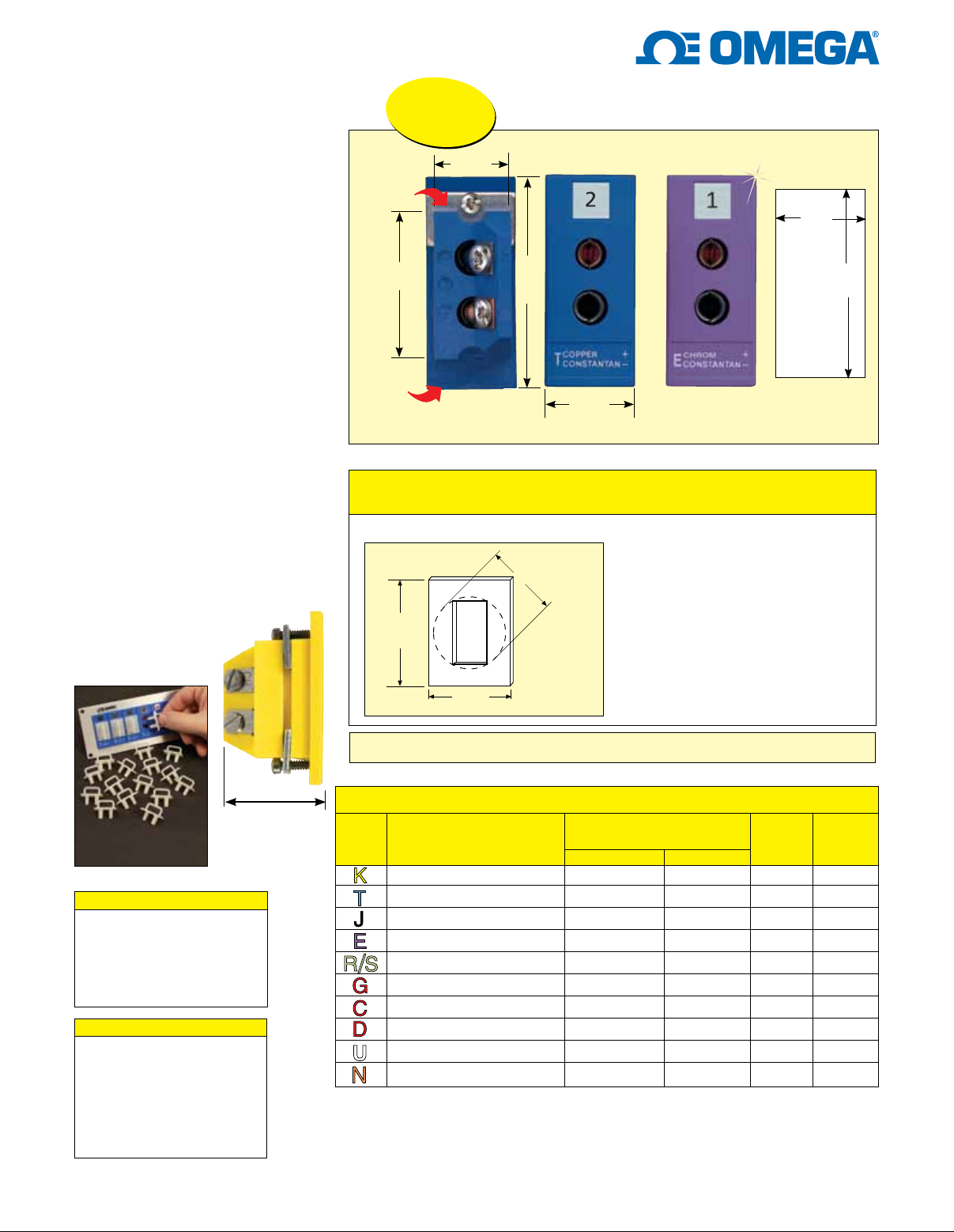

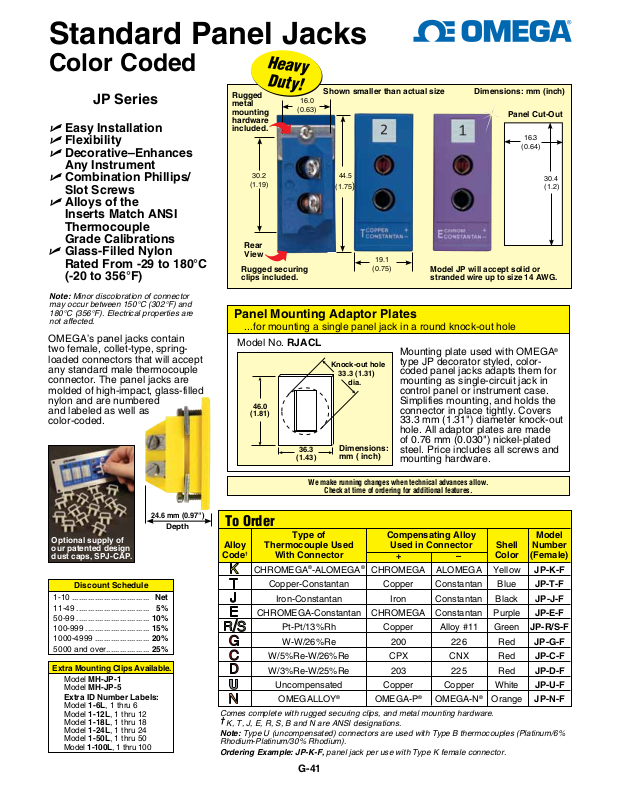

Standard Panel Jacks
U
W
U
Color Coded
JP Series
U Easy Installation
U Flexibility
U Decorative–Enhances
Any Instrument
U Combination Phillips/
Slot Screws
U Alloys of the
Inserts Match ANSI
Thermocouple
Grade Calibrations
U Glass-Filled Nylon
Rated From -29 to 180°C
(-20 to 356°F)
Note: Minor discoloration of connector
may occur between 150°C (302°F) and
180°C (356°F). Electrical properties are
not affected.
OMEGA’s panel jacks contain
two female, collet-type, springloaded connectors that will accept
any standard male thermocouple
connector. The panel jacks are
molded of high-impact, glass-filled
nylon and are numbered
and labeled as well as
color-coded.
Heavy
Duty!
Rugged
metal
mounting
hardware
included.
30.2
(1.19)
Rear
View
Rugged securing
clips included.
Panel Mounting Adaptor Plates
...for mounting a single panel jack in a round knock-out hole
Model No. RJACL
46.0
(1.81)
Shown smaller than actual size
16.0
(0.63)
44.5
(1.75)
19.1
(0.75)
Knock-out hole
33.3 (1.31)
dia.
36.3
(1.43)
Dimensions:
mm ( inch)
Model JP will accept solid or
stranded wire up to size 14 AWG.
Mounting plate used with OMEGA®
type JP decorator styled, colorcoded panel jacks adapts them for
mounting as single-circuit jack in
control panel or instrument case.
Simplifies mounting, and holds the
connector in place tightly. Covers
33.3 mm (1.31") diameter knock-out
hole. All adaptor plates are made
of 0.76 mm (0.030") nickel-plated
steel. Price includes all screws and
mounting hardware.
Dimensions: mm (inch)
Panel Cut-Out
16.3
(0.64)
30.4
(1.2)
Optional supply of
our patented design
dust caps, SPJ-CAP.
Discount Schedule
1-10 .................................. Net
11-49 ................................ 5%
50-99 ................................ 10%
100-999 ............................ 15%
1000-4999 ........................ 20%
5000 and over................... 25%
Extra Mounting Clips Available.
Model MH-JP-1
Model MH-JP-5
Extra ID Number Labels:
Model 1-6L, 1 thru 6
Model 1-12L, 1 thru 12
Model 1-18L, 1 thru 18
Model 1-24L, 1 thru 24
Model 1-50L, 1 thru 50
Model 1-100L, 1 thru 100
24.6 mm (0.97")
Depth
We make running changes when technical advances allow.
Check at time of ordering for additional features.
To Order
Type of Compensating Alloy Model
Alloy Thermocouple Used Used in Connector Shell Number
†
Code
With Connector
®
CHROMEGA
Copper-Constantan Copper Constantan Blue JP-T-F
Iron-Constantan Iron Constantan Black JP-J-F
CHROMEGA-Constantan CHROMEGA
Pt-Pt/13%Rh Copper Alloy #11 Green JP-R/S-F
W-W/26%Re 200 226 Red JP-G-F
W/5%Re-W/26%Re CPX CNX Red JP-C-F
W/3%Re-W/25%Re 203 225 Red JP-D-F
Uncompensated Copper Copper White JP-U-F
OMEGALLOY
Comes complete with rugged securing clips, and metal mounting hardware.
†
K, T, J, E, R, S, B and N are ANSI designations.
Note: Type U (uncompensated) connectors are used with Type B thermocouples (Platinum/6%
Rhodium‑Platinum/30% Rhodium).
Ordering Example: JP-K-F, panel jack per use with Type K female connector.
-ALOMEGA® CHROMEGA ALOMEGA Yellow JP-K-F
®
+ –
OMEGA-P® OMEGA-N® Orange JP-N-F
G-41
Color (Female)
Constantan Purple JP-E-F
