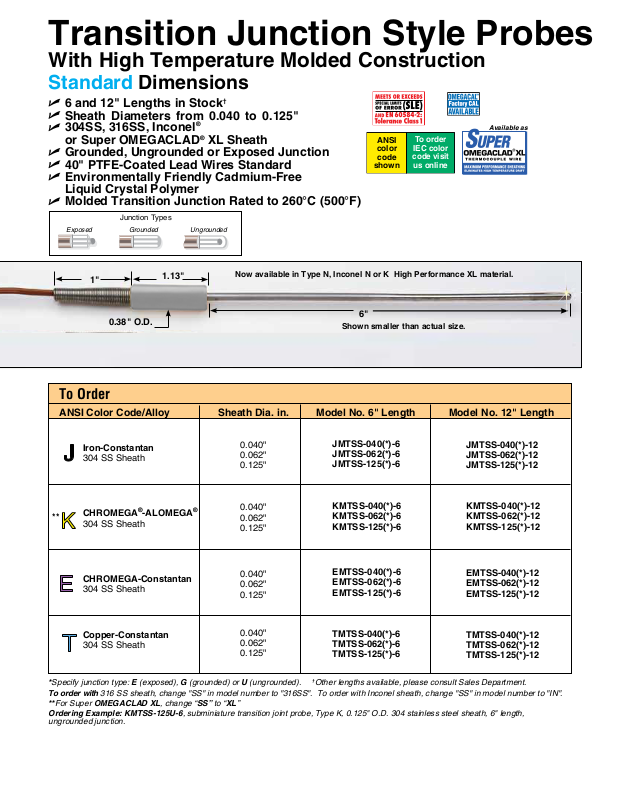

Grounded Exposed Ungrounded
Transition Junction Style Probes
With High Temperature Molded Construction
Standard Dimensions
6 and 12" Lengths in Stock
Sheath Diameters from 0.040 to 0.125"
304SS, 316SS, Inconel®
or Super OMEGACLAD® XL Sheath
Grounded, Ungrounded or Exposed Junction
40" PTFE-Coated Lead Wires Standard
Environmentally Friendly Cadmium-Free
Liquid Crystal Polymer
Molded Transition Junction Rated to 260°C (500°F)
Junction Types
Exposed
Grounded
Ungrounded
†
Available as
ANSI
color
code
shown
To order
IEC color
code visit
us online
1"
1.13"
0.38" O.D.
Now available in Type N, Inconel N or K High Performance XL material.
6"
Shown smaller than actual size.
To Order
ANSI Color Code/Alloy Sheath Dia. in. Model No. 6" Length Model No. 12" Length
Iron-Constantan
304 SS Sheath
CHROMEGA
**
304 SS Sheath
CHROMEGA-Constantan
304 SS Sheath
®
-ALOMEGA®
0.040"
0.062"
0.125"
0.040"
0.062"
0.125"
0.040"
0.062"
0.125"
JMTSS-040(*)-6
JMTSS-062(*)-6
JMTSS-125(*)-6
KMTSS-040(*)-6
KMTSS-062(*)-6
KMTSS-125(*)-6
EMTSS-040(*)-6
EMTSS-062(*)-6
EMTSS-125(*)-6
JMTSS-040(*)-12
JMTSS-062(*)-12
JMTSS-125(*)-12
KMTSS-040(*)-12
KMTSS-062(*)-12
KMTSS-125(*)-12
EMTSS-040(*)-12
EMTSS-062(*)-12
EMTSS-125(*)-12
Copper-Constantan
304 SS Sheath
*Specify junction type: E (exposed), G (grounded) or U (ungrounded).
To order with 316 SS sheath, change "SS" in model number to "316SS". To order with Inconel sheath, change "SS" in model number to "IN".
**For Super OMEGACLAD XL, change “SS” to “XL”
Ordering Example: KMTSS-125U-6, subminiature transition joint probe, Type K, 0.125" O.D. 304 stainless steel sheath, 6" length,
ungrounded junction.
0.040"
0.062"
0.125"
TMTSS-040(*)-6
TMTSS-062(*)-6
TMTSS-125(*)-6
†
Other lengths available, please consult Sales Department.
TMTSS-040(*)-12
TMTSS-062(*)-12
TMTSS-125(*)-12
Page 2
Transition Junction Style Probes
Grounded Exposed Ungrounded
With High Temperature Molded Construction
Metric Dimensions
150 mm and 300 mm Lengths in Stock
1 m PTFE-Coated Lead Wires Standard
Sheath Diameters from 1.0 mm to 3.0 mm
304SS, 316SS, Inconel®
or Super OMEGACLAD® XL Sheath
Grounded, Ungrounded or Exposed Junction
Environmentally Friendly Cadmium-Free
Liquid Crystal Polymer
Molded Transition Junction Rated to 260°C (500°F)
Exposed
Junction Types
Grounded
Ungrounded
†
Available as
ANSI
color
code
shown
To order
IEC color
code visit
us online
A
25.4 mm
9.7 mm O.D.
28.7 mm
Now available in Type N, Inconel N or K High Performance XL material.
150 mm
Shown smaller than actual size.
To Order
ANSI Color Code/Alloy Sheath Dia. mm Model No. 150 mm Length Model No. 300 mm Length
Iron-Constantan
304 SS Sheath
**
CHROMEGA
304 SS Sheath
CHROMEGA-Constantan
304 SS Sheath
®
-ALOMEGA®
1.0
1.5
3.0
1.0
1.5
3.0
1.0
1.5
3.0
JMTSS-M100(*)-150
JMTSS-M150(*)-150
JMTSS-M300(*)-150
KMTSS-M100(*)-150
KMTSS-M150(*)-150
KMTSS-M300(*)-150
EMTSS-M100(*)-150
EMTSS-M150(*)-150
EMTSS-M300(*)-150
JMTSS-M100(*)-300
JMTSS-M150(*)-300
JMTSS-M300(*)-300
KMTSS-M100(*)-300
KMTSS-M150(*)-300
KMTSS-M300(*)-300
EMTSS-M100(*)-300
EMTSS-M150(*)-300
EMTSS-M300(*)-300
Copper-Constantan
304 SS Sheath
*Specify junction type: E (exposed), G (grounded) or U (ungrounded)
To ord
er with 316 SS sheath, change "SS" in model number to "316SS". To order with Inconel sheath, change "SS" in model number to "IN".
**For Super OMEGACLAD XL, change “SS” to “XL”
Ordering Example: KMTSS-M150G-150, subminiature transition joint probe, Type K, 1.5 mm O.D. stainless steel sheath, 150 mm length,
grounded junction.
1.0
1.5
3.0
TMTSS-M100(*)-150
TMTSS-M150(*)-150
TMTSS-M300(*)-150
†
Other lengths available, consult Sales Department
TMTSS-M100(*)-300
TMTSS-M150(*)-300
TMTSS-M300(*)-300
