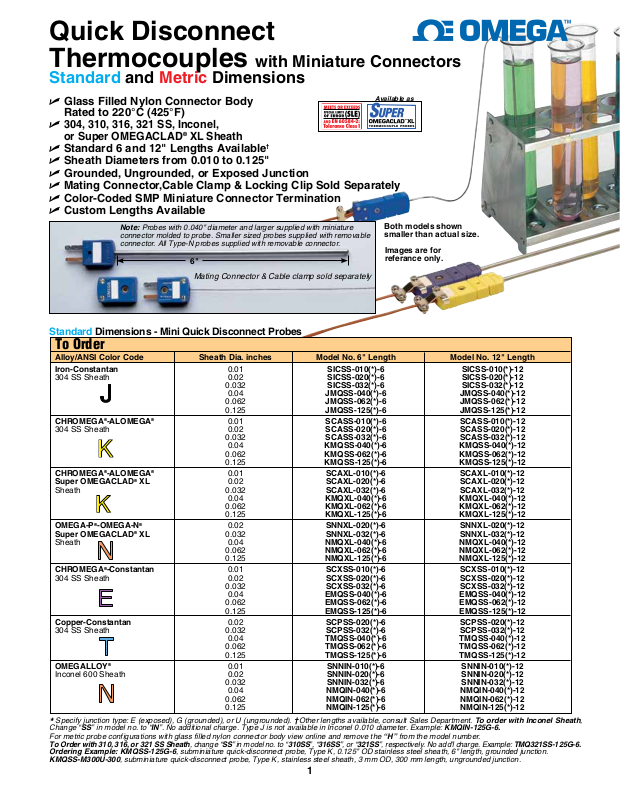

Page 1
Quick Disconnect
Thermocouples with Miniature Connectors
Standard and Metric Dimensions
U Glass Filled Nylon Connector Body
Available as
Rated to 220°C (425°F)
U
304, 310, 316, 321 SS, Inconel,
or Super OMEGACLAD® XL Sheath
U Standard 6 and 12" Lengths Available
†
U Sheath Diameters from 0.010 to 0.125"
U Grounded, Ungrounded, or Exposed Junction
U Mating Connector,Cable Clamp & Locking Clip Sold Separately
U Color-Coded SMP Miniature Connector Termination
U Custom Lengths Available
Note: Probes with 0.040" diameter and larger supplied with miniature
connector molded to probe. Smaller sized probes supplied with removable
connector. All Type-N probes supplied with removable connector.
6"
Mating Connector & Cable clamp sold separately

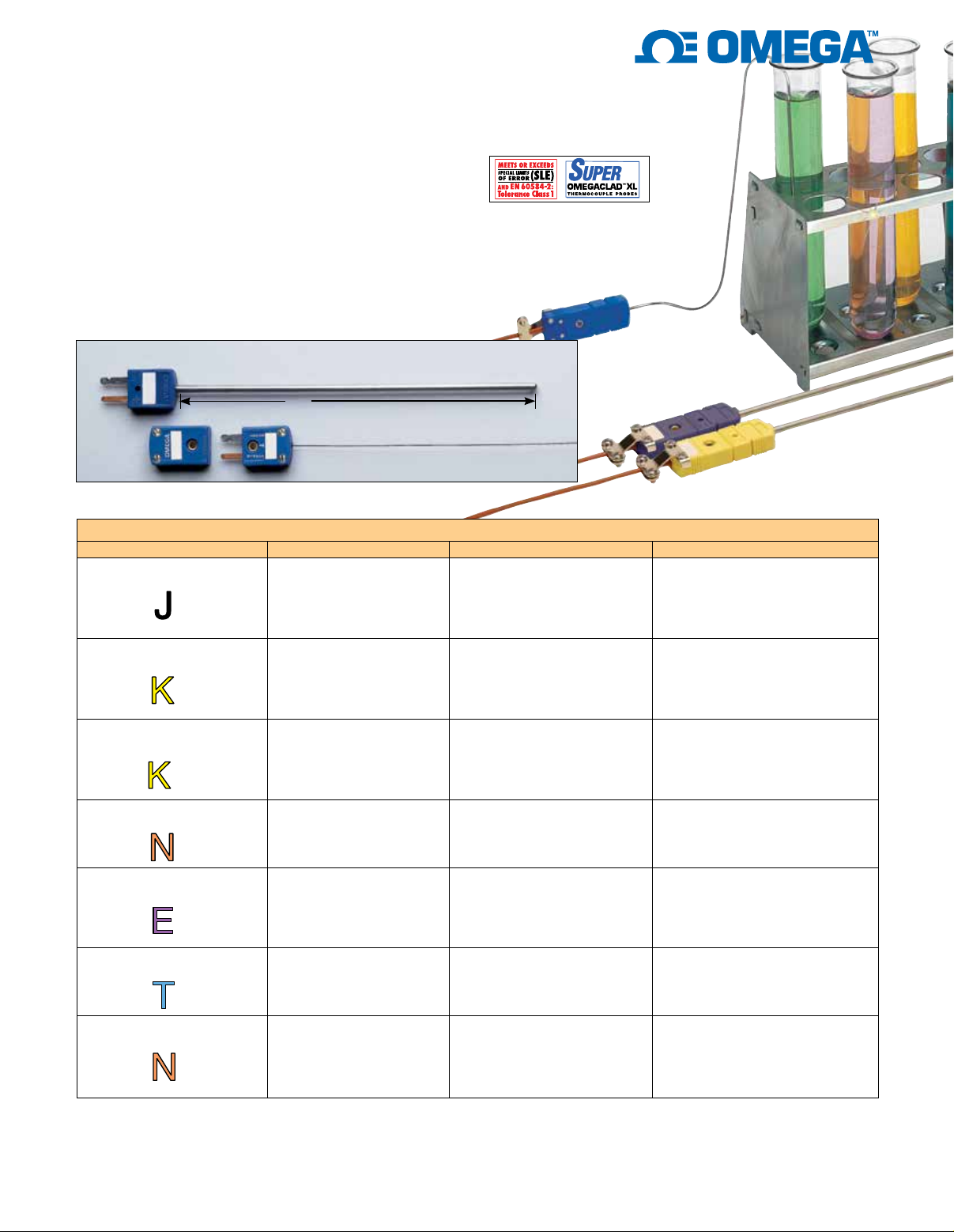

Standard Dimensions - Mini Quick Disconnect Probes
Both models shown
smaller than actual size.
Images are for
referance only.
To Order
Alloy/ANSI Color Code Sheath Dia. inches Model No. 6" Length Model No. 12" Length
Iron-Constantan 0.01 SICSS-010(*)-6 SICSS-010(*)-12
304 SS Sheath 0.02 SICSS-020(*)-6 SICSS-020(*)-12
CHROMEGA
304 SS Sheath 0.02 SCASS-020(*)-6 SCASS-020(*)-12
CHROMEGA®-ALOMEGA® 0.01 SCAXL-010(*)-6 SCAXL-010(*)-12
Super OMEGACLAD® XL 0.02 SCAXL-020(*)-6 SCAXL-020(*)-12
Sheath 0.032 SCAXL-032(*)-6 SCAXL-032(*)-12
OMEGA-P®-OMEGA-N® 0.02 SNNXL-020(*)-6 SNNXL-020(*)-12
Super OMEGACLAD® XL 0.032 SNNXL-032(*)-6 SNNXL-032(*)-12
Sheath 0.04 NMQXL-040(*)-6 NMQXL-040(*)-12
CHROMEGA
304 SS Sheath 0.02 SCXSS-020(*)-6 SCXSS-020(*)-12
Copper-Constantan 0.02 SCPSS-020(*)-6 SCPSS-020(*)-12
304 SS Sheath 0.032 SCPSS-032(*)-6 SCPSS-032(*)-12
OMEGALLOY® 0.01 SNNIN-010(*)-6 SNNIN-010(*)-12
Inconel 600 Sheath 0.02 SNNIN-020(*)-6 SNNIN-020(*)-12
Specify junction type: E (exposed), G (grounded), or U (ungrounded). † Other lengths available, consult Sales Department. To order with Inconel Sheath,
*
Change “SS” in model no. to “IN”. No additional charge. Type J is not available in Inconel 0.010 diameter. Example: KMQIN-125G-6.
For metric probe configurations with glass filled nylon connector body view online and remove the “H” from the model number.
To Order with 310, 316, or 321 SS Sheath, change “SS” in model no. to “310SS”, “316SS”, or “321SS”, respectively. No add’l charge. Example: TMQ321SS-125G-6.
Ordering Example: KMQSS-125G-6, subminiature quick-disconnect probe, Type K, 0.125" OD stainless steel sheath, 6" length, grounded junction.
KMQSS-M300U-300, subminiature quick-disconnect probe, Type K, stainless steel sheath, 3 mm OD, 300 mm length, ungrounded junction.
®
-ALOMEGA® 0.01 SCASS-010(*)-6 SCASS-010(*)-12
®
-Constantan 0.01 SCXSS-010(*)-6 SCXSS-010(*)-12
0.032 SICSS-032(*)-6 SICSS-032(*)-12
0.04 JMQSS-040(*)-6 JMQSS-040(*)-12
0.062 JMQSS-062(*)-6 JMQSS-062(*)-12
0.125 JMQSS-125(*)-6 JMQSS-125(*)-12
0.032 SCASS-032(*)-6 SCASS-032(*)-12
0.04 KMQSS-040(*)-6 KMQSS-040(*)-12
0.062 KMQSS-062(*)-6 KMQSS-062(*)-12
0.125 KMQSS-125(*)-6 KMQSS-125(*)-12
0.04 KMQXL-040(*)-6 KMQXL-040(*)-12
0.062 KMQXL-062(*)-6 KMQXL-062(*)-12
0.125 KMQXL-125(*)-6 KMQXL-125(*)-12
0.062 NMQXL-062(*)-6 NMQXL-062(*)-12
0.125 NMQXL-125(*)-6 NMQXL-125(*)-12
0.032 SCXSS-032(*)-6 SCXSS-032(*)-12
0.04 EMQSS-040(*)-6 EMQSS-040(*)-12
0.062 EMQSS-062(*)-6 EMQSS-062(*)-12
0.125 EMQSS-125(*)-6 EMQSS-125(*)-12
0.04 TMQSS-040(*)-6 TMQSS-040(*)-12
0.062 TMQSS-062(*)-6 TMQSS-062(*)-12
0.125 TMQSS-125(*)-6 TMQSS-125(*)-12
0.032 SNNIN-032(*)-6 SNNIN-032(*)-12
0.04 NMQIN-040(*)-6 NMQIN-040(*)-12
0.062 NMQIN-062(*)-6 NMQIN-062(*)-12
0.125 NMQIN-125(*)-6 NMQIN-125(*)-12
1
Page 2
Standard JMQSS Accessories
Alloy/ANSI Color Code
Iron-Constantan
304 SS Sheath
CHROMEGA
-ALOMEGA
TM
TM
304 SS Sheath
CHROMEGA
TM
-ALOMEGA
TM
Super OMEGACLADTM XL
Sheath
OMEGA-P
TM
-OMEGA-N
TM
Super OMEGACLADTM XL
Sheath
CHROMEGA
TM
-Constantan
304 SS Sheath
Copper-Constantan
304 SS Sheath
OMEGALLOY
TM
Inconel 600 Sheath
All Accessories Sold Seperately.
* Specify junction type: E (exposed), G (grounded), or U (ungrounded).
Model No.
6" Length
SICSS-010(*)-6
SICSS-020(*)-6
SICSS-032(*)-6
JMQSS-040(*)-6
JMQSS-062(*)-6
JMQSS-125(*)-6
SCASS-010(*)-6
SCASS-020(*)-6
SCASS-032(*)-6
KMQSS-040(*)-6
KMQSS-062(*)-6
KMQSS-125(*)-6
SCAXL-010(*)-6
SCAXL-020(*)-6
SCAXL-032(*)-6
KMQXL-040(*)-6
KMQXL-062(*)-6
KMQXL-125(*)-6
SNNXL-020(*)-6
SNNXL-032(*)-6
NMQXL-040(*)-6
NMQXL-062(*)-6
NMQXL-125(*)-6
SCXSS-010(*)-6
SCXSS-020(*)-6
SCXSS-032(*)-6
EMQSS-040(*)-6
EMQSS-062(*)-6
EMQSS-125(*)-6
SCPSS-020(*)-6
SCPSS-032(*)-6
TMQSS-040(*)-6
TMQSS-062(*)-6
TMQSS-125(*)-6
SNNIN-010(*)-6
SNNIN-020(*)-6
SNNIN-032(*)-6
NMQIN-040(*)-6
NMQIN-062(*)-6
NMQIN-125(*)-6
SICSS-010(*)-12
SICSS-020(*)-12
SICSS-032(*)-12
JMQSS-040(*)-12
JMQSS-062(*)-12
JMQSS-125(*)-12
SCASS-010(*)-12
SCASS-020(*)-12
SCASS-032(*)-12
KMQSS-040(*)-12
KMQSS-062(*)-12
KMQSS-125(*)-12
SCAXL-010(*)-12
SCAXL-020(*)-12
SCAXL-032(*)-12
KMQXL-040(*)-12
KMQXL-062(*)-12
KMQXL-125(*)-12
SNNXL-020(*)-12
SNNXL-032(*)-12
NMQXL-040(*)-12
NMQXL-062(*)-12
NMQXL-125(*)-12
SCXSS-010(*)-12
SCXSS-020(*)-12
SCXSS-032(*)-12
EMQSS-040(*)-12
EMQSS-062(*)-12
EMQSS-125(*)-12
SCPSS-020(*)-12
SCPSS-032(*)-12
TMQSS-040(*)-12
TMQSS-062(*)-12
TMQSS-125(*)-12
SNNIN-010(*)-12
SNNIN-020(*)-12
SNNIN-032(*)-12
NMQIN-040(*)-12
NMQIN-062(*)-12
NMQIN-125(*)-12
Model No.
12" Length
Mating
Connector
Model No.
SMPW-J-F
SMPW-K-F
SMPW-N-F
SMPW-E-F
SMPW-T-F
SMPW-N-F
Cable
Clamp
Model No.
Safety
Clip
Model No.
PCLM-SMP SMCL
