3/4

Ø5/8

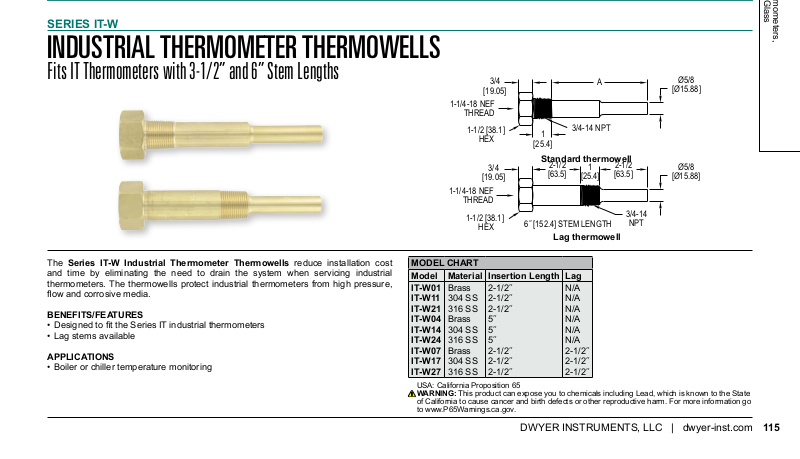

SERIES IT-W

INDUSTRIAL THERMOMETER THERMOWELLS

Fits IT Thermometers with 3-1/2” and 6” Stem Lengths

[19.05]

1-1/4-18 NEF

THREAD

1-1/2 [38.1]

HEX

[19.05]

1-1/4-18 NEF

THREAD

1-1/2 [38.1]

HEX

3/4

6˝ [152.4] STEM LENGTH

A

3/4-14 NPT

1

[25.4]

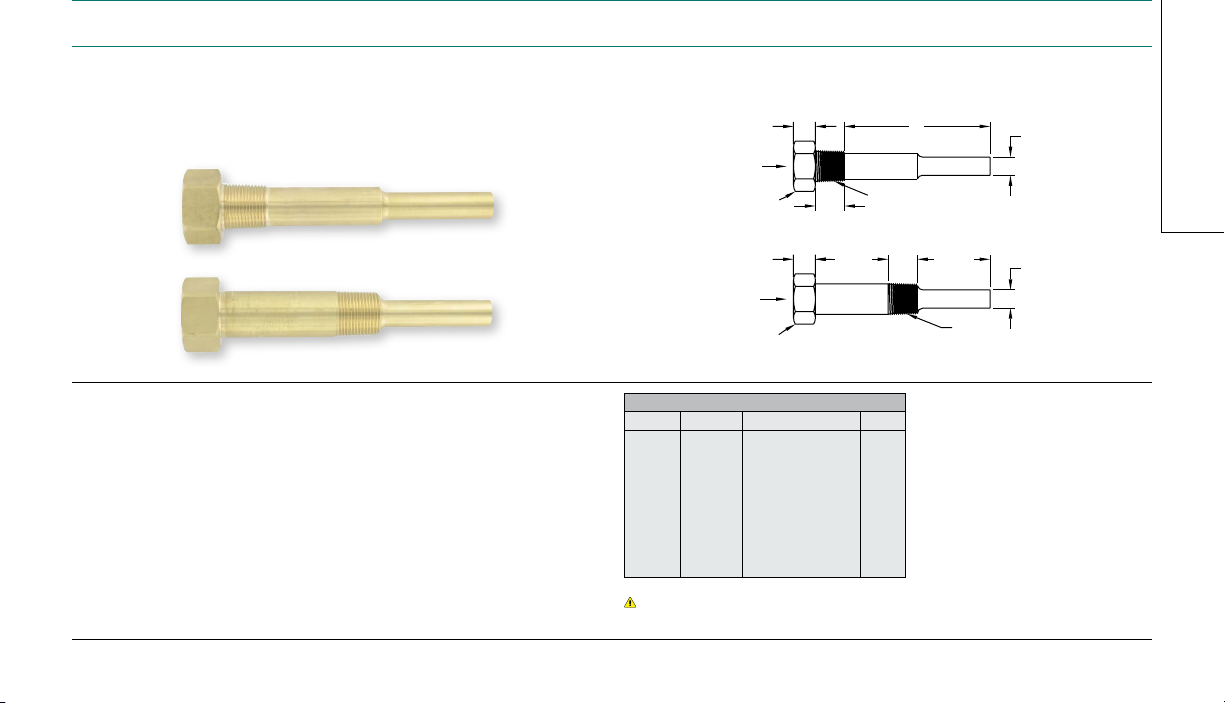

Standard thermowell

2-1/2
[63.5]

1

[25.4]

Lag thermowell

2-1/2
[63.5]

3/4-14

NPT

[Ø15.88]

Ø5/8

[Ø15.88]

The Series IT-W Industrial Thermometer Thermowells reduce installation cost
and time by eliminating the need to drain the system when servicing industrial
thermometers. The thermowells protect industrial thermometers from high pressure,

owandcorrosivemedia.

BENEFITS/FEATURES

• DesignedtottheSeriesITindustrialthermometers

• Lag stems available

APPLICATIONS

• Boiler or chiller temperature monitoring

MODEL CHART
Model Material Insertion Length Lag
IT-W01

Brass

IT-W11

304SS

IT-W21

316SS

IT-W04

Brass

IT-W14

304SS

IT-W24

316SS

IT-W07

Brass

IT-W17

304SS

IT-W27

316SS

USA:CaliforniaProposition65
WARNING:ThisproductcanexposeyoutochemicalsincludingLead,whichisknowntotheState

of California to cause cancer and birth defects or other reproductive harm. For more information go

towww.P65Warnings.ca.gov.

2-1/2˝
2-1/2˝
2-1/2˝
5˝
5˝
5˝
2-1/2˝
2-1/2˝
2-1/2˝

N/A
N/A
N/A
N/A
N/A
N/A
2-1/2˝
2-1/2˝
2-1/2˝

DWYERINSTRUMENTS,LLC|dwyer-inst.com
