SERIES IT

TEMPERATURE

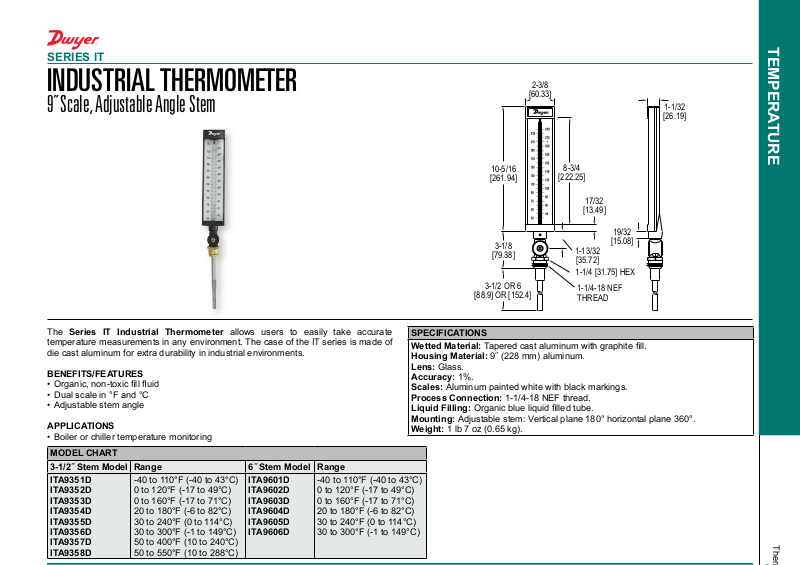

INDUSTRIAL THERMOMETER

9˝ Scale, Adjustable Angle Stem

The Series IT Industrial Thermometer allows users to easily take accurate
temperature measurements in any environment. The case of the IT series is made of
die cast aluminum for extra durability in industrial environments.

BENEFITS/FEATURES

• Organic,non-toxiclluid

• Dual scale in °F and °C

• Adjustable stem angle

APPLICATIONS

• Boiler or chiller temperature monitoring

MODEL CHART

3-1/2˝ Stem Model Range 6˝ Stem Model Range
ITA9351D

ITA9352D
ITA9353D
ITA9354D
ITA9355D
ITA9356D
ITA9357D
ITA9358D

-40to110°F(-40to43°C)
0to120°F(-17to49°C)
0to160°F(-17to71°C)
20to180°F(-6to82°C)
30to240°F(0to114°C)
30to300°F(-1to149°C)
50to400°F(10to240°C)
50to550°F(10to288°C)

ITA9601D
ITA9602D
ITA9603D
ITA9604D
ITA9605D
ITA9606D

-40to110°F(-40to43°C)
0to120°F(-17to49°C)
0to160°F(-17to71°C)
20to180°F(-6to82°C)
30to240°F(0to114°C)
30to300°F(-1to149°C)

2-3/8

[60.33]

10-5/16
[261.94]

3-1/8

[79.38]

3-1/2 OR 6

[88.9] OR [152.4]

SPECIFICATIONS
Wetted Material: Taperedcastaluminumwithgraphitell.

Housing Material: 9˝(228mm)aluminum.
Lens: Glass.
Accuracy: 1%.
Scales: Aluminum painted white with black markings.
Process Connection: 1-1/4-18NEFthread.
Liquid Filling: Organicblueliquidlledtube.
Mounting: Adjustablestem:Verticalplane180°horizontalplane360°.
Weight:1lb7oz(0.65kg).

8-3/4

[222.25]

17/32

[13.49]

1-13/32

[35.72]

1-1/4 [31.75] HEX

1-1/4-18 NEF
THREAD

19/32

[15.08]

1-1/32
[26.19]
