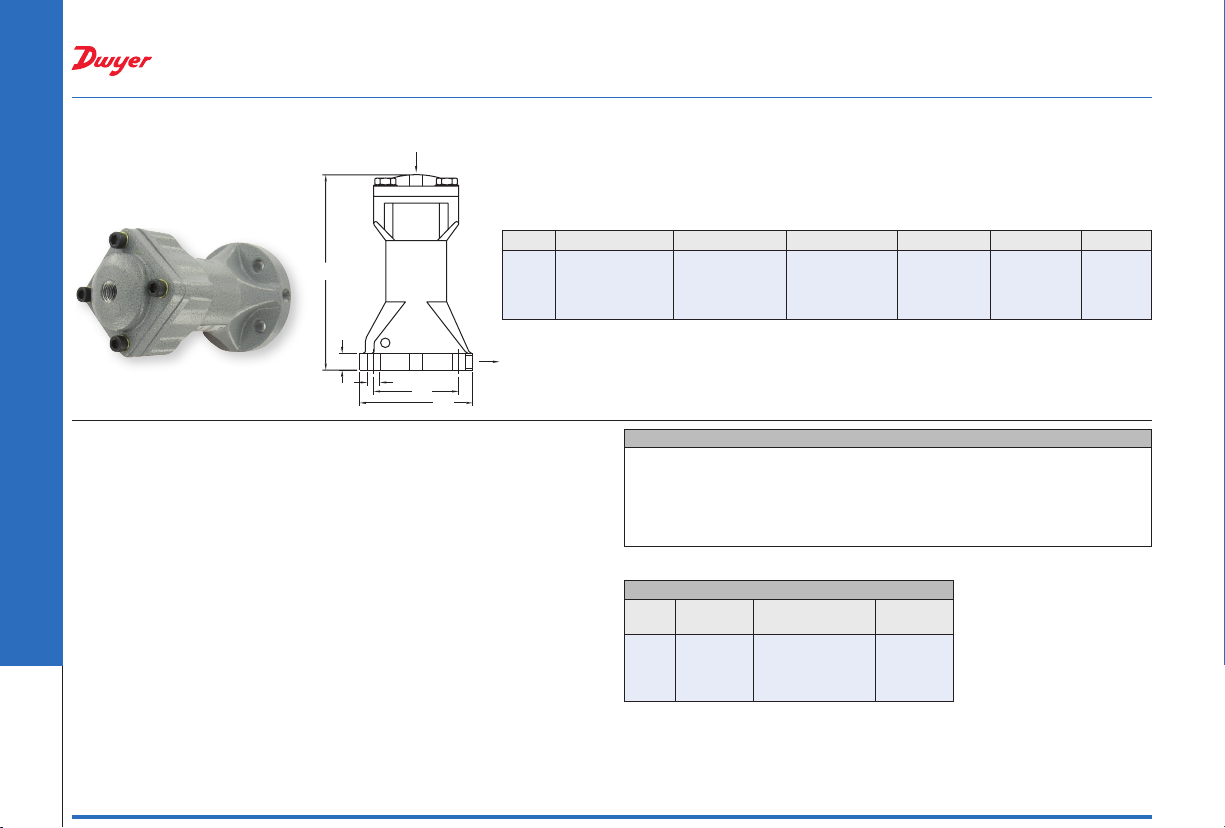

Page 1
IN
OUT
A
ØB
®

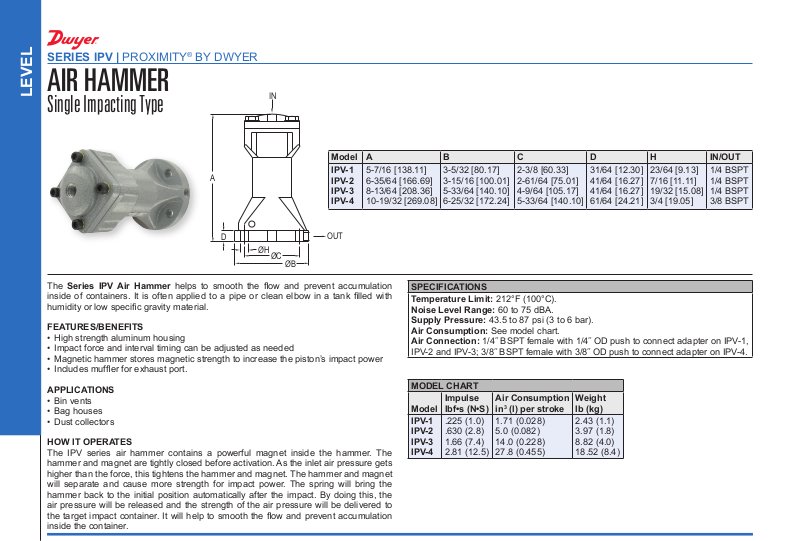

SERIES IPV | PROXIMITY® BY DWYER
AIR HAMMER
LEVEL
Single Impacting Type
Model A B C D H IN/OUT
IPV-1
5-7/16 [138.11]
IPV-2
6-35/64 [166.69]
IPV-3
8-13/64 [208.36]
IPV-4
10-19/32 [269.08]
D
ØH
ØC
3-5/32 [80.17]
3-15/16 [100.01]
5-33/64 [140.10]
6-25/32 [172.24]
2-3/8 [60.33]
2-61/64 [75.01]
4-9/64 [105.17]
5-33/64 [140.10]
31/64 [12.30]
41/64 [16.27]
41/64 [16.27]
61/64 [24.21]
23/64 [9.13]
7/16 [11.11]
19/32 [15.08]
3/4 [19.05]
1/4 BSPT
1/4 BSPT
1/4 BSPT
3/8 BSPT
The Series IPV Air Hammer helps to smooth the ow and prevent accumulation
inside of containers. It is often applied to a pipe or clean elbow in a tank lled with
humidity or low specic gravity material.
FEATURES/BENEFITS
• High strength aluminum housing
• Impact force and interval timing can be adjusted as needed
• Magnetic hammer stores magnetic strength to increase the piston’s impact power
• Includes mufer for exhaust port.
APPLICATIONS
• Bin vents
• Bag houses
• Dust collectors
HOW IT OPERATES
The IPV series air hammer contains a powerful magnet inside the hammer. The
hammer and magnet are tightly closed before activation. As the inlet air pressure gets
higher than the force, this tightens the hammer and magnet. The hammer and magnet
will separate and cause more strength for impact power. The spring will bring the
hammer back to the initial position automatically after the impact. By doing this, the
air pressure will be released and the strength of the air pressure will be delivered to
the target impact container. It will help to smooth the ow and prevent accumulation
inside the container.
SPECIFICATIONS
Temperature Limit: 212°F (100°C).
Noise Level Range: 60 to 75 dBA.
Supply Pressure: 43.5 to 87 psi (3 to 6 bar).
Air Consumption: See model chart.
Air Connection: 1/4˝ BSPT female with 1/4˝ OD push to connect adapter on IPV-1,
IPV-2 and IPV-3; 3/8˝ BSPT female with 3/8˝ OD push to connect adapter on IPV-4.
MODEL CHART
Impulse
Model
lbf•s (N•S)
IPV-1
.225 (1.0)
IPV-2
.630 (2.8)
IPV-3
1.66 (7.4)
IPV-4
2.81 (12.5)
Air Consumption
3
(l) per stroke
in
1.71 (0.028)
5.0 (0.082)
14.0 (0.228)
27.8 (0.455)
Weight
lb (kg)
2.43 (1.1)
3.97 (1.8)
8.82 (4.0)
18.52 (8.4)
