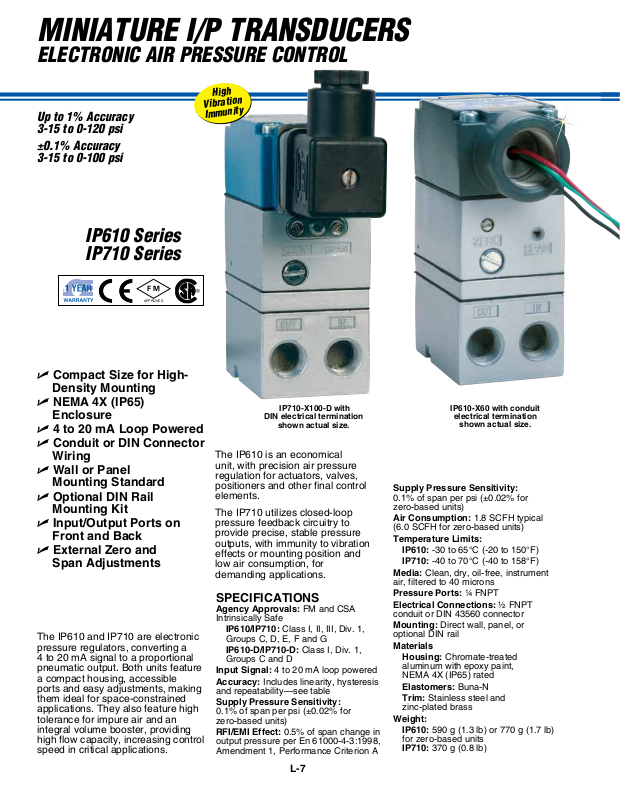

MINIATURE I/P TRANSDUCERS
ELECTRONIC AIR PRESSURE CONTROL
High
Vibration
Up to 1% Accuracy
3-15 to 0-120 psi
±0.1% Accuracy
3-15 to 0-100 psi
IP610 Series
IP710 Series
FM
APPROVED
Immunity
U Compact Size for High-
Density Mounting
U NEMA 4X (IP65)
Enclosure
U 4 to 20 mA Loop Powered
U Conduit or DIN Connector
Wiring
U Wall or Panel
Mounting Standard
U Optional DIN Rail
Mounting Kit
U Input/Output Ports on
Front and Back
U External Zero and
Span Adjustments
The IP610 and IP710 are electronic
pressure regulators, converting a
4 to 20 mA signal to a proportional
pneumatic output. Both units feature
a compact housing, accessible
ports and easy adjustments, making
them ideal for space-constrained
applications. They also feature high
tolerance for impure air and an
integral volume booster, providing
high flow capacity, increasing control
speed in critical applications.

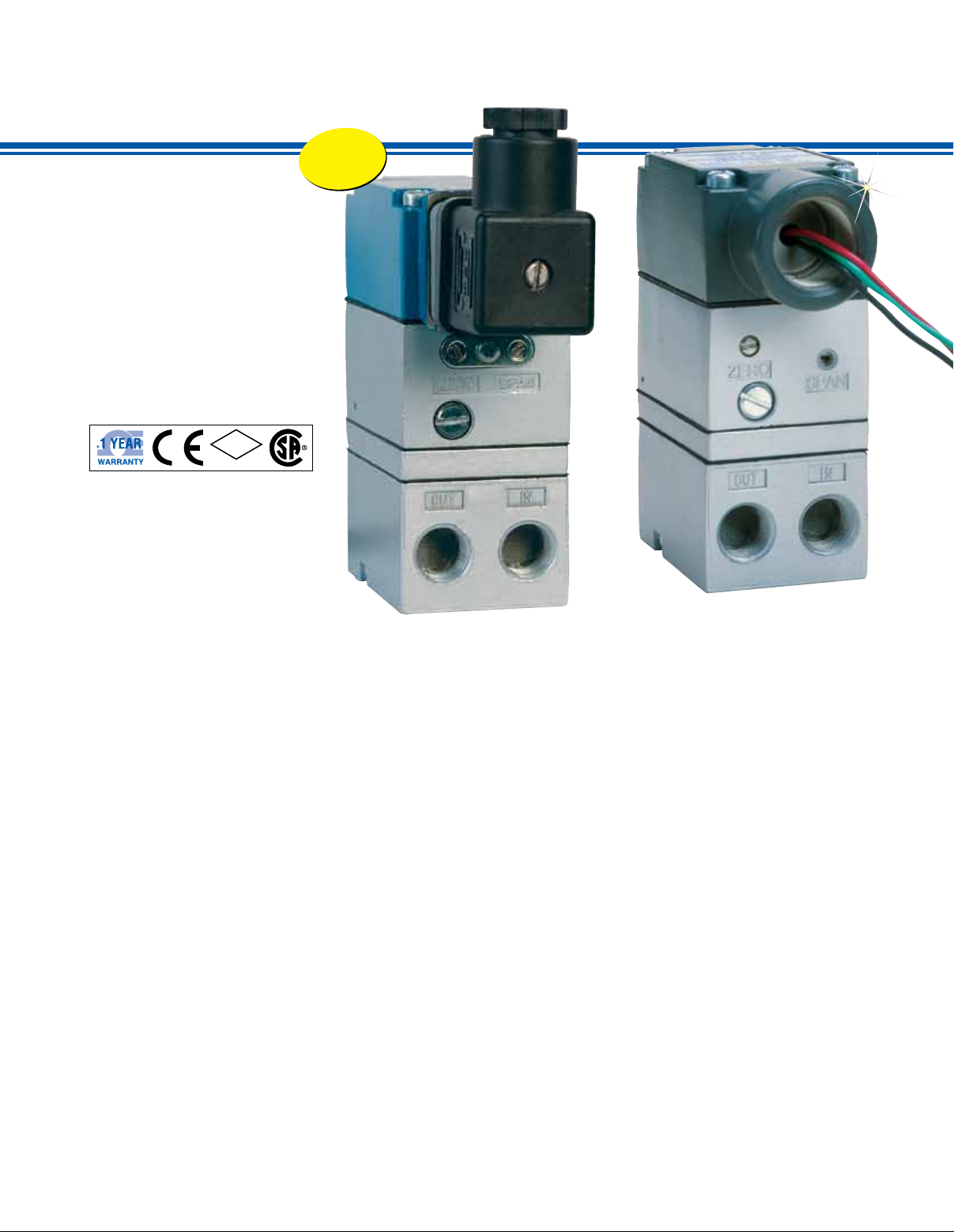

IP710-X100-D with
DIN electrical termination
shown actual size.
The IP610 is an economical
unit, with precision air pressure
regulation for actuators, valves,
positioners and other final control
elements.
The IP710 utilizes closed-loop
pressure feedback circuitry to
provide precise, stable pressure
outputs, with immunity to vibration
effects or mounting position and
low air consumption, for
demanding applications.
SPECIFICATIONS
Agency Approvals: FM and CSA
Intrinsically Safe
IP610/IP710: Class I, II, III, Div. 1,
Groups C, D, E, F and G
IP610-D/IP710-D: Class I, Div. 1,
Groups C and D
Input Signal: 4 to 20 mA loop powered
Accuracy: Includes linearity, hysteresis
and repeatability—see table
Supply Pressure Sensitivity:
0.1% of span per psi (±0.02% for
zero-based units)
RFI/EMI Effect: 0.5% of span change in
output pressure per En 61000-4-3:1998,
Amendment 1, Performance Criterion A
IP610-X60 with conduit
electrical termination
shown actual size.
Supply Pressure Sensitivity:
0.1% of span per psi (±0.02% for
zero-based units)
Air Consumption: 1.8 SCFH typical
(6.0 SCFH for zero-based units)
Temperature Limits:
IP610: -30 to 65°C (-20 to 150°F)
IP710: -40 to 70°C (-40 to 158°F)
Media: Clean, dry, oil-free, instrument
air, filtered to 40 microns
Pressure Ports: ¼ FNPT
Electrical Connections: ½ FNPT
conduit or DIN 43560 connector
Mounting: Direct wall, panel, or
optional DIN rail
Materials
Housing: Chromate-treated
aluminum with epoxy paint,
NEMA 4X (IP65) rated
Elastomers: Buna-N
Trim: Stainless steel and
zinc-plated brass
Weight:
IP610: 590 g (1.3 lb) or 770 g (1.7 lb)
for zero-based units
IP710: 370 g (0.8 lb)
L-7
Page 2
MINIATURE I/P TRANSDUCER
NPT
130
(5.12)
93.7
(3.69)
55.4
(2.18)
74.7
(2.94)
22 GA. wire leads
approx. 457 (18) L
pos, neg, grd
79.2
(3.12)
28.7
(1.13)
13.1
(0.516)
115.8
(4.56)
33.0
(1.30)
13.1
(0.516)
9.72
(0.383)
19.4
(0.766)
½
Pipe plugs
installed
4 places on
zero-based unit
NPT
130
(5.12)
93.7
(3.69)
55.4
(2.18)
74.7
(2.94)
22 GA. wire leads
approx. 457 (18) L
pos, neg, grd
79.2
(3.12)
28.7
(1.13)
13.1
(0.516)
115.8
(4.56)
33.0
(1.30)
13.1
(0.516)
9.72
(0.383)
19.4
½
Pipe plugs
installed
4 places on
zero-based unit

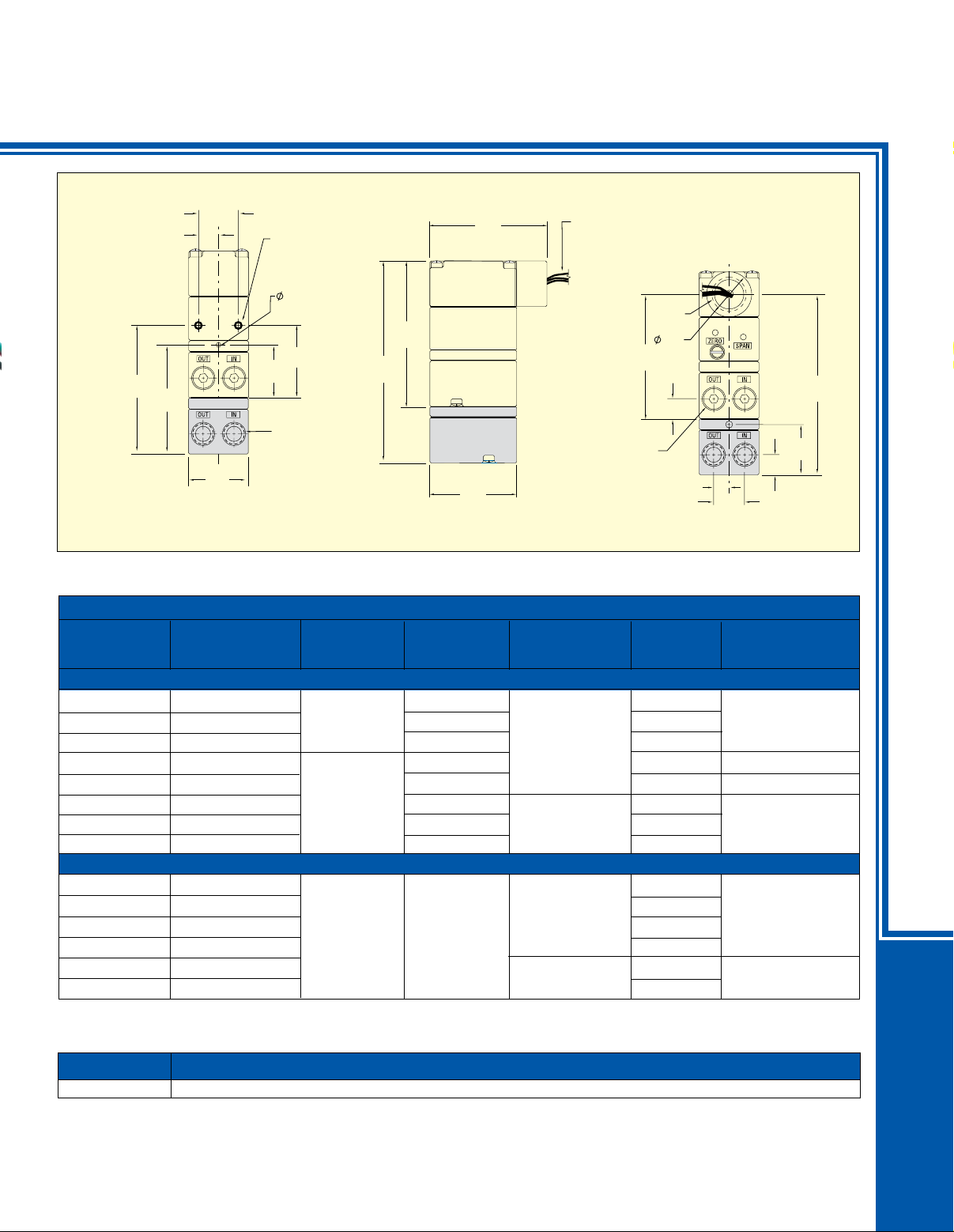

Dimensions: mm (inch)
ø = diameter
82.3
(3.24)
69.6
(2.74)
Shaded areas and associated
dimensions apply to the zero based units only.
12.7
(0.5)
25.4
(1.0)
38.1
(1.5)
Mounting Holes
#10-32 UNF-2B
X 3/8 Deep
2 Places
3.17
(0.125)
45.7
(1.80)
33.0
(1.30)
In and out ports
1/4-20 NPT
4 places
Vent
79.2
(3.12)
Pipe plugs
installed
4 places on
zero-based unit
NPT
½
28.7
(1.13)
13.1
(0.516)
9.72
(0.383)
19.4
(0.766)
13.1
(0.516)
33.0
(1.30)
115.8
(4.56)
To Order
SUPPLY
AIR PRESSURE FLOW
MODEL NO. RANGE ACCURACY* IMPEDANCE CONSUMPTION (PSI) CAPACITY
GENERAL PURPOSE I/P CONVERTERS
IP610-X15 3 to 15 psi 180 Ω 20 to 100
IP610-X27 3 to 27 psi
IP610-X30 6 to 30 psi 240 Ω 35 to 100
IP610-X60 2 to 60 psi 245 Ω
±1.0% span
240 Ω
32 to 100
4.5 scfm @ 25 psig
12 scfm @ 100 psig
1.8 scfh @
mid-range
65 to 150 12 scfm @ 100 psig
IP610-X120 3 to 120 psi 280 Ω 125 to 150 20 scfm @ 150 psig
IP610-30 0 to 30 psi
IP610-60 0 to 60 psi 300 Ω
IP610-120 0 to 120 psi 315 Ω
HIGH ACCURACY I/P CONVERTERS
±2.5% span
290 Ω 35 to 100
6.0 scfh @
mid-range
65 to 150
125 to 150
12 scfm @ 100 psig
20 scfm @ 150 psig
IP710-X15 3 to 15 psi 20 to 100
IP710-X17 1 to 17 psi 1.5 scfh @ 22 to 100
IP710-X27 3 to 27 psi ±0.10% span 10 kΩ
IP710-X30 6 to 30 psi 35 to 100
IP710-X60 2 to 60 psi 4.5 scfh @ 65 to 130
IP710-X100 2 to 100 psi
Accuracy includes linearity, hysteresis and repeatability.
*
L-8
ACCESSORY
MODEL NO. DESCRIPTION
IP610-DM DIN rail mounting kit
Comes complete with mounting bracket and operator’s manual.
To order with DIN connector, add suffix “-D” to model number, for an additional cost.
Ordering Examples: IP610-X15, loop powered I/P converter with 3 to 15 psi range and conduit connection.
IP710-X15-D, high accuracy loop powered I/P converter with 3 to 15 psi range and DIN connector.
mid-range
mid-range
32 to 100 12 scfm @ 100 psig
105 to 130
4.5 scfm @ 25 psig
20 scfm @ 130 psig
