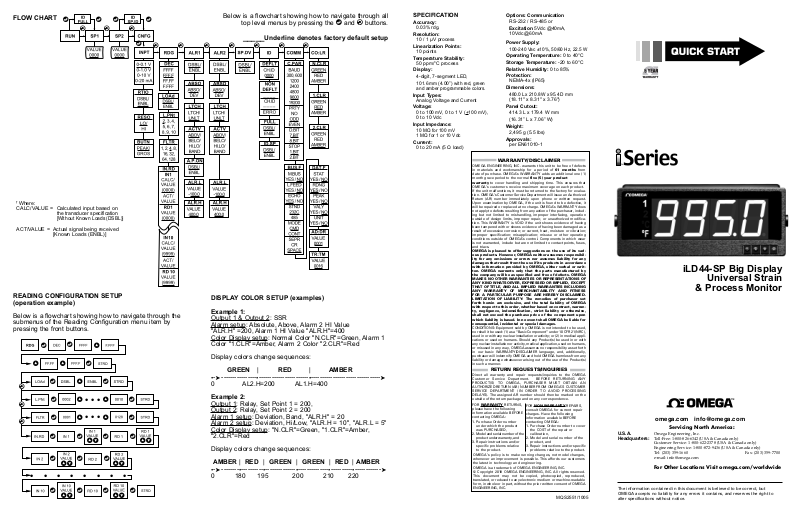

Page 1

SPECIFICATION

Accuracy:

0.03% rdg.

Resolution:

10 / 1 µV

process

Linearization Points:

10 points

Temperature Stability:

50 ppm/°C process

Display:

4-digit, 7-segment LED,

101.6mm (4.00”)

with red, green

and amber programmable colors.

Input Types:

Analog Voltage and Current

Voltage:

0 to 100 mV,

0 to 1 V

(+100 mV),

0 to 10 Vdc

Input Impedance:

10 MΩ for 100 mV 1 MΩ for 1 or 10 Vdc

Current:

0 to 20 mA (5 Ω load)

Options: Communication

RS-232 / RS-485 or Excitation 5Vdc @40mA,

10Vdc @60mA

Power Supply:

100-240 Vac ±10%, 50/60 Hz, 22.5 W

Operating Temperature: 0 to 40°C Storage Temperature: -20 to 60°C Relative Humidity: 0 to 85% Protection:

NEMA-4x (IP65)

Dimensions:

480.0 Lx 210.8 W x 95.4 D mm (18.11" x 8.31" x 3.76")

Panel Cutout:

414.3 L x 179.4 W mm (16.31” L x 7.06” W)

Weight:

2,495 g (5.5 lbs)

Approvals:

READING CONFIGURATION SETUP (operation example)

Below is a flowchart showing how to navigate through the submenus of the Reading Configuration menu item by pressing the front buttons.

MQS2551/1005

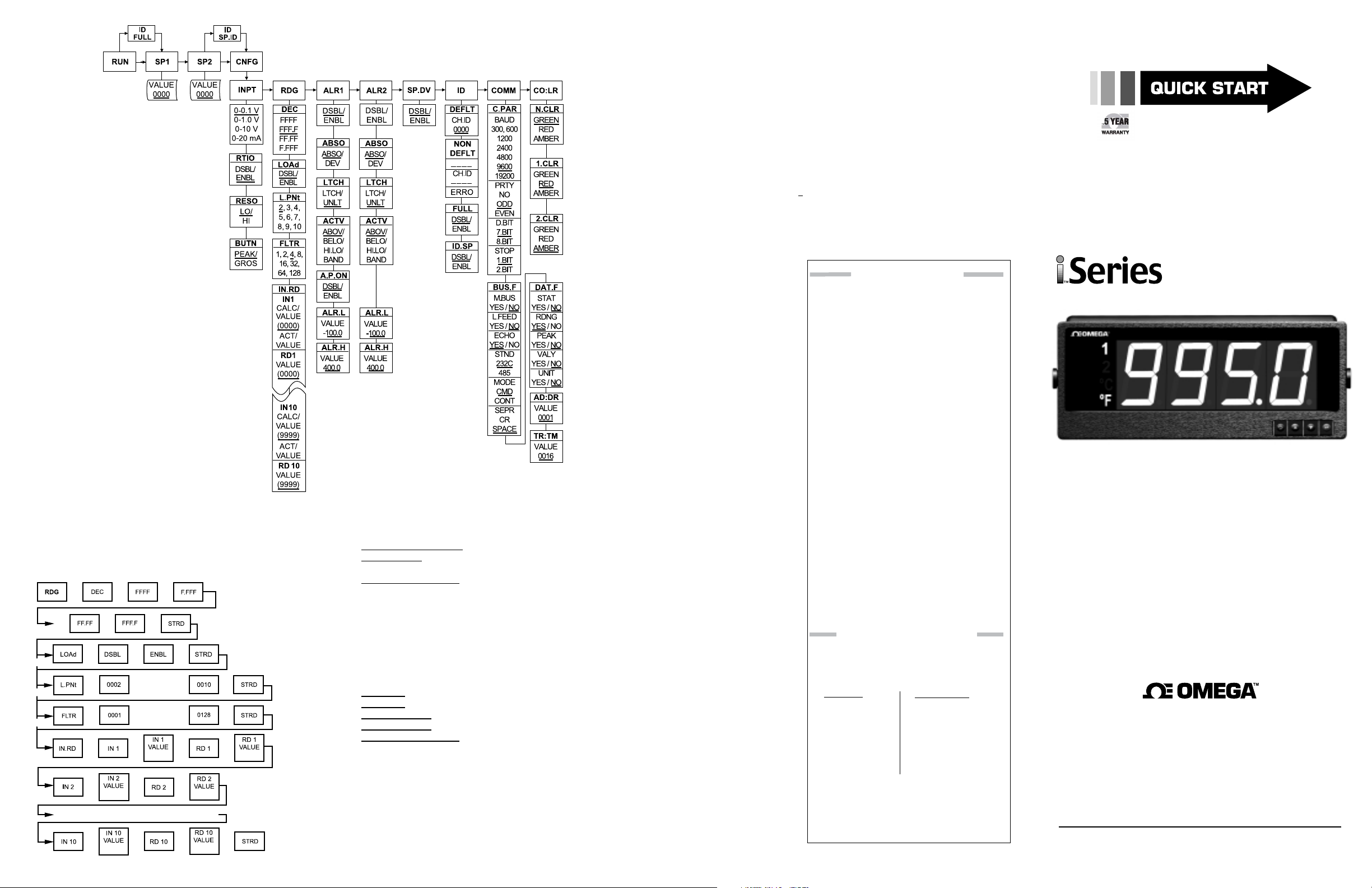

FLOW CHART

Below is a flowchart showing how to navigate through all

top level menus by pressing the

d and a buttons.

_____Underline denotes factory default setup

aaaaa

per EN61010-1

†

Where:

CALC/VALUE = Calculated input based on

the transducer specification [Without Known Loads (DSBL)]

ACT/VALUE = Actual signal being received

[Known Loads (ENBL)]

dbb

d dbb

• • •

bcbc

• • • • • • • •

bcbc

DISPLAY COLOR SETUP (examples)

Example 1:

Output 1 & Output 2 Alarm setup

: Absolute, Above, Alarm 2 HI Value

: SSR

"ALR.H" =200, Alarm 1 HI Value "ALR.H"=400 Color Display setup: Normal Color "N.CLR"=Green, Alarm 1 Color "1.CLR"=Amber, Alarm 2 Color "2.CLR"=Red

Display colors change sequences:

GREEN | RED | AMBER

-➤----------------•-----------------------•--------------------------------

•

➤

0 AL2.H=200 AL1.H=400

Example 2:

Output 1

: Relay, Set Point 1 = 200, Output 2: Relay, Set Point 2 = 200 Alarm 1 setup: Deviation, Band, "ALR.H" = 20 Alarm 2 setup: Deviation, Hi/Low, "ALR.H = 10", "ALR.L = 5" Color Display setup

: "N.CLR"=Green, "1.CLR"=Amber,

"2.CLR"=Red

Display colors change sequences:

-➤--------•----------•--------------•--------------•----------•------------

•

➤

0 180 195 200 210 220

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 61 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal five (5) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product. If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not limited to contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use if its products in accordance

with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.

FOR WARRANTY RETURNS, please have the following information available BEFORE contacting OMEGA:

1. Purchase Order number under which the product was PURCHASED,

2.3. Model and serial number of the product under warranty, and

Repair instructions and/or

specific problems relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering. OMEGA is a trademark of OMEGA ENGINEERING, INC. © Copyright 2018 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

WARRANTY/DISCLAIMER

RETURN REQUESTS/INQUIRIES

FOR NON-WARRANTY REPAIRS, consult OMEGA for current repair charges. Have the following information available BEFORE contacting OMEGA:

1. Purchase Order number to cover the COST of the repair or calibration,

2.3.Model and serial number of the product, and Repair instructions and/or specific problems relative to the product.

iLD44-SP Big Display

Universal Strain

& Process Monitor

omega.com [email protected]

U.S.A. Omega Engineering, Inc. Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)

The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

Servicing North America:

Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

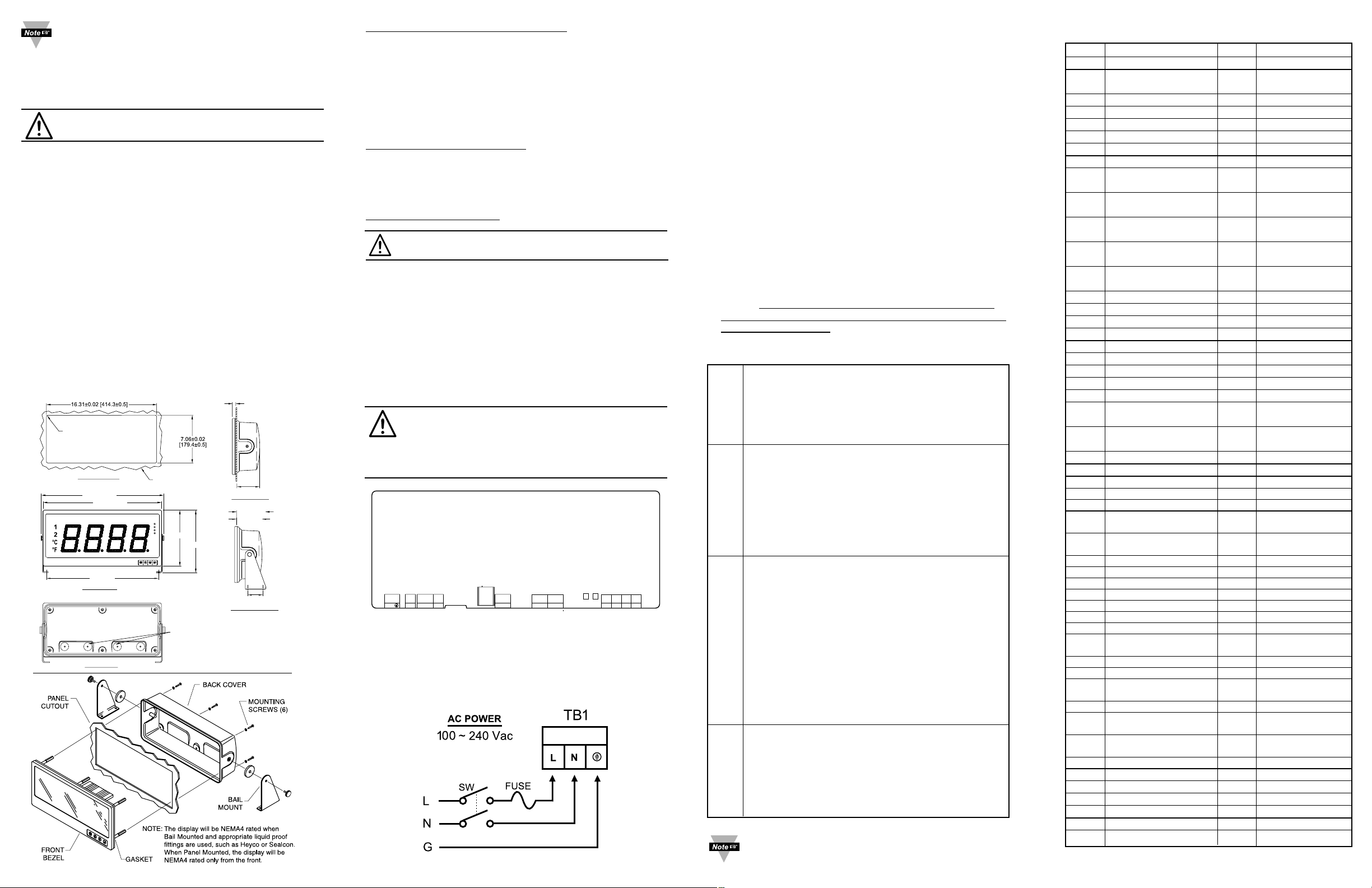

Page 2

Mounting Big Display Through Panel:

Using the panel cutout diagram shown above, cut an opening in the panel.

Remove six screws at the back of Big Display to remove back cover.

Insert the unit into the opening from the front of the panel, so the gasket seals between the bezel and the front of the panel.

4. Align back cover to

Big Display

and reinstall screws.

Mounting Big Display on Bail:

1. Mark the location of mounting screws on the flat surface.

Be sure to leave enough room around the bail to allow for removal and rotation of the display.

3. The display can be rotated for the best viewing angle.

Disassembly Instruction:

Warning: Disconnect all ac power from the unit before proceeding.

Remove all wiring connections from the rear of the instrument, by unscrewing the power and input connectors.

Remove six screws at the back of the display and back cover.

3. Remove the

Big Display

from the panel.

4. To remove the

Big Display

from the bail, unscrew the

two knobs at each end of the mounting brackets.

This Quick Start Reference provides information on setting up your instrument for basic operation. The latest complete Communication and Operational Manual as well as free Software and ActiveX Controls are available at www.omega.com or on the CD-ROM

enclosed with your shipment.

SAFETY CONSIDERATION

This device is marked with the international Caution symbol.

The instrument is a panel mount device protected in accordance with EN61010-1:2001. Remember that the unit has no power-on switch. Building installation should include a switch or circuit-breaker that must be compliant to IEC 947-1 and 947-3.

SAFETY:

• Do not exceed voltage rating on the label located on the back of the instrument housing.

• Always disconnect power before changing signal and power connections.

• Do not use this instrument on a work bench without its case for safety reasons.

• Do not operate this instrument in flammable or explosive atmospheres.

EMC:

• Whenever EMC is an issue, always use shielded cables.

• Never run signal and power wires in the same conduit.

• Use signal wire connections with twisted-pair cables.

• Install Ferrite Bead(s) on signal wire close to the instrument if EMC problems persist.

MOUNTING

WIRING

Wire the instrument according to the Input Wiring Connections described in your Operator’s Manual.

Warning: Do not connect ac power to your device until you have completed all input and output connections. This device must only be installed by a specially trained electrician with corresponding qualifications. Failure to follow all instructions and warnings may result in injury!

Connect the Main ac Power Connections as shown in the figure below.

1 2 3 1 2 1 2 3 4 5

L N

+ -

1 2 31 2 3 4 5 6 1 2 3 4 5 6 7 8

1 2 3 4 5 6

1 3 5

2 4 6

+ -

OUTPUT2 OUTPUT1

RTN

Rx Tx

PWR

TB1

PWR

REMOTE PROGRAMMER

TB2 TB3 TB4 TB9

TB7 TB8

PJ3

COMMUNICATION OUTPUTS T/C INPUT INPUTS

TB5

CONFIGURATION

MENU Mode:

Flashing display in MENU Mode means you can make your selection by pressing bbutton. If the flashing display is not a four digit value, pressing cbutton will always direct the

instrument one step backward of the top menu item. The second push on the cbutton will reset the instrument

except after the setpoint and the alarms, that will go to the RUN Mode without resetting the instrument. The abutton

will always sequence the instrument thru the menu items.

The dbutton has two functions:

1. To save a selected flashing display

2. To direct the instrument to the next submenu level

RUN Mode:

causes the display to flash the PEAK with the corresponding value. Press again to go back to RUN Mode.

causes the display to flash VALLEY with the corresponding value. Press again to go back to RUN Mode.

causes flashing PEAK or VALLEY to reset corresponding values. Pressing

d twice will cause the display to flash

STBY and put the instrument into standby, which disables

all outputs and alarms. Press done more time to go back to RUN Mode.

DISPLAY ABBREVIATIONS

SP1 Set Point 1 Value SP2 Set Point 2 Value CNFG Configuration Menu INPt Input Type (Range) INPt Input Type (range) 0 - 0.1 100 mV Input

Voltage

0 - 1.0 1 V Input Voltage 0 - 10 10 V Input Voltage 0 - 20 20 mA Input Current Rtio Ratiometric Operation RESO Display Resolution bUtN Button Peak/Gross PEAk Peak Value GROS Gross Value RdG Reading Configuration dEC Decimal Point F.FFF Decimal Point

..FFFF Position

LOAd Input Load EnbL Scaling with Known

Loads (Actual Value)

DSbL Scaling without Known L.PNt

Linearization Points

Loads (Calculated Value)

0002..

Number of Linearization

FLtR Filter Constant

..0010 Points

0001.. Filter Constant Value IN.Rd

Input/Reading Scale

..0128 and Offset Menu IN 1 Input 1 Rd 1 Reading 1 IN 2 Input 2 Rd 2 Reading 2

. . . . . . . . . . . . . . . . . . . .

IN 10 Input 10 Rd 10 Reading 10 ALR1 Alarm 1 Menu AbSo Absolute Mode _dEV Deviation Mode LtcH Latched Mode UNLt Unlatched Mode Ct.CL Contact Closure N.o. Normally Open N.c. Normally Closed ActV Active Type AboV Active Above bELo Active Below Hi.Lo Above High/Below

Low

bANd Above or Below Band A.P.oN

Alarm

Enable/Disable

at Power On

ALR.L Alarm Low Value ALR.H Alarm High Value ALR.2 Alarm 2 Menu SP.dN Set Point Deviation

Id ID Code Menu CH.Id Change ID Code FULL Full ID SP.Id Set Point ID COMM Communication Option* NONE Communication is

Not Installed

C.PAR Communication bAUd Baud Rate

Parameters

PRtY Parity odd_ Odd EVEN Even _No_ No dAtA Data Bit 7.bit 7 Data Bit

8.bit 8 Data Bit StOP Stop Bit

1.bit 1 Data Bit 2.bit 2 Stop Bit bus.F Bus Format M.bus Modbus Protocol _LF_ Line Feed ECHO Echo StNd Communication 232C RS-232

Standard

485_ RS-485 ModE Data Flow Mode CMd_ Command Mode CoNt Continuous Mode SEPR Data Separation SPCE Space

Character

_cR_ Carriage Return dAt.F Data Format stAt Alarm Status RdNG Transmit Reading

Valu e

PEAk Transmit Peak Value GROS Transmit Gross Value UNit Units of Measurement AddR Multipoint Address tR.tM

Transmit Color Selection

COLR Display Color Selection N.CLR

Normal Color Display

1.CLR Alarm 1 Color Display 2.CLR Alarm2 Color Display REd Display Color is Red AMbR Display Color is Amber GRN Display Color is Green dSbL Disable ENbL Enable ERRO Error + OL Input (+) Overload

* For abbreviations of Communication Option see Communication Manual.

Button Functions in Configuration Mode

Reset: Except for Alarms, modifying any settings of the menu configuration will reset the meter prior to resuming Run Mode.

• To enter the Menu, the user must first press a

button.

• Use this button to advance/navigate to the next menu item. The user can navigate through all the top level menus by pressing a.

• While a parameter is being modified, press a to escape without saving the parameter.

• Press the up b button to scroll through “flashing” selections. When a numerical value is displayed press this key to increase value of a parameter that is currently being modified.

• Holding the b button down for approximately 3 seconds will speed up the rate at which the setpoint value is incremented.

• In the Run Mode pressing b causes the display to flash the PEAK or GROSS value – press again to return to the Run Mode.

• Press the down c button to go back to a previous Top Level Menu item.

• Press this button twice to reset the controller to the Run Mode.

• When a numerical value is flashing (except setpoint value) press c to scroll digits from left to right allowing the user to select the desired digit to modify.

• When a setpoint value is displayed press c to decrease value of a setpoint that is currently being modified. Holding the c button down for approximately 3 seconds will speed up the rate at which the setpoint value is decremented.

• In the Run Mode pressing c causes the display to flash TARE value to tare your reading (zeroing).

• Press the enter d button to access the submenus from a Top Level Menu item.

• Press d to store a submenu selection or after entering a value — the display will flash a

STRD

message to confirm your selection.

• To reset flashing PEAK or GROSS press d.

• In the Run Mode, press d twice to enable Standby Mode with flashing

STBY

PK/GRS

(UP)

TARE

(DOWN)

ENTER

0.50 [12.8]

+0.00

R0.19

4 PLCS

+0.00

R4.8

]

[

-0.19

-4.8

PANEL CUTOUT

18.11 [480.0]

17.53 [445.3]

XX.XXX *

FRONT VIEW

REAR VIEW

PANEL THICKNESS

0.625 [15.88] MAX

8.31 [210.8]

9.28 [235.7]

* MOUNTING HOLE LOCATION

WIRE PASS-THROUGH AREAS MAX DIAMETER OF FITTINGS: 1.25 [31.8] MAX PROTRUSION OF FITTINGS INTO CASE: 0.50 [12.7]

PANEL MOUNT

2.25 [57.1] *

BRACKET MOUNT

4.27

[108.6]

3.76

[95.4]

3.35 [85.1]

POWER
